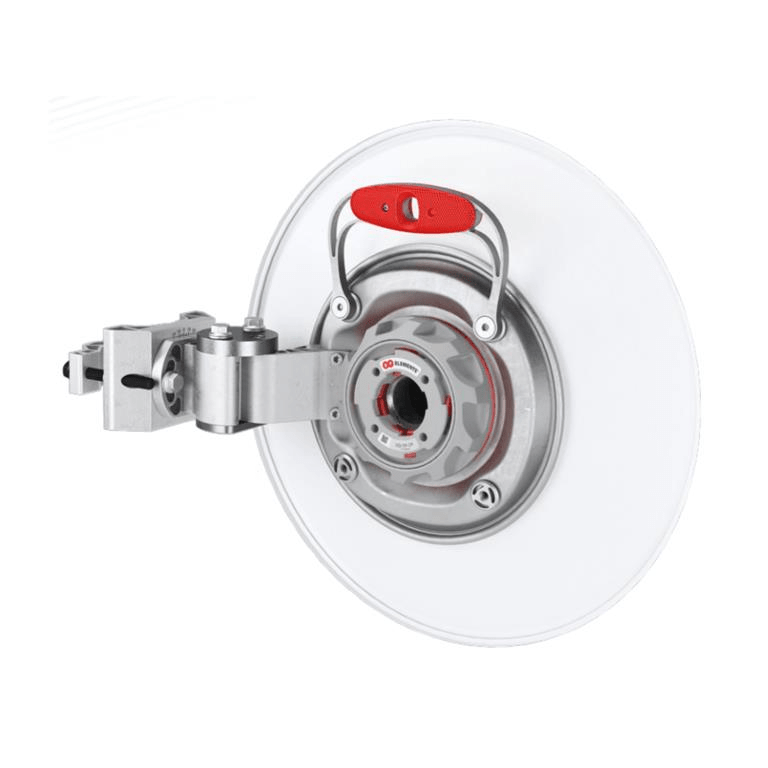

RF Elements 5100 Parabolic MIMO TP 27 UltraDish

PARABOLIC DISH ANTENNA WITH TWISTPORT™ CONNECTOR

UltraDish™ TP 27 is designed for subscriber module applications. Minimized sidelobes, wide frequency bandwidth, and stable gain in both polarizations assure dependable performance. Antenna reflector is made of aluminium to ensure a low weight and uniform shape. Our proprietary TwistPort™ waveguide connector enables intuitive radio connection and replacement.

Massive mount with improved grip and a wide range of applicable pole diameters makes the deployment easy and versatile. Stainless hardware comes with black coating to prevent from seizing at the installation.

SPECIFICATIONS:

Antenna Connection: TwistPort™ - Quick Locking Waveguide Port

Antenna Type: Parabolic Dish

Materials: UV Resistant ABS Plastic, Polycarbonate, Aluminium, Stainless Steel

Enviromental: IP65

Pole Mounting Diameter: 40-80 mm (1.5-3.1 inch) Recommended as close to 80 mm (3.1 inch) as possible

Temperature: -40 °C to +60 °C (-40°F to +140°F)

Wind Survival: 160 km/h (100 mi/h)

Wind Load: 351/30 N - Front/Side at 160 km/h (100 mi/h)

Effective Projected Area: 2878/246 cm2 - Front/Side (446.1/38.1inch2 )

Weight: 3.7 kg (6 lbs) – single unit (one antenna)*

PERFORMANCE

Gain: 27.5 dBi

Frequency Range: 5180 - 6400 MHz

Azimuth Beam Width -6 dB: H 10° / V 9°

Elevation Beam Width -6 dB: H 9° / V 10°

Azimuth Beam Width -3 dB: H 7° / V 6°

Elevation Beam Width -3 dB: H 6° / V 7°

Beam Efficiency**: 61%

Front-to-Back Ratio (Min): 37 dB

COMPATIBLE WIRELESS PLATFORMS

• any TwistPort™ Adaptor
• any SIMPER™ Radio
