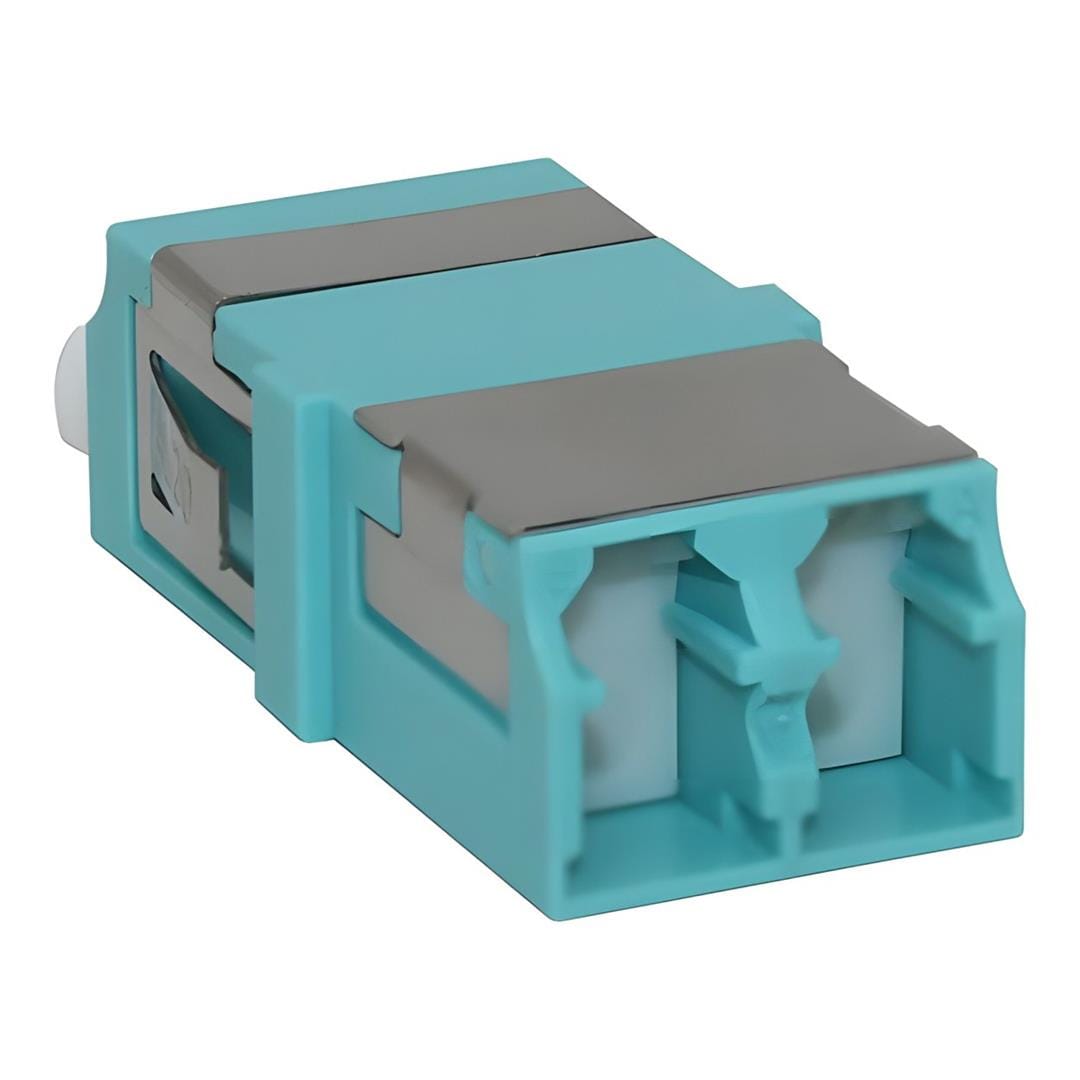

Molex Multi Mode OM3 LC-LC Internal Shuttered LC Adapter 182820250

Molex Multi Mode OM3 LC-LC Internal Shuttered LC Adapter 182820250

The LC connector is the result of increased demands for smaller easier-to-use fiber connectivity. The LC connector has reduced the space requirements on equipment bays and distribution panels by 50%. Molex LC Adapters feature an internal shutter which provides a barrier against harmful light emissions and dust invasion. The adapter also features precise zirconia ceramic alignment sleeves to accommodate either Singlemode, Multimode or Angle Polish (APC) connectors.

The Duplex LC adapter is available in either a snap mount or screw-mount installation style. Mounting dimensions of the Duplex internal shuttered LC adapter are identical to the standard Duplex LC adapter and can be used as direct a drop-in replacement.

Features:

• Two LC ports provide multiple Simplex or Duplex connection options
• Ceramic alignment sleeves accommodate Singlemode and Multimode operation
• RoHS Compliant
• Unique internal shuttered feature protected from harmful light emissions. Available upon application
• Snap or screw-style mounting allows for installation flexibility
• Standard LC Duplex compatible mounting provides a direct drop-in-replacement solution

Technical Specifications:

Mechanical

Screw Torque (Screw-mounting version)
0.33 N.M Max

Durability
≥ 500 cycles

Shipping Weight
35 g / 1.23 oz

Physical

Housing
Polymer

Alignment Sleeve
Zirconia ceramic

Operating Temperature
-40 to +75°C / -40 to +167°F
