Molex Field Termination Plug Cat6A Right Angle KSP-00002

Molex Field Termination Plug Cat6A Right Angle KSP-00002

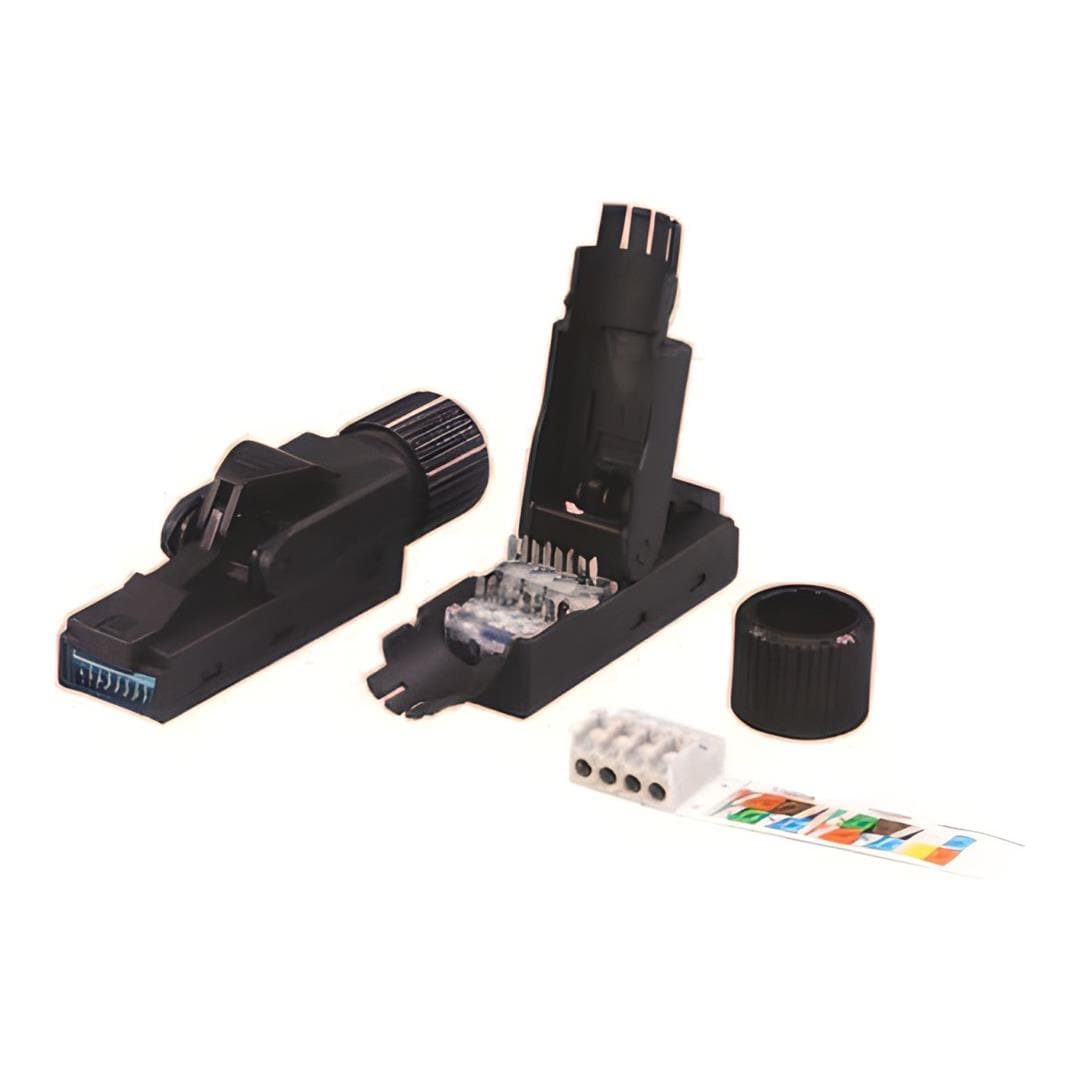

The Molex Category 6A shielded field termination plug is designed to support 10gb networks.The Molex Category 6A shielded field termination plug is designed to support 10gb networks and can be easily terminated using parallel jaw pliers.

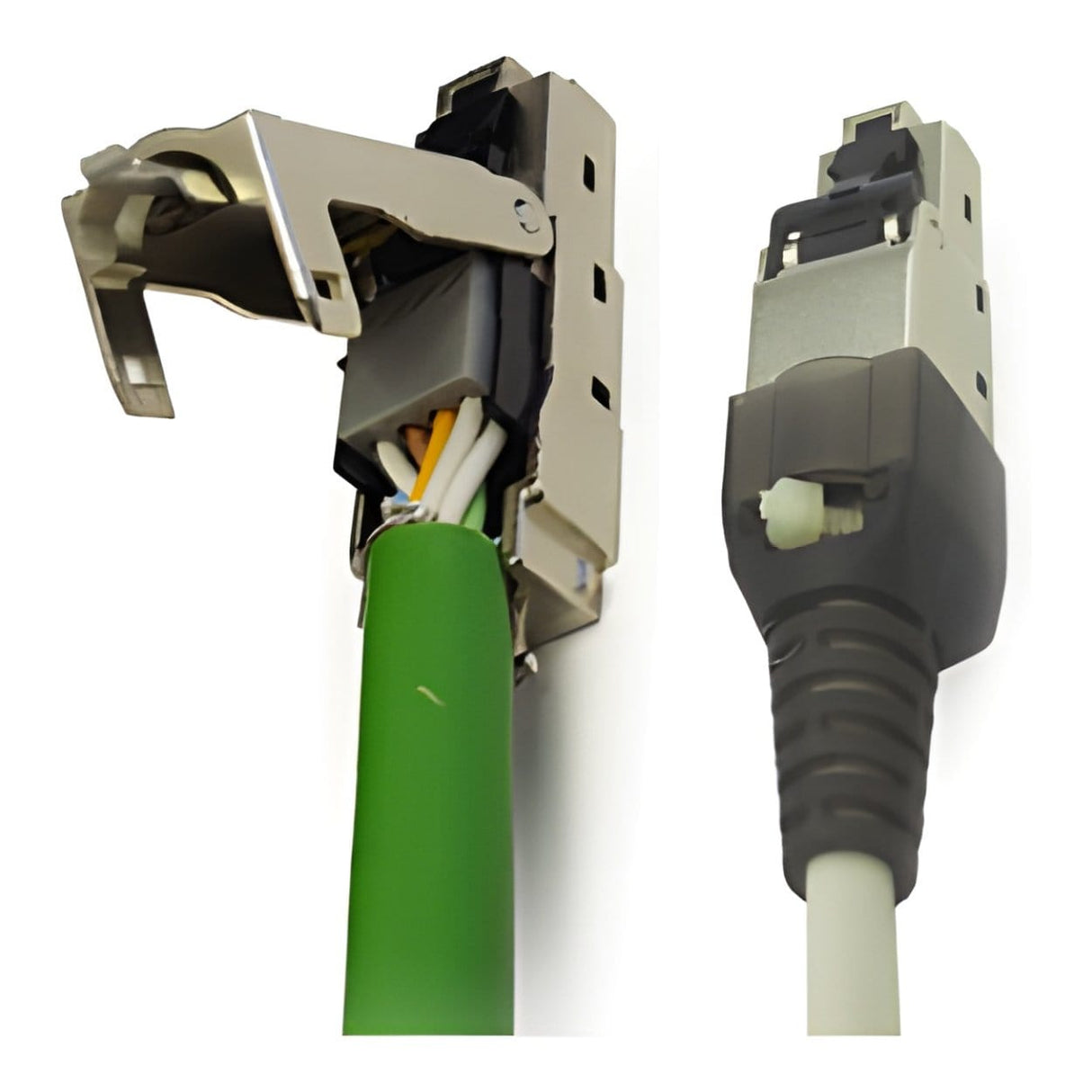

Termination is accomplished by placing the conductors into the proper wire slots in the wire cap. Place the wire cap onto the plug and use pliers to squeeze the wiring cap. All eight conductors are simultaneously terminated when the wire cap is squeezed. This process ensures quick, consistent, reliable terminations. The IDC is designed to accommodate different diameter conductors from 22 AWG- 26 AWG Solid Wire. The Field Termination Plug meets TIA-568.2-D Category 6A component performance, Cat 5e/6 and 6A Direct Attach link and channels.

Ideal for use to provide high-bandwidth wireless access points and other IP-enabled devices such as: Surveillance cameras and infrastructure monitoring. A field modular plug that is simple to terminate and meets Cat 6A performance requirements and is also ideal in premise automation such as lighting, HVAC and other environmental sensor applications.

Features:

• Supports 10gb networks
• Designed to accommodate conductors from 22 AWG - 26 AWG
• IP 20 rating; TIA-568.2-D Cat 6A MPTL compliant; Backward compatible with C6/C5e MPTL
• UL approved
• Ideal for wireless access points and IP-enabled devices
• POE+ Compliant
• Tool-free, no punch down tool required
• RoHS compliant
• Plug to plug not supported

Technical Specifications:

Mechanical

Transmission Performance
Cat.6A/Class EA Direct Attach Link and Channels

Plug Protection Category
IP20

Wiring Label
TIA 568A/B & PNO

Working Temperature
-40 °C to 85 °C

Termination Capability

• Solid Wire: 22–26 AWG
• Stranded Wire: 22–27 AWG
• Re-termination Capability: Up to 5 times
• Supporting Cable Diameter: 6–9 mm

Plug Housing
Zinc Alloy

Plug Pins
Phosphor Bronze with 50 µ” Gold Plating

Durability
750 Mechanical Cycles

Electrical

Current Rating
1.5 A

Dielectric Withstanding Voltage
1000 V DC

Insulation Resistance
500 MΩ Minimum

Contact Resistance
20 mΩ Maximum

Commercial Standards

• IEC 60603-7-5
• UL 1863, UL 2043
• CSA C22.2
• TIA-568.2-D Cat 6A
• TIA-1096-A
• IEC-60603-7-51
• IEEE 802.3bt PoE Type 3 / Type 4 (90W at PSE Side)
• EN 50173
