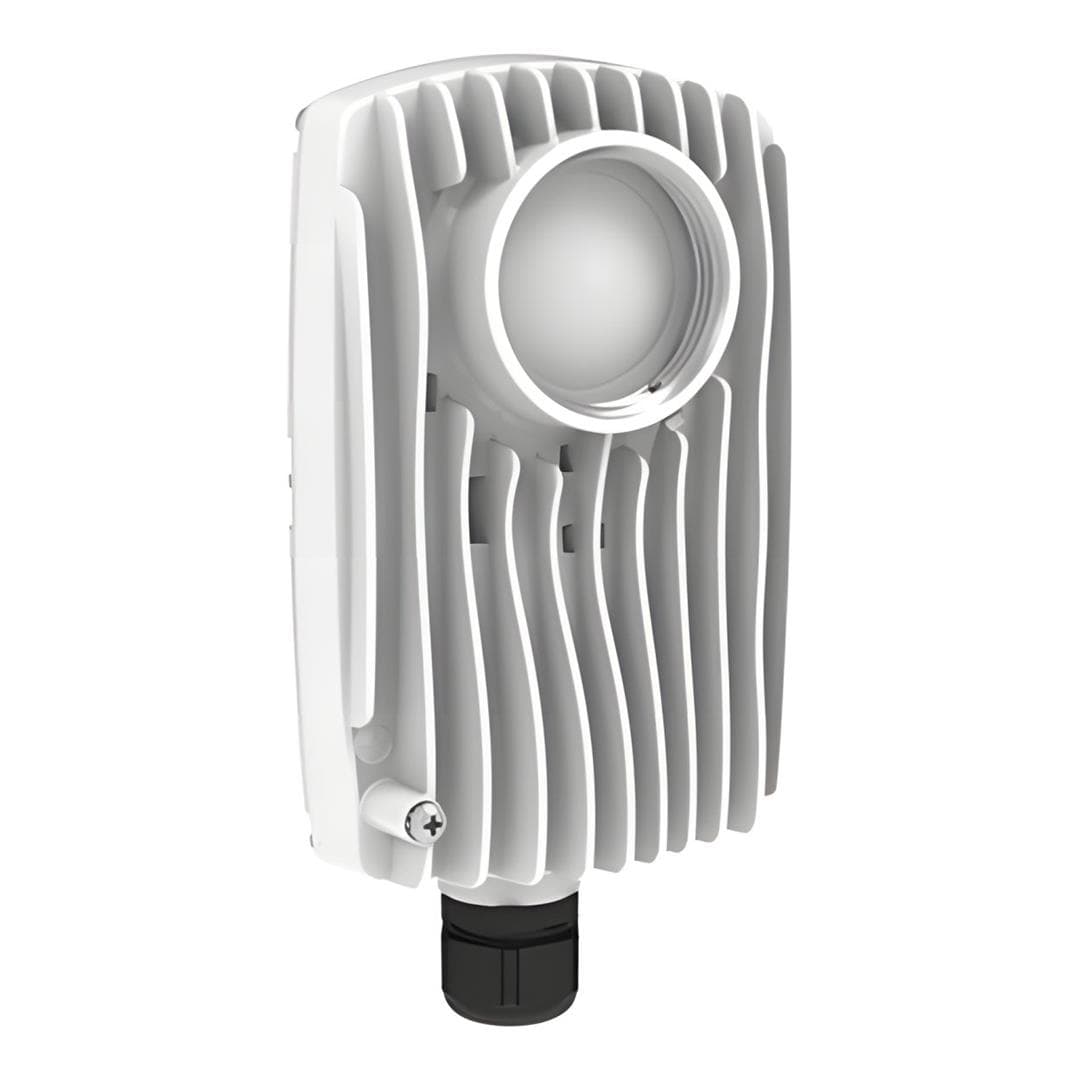

Mimosa C6x Lite Edition PTP & PTMP Wireless Radio

Mimosa C6x Lite Edition PTP & PTMP Wireless Radio

The Mimosa C6x Lite Edition: the next-generation value leader for fixed wireless. Delivering up to 750 Mbps in Point-to-Multipoint and 1.0 Gbps in Point-to-Point modes, the C6x LE is purpose-built for cost-effective deployments. With streamlined 80 MHz channel operation, adaptable range options, and a rugged IP67-rated design, it’s the ideal workhorse for scalable broadband connectivity.

Smart Performance Choice

Mimosa’s C6x Lite Edition redefines value-driven high-speed connectivity with reliable Point-to-Point and Point-to-Multipoint performance, delivering up to 1.0 Gbps. Built on the latest 6 Series platform and designed for 80 MHz channel efficiency, the C6x Lite combines rugged durability with advanced interference reduction to ensure dependable broadband in diverse environments.

Take PTMP to a New Level

Delivering up to 750 Mbps in PTMP deployments, the C6x - Lite Edition pairs seamlessly with beamforming technologies on the A6 access point to provide reliable subscriber scaling, efficient noise management, and optimized operation on the 6 GHz band.

Cost-Effective PTP Links

Reaching up to 1.0 Gbps in PTP deployments, the C6x - Lite Edition delivers cost-effective, gigabit-class connectivity for backbone and backhaul links. With streamlined 80 MHz channel operation and advanced interference management, it ensures dependable performance even in challenging environments.

Going the Distance

The Mimosa Design Tool simplifies PTP and PTMP connectivity evaluation by calculating expected performance and reliability with visual aids like terrain elevation. It provides precise installation reports and heatmap-based access point coverage planning, accounting for factors like weather and interference.

Flexible Antenna Options

The Mimosa's X-Series of products are the industry’s most versatile, modular, radio solutions with six gain options (8, 12, 16, 20, 25, or 30 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity.

Technical Specifications:

Physical Specifications

Dimensions (H × W × D)
175 × 70 × 61 mm

Weight
0.7 kg (1.54 lb)

Power

Power Consumption
20 W Maximum

Maximum Output Power
27 dBm

Environmental

Ingress Protection Rating
IP67
