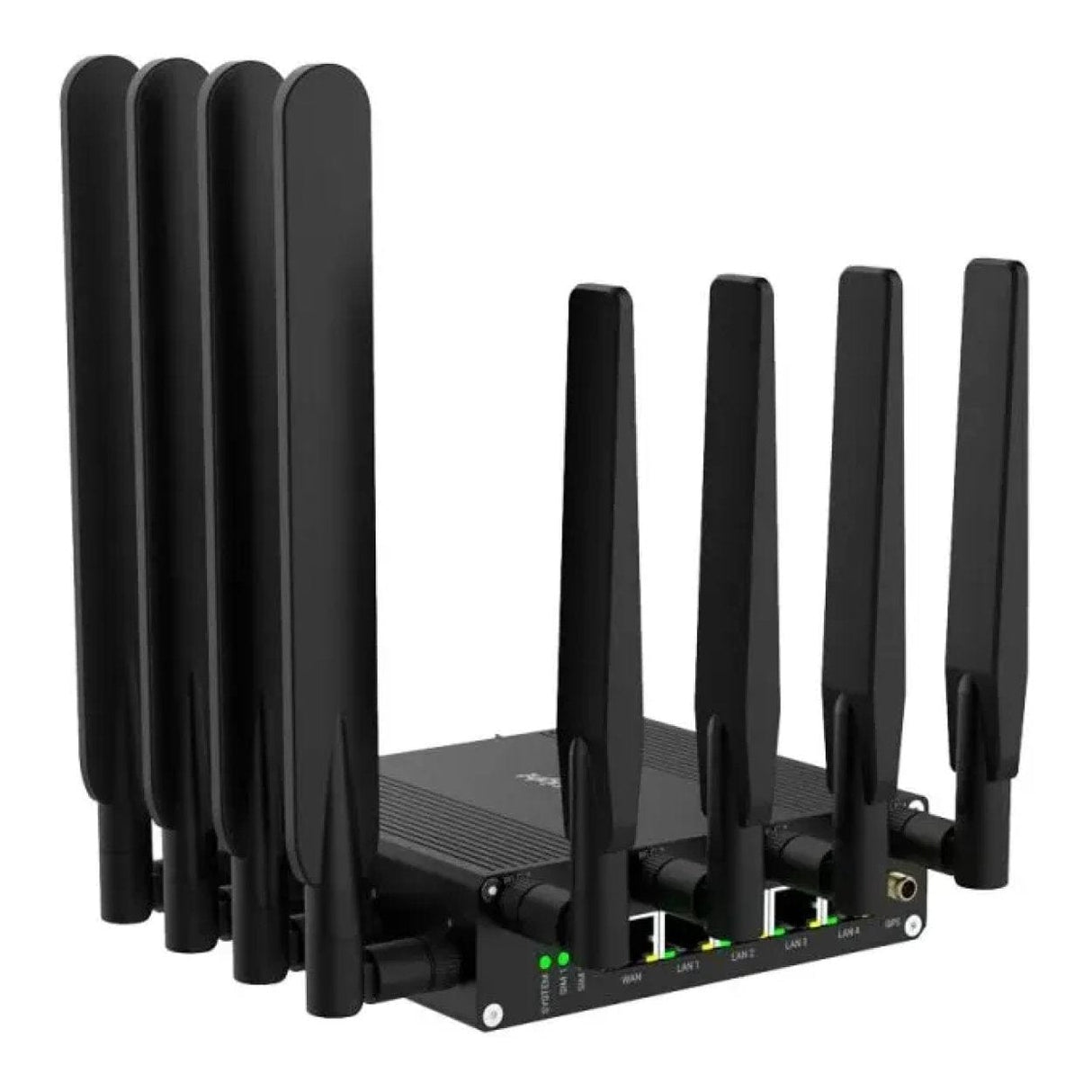

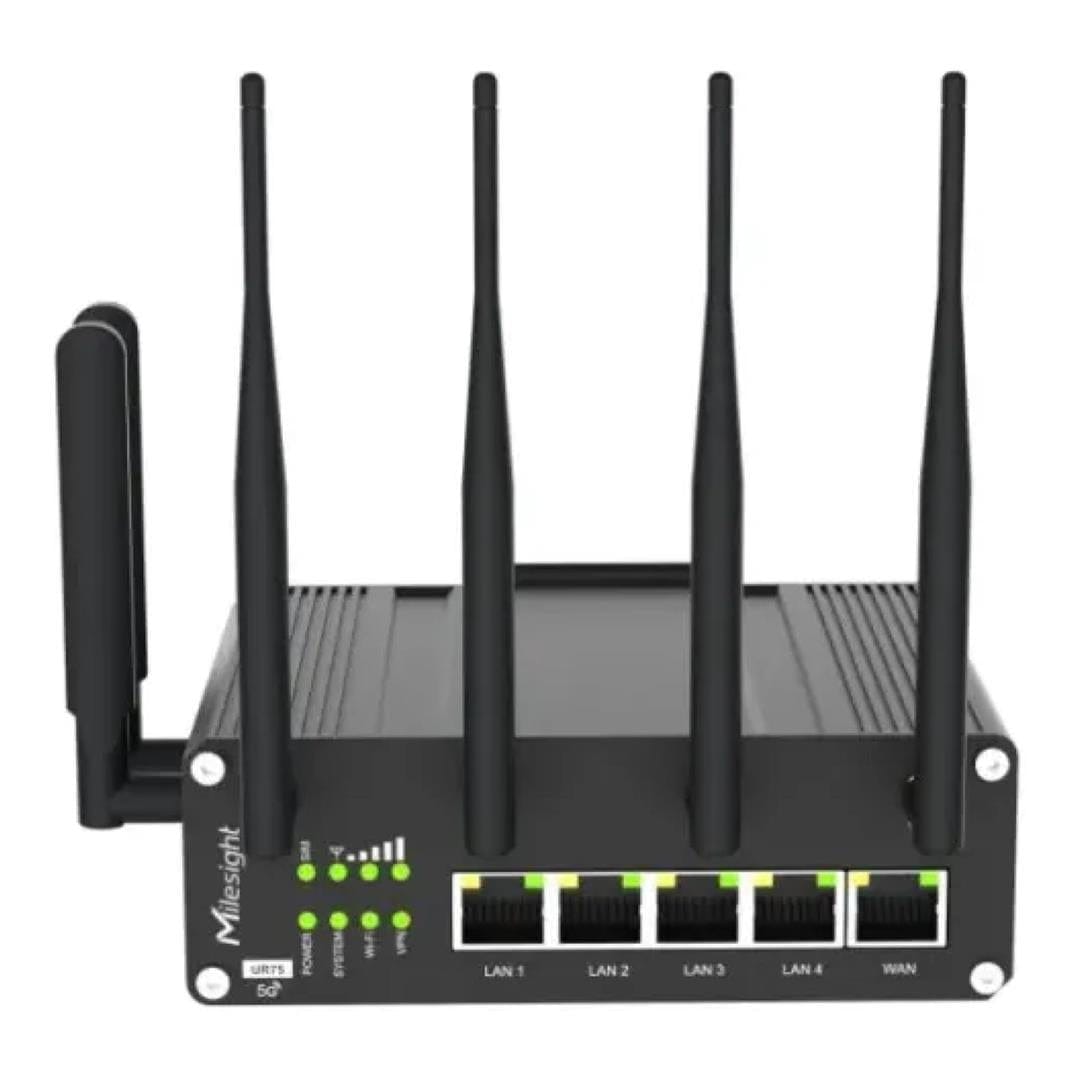

Milesight UR75 5G Industrial Cellular Router with GPS & PoE UR75-504AE-P-W2

Milesight UR75 5G Industrial Cellular Router with GPS & PoE UR75-504AE-P-W2

Ultra Series to Deliver Ultra High Performance

Milesight UR75, a state-of-the-art 5G router designed for industrial-grade IoT applications. It is a powerful and reliable solution that allows for seamless data transmission and remote management in demanding environments.

Features:

• Ultra-fast Connectivity and Ultra-high Reliability
• Rich Interfaces for Different Applications
• Industrial Grade Design for Harsh Environment
• Remote Management

What Is 5G?

5G's ultra high-speed, which is around 100 times faster than 4G, is designed to connect virtually everyone and everything together including machines, objects and devices.

Ultra-fast Connectivity

• Superior 5G Network
• 5G Sub-6GHZ enables wider signal coverage with superb download speed up to 4.67 Gbps
• Strong Wi-Fi Performance
• Wi-Fi 6 allows 2.4G & 5G dual band concurrent connections up to 1.8 Gbps download speed

Advanced OpenCPU System

UR75 equips upgraded quad-core CPU ARM Cortex-A55, with bigger memory for faster data transmission.
Adopting OpenCPU system, UR75 has a more simplified yet efficient frame work with the benefits of:

• Lower Power Consumption
• Reduced Investment Cost
• Increased Flexibility and Performance

Ultra-high Reliability

• Quick Network Backup
• Automated failover/failback backup among Ethernet, Cellular(dual SIM) and Wi-Fi
• Embedded Watchdog
• Embedded with hardware watchdog to automatically recover from various failures
• Security Protection
• Equipped with multiple security protection measures such as ACL, DMZ, SYN-Flood protection, and data filtering to ensure that network is secured

Rich Interfaces for Multiple Applications

UR75 supports serial ports (RS232/RS485), I/O (input/output), and GPS, enabling you to scale up M2M applications. UR75 also supports USB 3.0 (Type-C) for power supply, network supply and debug.

Industrial Grade Design for Harsh Environment

With Wide operating temperature range from -40°C to 70°C and IP30 rated metal housing, UR75 stays performant under harsh environment.

Technical Specifications:

Hardware System
CPU: Quad-core ARM Cortex-A55, 2 GHz
Memory: 1 GB LDDR4x RAM and 1 GB NAND Flash
Extendable Storage: 1 × M.2 NVMe SSD Interface

Cellular Interface
Network: 5G NR SA & NSA / 4G LTE / WCDMA
Frequency: 5G Sub-6: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78; LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32; LTE TDD: B38/B40/B41/B42/B43; WCDMA: B1/B5/B8
Antenna: 4 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slot: 2 (Mini SIM-2FF), 1.8V/3V

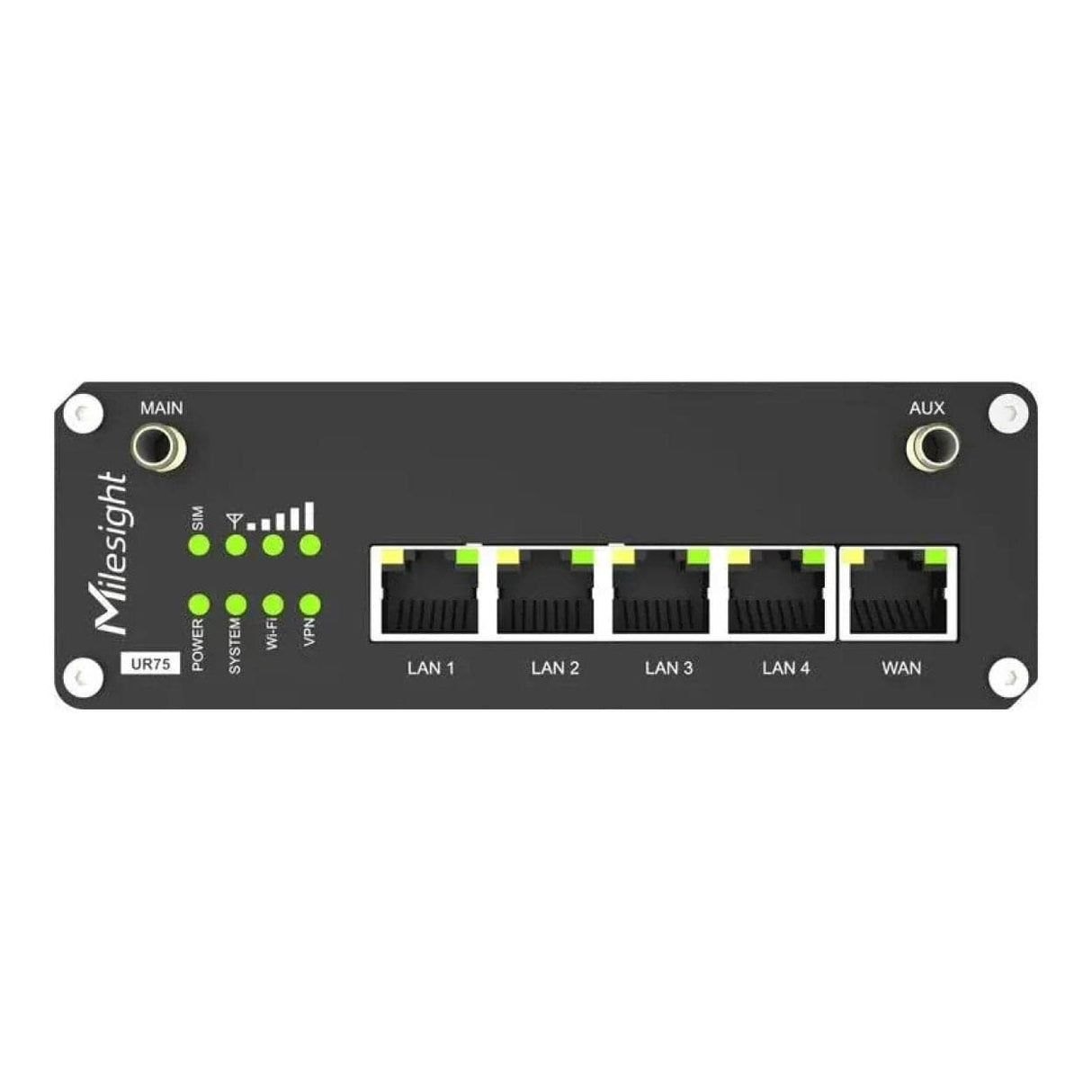

Ethernet Interface
Numbers: 5 × 10/100/1000 Mbps
Property: 1 × WAN + 4 × LAN
Mode: Full or Half Duplex (Auto-Sensing)
Ethernet Isolation: 1.5 kV RMS
PoE (Optional): 4 × 802.3 af/at PoE PSE on LAN Ports

Wi-Fi Interface
Antenna: 4 × 50 Ω SMA Connectors (Center PIN: RP-SMA Female)
Standards: IEEE 802.11b/g/n/ax 2×2 MIMO, 2.4 GHz; IEEE 802.11a/n/ac/ax 2×2 MIMO, 5 GHz
Max Bit Rate: 2.4 GHz: 600 Mbps, 5 GHz: 1200 Mbps

GNSS
Antenna: 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology: GPS / GLONASS / BDS / Galileo / QZSS
Positioning Accuracy: 2 m CEP (Open Air)

Serial Interface
Numbers: 1 × RS232 + 1 × RS485
Connector: 3.5 mm Terminal Block
Baud Rate: 300bps to 230400bps

DI/DO
Numbers: 1 × DI + 1 × DO, Galvanic Isolation
Connector: 3.5 mm Terminal Block
Digital Input: Dry Contact
Digital Output: Wet Contact, maximum 0.3A@30VDC

Others
USB: 1 × USB 3.0 (Type-C) for Power Supply, Network Supply and Debug
Reset Button: 1 × RESET
LED Indicators: 1 × SYSTEM, 1 × SIM1, 1 × SIM2
Power Connector: 1 × 2-pin 5.08 mm Terminal Block with Surge-Protection and Reverse Polarity Protection
Built-in: Watchdog, Timer

Power Supply and Consumption
Power Input: 9-48 VDC by Power Connector (48V required for PoE); 5V, 3A by Type-C Port
Power Output (Optional): 4 × 802.3 af/at PoE PSE on LAN Ports, Per Port 30W Max., Total 60W Max.
Power Consumption: Without Wi-Fi: Typical 2.8 W, Max 5.5 W (Non-PoE); With Wi-Fi: Typical 7 W, Max 13.7 W

Physical Characteristics
Ingress Protection: IP30
Housing & Color: Metal, Black
Weight: 567.2 g
Dimension: 135 × 115 × 36.4 mm (5.31 × 4.53 × 1.43 in)
Installation: Desktop, Wall, or DIN Rail Mounting

Environmental
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Relative Humidity: 0% to 95% (Non-condensing) at 25°C/77°F

Approvals
Regulatory: CE, RCM
Environmental: RoHS
