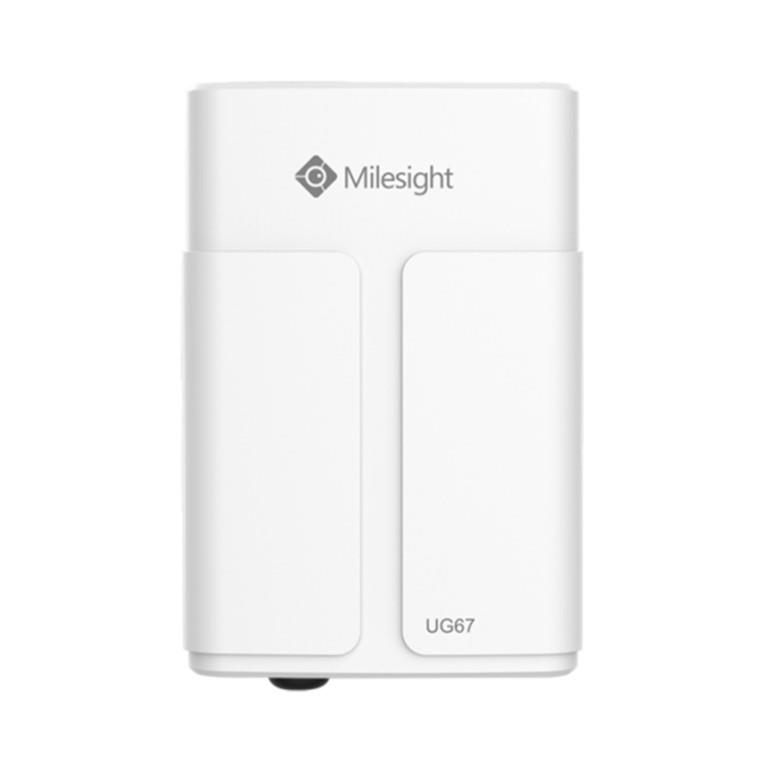

Milesight UG67 Outdoor LoRaWAN Gateway with LTE Support UG67-L04EU-868M

Milesight UG67 Outdoor LoRaWAN Gateway with LTE Support UG67-L04EU-868M

UG67 is a robust 8-channel outdoor LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG67 supports connection with more than 2000 nodes. UG67 has line of sight up to 15 km and IP67 waterproof case, which is ideally suited to smart agriculture, smart metering and many other outdoor applications.

UG67 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as The Thing Stack, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud

Features

• IP67 Rating
• LTE Support
• 64-bit Quad-Core Processor
• New SX1302 LoRa Chip
• Built-in Supercapacitor
• Multiple Backhaul Connectivities
• Embedded Network Server
• Compatible with Multiple Network Servers
• Global LoRaWAN Frequency Plans

Technical Specification

CPU: Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory: 512 MB DDR4 RAM
Flash: 8 GB eMMC

LoRaWAN
Antenna: 2x Internal Antennas + 2x 50 Ω N-Female External Connectors
Channel: 8 (Half/Full-duplex)
Frequency Band: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Sensitivity: -140dBm Sensitivity @292bps
Output Power: 27dBm Max
Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface
Antenna: Internal Antenna
Standards: IEEE 802.11 b/g/n, 2.4GHz
Mode: AP or Client mode
Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption
Tx Power

• 802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
• 802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
• 802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
• 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
• 802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
• 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
• 802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface
Antenna: Internal Antenna
SIM Slot: 1 (mini SIM-2FF)

GPS
Antenna: Internal Antenna
Sensitivity: -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy: <2.5m CEP

Others
Reset Button: 1 × RST
Console Port: 1 × Type-C
LED Indicators: 1 × SYS, 1 × LoRa, 1 × LTE
Built-in: Watchdog, RTC, Timer

Power Supply and Consumption
Power Input: 1x 802.3 af PoE input or 12 VDC with M12 Connector
Power Consumption: Typical 3.6 W, Max 4.8 W
