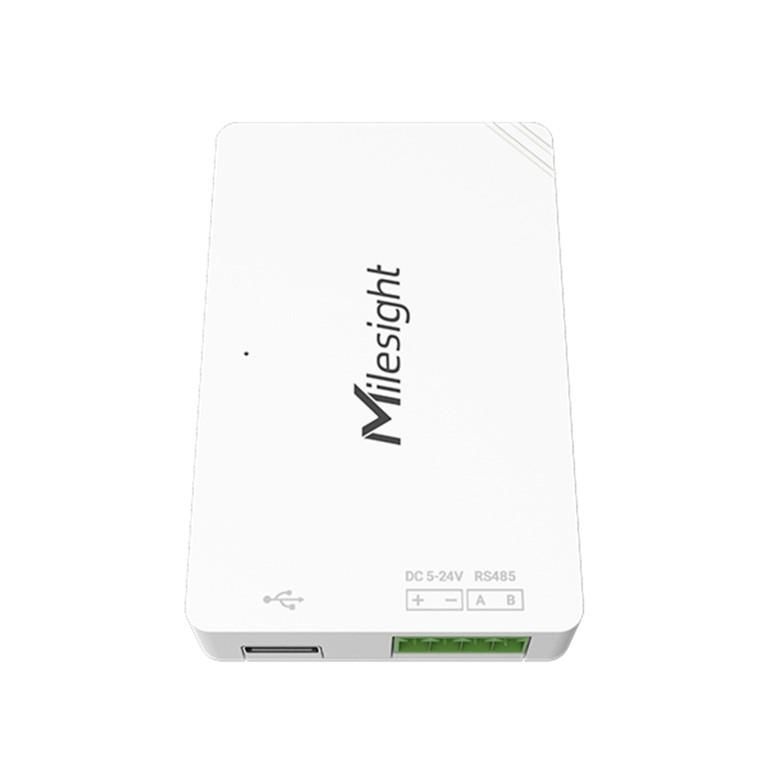

Milesight UC100 IoT Controller UC100-868M

Milesight UC100 IoT Controller UC100-868M

UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN networks. It can read up to 16 Modbus RTU devices and support Modbus transparent transmission between server and RS485 devices as a Modbus to LoRaWAN converter. Besides, UC100 supports multiple trigger conditions and actions which can work autonomously even when the network dropped. Combining with Milesight IoT Cloud solution, it can monitor and control remote assets via web server or mobile App easily.

UC100 is widely used in indoor applications like smart metering, smart cities, building automation, etc.

Features

• Modbus RS485 to LoRaWAN Converter
• Data Collection Up to 16 Registers
• Local & Remote Easy Configuration
• Milesight D2D Controller & Agent

Technical Specification

Wireless Transmission
Technology: LoRaWAN, Milesight D2D
Antenna: Internal Antenna
Frequency: CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz)
Sensitivity: -137dBm @300bps
Mode: OTAA/ABP Class C
Advanced Feature: Milesight D2D Controller, Milesight D2D Agent

Data Interface
Port: 1x RS485
Connector: 3.5mm Terminal Block
Terminal Resistor: 1x 120 Ω Resister Switch
Baud Rate: 1200 - 115200 bps
Protocol: Modbus RTU, support reading 16 register values

Others
Configuration Port: 1x Type-C
Reset Button: 1x Reset Button (Internal)
LED Indicator: 1x System
Power Connector: 3.5 mm Terminal Block
Power Supply: 5-24 VDC by Terminal Block or 5 VDC by Type-C Port
