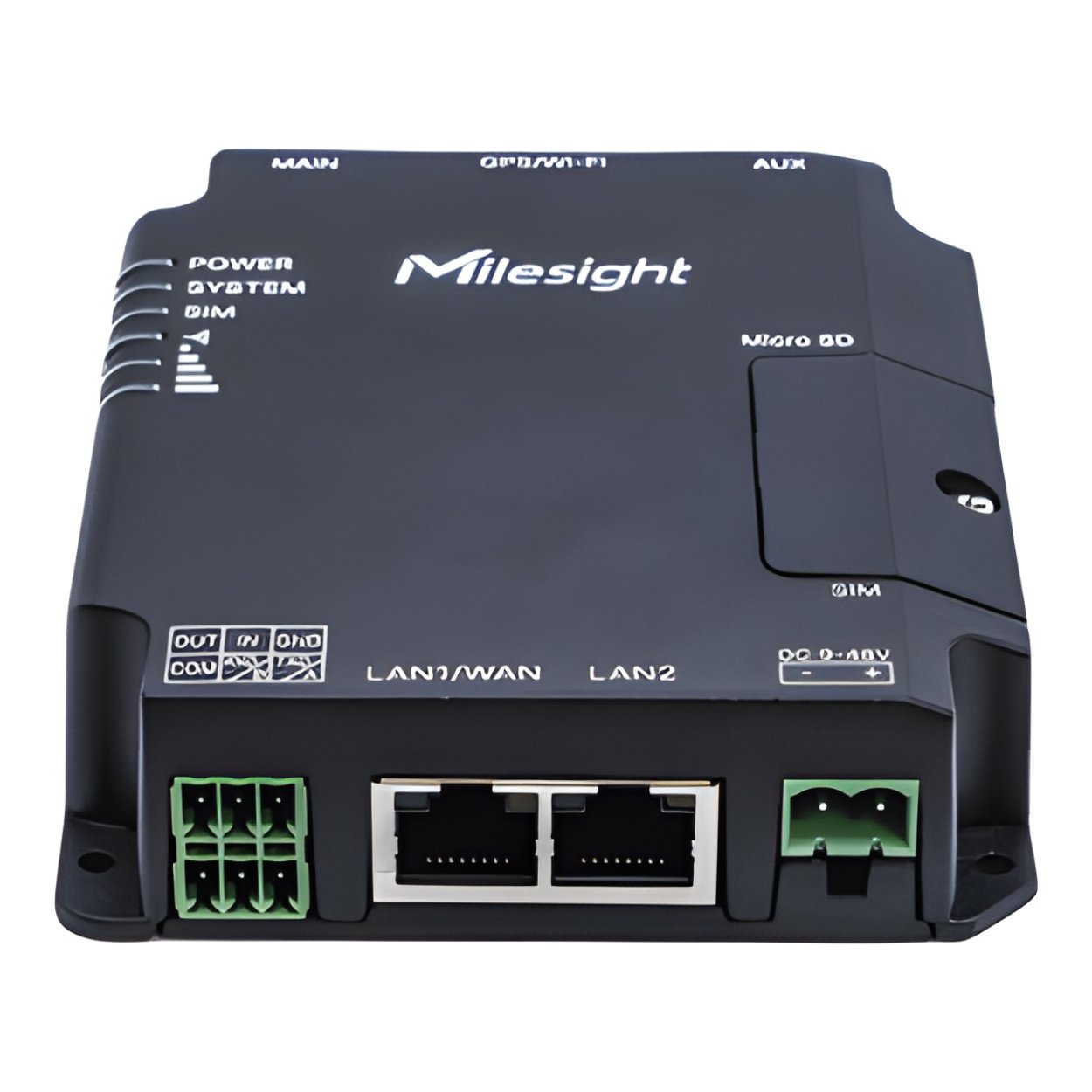

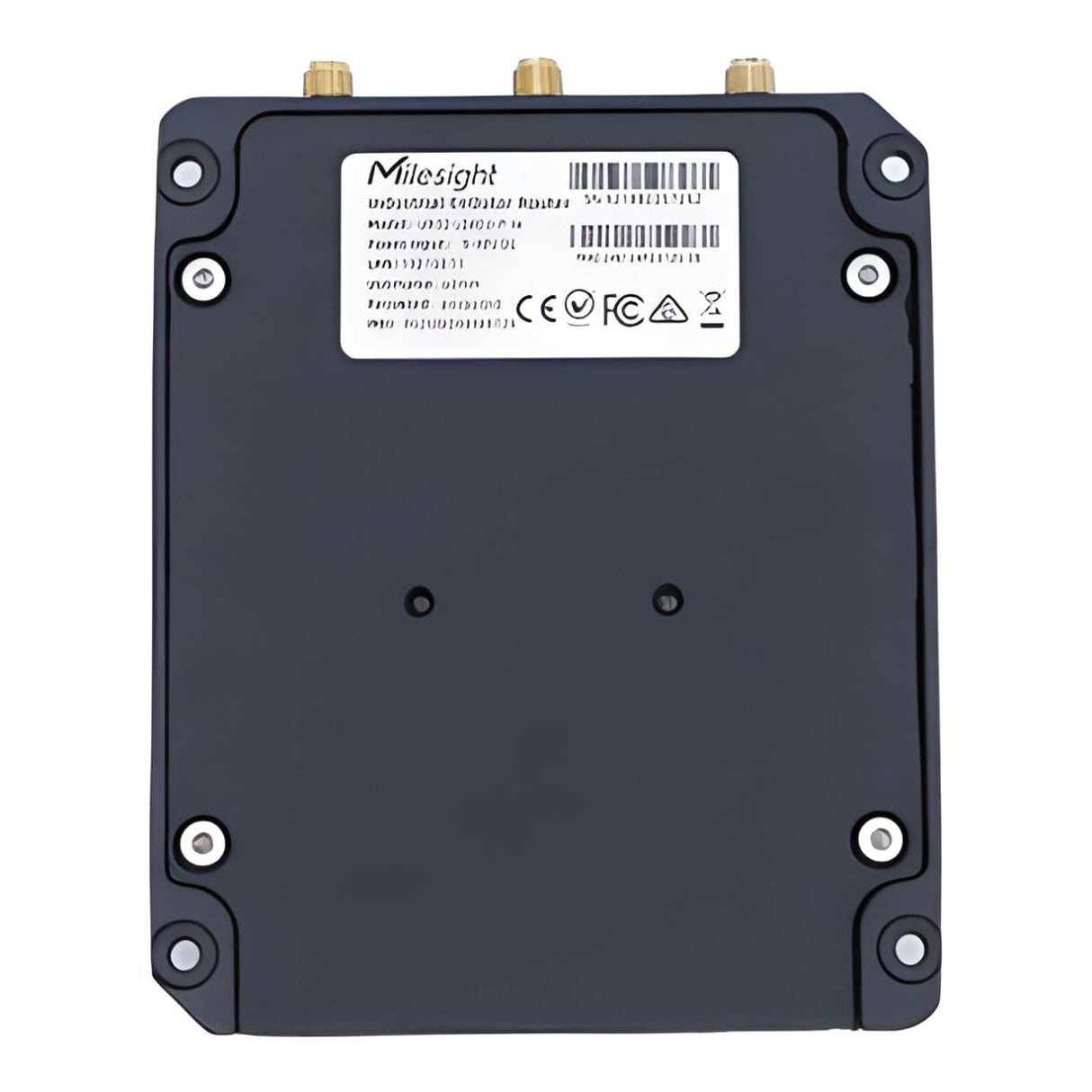

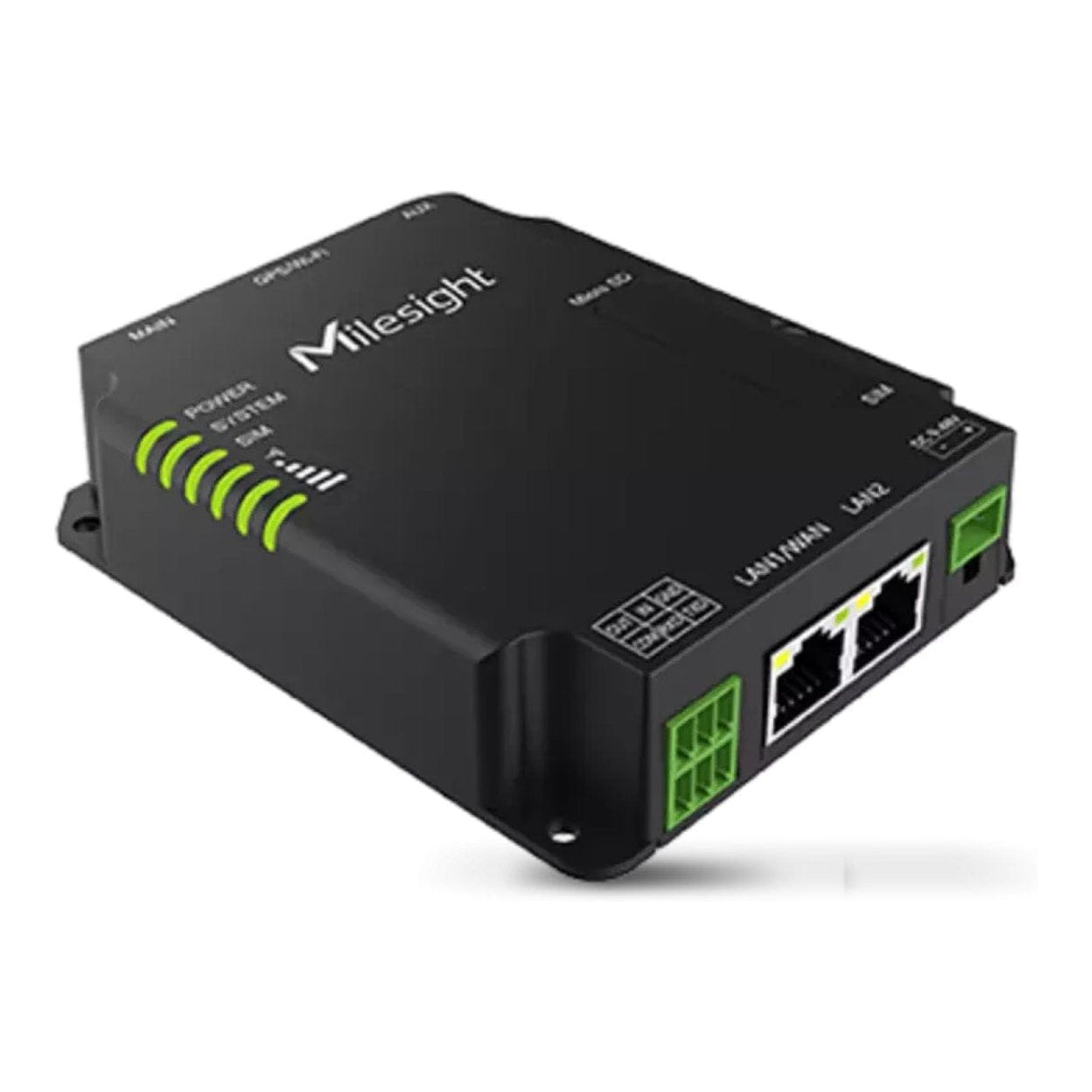

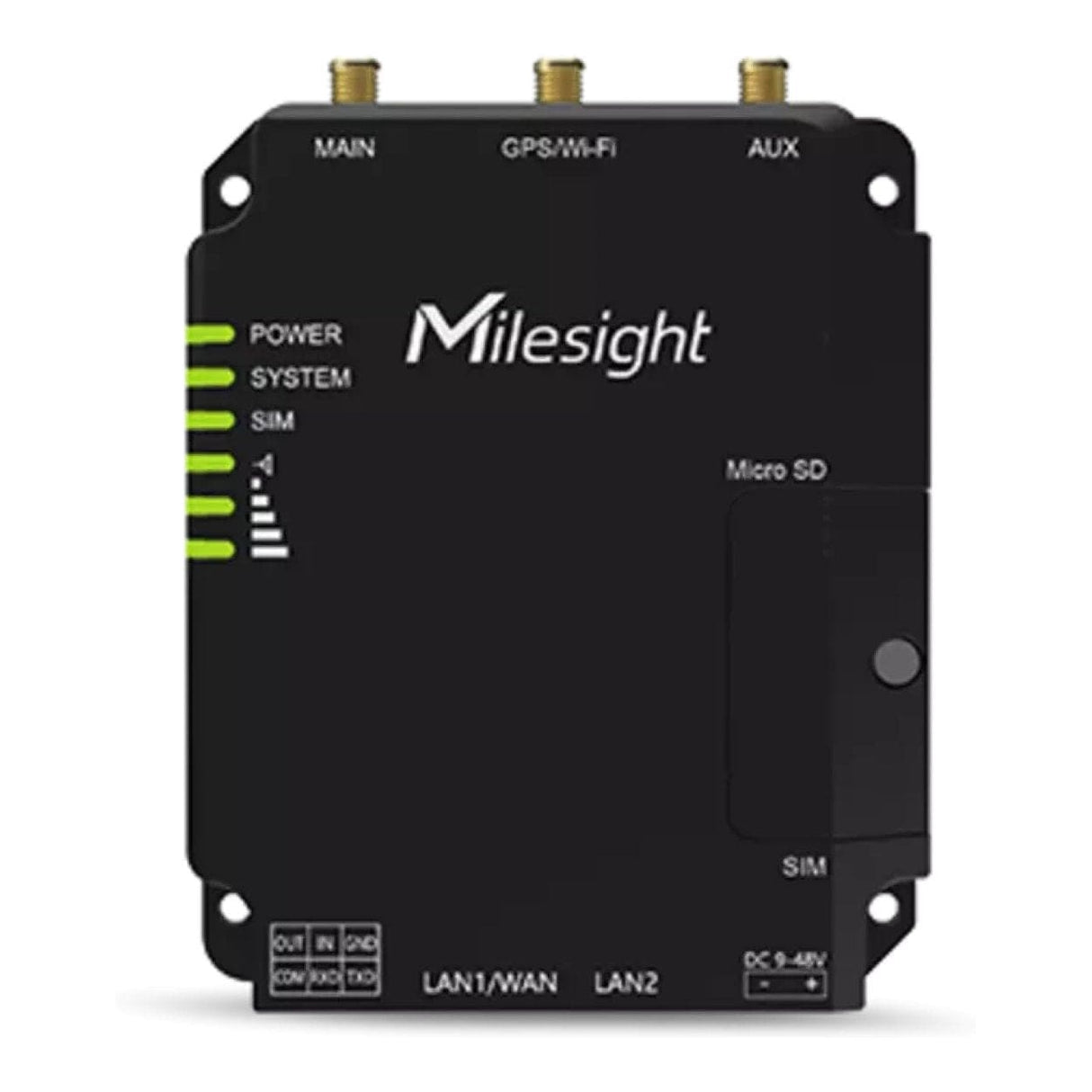

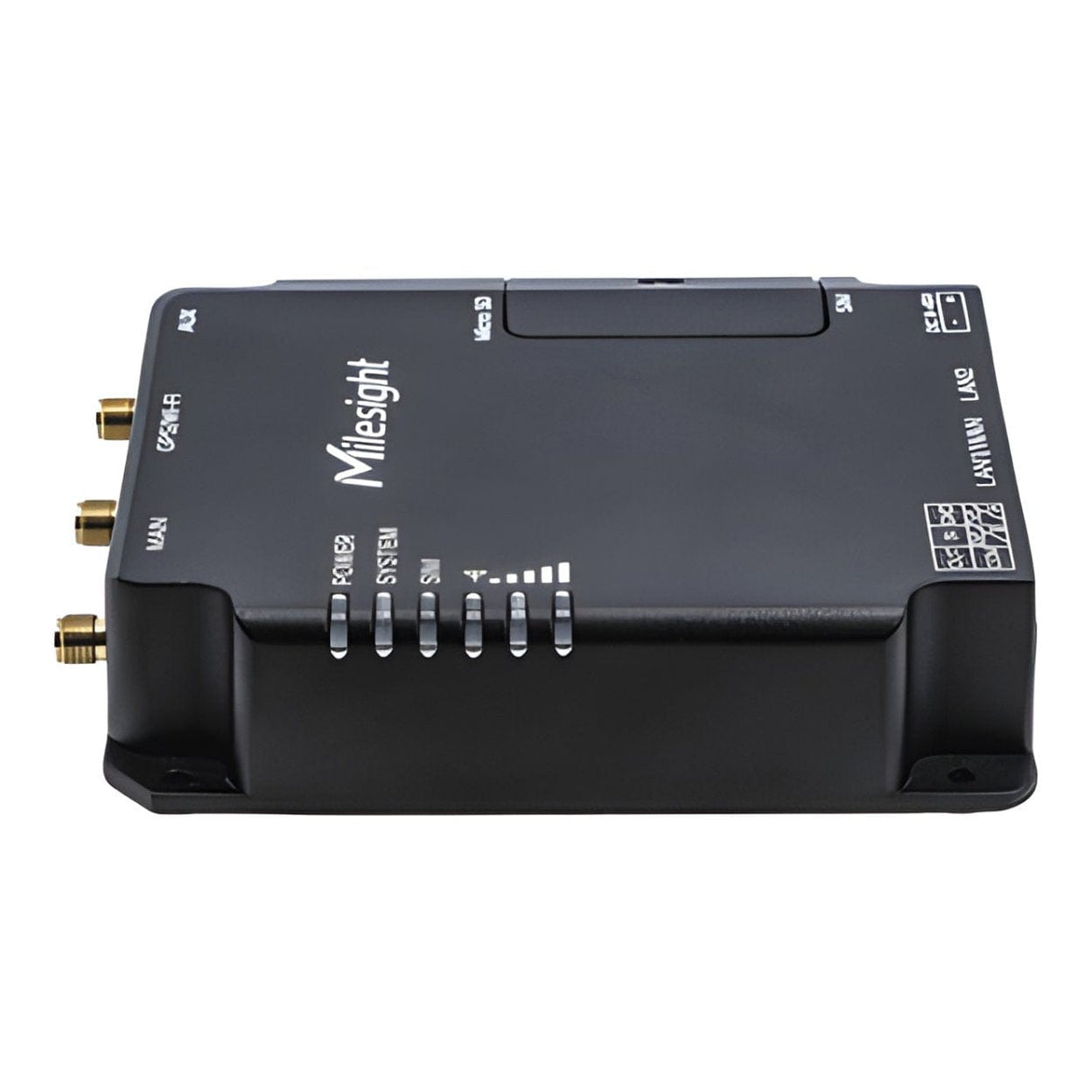

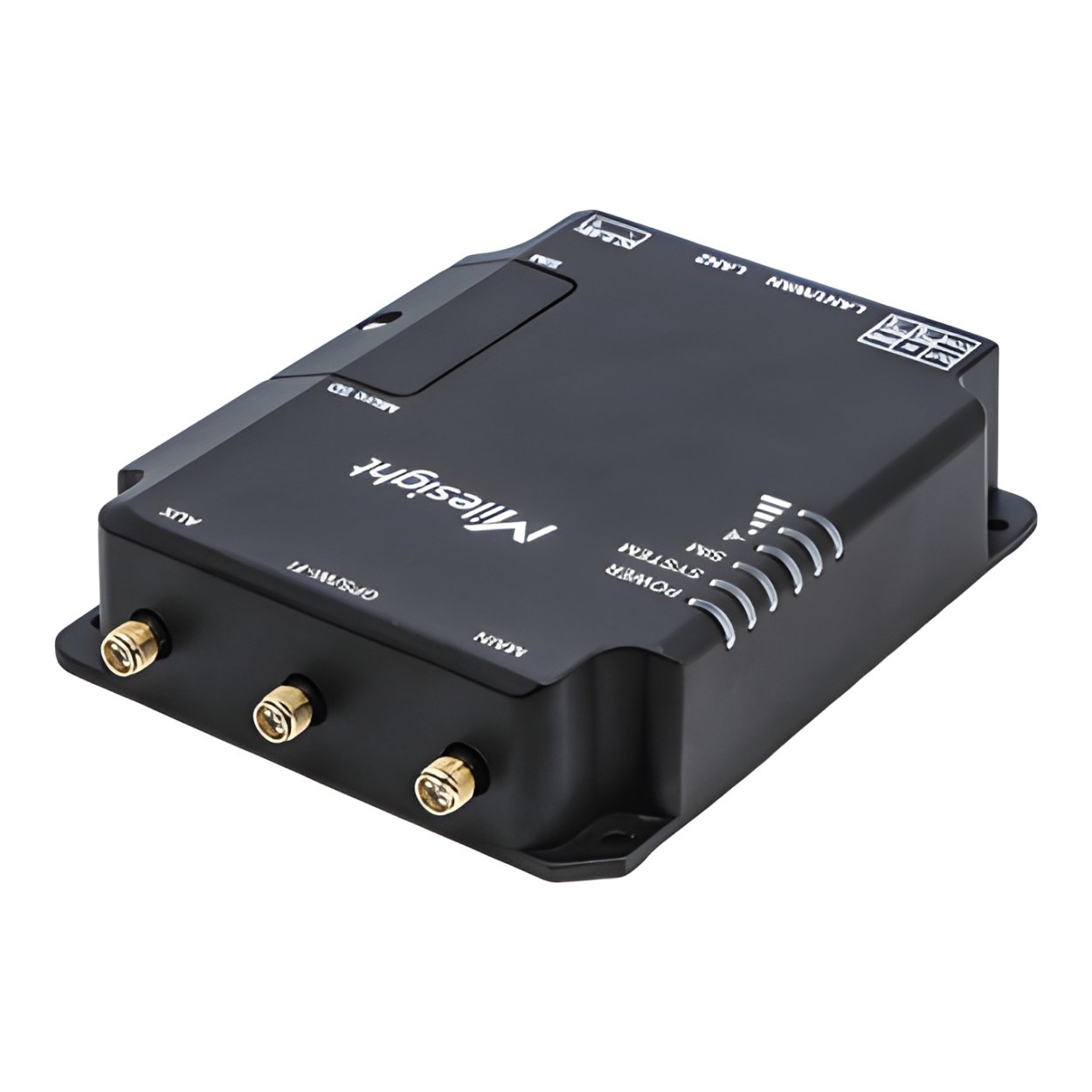

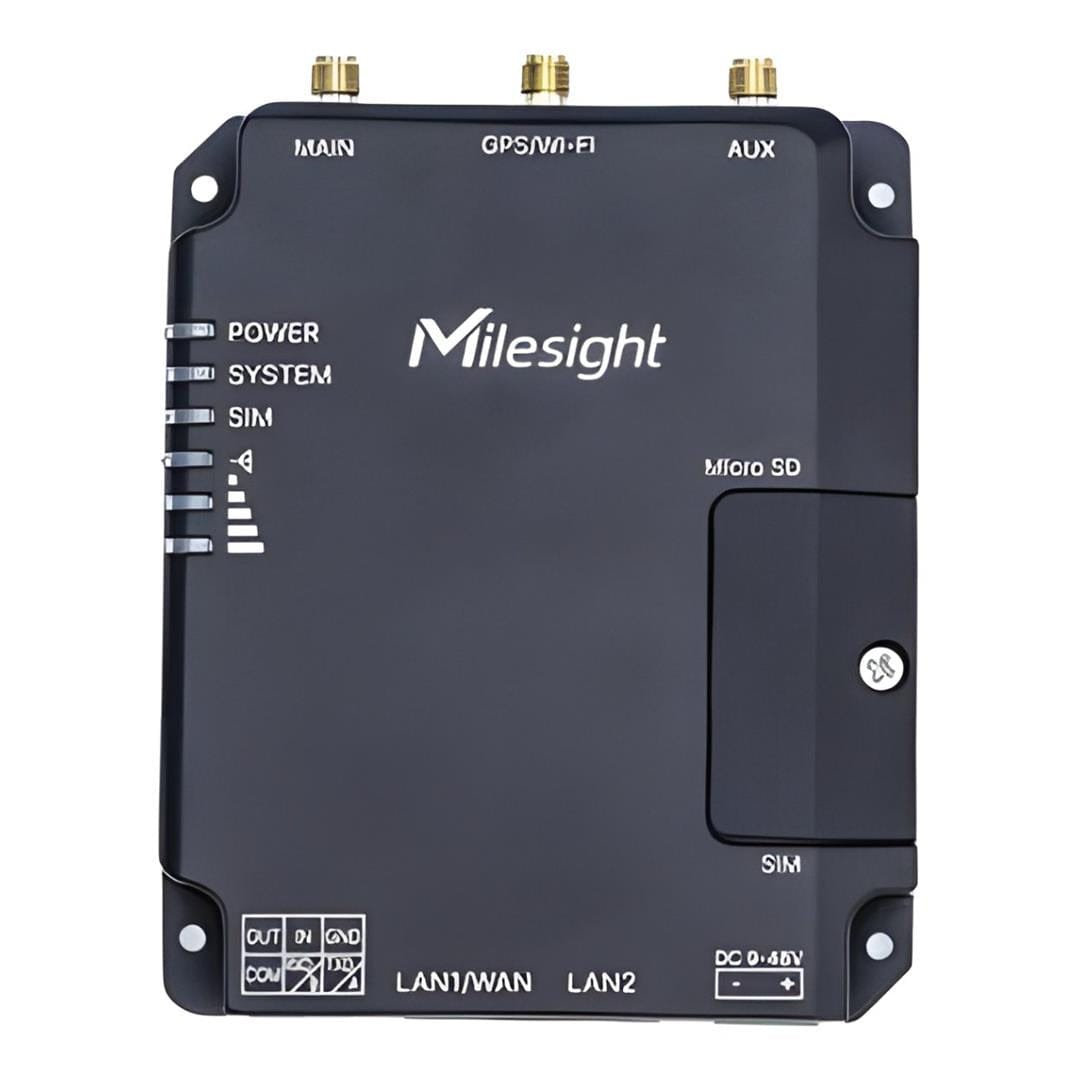

Milesight Pro Series 3G 4G Industrial Router UR32-L04EU-G

Milesight Pro Series 3G 4G Industrial Router UR32-L04EU-G

UR32 is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime.

Integrating embedded cellular modem and dual SIM function, the UR32 provides 3G/4G cellular network with 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports Wi-Fi that compliance with 802.11b/g/n standard. All these capabilities deliver users an uninterrupted internet access.

Easy deployment and comprehensive remote device management makes UR32 versatile in most of IoT/M2M applications.

Features:

• Industrial Grade Design for Harsh Environment
• Rugged And Pocket-Sized Design
• Embedded Python SDK for Secondary Development
• Ultra-High Protection System
• Rich Interfaces for Multiple Applications
• Stable Cellular, Ethernet, and Wi-Fi Transmission
• Open VPN Tunnel and Various Protocols (Including DLMS/Modbus)
• Remote Management on MilesightVPN and DeviceHub

Industrial Grade Design

To fulfill the market demand, UR32 is built with NXP industrial grade processor, IP30 rated hardened enclosure, industrial components, and a wide operation range from -40°C to 70°C (-40℉ to +158℉) for even harsh environments. It also features a broad supply voltage range of 9V to 48V DC.

Compact Design

With a compact design, UR32 is specially designed to bring cost-effective performance. The small and lightweight enclosure allows it to easily fit into small cabinets or machines when space is limited.

Embedded Python SDK

UR32 is scalable for secondary development with Python SDK embedded. It can be extended to be more applicable and customized to truly meet actual demands.

Ultra-Reliable Protection System

Quick Network Backup

Automated failover/failback backup among Ethernet, Cellular(dual SIM), and Wi-Fi

Embedded Watchdog

Embedded with hardware watchdog to automatically recover from various failures

Secured Mechanism

Centralized authentication and authorization of device access by supporting AAA (Radius, TACACS+, LDAP, local Authentication) and multiple levels of user authority

Rich Interfaces

Scaling up M2M and IoT applications is made possible by the UR32's rich interfaces which include RS232 (RS485 optional), 2 fast Ethernet ports, and Digital Input/Output.

Stable Internet Access

Integrating embedded cellular modem and dual SIM function, the UR32 provides a 3G/4G cellular network with reliable download and uplink speed. It also has 2 Ethernet ports and supports Wi-Fi that is complying with 802.11b/g/n standards for uninterrupted internet access.

VPN Tunnels And
Various Protocols

Featuring with multiple network protocols and VPN tunnels, UR32 provides secure and reliable solutions for a range of M2M/IoT deployments.

• Network Protocols Such as SNMP, TR069, MOTT, and VRRP
• VPN tunnels Such as ZeroTier/lPsec/OpenVPN/GRE/L2TP/ PPTP/DMVPN/WireGuard

Seamless Integration with
Smart Meters for Modern
Power Systems

The UR32 supports DLMS protocol, the global standard for smart meter communication. This ensures seamless, reliable data exchange between meters and management systems, making the routers ideal for modern power applications such as substation automation, smart metering, and grid monitoring.

Unimpeded Applications

Certifying your trust with various certificates, UR32 is a trustworthy router that has undergone rigorous testing and meets high standards for quality, reliability, and security, and gets passes for some special markets such as Verizon for North American.

Technical Specifications:

Hardware System

CPU
ARM Cortex-A7, 528 MHz

Memory
128 MB DDR3 RAM and 128 MB Flash

Extendable Storage

• 1 × Micro SD Slot

Cellular Interface

Network
4G LTE (CAT 4) / WCDMA / GSM (Differs by Region)

Antenna Connector

• 2 × 50 Ω SMA Connectors (Center Pin: SMA Female)

SIM Slots

• 2 × SIM Slots (Mini SIM-2FF), 1.8V / 3V

Tx Power
LTE: Class 3 (23 dBm ± 2 dB)

Ethernet Interface

Numbers

• 2 × RJ45 10/100 Mbps

Property

• 1 × WAN + 1 × LAN
• 2 × LAN

Mode
Full or Half Duplex (Auto-Sensing)

Ethernet Isolation
1.5 kV RMS

PoE (Optional)

• 2 × 802.3af/at PoE PSE on LAN Ports

Wi-Fi Interface (Optional)

Antenna Connector

• 1 × 50 Ω SMA Connector (Center Pin: RP-SMA Female)

Standards
IEEE 802.11 b/g/n, 2.4GHz

Tx Power

• 802.11b: 16 dBm ± 1.5 dBm (11 Mbps)
• 802.11g: 14 dBm ± 1.5 dBm (54 Mbps)
• 802.11n: 13 dBm ± 1.5 dBm (65 Mbps, HT20/40 MCS7)

GNSS (Optional by Region)

Antenna Connector

• 1 × 50 Ω SMA Connector (Center Pin: SMA Female)

Technology
GPS / GLONASS / BDS / Galileo / QZSS

Positioning Accuracy
2.5 m CEP (Open Air)

Serial Port

Numbers

• 1 × RS232 (RS485 Hardware Optional)

Connector
3.5 mm Terminal Block

Baud Rate
300 bps to 230400 bps

DI/DO

Numbers

• 1 × DI + 1 × DO, Galvanic Isolation

Connector
3.5 mm Terminal Block

Digital Input
Dry Contact

Digital Output
Wet Contact, Maximum 0.3A @ 30VDC

Other Interfaces

Reset Button

• 1 × RESET

LED Indicators

• 1 × POWER
• 1 × SYSTEM
• 1 × SIM
• 3 × Signal Strength

Power Connector

• 1 × 2-Pin 5.08 mm Terminal Block, With Surge Protection and Reverse Polarity Protection

Built-In Features
Watchdog, Timer

Power Supply and Consumption

Power Input
9–48 VDC (48V Required for PoE Output)

Power Output (Optional)

• 2 × 802.3af/at PoE PSE on LAN Ports
• Per Port 30W Max.
• Total 60W Max.

Power Consumption
Typical 1.9 W, Max 2.4 W (In Non-PoE Mode)

Physical Characteristics

Ingress Protection
IP30

Housing and Color
Metal, Black

Weight
271 g

Dimensions
108 × 90 × 26 mm (4.25 × 3.54 × 1.02 in)

Installation
Desktop, Wall, or DIN Rail Mounting

Environmental

Operating Temperature
-40°C to +70°C (-40°F to +158°F)

Thermal Note
Reduced Cellular Performance Above 60°C

Storage Temperature
-40°C to +85°C (-40°F to +185°F)

Relative Humidity
0% to 95% (Non-Condensing) at 25°C / 77°F

Approvals

Regulatory
CE, FCC, RCM, NBTC, JATE, Telec

Carrier
Verizon

Environmental Compliance
RoHS

EMC Standards
EN 55032, EN 55035

EMS Standards

• IEC 61000-4-2 Level 3
• IEC 61000-4-3 Level 2
• IEC 61000-4-4 Level 2
• IEC 61000-4-5 Level 2
• IEC 61000-4-6 Level 3
• IEC 61000-4-8 Level 1
• IEC 61000-4-11 Level 3

Radio Frequency Standards
EN 301 489-1/17/19/52
EN 301 511
EN 301 908-1/2/13
EN 303 413
EN 300 328

Safety Standards
EN 62368-1
