MikroTik netPower 8P 8 PoE Output 2 SFP+ Integrated UPS Outdoor Switch CSS610-8P-2S+OUT

MikroTik netPower 8P 8 PoE Output 2 SFP+ Integrated UPS Outdoor Switch CSS610-8P-2S+OUT

With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.

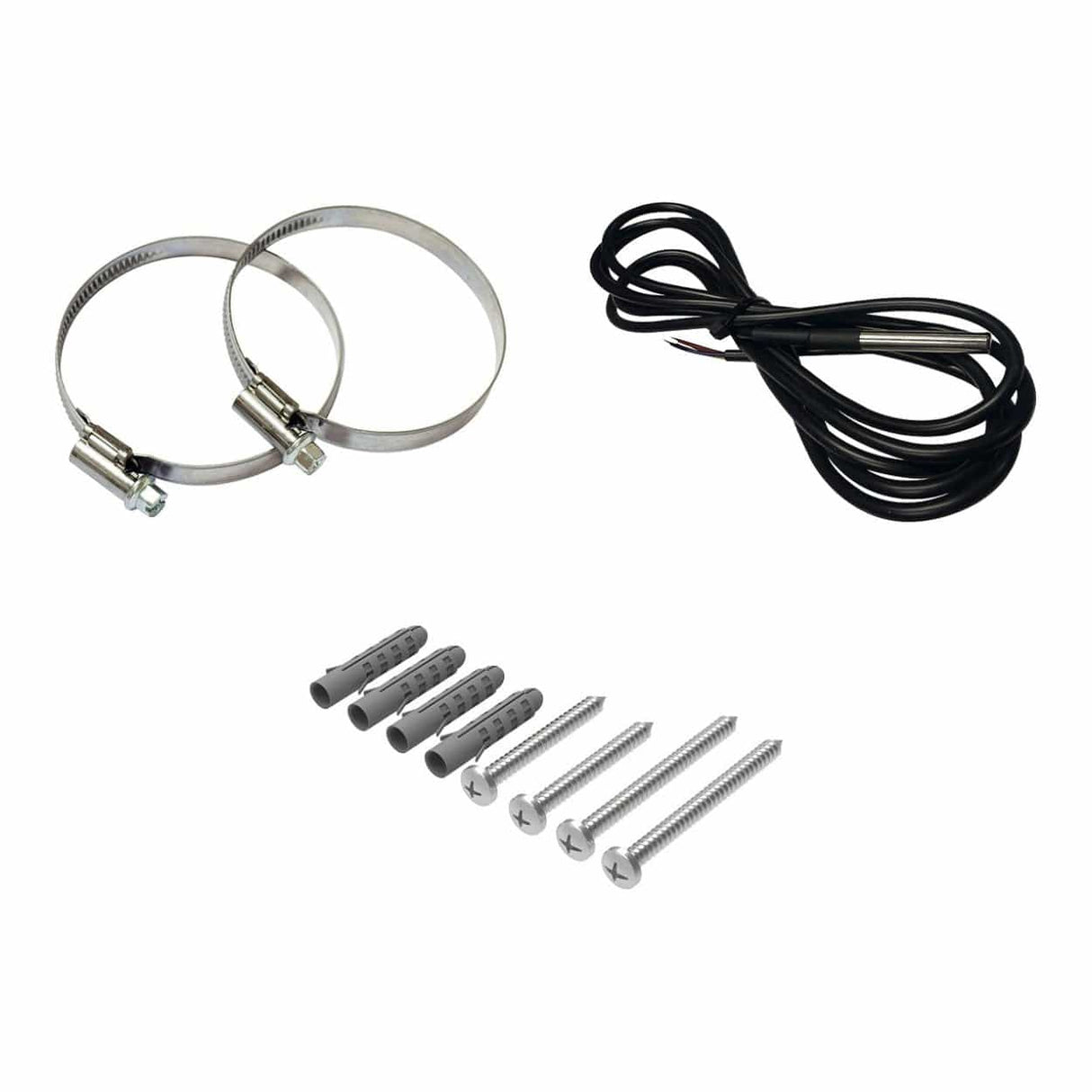

The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.

Technical Specifications:

Product Code
CSS610-8P-2S+OUT

Suggested Price
$199.00

Switch Chip Model
88E6193

Operating System
SwOS Lite

Storage Size
64 KB

Storage Type
FLASH

MTBF
Approximately 200,000 hours at 25°C

Tested Ambient Temperature
-40°C to 70°C

Powering
Number of DC Inputs
3 (2-pin terminal)

2-pin Terminal Input Voltage
24–57 V (Battery 22–30 V)

Max Power Consumption
208 W

Max Power Consumption without Attachments
9 W

Cooling Type
Passive

PoE-Out
PoE-Out Ports
Ether1–Ether8

PoE Out
802.3af/at

Low Voltage PoE-Out Current Limit
1.0 A

High Voltage PoE-Out Current Limit
0.64 A

Total Output Power
120 W

Ethernet
10/100/1000 Ethernet Ports
8

Number of 1G Ethernet Ports with PoE-Out
8

Fiber
SFP+ Ports
2

Other
CPU Temperature Monitor
Yes

Current Monitor
Yes

Voltage Monitor
Yes

Certification & Approvals
Certification
CE, EAC, ROHS

IP Rating
IP54
