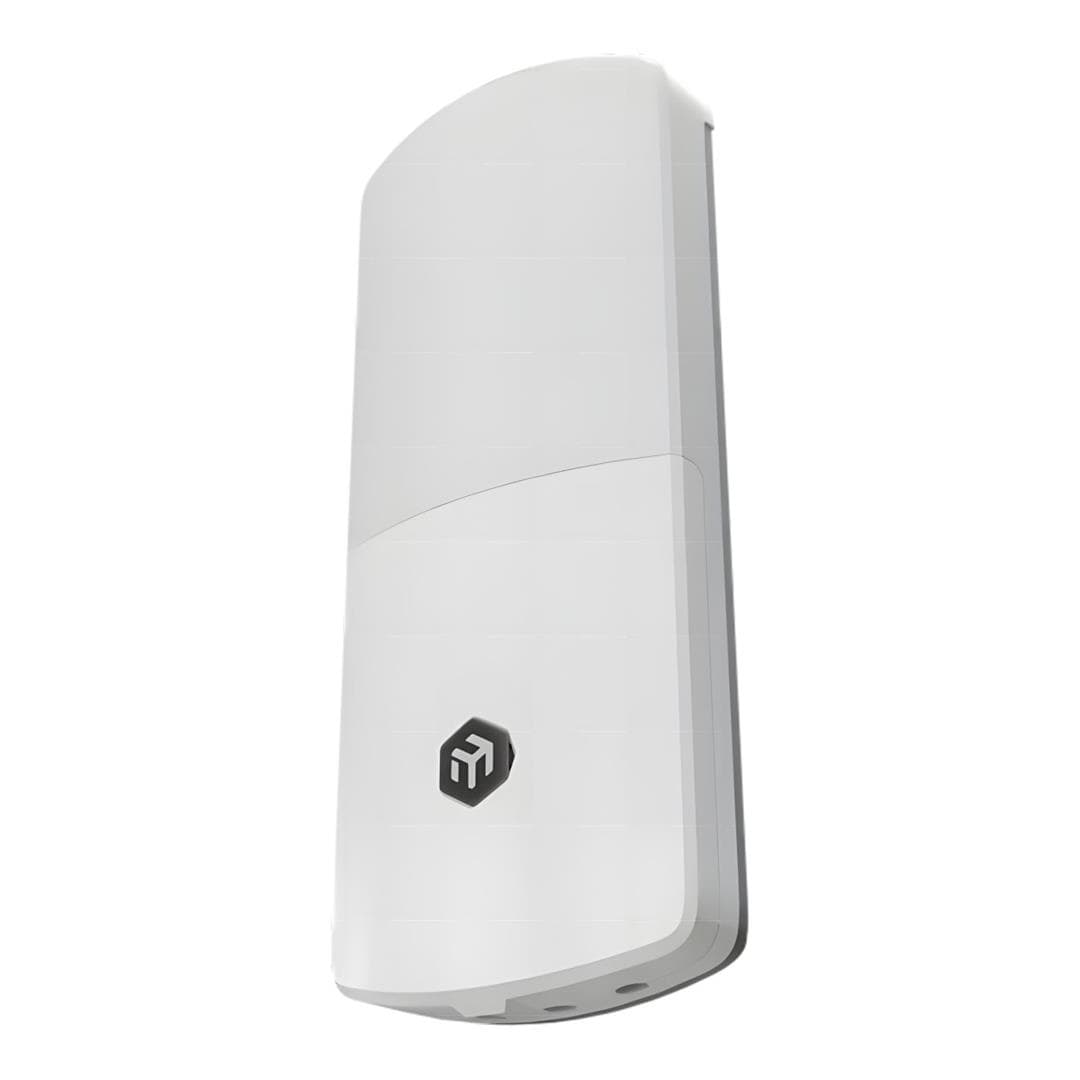

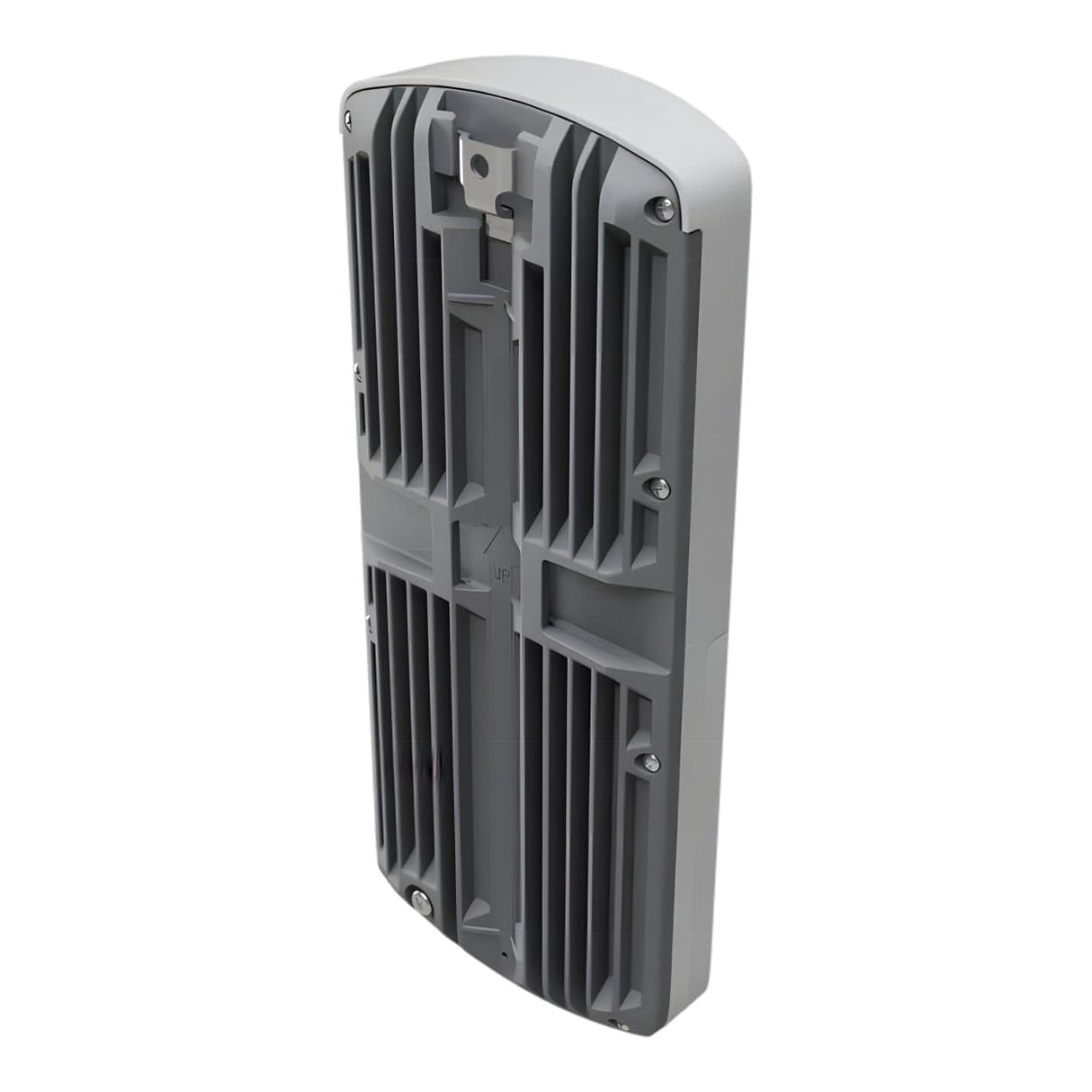

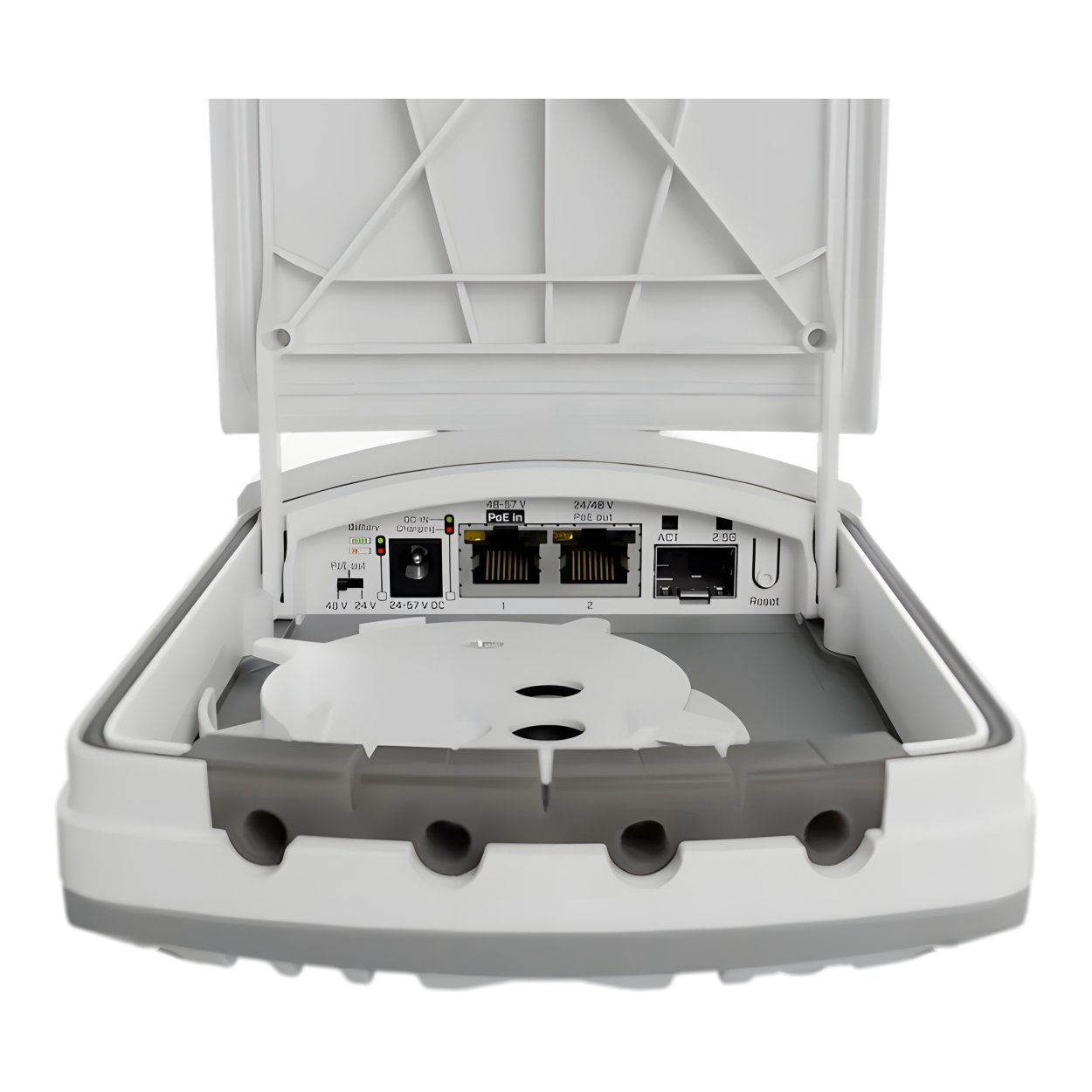

MikroTik Fiber to Copper Converter with Built-in Battery FTC21-ups

MikroTik Fiber to Copper Converter with Built-in Battery FTC21-ups

A weatherproof Fiber-to-Copper converter with 2.5G SFP and 2x Gigabit Ethernet ports, including PoE-out on Ether2. Its integrated battery keeps links stable during short power interruptions, preventing unnecessary renegotiations and device reboots.

Features:

• 802.3af/at (PoE-out), great for CCTV cameras!
• IP67 weatherproof enclosure
• 2x Gigabit Ethernet
• 2.5G SFP

Fiber is fast. Fiber is reliable.

Until the power starts misbehaving.

At the network edge, it is rarely the fiber that fails. It is unstable power, brownouts, short outages, and voltage drops that trigger renegotiations, device reboots, and unnecessary support tickets. The FTC21-ups is built to save you some major headaches when dealing with unreliable power sources.

Not just a converter

The FTC21 is not just a simple media converter. It runs a full version of SwOS Lite, offering advanced management features:

• Interface monitoring and management
• VLAN support
• SNMP reporting
• Basic traffic shaping
• Advanced packet filtering with Access Control Lists - allowing for packet filtering, accounting, and VLAN tagging based on Layer 2, 3, and 4 protocol header conditions.

Built-in batteries

What makes the FTC21-ups different is what happens when power becomes unstable. Inside, there is a pair of Li-Ion NCA 18650 batteries. Not for running your network all night, but for surviving short outages, brownouts, and those moments when everything almost crashes.

It keeps the link up when the power is flickering, preventing unnecessary device renegotiation.

The battery is intelligently managed:

• Inactive during shipping;
• Activated on first power-up;
• Can be put into ship mode remotely via SwOS when necessary.

Technical Specifications:

General

Product Code
FTC21-ups

Switch Chip Model
88E6341

MTBF
Approximately 100,000 Hours At 25°C

Cooling Type
Passive

PCB Temperature Monitor
Yes

Ingress Protection
IP67

Power

Number Of DC Inputs

• 2 × Inputs (DC Jack, PoE-In)

DC Jack Input Voltage
24–57 V

PoE Input Standard
802.3af / 802.3at

PoE-In Input Voltage
48–57 V

Maximum Power Consumption
28 W

Maximum Power Consumption Without Attachments
3 W

PoE Output

PoE-Out Ports

• Ether2

PoE-Out Type
Passive PoE Up To 57 V

Low Voltage PoE-Out Current Limit
0.625 A

High Voltage PoE-Out Current Limit
0.315 A

Maximum Total Output Current
0.625 A

Total Output Current
0.625 A

Total Output Power
15 W

Networking

Ethernet Ports

• 2 × 10/100/1000 Ethernet Ports

PoE-Out Ethernet Ports

• 1 × 1G Ethernet Port With PoE-Out

Fiber

SFP Ports

• 1 × SFP Port (Supports Up To 2.5G)

Environmental

Tested Ambient Temperature Range
-40°C To 70°C

Compliance & Certifications

Certifications

• CE
• EAC
• RoHS
