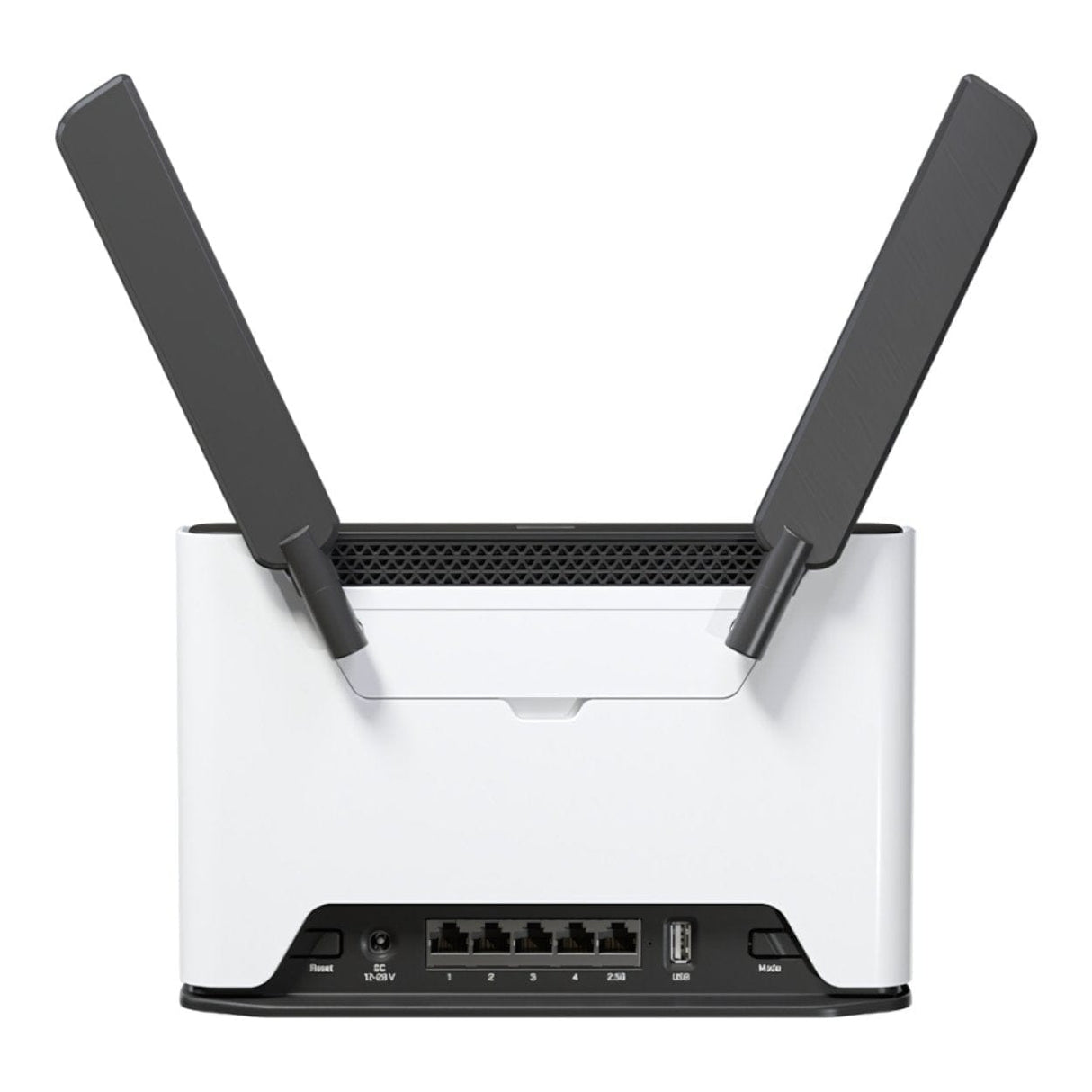

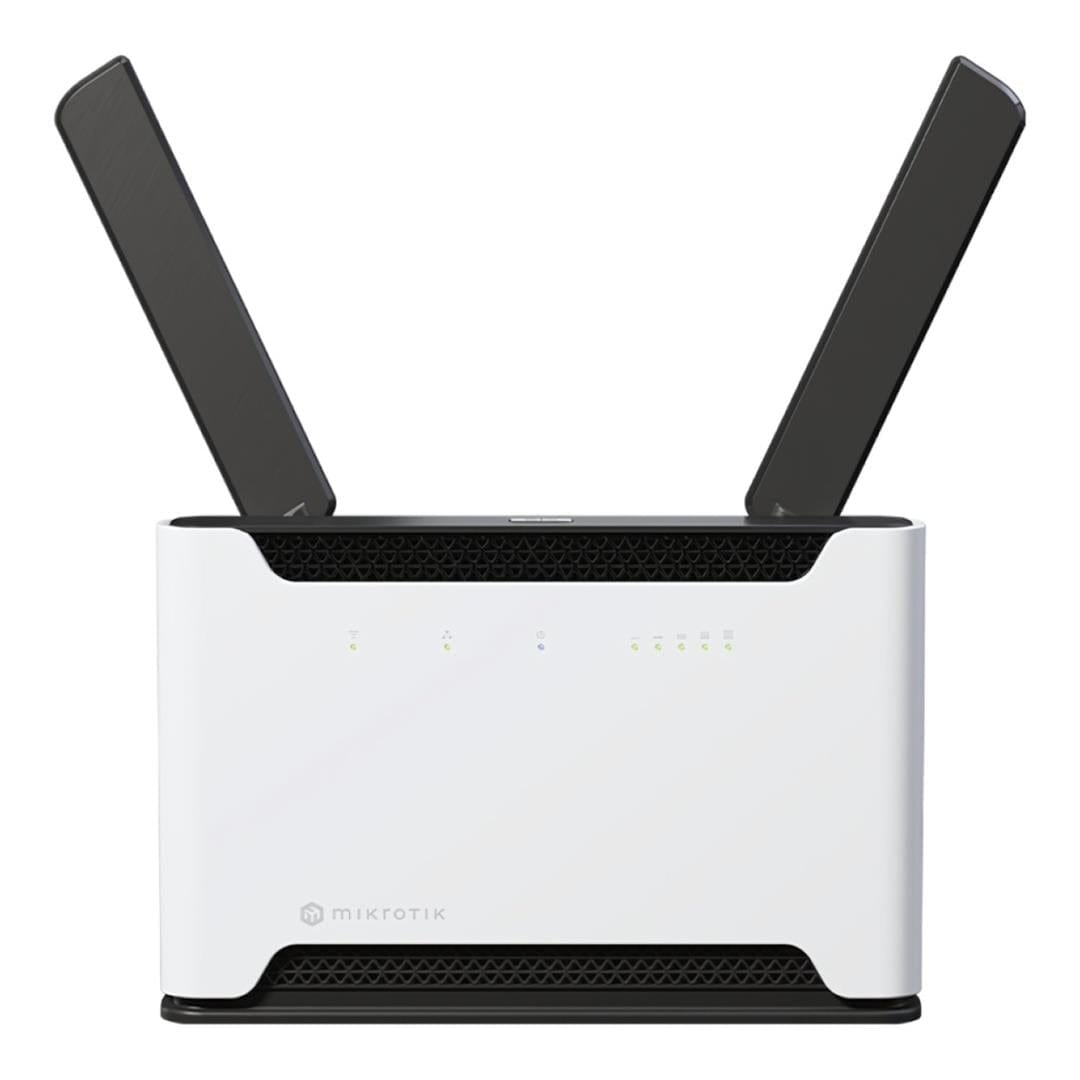

MikroTik Chateau 5G ax Wi-Fi 6 Gigabit Router S53UG+5HaxD2HaxD-TC&RG650E

MikroTik Chateau 5G ax Wi-Fi 6 Gigabit Router S53UG+5HaxD2HaxD-TC&RG650E

Chateau 5G ax R17 may look familiar – the sleek design, the mighty dual-band Wi-Fi 6 coverage, and all the impressive RouterOS v7 features. But under the hood, everything’s been pushed further.

Now powered by 5G Release 17 cutting-edge modem, Chateau takes full advantage of the latest mobile technologies, including advanced carrier aggregation combinations. That means faster downlink speeds, increased signal stability and responsiveness, even in regions where the mobile tower is far away. Wherever you are, Chateau finds the signal sweet spot.

Your network, your rules: eSIM or microSIM

Chateau has a true embedded SIM (eSIM) built right in, fully compatible with:

MikroTik Connectivity

(pre-activated data plans)

Third-party eSIMs

(Mobile operator eSIM profiles)

Multiple eSIM profiles

(easily added, switched, or stored)

With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, Chateau gives you great performance for download and upload even in a busy, crowded environment:

• Smart aggregation with wide regional FDD + TDD band support;
• Extra strong signal pickup thanks to 4x4 MIMO;
• Wi-Fi coverage designed for homes of all sizes, including multi-floor setups.

Chateau runs RouterOS v7, MikroTik’s industrial-grade operating system used by ISPs and sysadmins around the world – but with a simple user-friendly interface that anyone can learn to use. And if you’re not sure about diving deep into the world of networking – no worries, we also have iOS/Android app for even easier installation!

Set up a secure VPN. Optimize streaming. Limit bandwidth. Create VLANs. Block sites. Send SMS alerts when usage peaks. All without subscriptions or paywalls.

Technical Specifications:

Architecture: ARM 64bit
CPU: IPQ-6010
CPU Core Count: 4
CPU Nominal Frequency: 864-1800 MHz
Switch Chip Model: IPQ-6010
RouterOS License: 4
Operating System: RouterOS v7
RAM Size: 1 GB
Storage Size: 128 MB
Storage Type: NAND
MTBF: Approximately 200,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C
IPsec Hardware Acceleration: Yes
Suggested Price: $349.00

Powering
Number of DC Inputs: 1 (DC jack)
DC Jack Input Voltage: 12-28 V
Max Power Consumption: 27 W
Max Power Consumption Without Attachments: 18 W
Cooling Type: Passive

Mobile
3G Category: R8 (42.2 Mbps Downlink, 5.76 Mbps Uplink)
3G Bands: 1 (2100 MHz) / 5 (850 MHz) / 8 (900 MHz)
LTE Category: 20 (2.0 Gbps Downlink, 211 Mbps Uplink)
MIMO DL: 4x4
MIMO UL: 1x1 (5G SA MIMO UL 2x2)
LTE FDD Bands: 1 / 3 / 5 / 7 / 8 / 20 / 28 / 32
LTE TDD Bands: 38 / 41 / 42 / 40 / 43
5G NSA FDD Bands: 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 76
5G NSA TDD Bands: 38 / 40 / 41 / 77 / 78
5G SA FDD Bands: 1 / 3 / 5 / 7 / 8 / 20 / 26 / 28 / 67 / 75 / 76
5G SA TDD Bands: 38 / 40 / 41 / 77 / 78
TAC: 86896506

Wireless Specifications
2.4 GHz Max Data Rate: 574 Mbit/s
2.4 GHz Number of Chains: 2
2.4 GHz Standards: 802.11b/g/n/ax
2.4 GHz Antenna Gain: 3 dBi
2.4 GHz Chip Model: QCN-5022
2.4 GHz Generation: Wi-Fi 6
5 GHz Max Data Rate: 1200 Mbit/s
5 GHz Number of Chains: 2
5 GHz Standards: 802.11a/n/ac/ax
5 GHz Antenna Gain: 6 dBi
5 GHz Chip Model: QCN-5052
5 GHz Generation: Wi-Fi 6

Ethernet
10/100/1000 Ethernet Ports: 4
2.5G Ethernet Ports: 1

Peripherals
Number of SIM Slots: 1 Modem (Micro SIM)
Number of USB Ports: 1
USB Power Reset: Yes
USB Slot Type: USB Type A
Max USB Current: 1.5 A

Other
CPU Temperature Monitor: Yes
PCB Temperature Monitor: Yes
Voltage Monitor: Yes
Mode Button: Yes
eSIM: Yes

Certification & Approvals
Certification: CE, EAC, ROHS
IP Rating: IP20

Wireless Performance
2.4 GHz Transmit / Receive Sensitivity:
1 Mbit/s: 23 dBm / -100 dBm
11 Mbit/s: 23 dBm / -94 dBm
6 Mbit/s: 24 dBm / -96 dBm
54 Mbit/s: 21 dBm / -80 dBm
MCS0: 24 dBm / -96 dBm
MCS7: 20 dBm / -75 dBm
MCS9: 19 dBm / -70 dBm
MCS11: 17 dBm / -67 dBm

5 GHz Transmit / Receive Sensitivity:
6 Mbit/s: 24 dBm / -96 dBm
54 Mbit/s: 21 dBm / -80 dBm
MCS0: 24 dBm / -96 dBm
MCS7: 20 dBm / -75 dBm
MCS9: 19 dBm / -70 dBm
MCS11: 17 dBm / -67 dBm
