MikroTik AX2400 hAP ax S 5-port Gigabit 2.5G SFP Wi-Fi 6 Access Point E62iUGS-2axD5axT

MikroTik AX2400 hAP ax S 5-port Gigabit 2.5G SFP Wi-Fi 6 Access Point E62iUGS-2axD5axT

Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.

Meet the new hAP ax SOur most cost-effective Wi-Fi 6 access point yet

It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box!

Wi-Fi 6

Dual-band Wi-Fi 6 access point with triple-chain 5 GHz radio (up to 900 Mbit/s throughput).

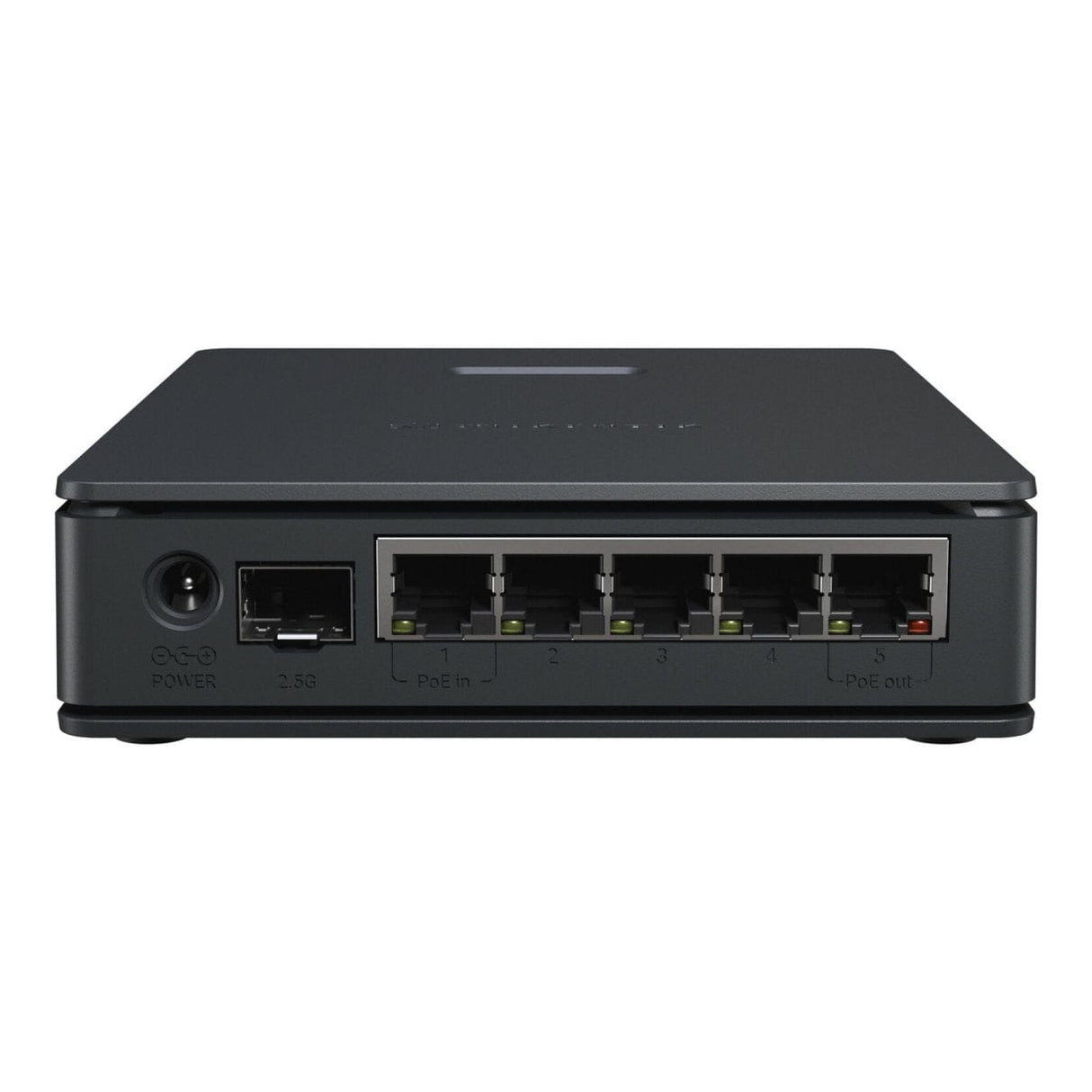

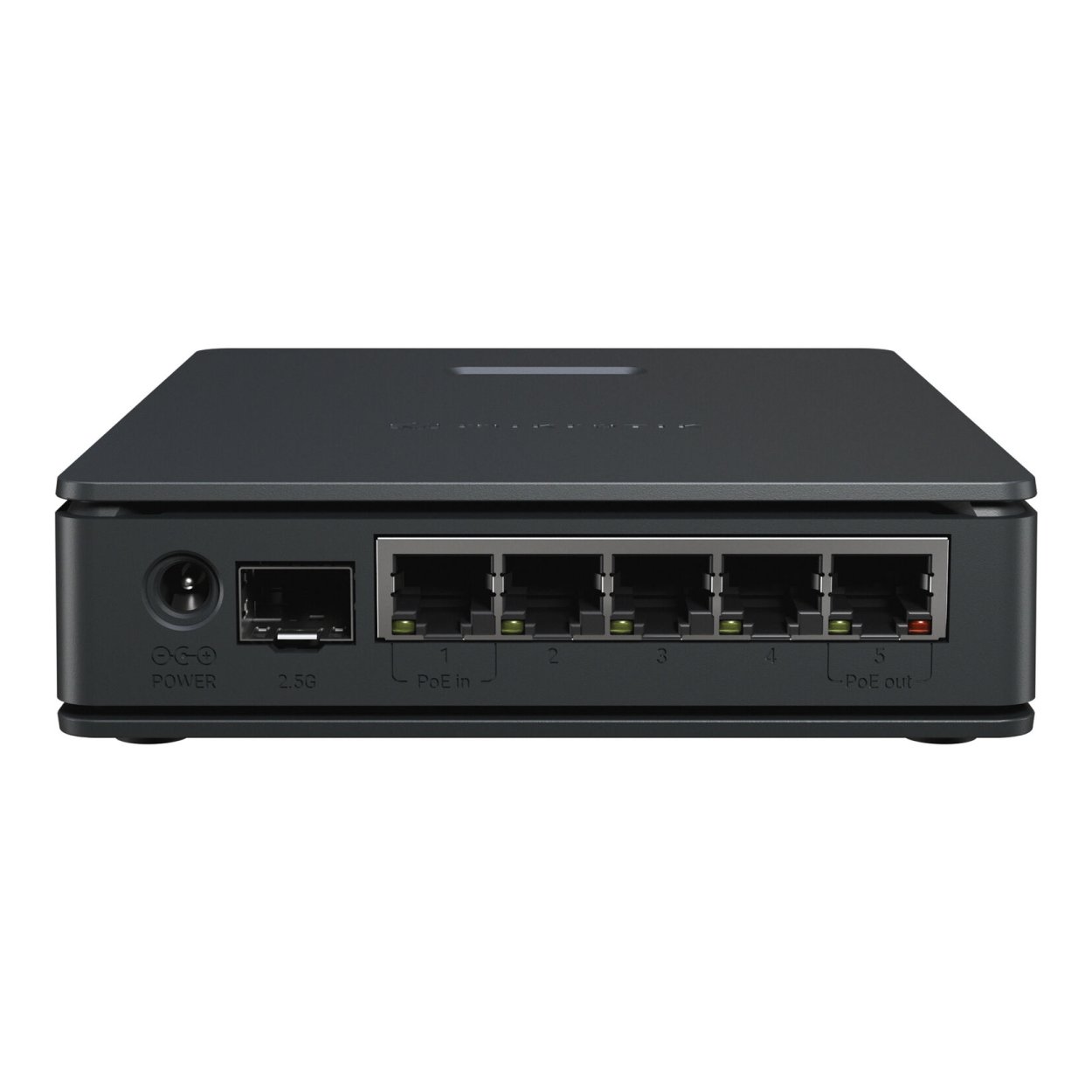

2.5 Gbit + 5 x 1 Gbit

Five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.

Dual-Core ARM CPU

Under the sleek exterior lies a dual-core ARM CPU.

DC jack or PoE

Dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device.

Triple-chain 5 GHz:the key to stable, gigabit-class Wi-Fi

The new hAP ax S features a triple-chain 5 GHz radio that achieves real-world throughput of around 800–900 Mbit/s. That means smooth streaming, faster downloads, and stable performance across multiple devices – even in crowded environments.

It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VR headsets, offering higher resolution and lower latency without the cables. Unlike single-purpose “gaming” access points, the hAP ax S gives you the full performance, flexibility, and future-proofing of RouterOS v7!

Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.

Your network, your rules

RouterOS v7

Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexible networking software on the market.

Free with all the features

In the age of growing data security and privacy challenges, RouterOS gives you complete control – with no subscriptions, no upsells, no locked features. Whether you’re configuring your first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7 grows with you.

Limitless possibilities

VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities are endless. For example: you can easily isolate IoT devices into separate subnets to protect your home network from unwanted access via the smart fridge or those flashy LED light hubs.

Technical Specifications:

Product Code
E62iUGS-2axD5axT

Architecture
ARM 32-bit

CPU
Model: EN7562CT
Core Count: 2
Nominal Frequency: 950 MHz
Threads Count: 2

Switch Chip Model
EN7523

RouterOS License
Level 4

Operating System
RouterOS v7

Memory
RAM Size: 512 MB
Storage Size: 128 MB
Storage Type: NAND

Reliability
MTBF: Approximately 100,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C

Wireless Capabilities
2.4 GHz Max Data Rate: 574 Mbit/s
2.4 GHz Number of Chains: 2
2.4 GHz Standards: 802.11b/g/n/ax
2.4 GHz Antenna Gain: 5.5 dBi
2.4 GHz Chip Model: MT7916
2.4 GHz Generation: Wi-Fi 6
5 GHz Max Data Rate: 2400 Mbit/s
5 GHz Number of Chains: 3
5 GHz Standards: 802.11a/n/ac/ax
5 GHz Antenna Gain: 6.5 dBi
5 GHz Chip Model: MT7976
5 GHz Generation: Wi-Fi 6
WiFi Speed: AX3000

Ethernet
10/100/1000 Ethernet Ports: 5
Number of 1G Ethernet Ports with PoE-Out: 1

Fiber
SFP Ports: 1 (2.5G supported)

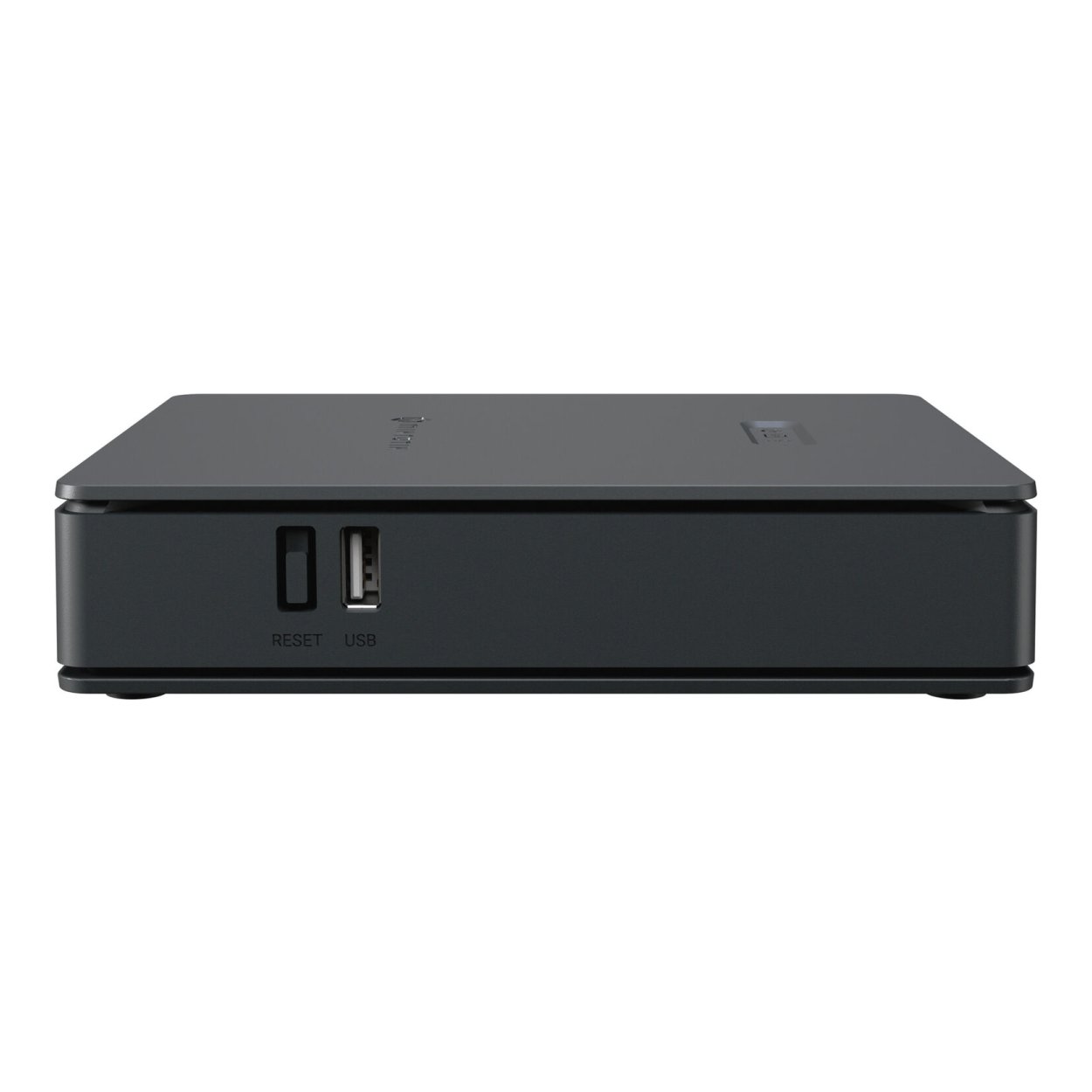

Peripherals
Number of USB Ports: 1
USB Power Reset: Yes
USB Slot Type: USB Type-A
Max USB Current: 1 A

Powering
Number of DC Inputs: 2 (DC jack, PoE-IN)
DC Jack Input Voltage: 12–28 V
Max Power Consumption: 34 W
Max Power Consumption Without Attachments: 11 W

PoE In
Type: Passive PoE
Input Voltage: 18–28 V

PoE Out
PoE-Out Ports: Ether5
Type: Passive PoE
Low Voltage PoE-Out Current Limit: 0.6 A
Max Total Out: 0.6 A
Total Output Current: 0.6 A
Total Output Power: 16.8 W

Cooling
Type: Passive

Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
Ingress Protection: IP20

Other Features
CPU Temperature Monitor: Yes
