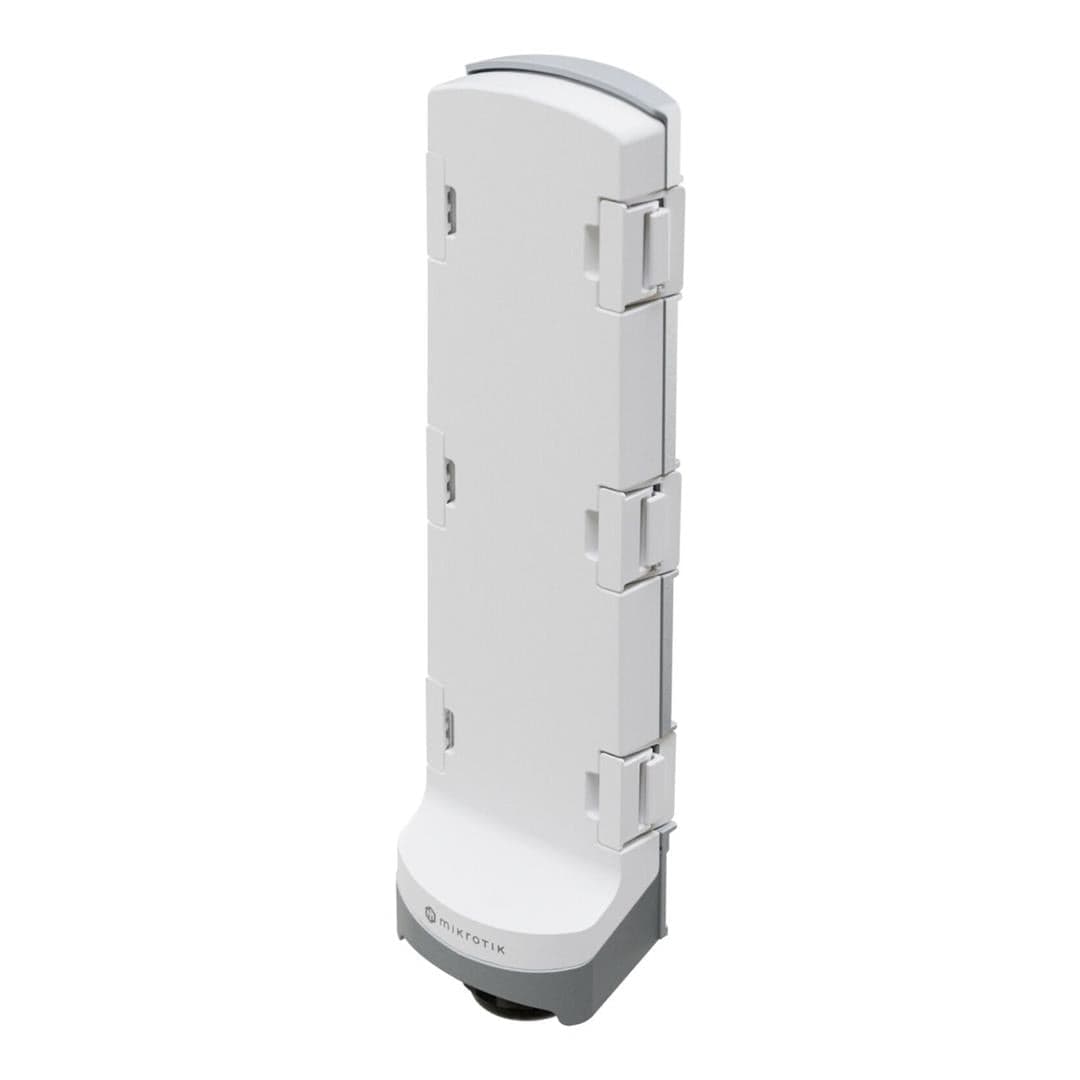

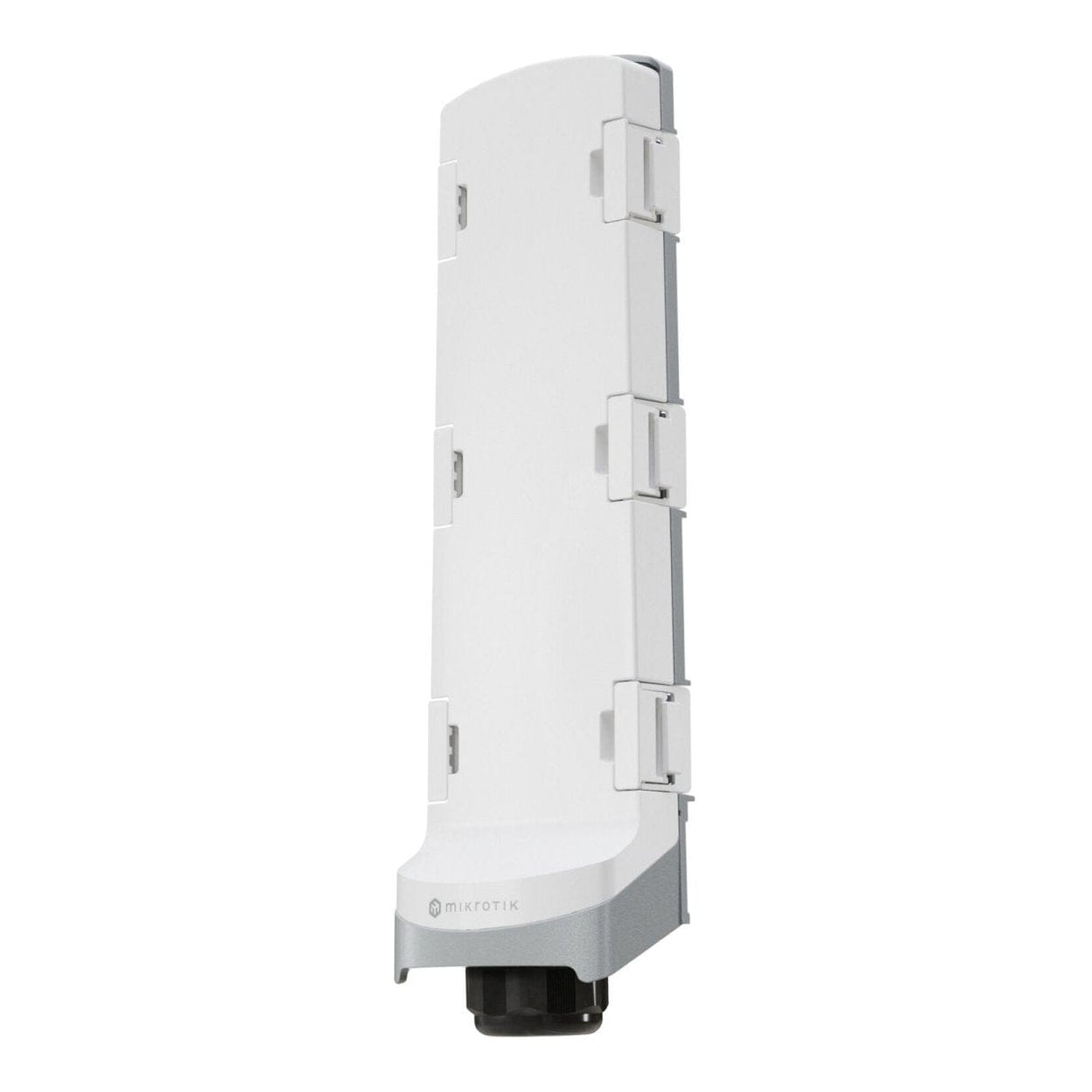

MikroTik 3 Port Gigabit 3SFP+ 154W PoE Outdoor Switch CSS606-1G-2Gi-3S+OUT

MikroTik 3 Port Gigabit 3SFP+ 154W PoE Outdoor Switch CSS606-1G-2Gi-3S+OUT

Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.

Features:

• 3x 10G SFP+
• 3x Gigabit Ethernet
• Heavy-duty IP66 enclosure
• Flexible powering
• A dedicated 10G switch chip

Built for the toughest deployments

The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple

On the surface, it’s straightforward

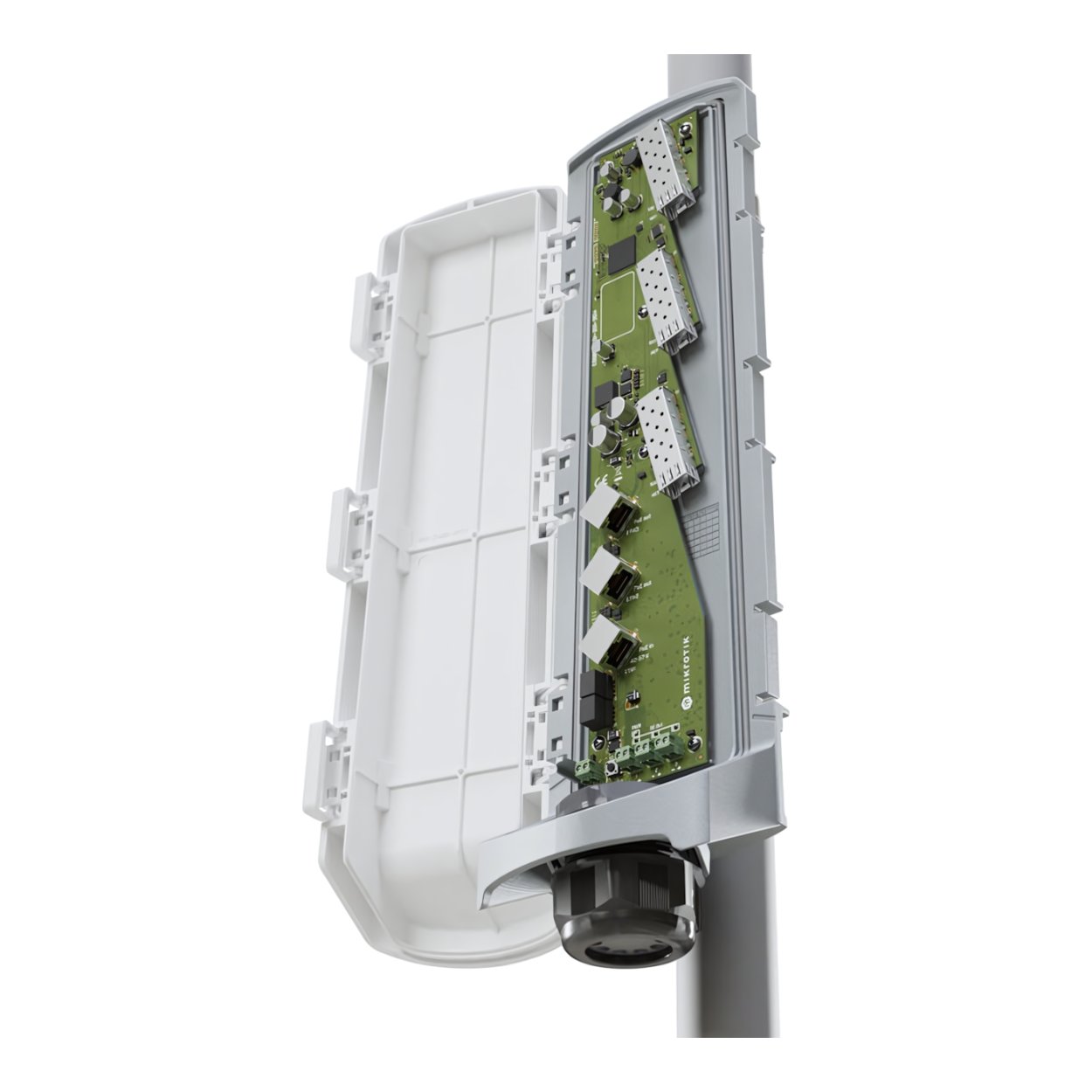

Ethernet with PoE

3x Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)

SFP+

3× 10G SFP+ cages for long-distance fiber

DC output

3 DC outputs for devices that don’t use PoE, for example, IoT setups

IP66

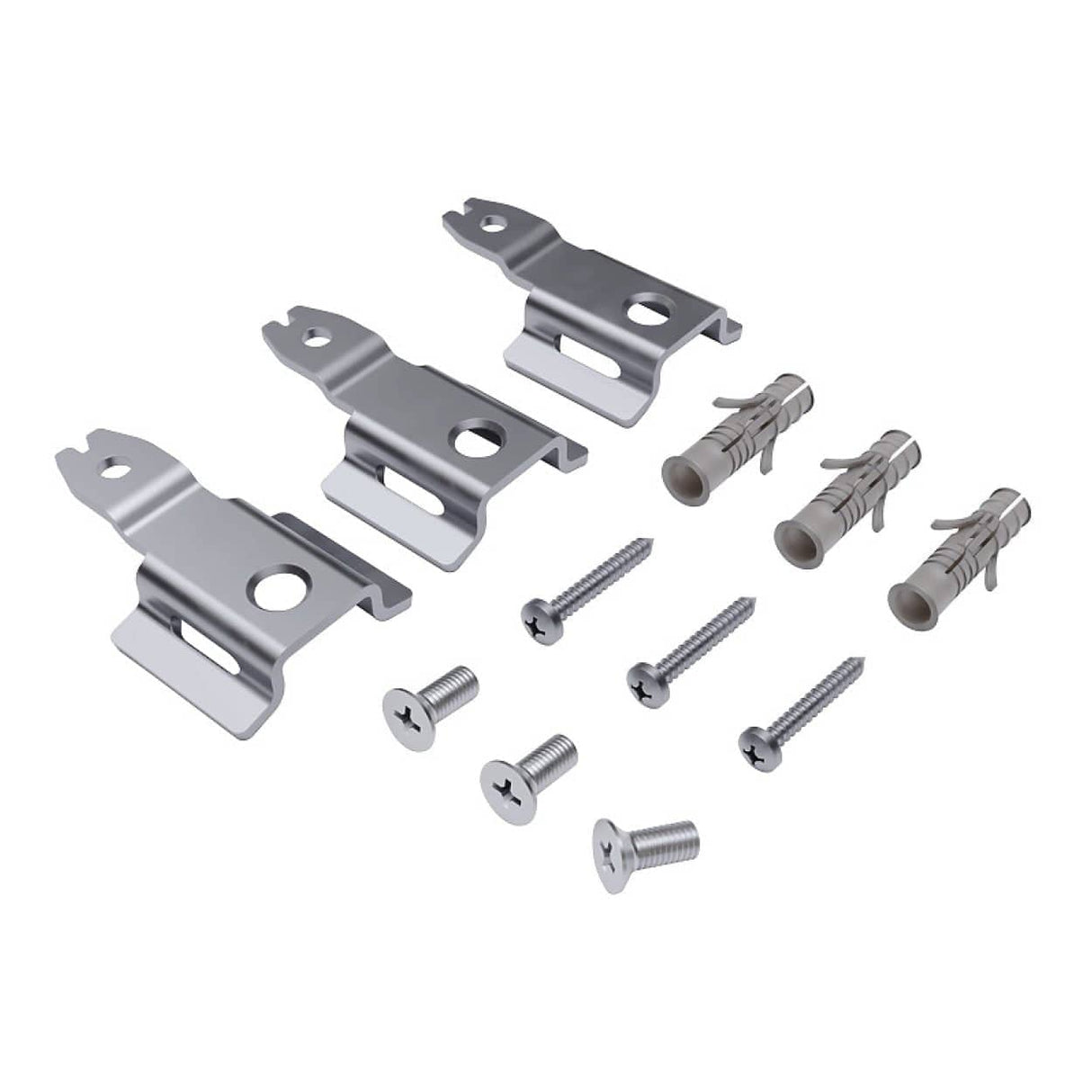

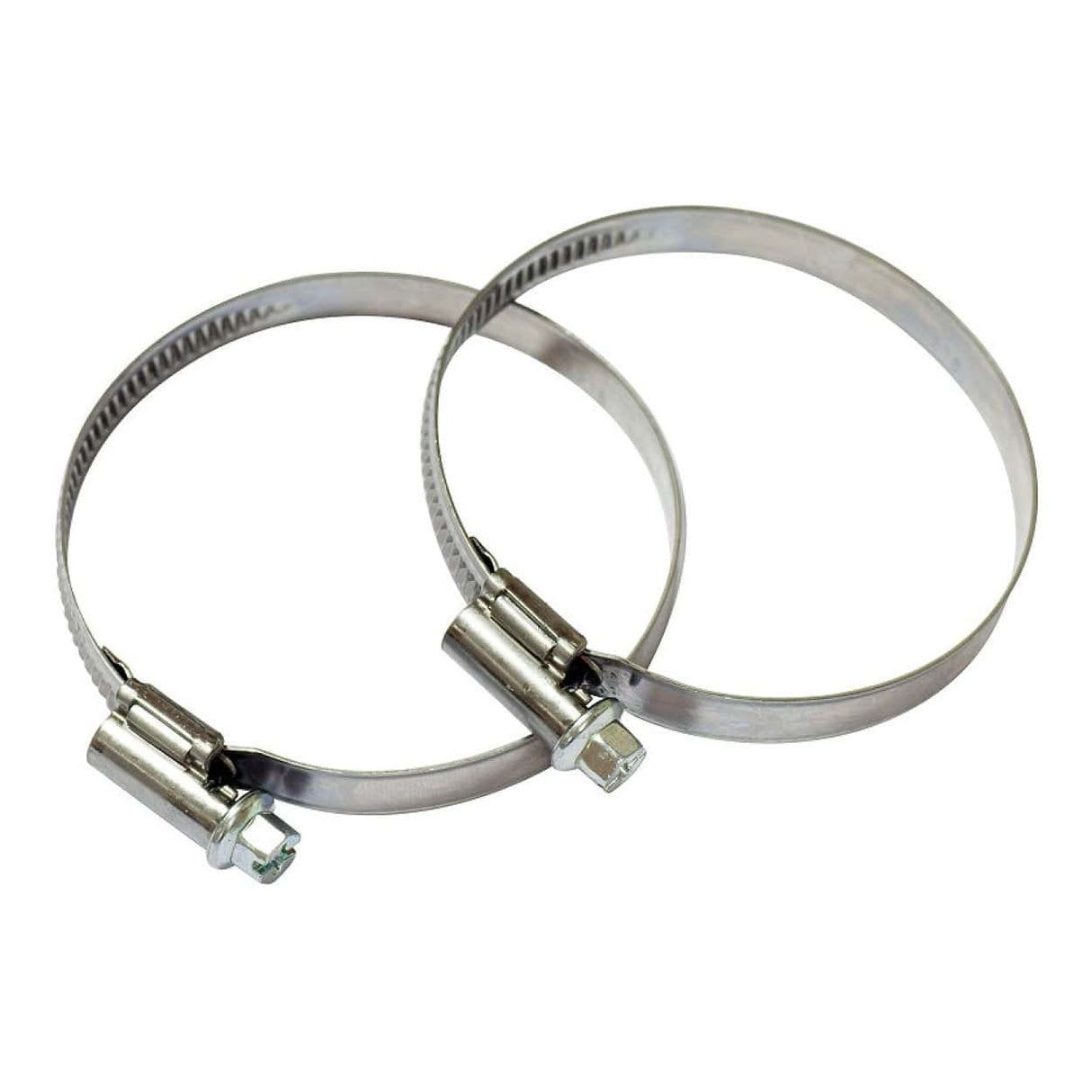

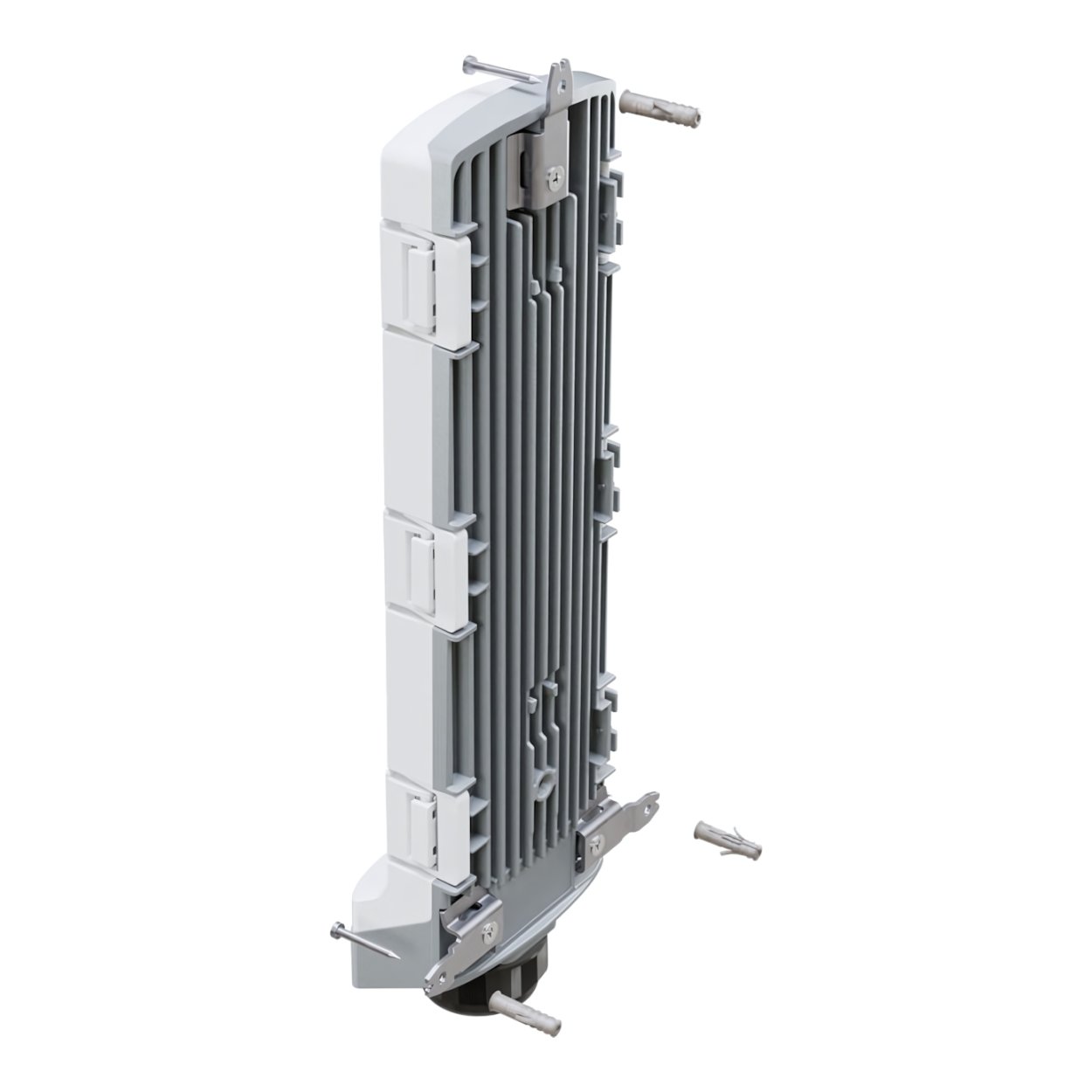

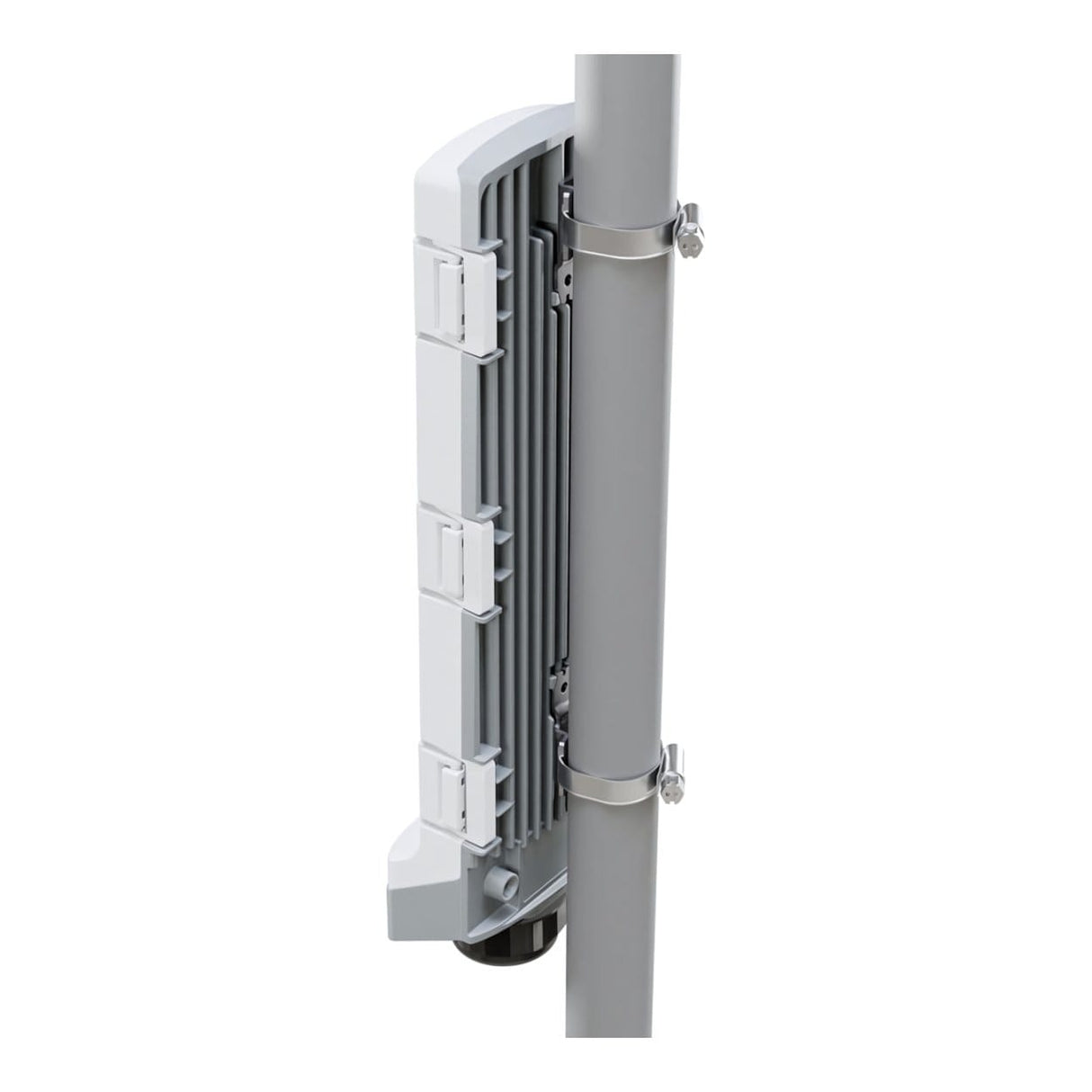

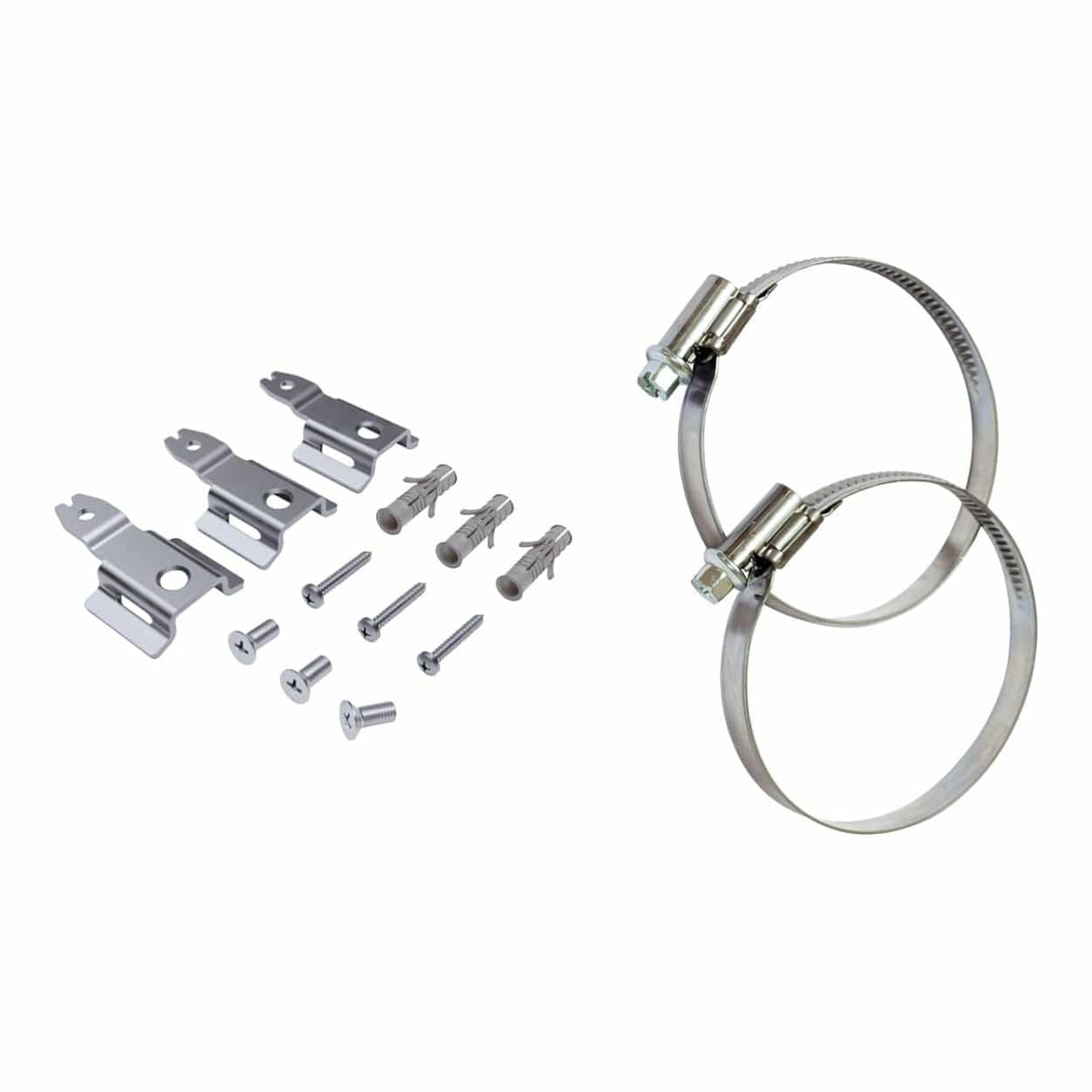

Heavy-duty IP66 enclosure with handy mounting hardware

Dedicated Chip

A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)

But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!

With hybrid fiber + copper cables, the GPERx6 becomes a power-and-data lifeline:

Fiber strands carry your high-speed uplink;

Copper conductors deliver DC power;

At the far end, the GPERx6 splits it all:

• SFP+ uplinks for data;
• PoE-out for cameras or access points;
• DC-out for IoT devices or special hardware.

Perimeter surveillance

Cover large campuses, estates, industrial parks, or ports with fewer cable runs.

Remote CCTV towers

One hybrid cable powers and connects it all.

IoT deployments

Use DC-out where PoE isn’t practical.

Solar-powered edge setups

Every watt and every meter counts.

Technical Specifications:

Product Code
CSS606-1G-2Gi-3S+OUT

Switch Chip Model
88E6193X

Operating System
SwOS

Reliability
MTBF: Approximately 200,000 hours at 25°C
Tested Ambient Temperature: -40°C to 70°C

Powering
Number of DC Inputs: 2 (DC jack, PoE-IN)
DC Jack Input Voltage: 12–57 V
Max Power Consumption: 160 W
Max Power Consumption Without Attachments: 6 W

PoE In
Standard: 802.3 bt
PoE In Input Voltage: 42–57 V

PoE Out
PoE-Out Ports: Ether2–Ether3
PoE Out: Passive PoE up to 57 V
Low Voltage PoE-Out Current Limit: 1.2 A
High Voltage PoE-Out Current Limit: 0.625 A
Max Total Out: 2.4 A
Total Output Power: 150 W

Ethernet
10/100/1000 Ethernet Ports: 3
Number of 1G Ethernet Ports with Reverse PoE (PoE-In): 1
Number of 1G Ethernet Ports with PoE-Out: 2

Fiber
SFP+ Ports: 3

Other Features
CPU Temperature Monitor: Yes

Certifications & Approvals
Certification: CE, EAC, RoHS
Ingress Protection: IP66

Cooling
Type: Passive
