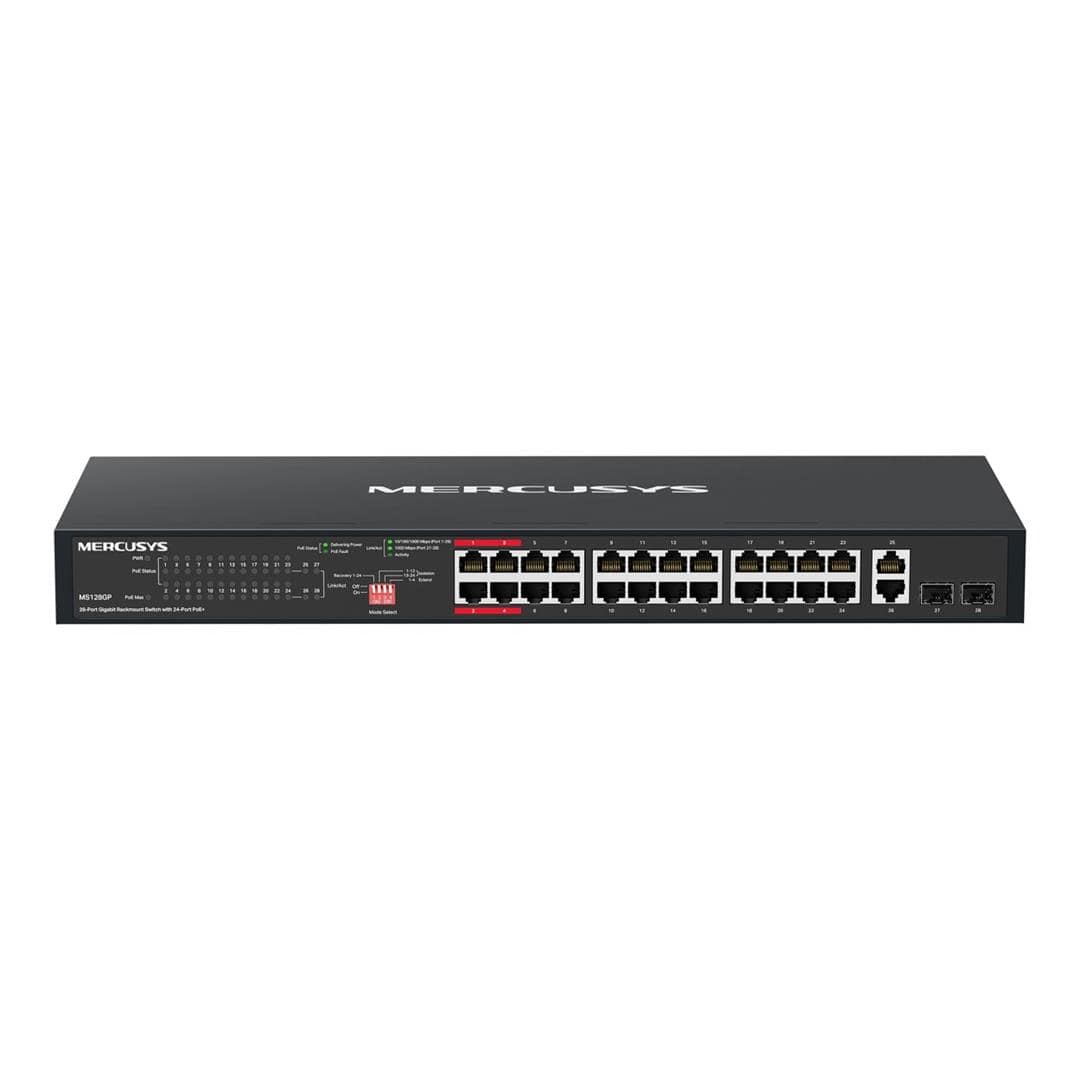

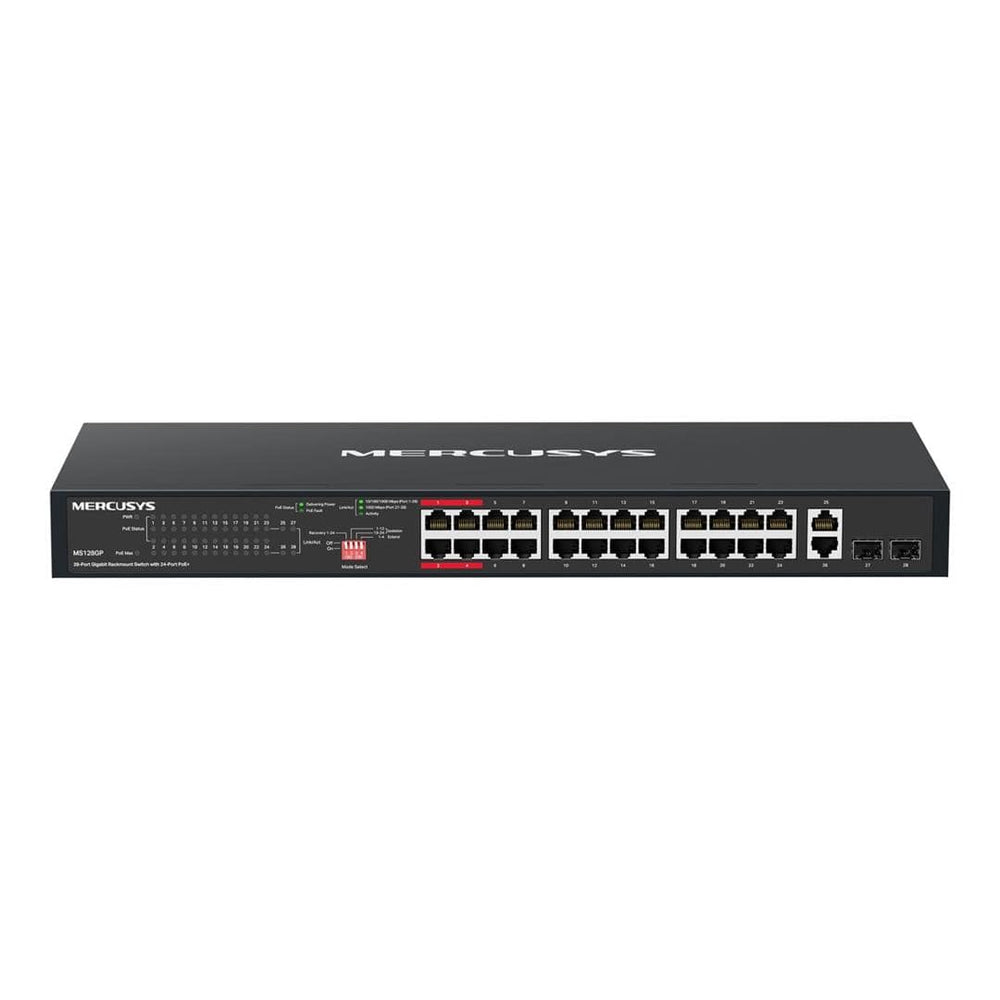

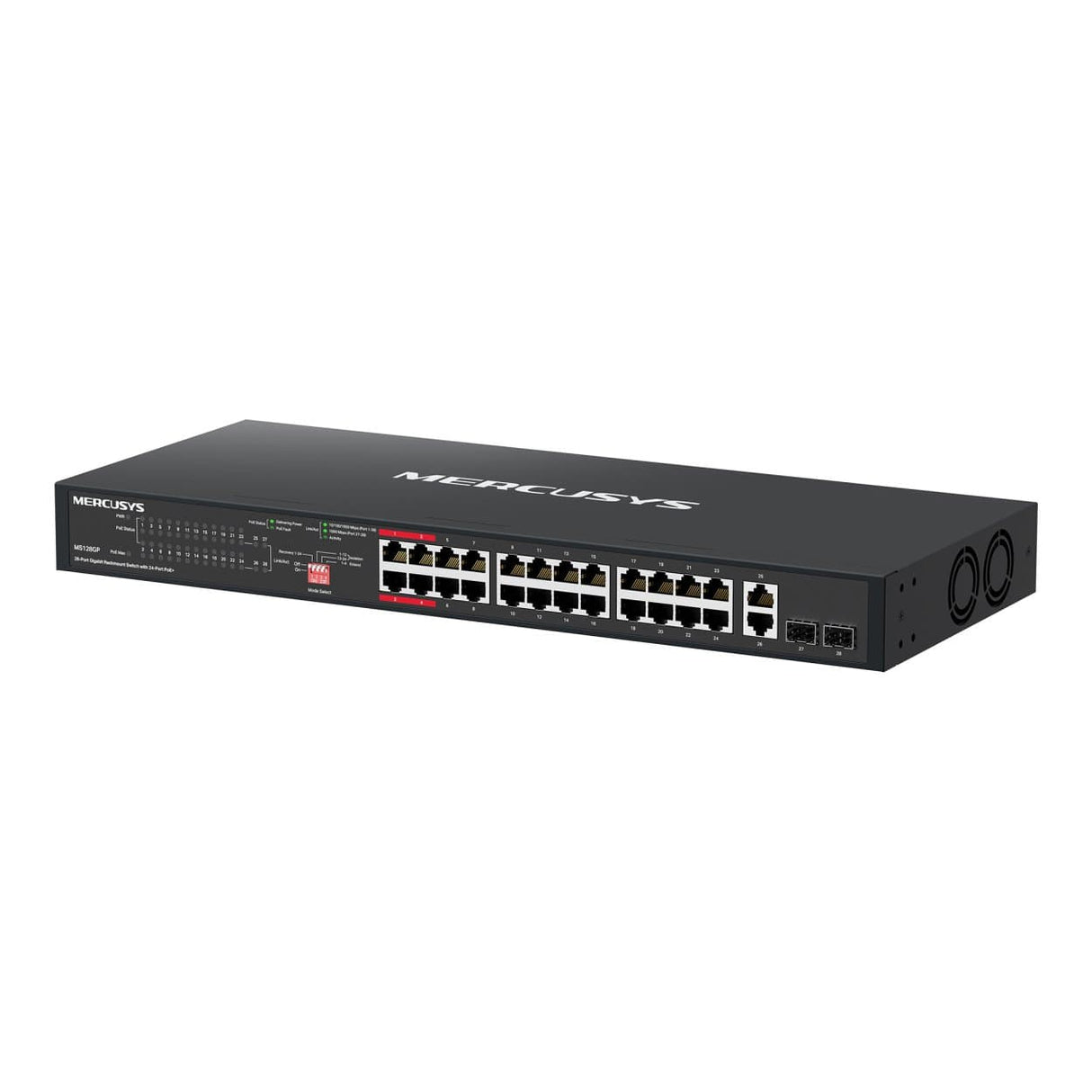

Mercusys MS128GP 28-Port Gigabit 24-Port PoE+ Rackmount Switch

Mercusys MS128GP 28-Port Gigabit 24-Port PoE+ Rackmount Switch

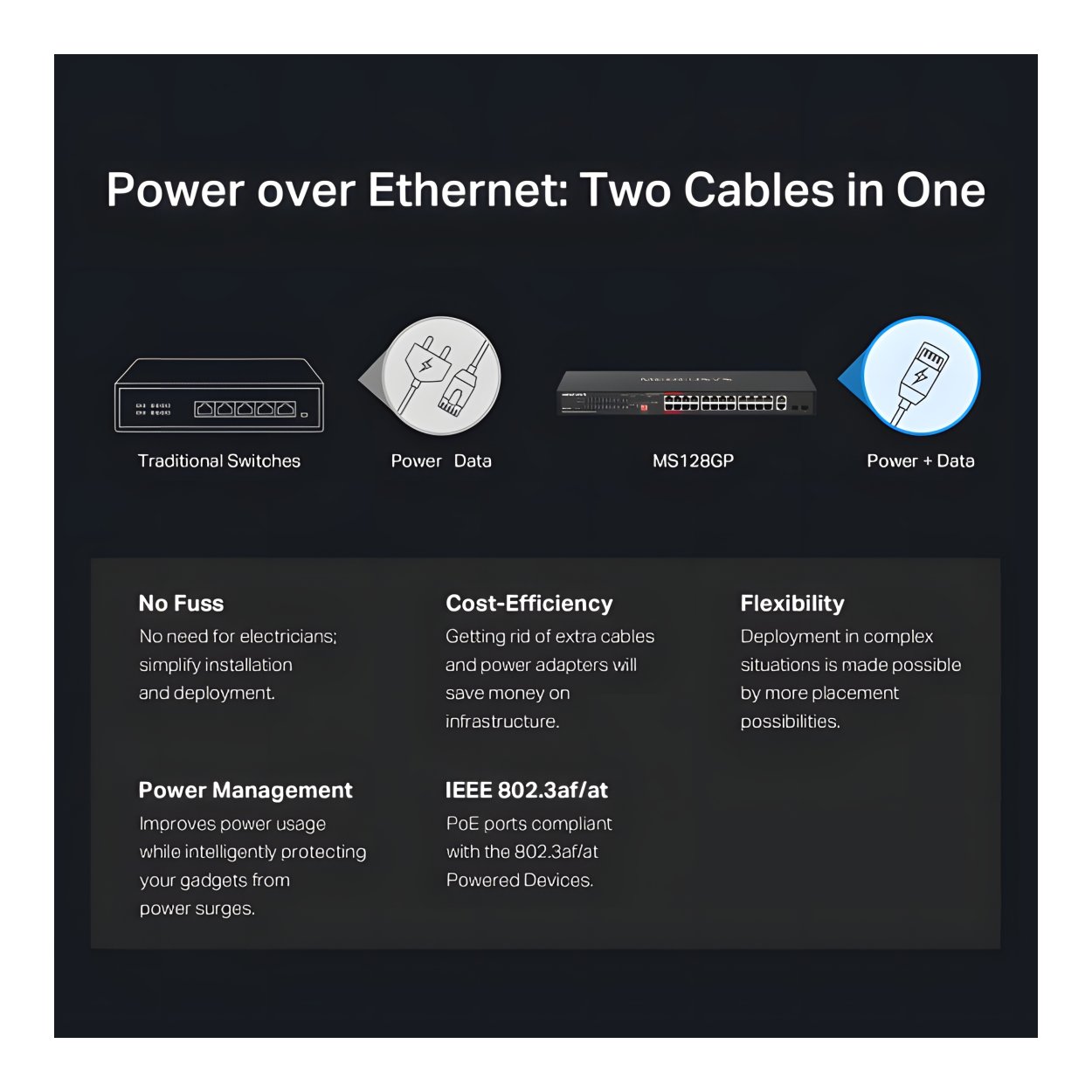

24 PoE+ Ports (295 W Budget) for Network Deployment

Compliant with the 802.3af/at Powered Devices, each of the 24 PoE+ ports supports a maximum power supply of 30 W. The total 295 W PoE power budget* can be applied in various scenarios, including surveillance, offices, and small businesses, since MS128GP is fully compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

Features:

• Full Gigabit Ports: 24× Gigabit PoE+ ports, 2× Gigabit uplink ports, and 2× Gigabit SFP slots
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 295 W for all PoE ports.* Working with IEEE 802.3af/at compliant PDs
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**

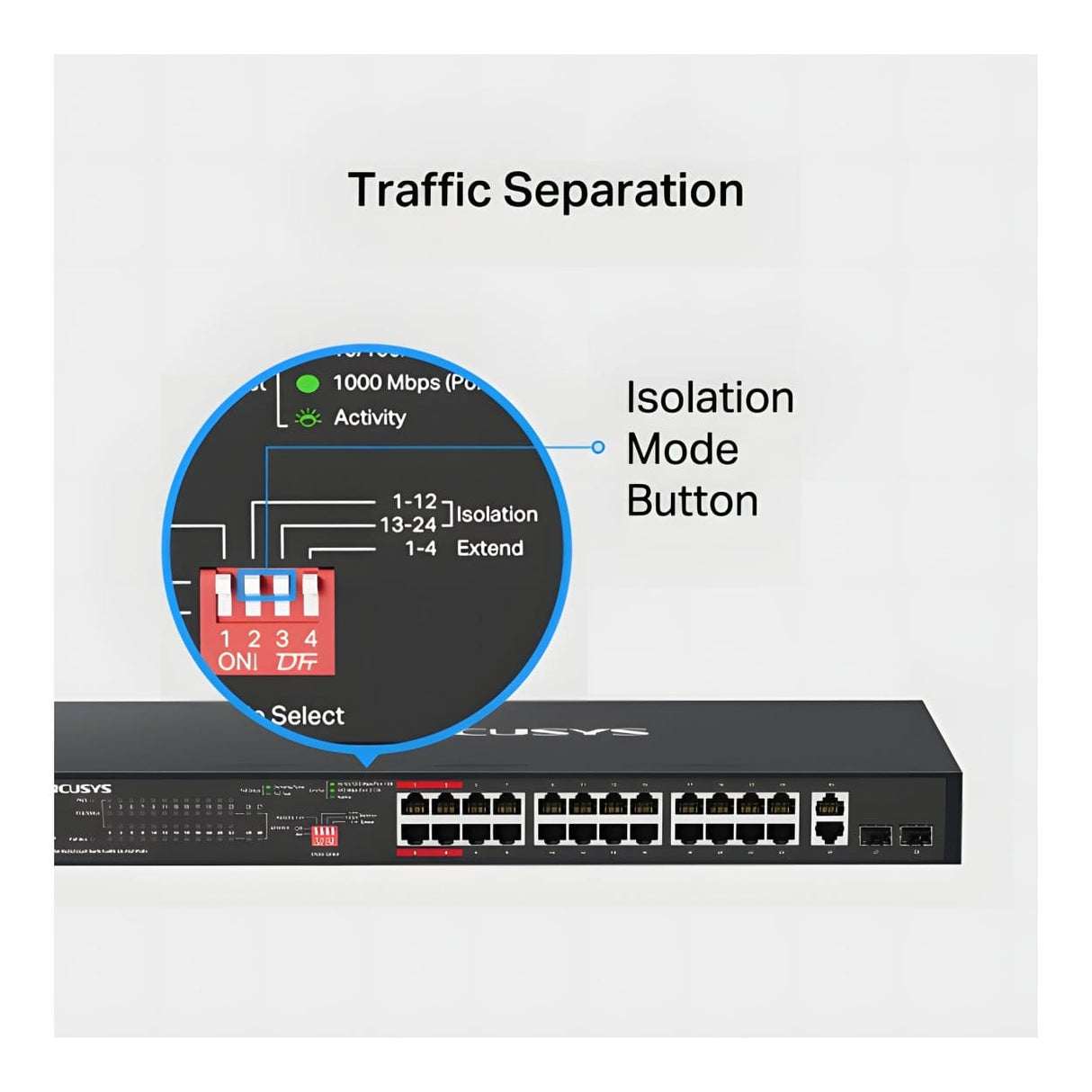

• Isolation Mode: One click to divide traffic for specific ports for stability and security

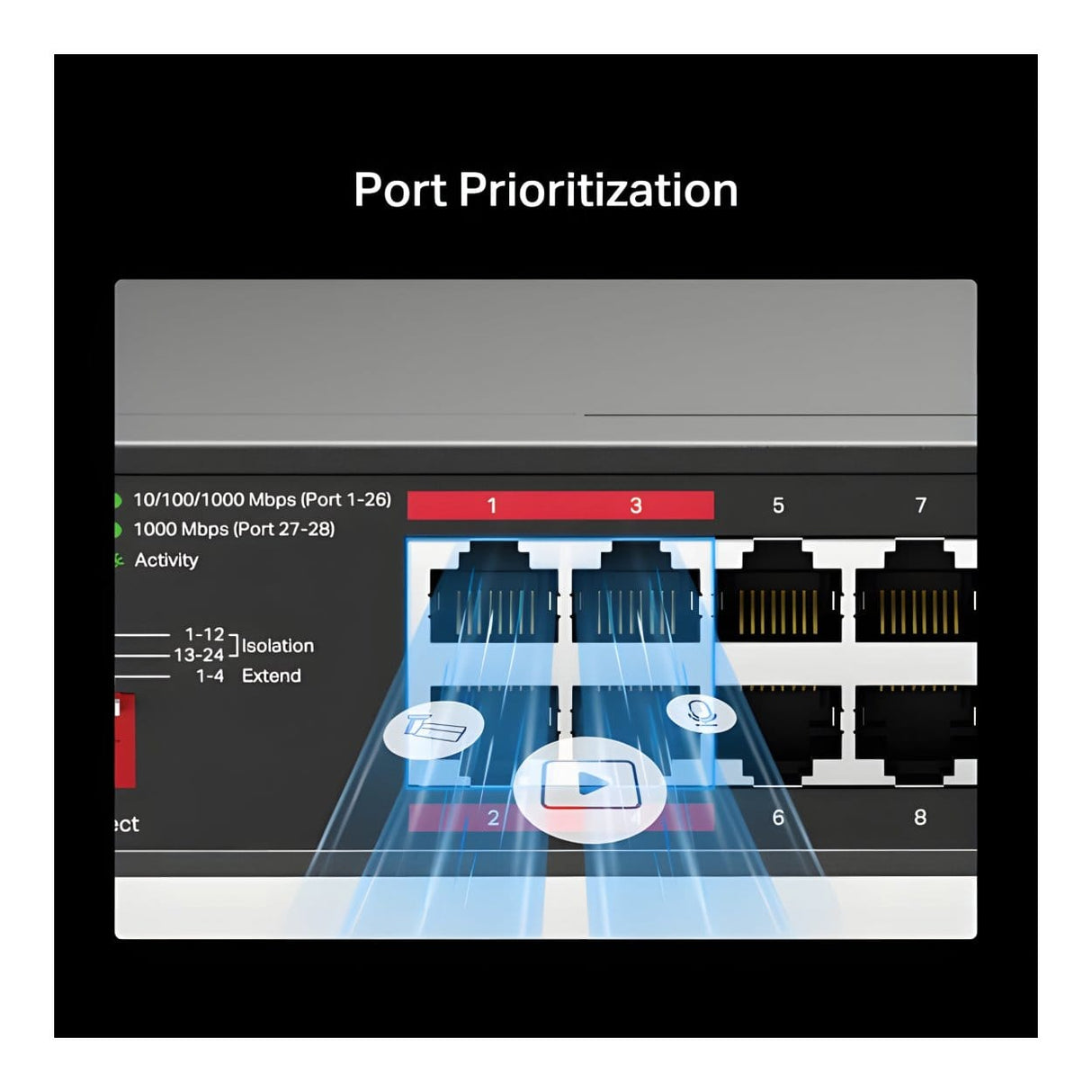

• Priority Mode: Guarantees the quality of sensitive applications like video monitor

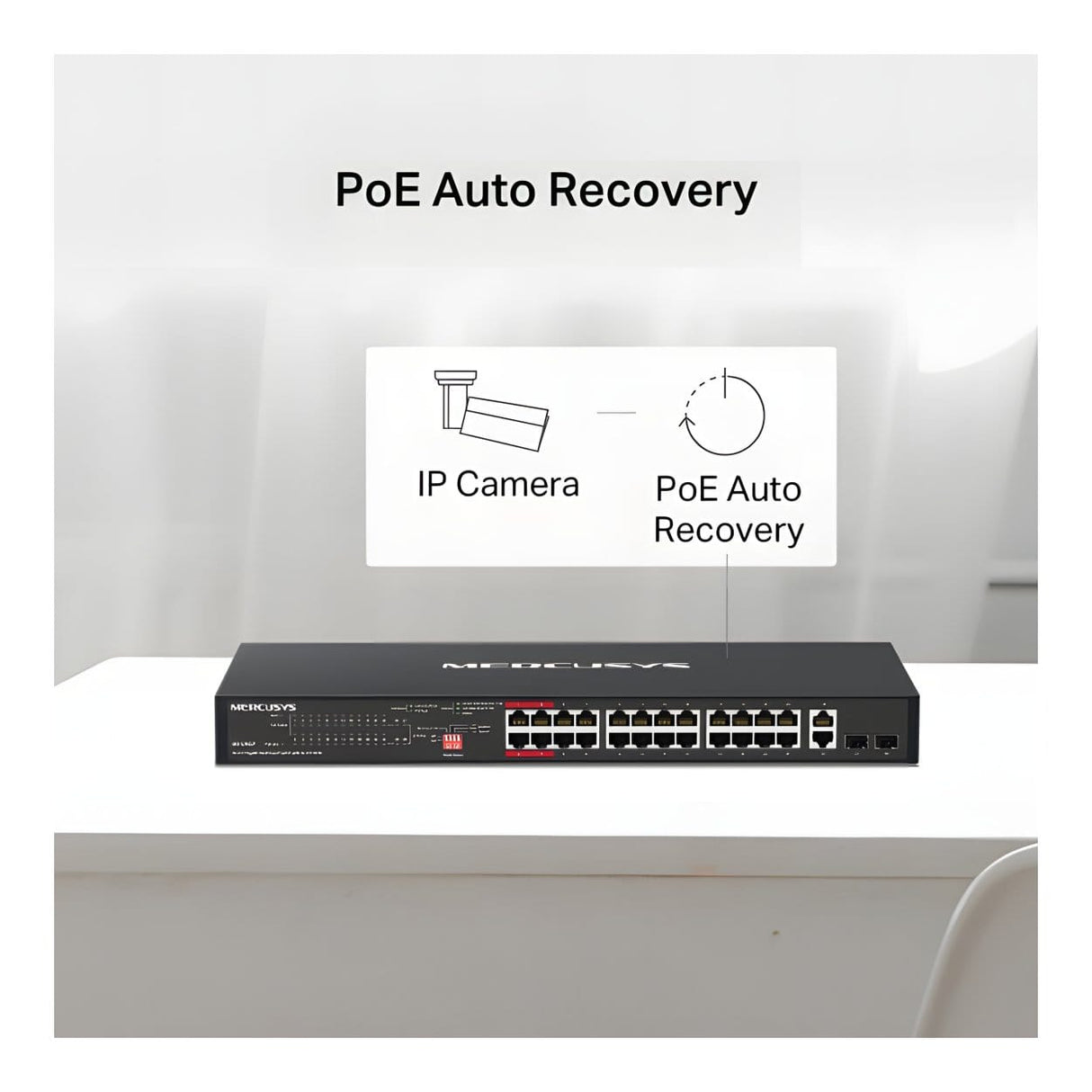

• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

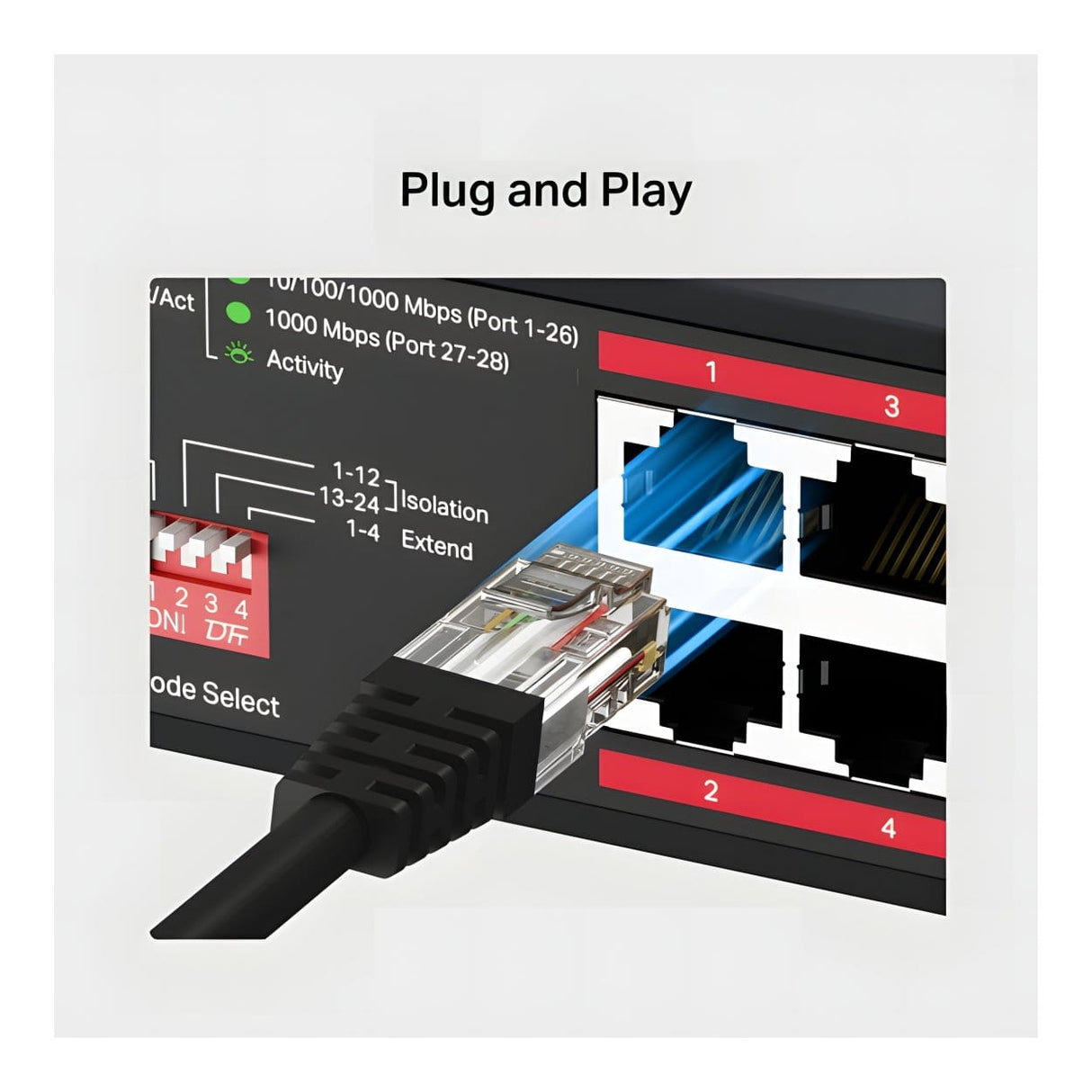

• Plug and Play: No configuration or central management required

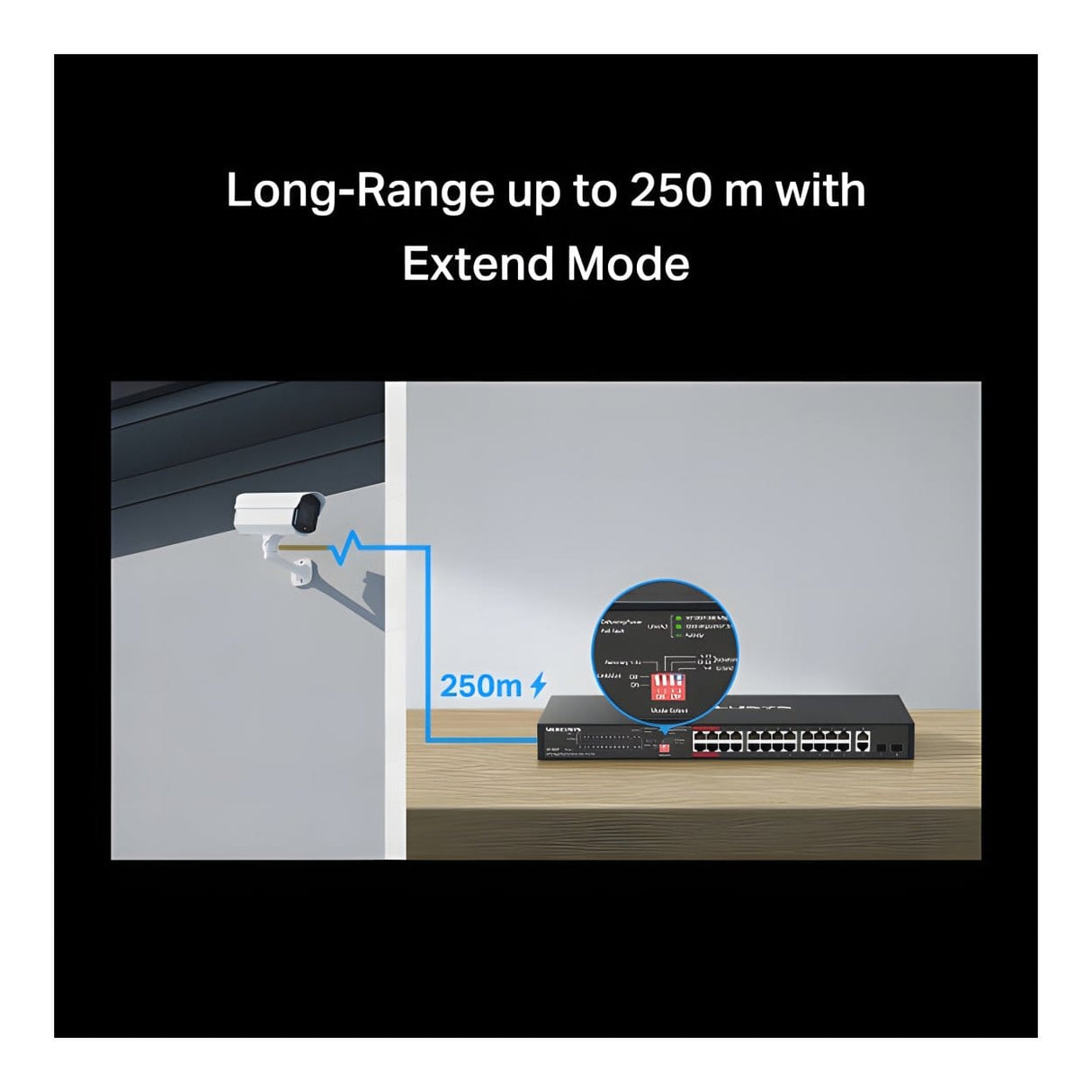

Long-Range up to 250 m with Extend Mode

Extend Mode** increases PoE transmission distance to 250 m. MS128GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Durable and Flexible

MS128GP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life. And you can put the switch on desk or rack mount to meet your demand.

Technical Specifications:

Hardware

Standards and Protocols

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.3af
• IEEE 802.3at

Dimensions: 440 × 180 × 44 mm

PoE

PoE Standard: IEEE 802.3af/at Compatible

PoE Ports

• Ports 1–24
• Up to 30 W per Port

Total PoE Power Budget: 295 W

Interfaces

• 24 × 10/100/1000 Mbps PoE+ RJ45 Ports
• 2 × 10/100/1000 Mbps RJ45 Ports
• 2 × Gigabit SFP Slots

Transmission Medium

• 10BASE-T: 2-Pair UTP/STP Cat. 3 or Above (≤100 m)
• 100BASE-TX: 2-Pair UTP/STP Cat. 5 or Above (≤100 m)
• 1000BASE-T: 4-Pair UTP/STP Cat. 5e or Above (≤100 m)
• 1000BASE-X: MMF, SMF

Fan Quantity: 2 Fans

Physical Security Lock: Yes

Switching Capacity: 56 Gbps

LED Indicators

• Power
• Link/Activity
• PoE Status
• PoE Max

MAC Address Table: 8K

Power Consumption

• 350.14 W (110 V / 60 Hz @ 25 °C, With 295 W PD Connected)
• 336.58 W (220 V / 50 Hz @ 25 °C, With 295 W PD Connected)

Heat Dissipation

• 1193.98 BTU/hr (110 V / 60 Hz @ 25 °C, With 295 W PD Connected)
• 1147.74 BTU/hr (220 V / 50 Hz @ 25 °C, With 295 W PD Connected)

Software

Transfer Method: Store and Forward

Advanced Features

• IEEE 802.3af/at Compliant PD Compatibility
• Extend Mode (Up to 250 m PoE Power Supply and Data Transmission)
• Priority Mode (Ports 1–4)
• Isolation Mode (Ports 1–12, 13–24)
• PoE Auto Recovery (Ports 1–24)
• MAC Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control

Certifications

Compliance

• CE
• RoHS

Environmental

Operating Temperature: −10°C to 45°C
Storage Temperature: −40°C to 70°C
Operating Humidity: 10%–90% RH, Non-Condensing
Storage Humidity: 5%–90% RH, Non-Condensing

What's in the Box:

• MS128GP Switch
• Power Cord
• Installation Guide
• Mounting Brackets and Fittings
