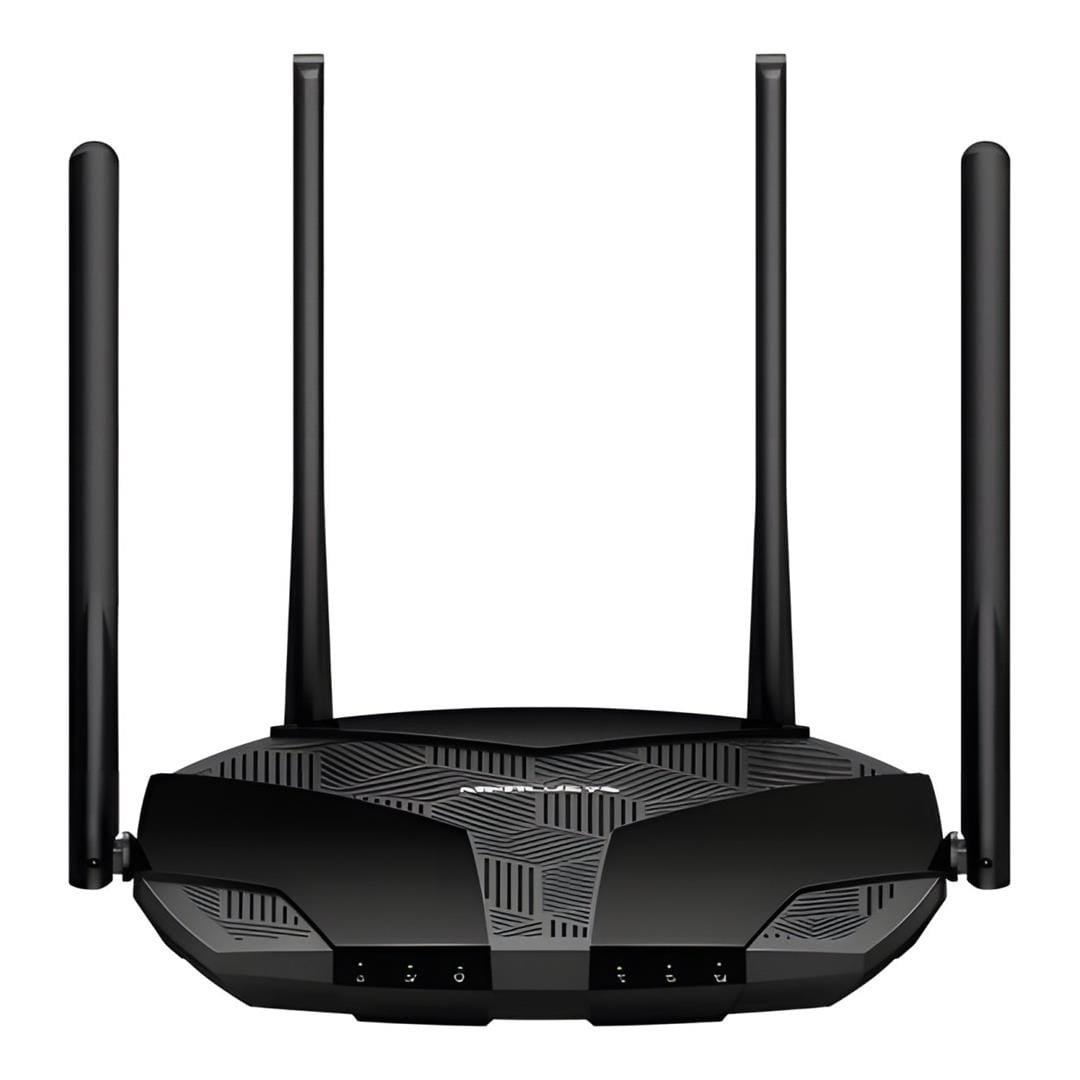

Mercusys MB235-4G AC1200 Wireless Router - Dual Band 2.4GHz and 5GHz Gigabit Ethernet

Mercusys MB235-4G AC1200 Wireless Router - Dual Band 2.4GHz and 5GHz Gigabit Ethernet

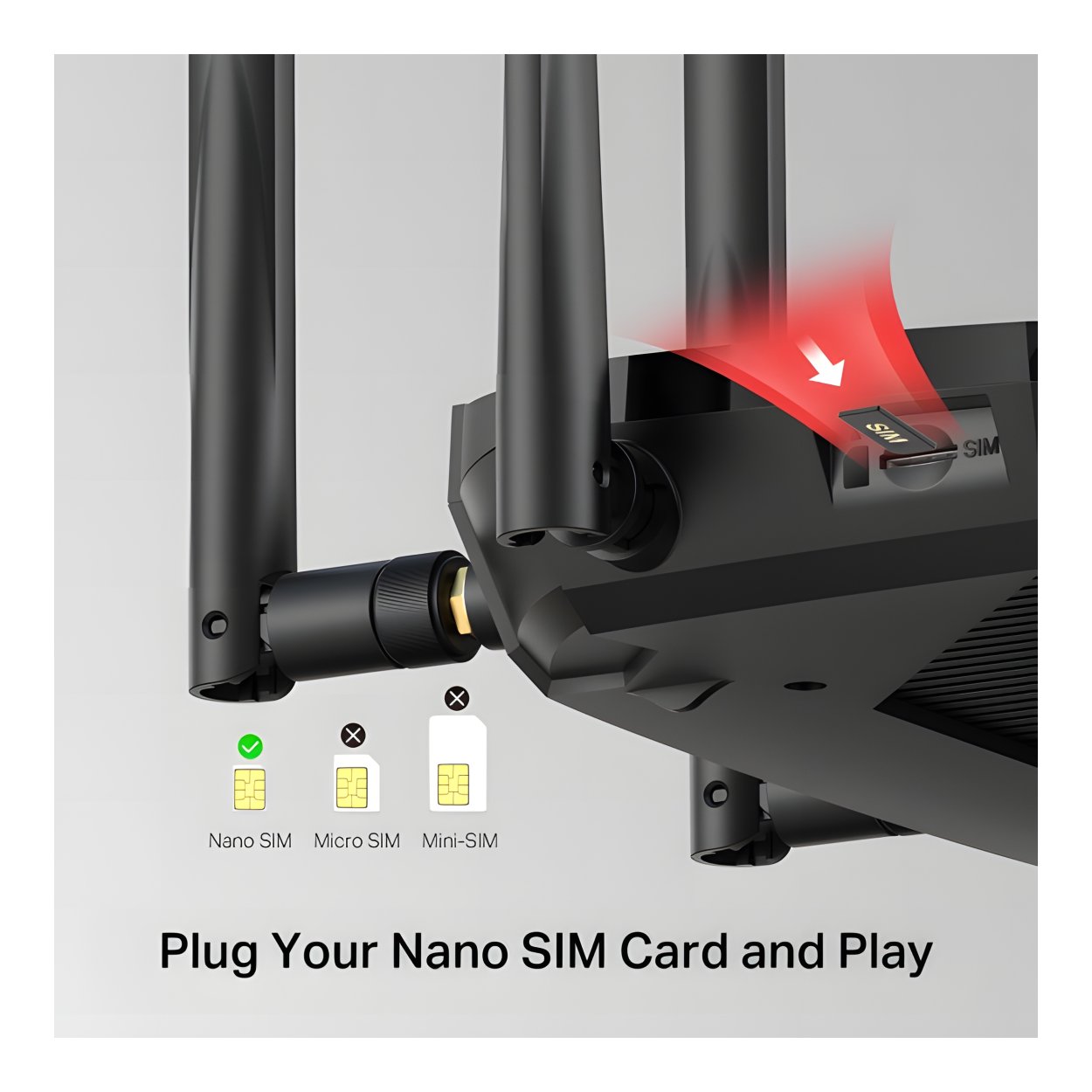

Plug and Play with Your Nano SIM Card

Compatible with FDD-LTE and TDD-LTE, working with most service providers worldwide. Simply insert a nano SIM card and power on the router to share your network with multiple WiFi devices.

Features:

• 4G+ network – Enjoy the 4G+ Cat 6 download speeds up to 300 Mbps.
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests.
• Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
• Simultaneous Connection – Enjoy and share internet access with up to 64 Wi-Fi devices.
• Maximum Network Coverage –  Enjoy stable and efficient connections to every device thanks to the four external antennas. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.
• EasyMesh Compatible – Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.

WiFi Wherever You Need It

Enjoy unmatched convenience and versatility with fast, stable WiFi whether you’re at home or working remotely.

Extra Fast 4G+ Cat6 Speed for Reliable WiFi

Working as a 4G+ WiFi router, MB235-4G uses 4G+ Cat6 technology to achieve superfast speeds up to 300 Mbps download and 50 Mbps upload. It can also share dual band WiFi network speeds up to 1.2 Gbps. The 2.4 GHz band is perfect for music streaming and online shopping, while the 5 GHz band, with speeds of 867 Mbps, handles bandwidth-intensive HD streaming and gaming.

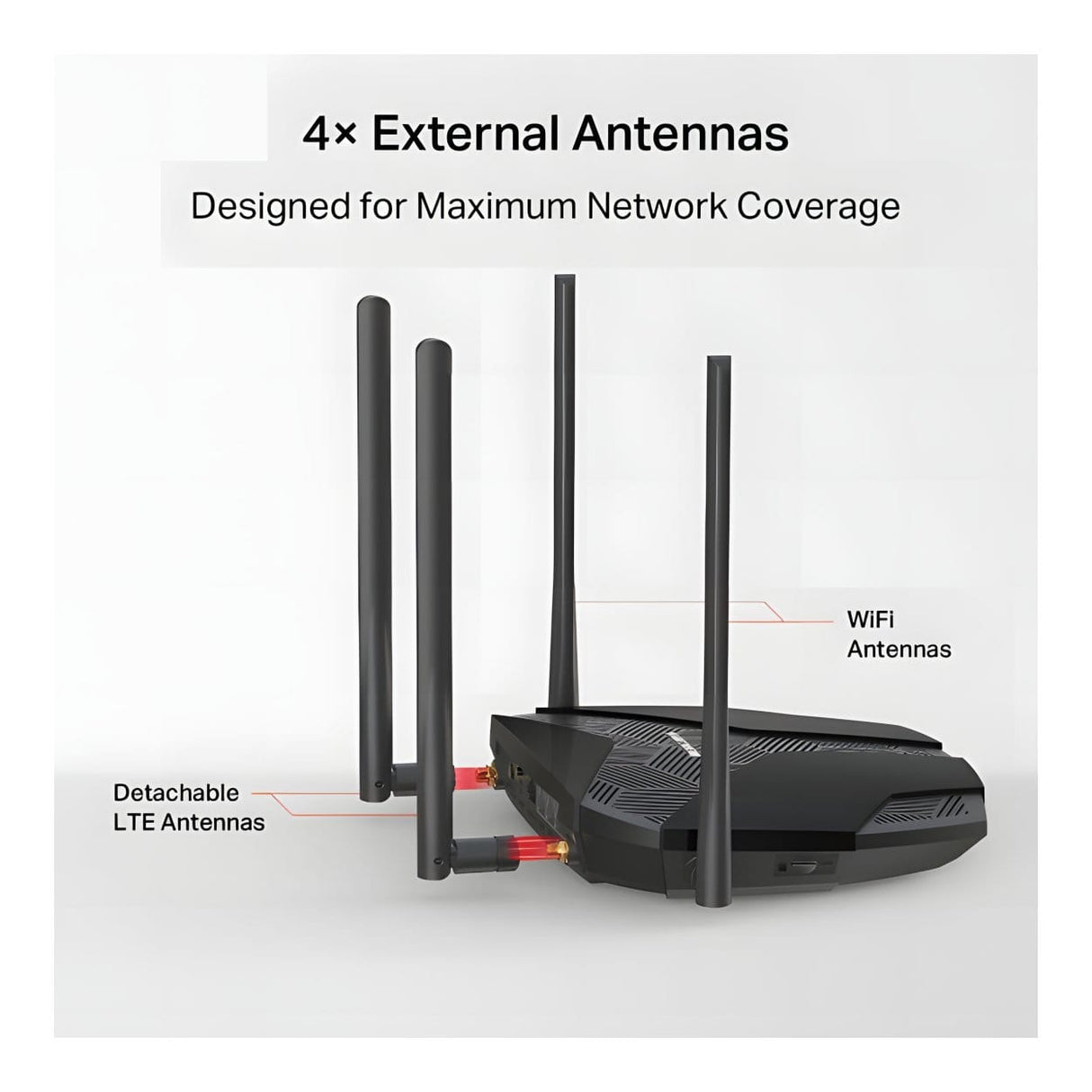

Designed for Maximum Network Coverage

Advanced external antennas deliver stable, efficient connections across all devices. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.

Cover Your Whole Home with EasyMesh

MB235-4G is compatible with EasyMesh, enabling you to set up a whole home mesh network with one WiFi name and password with any other APs that support EasyMesh from multiple vendors. Enjoy scalable and seamless mesh WiFi throughout your home!

Share WiFi with Your Friends

A remarkable number of wireless devices are compatible with this 4G+ router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.

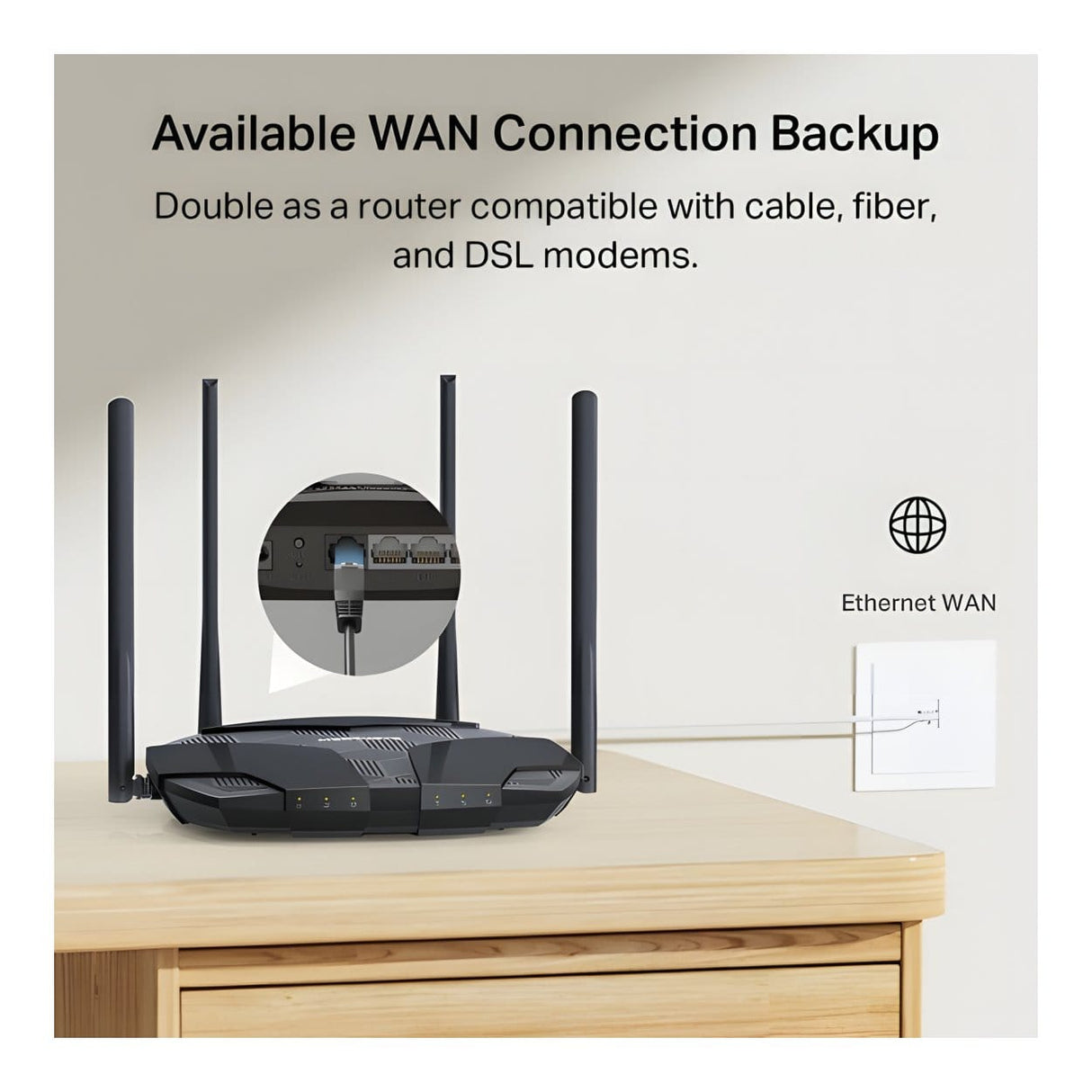

Available WAN Connection Backup

Equipped with a versatile LAN/WAN port, MB235-4G doubles as a router compatible with cable, fiber, and DSL modems, ensuring uninterrupted connectivity.

Technical Specifications:

Cellular
Cellular Standards: Cat 6
Download/Upload Speed: 300/50 Mbps DL/UL

Cellular Bands
FDD-LTE Bands:

• B1 (2100 MHz)
• B3 (1800 MHz)
• B5 (850 MHz)
• B7 (2600 MHz)
• B8 (900 MHz)
• B20 (800 MHz)
• B28 (700 MHz)

TDD-LTE Bands:

• B38 (2600 MHz)
• B40 (2300 MHz)

HSPA+/UMTS Bands:

• B1 (2100 MHz)
• B5 (850 MHz)
• B8 (900 MHz)

SIM Support: 1 × Nano SIM Card Slot

Wireless
Wi-Fi Class: AC1200
Wi-Fi Speed (2.4 GHz): 300 Mbps
Wi-Fi Speed (5 GHz): 867 Mbps
Wireless Standards: IEEE 802.11ac/a/b/g/n
Maximum Channel Width: 80 MHz
Maximum Capacity: 64 Devices
Recommended Client Limit: 32 Devices
Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE

Reception Sensitivity

• 11g 6 Mbps: -95 dBm
• 11g 54 Mbps: -77 dBm
• 11n HT20 MCS7: -74 dBm
• 11n HT40 MCS7: -71 dBm
• 11a 6 Mbps: -92 dBm
• 11a 54 Mbps: -75 dBm
• 11ac VHT20 MCS8: -70 dBm
• 11ac VHT40 MCS9: -65 dBm
• 11ac VHT80 MCS9: -61 dBm

Wireless Functions

• Smart Connect
• WPS
• Wireless Schedule

Operation Modes

• 3G/4G Router
• Wireless Router

Cellular Features
Cellular Modes:

• 4G Mode
• 3G Mode

Cellular APN Features:

• Data Roaming
• Band Search
• Network Search
• Profile Create
• APN Settings
• ISP File Upgrade
• PIN Management

WAN Features
WAN Modes:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

DHCP

• DHCP Server
• DHCP Client List
• Address Reservation

NAT Forwarding

• ALG
• Virtual Server
• Port Triggering
• UPnP
• DMZ

Protocols

• IPv4
• IPv6

Data Features

• Data Statistics
• Data Limit

Guest Network

• 2.4 GHz Guest Network
• 5 GHz Guest Network

Parental Controls

• Time Control
• Website Filtering

DDNS

• DynDNS
• NO-IP

SMS Features

• Inbox
• New Message
• Outbox
• Drafts

Additional Features
EasyMesh: Yes
QoS: Yes

Security

• IPv4 SPI Firewall
• Access Control
• IP & MAC Binding
• IPv6 Firewall

ISP Features
TR-069: Yes

System Features

• Time & Language
• LED Control
• Diagnostics
• Firmware Upgrade
• Backup & Restore
• Reboot
• Administration
• System Log
• CWMP Settings

LED Management

• LED Control
• Night Mode

Device Management

• MERCUSYS App
• Web GUI

Cloud Features

• Firmware Upgrade Over The Cloud
• Remote Management

Supported Languages

• English
• Deutsch
• Español
• Français
• Italiano
• Polski
• Русский

Interfaces

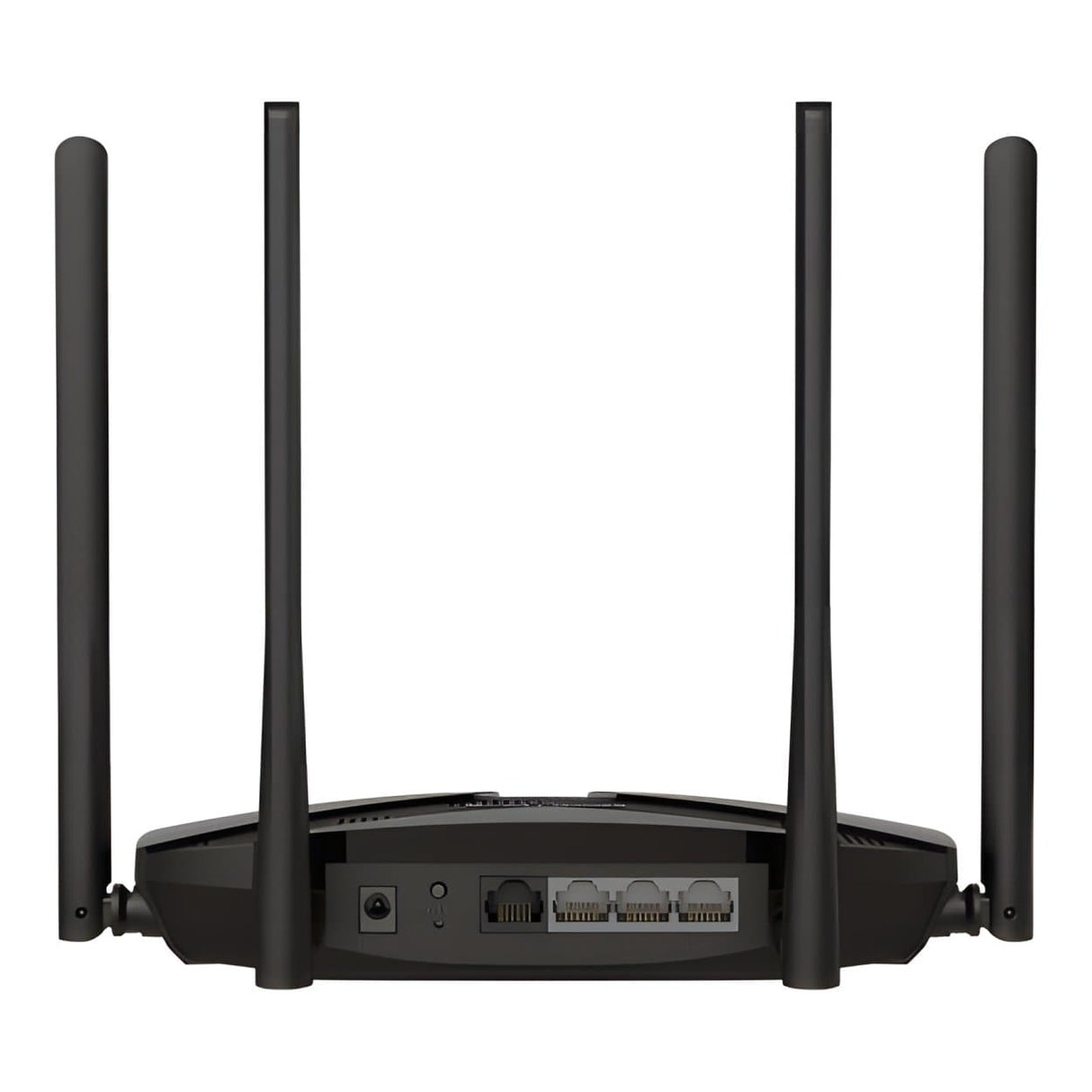

• 1 × GE LAN/WAN Port
• 3 × GE LAN Ports
• 1 × Nano SIM Card Slot

Antennas

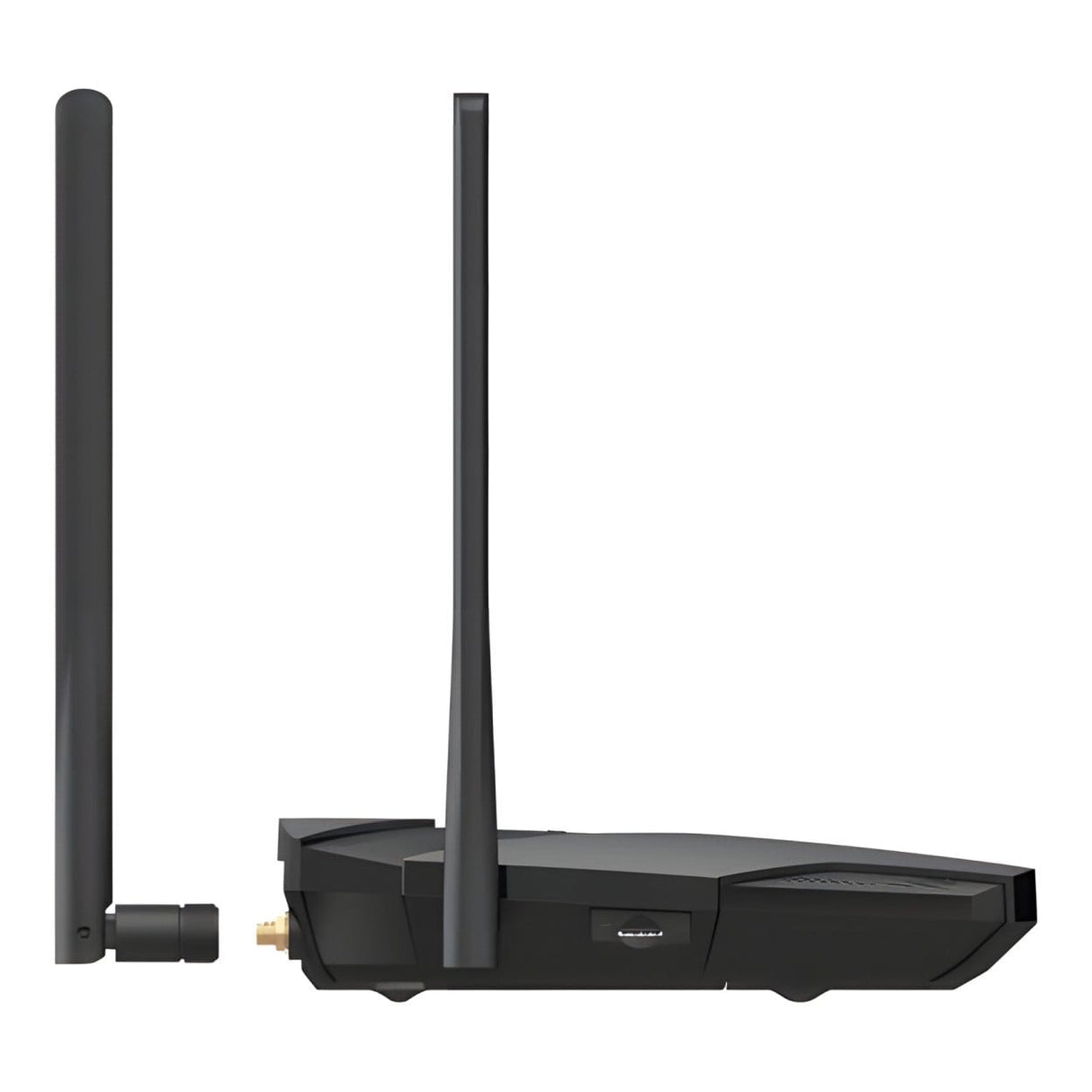

• 2 × External Detachable 4G LTE Antennas
• 2 × External Wi-Fi Antennas

Buttons

• 1 × WPS Button
• 1 × Reset Button

LED Indicators

• 1 × Power
• 1 × Internet
• 1 × LAN
• 3 × Signal

Power
External Power Supply: 12 V / 1 A

Installation
Installation Type: Desktop

Dimensions
Product Dimensions (W × D × H): 209 × 171.9 × 41.7 Mm (8.2 × 6.8 × 1.6 In)
Retail Package Dimensions: 305 × 274 × 60 Mm
Carton Dimensions: 555 × 310 × 245 Mm
Units Per Carton: 8

Network Services Enabled By Default
Web Server:

• HTTP/HTTPS Management Interface
• Port: 80/443
• Protocol: TCP

DHCP Server:

• IP Address Assignment (DHCP)
• Port: 67
• Protocol: UDP

DNS Proxy:

• DNS Packet Processing
• Port: 53
• Protocol: TCP/UDP

App Management:

• Device Management Through App
• Port: 20002
• Protocol: UDP

Certifications
Certification: CE

Environment
Operating Temperature: 0 °C To 40 °C (32 °F To 104 °F)
Storage Temperature: -40 °C To 60 °C (-40 °F To 140 °F)
Operating Humidity: 10% To 90% Non-Condensing
Storage Humidity: 5% To 90% Non-Condensing

What's in the Box:

• 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router (MB235-4G)
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
