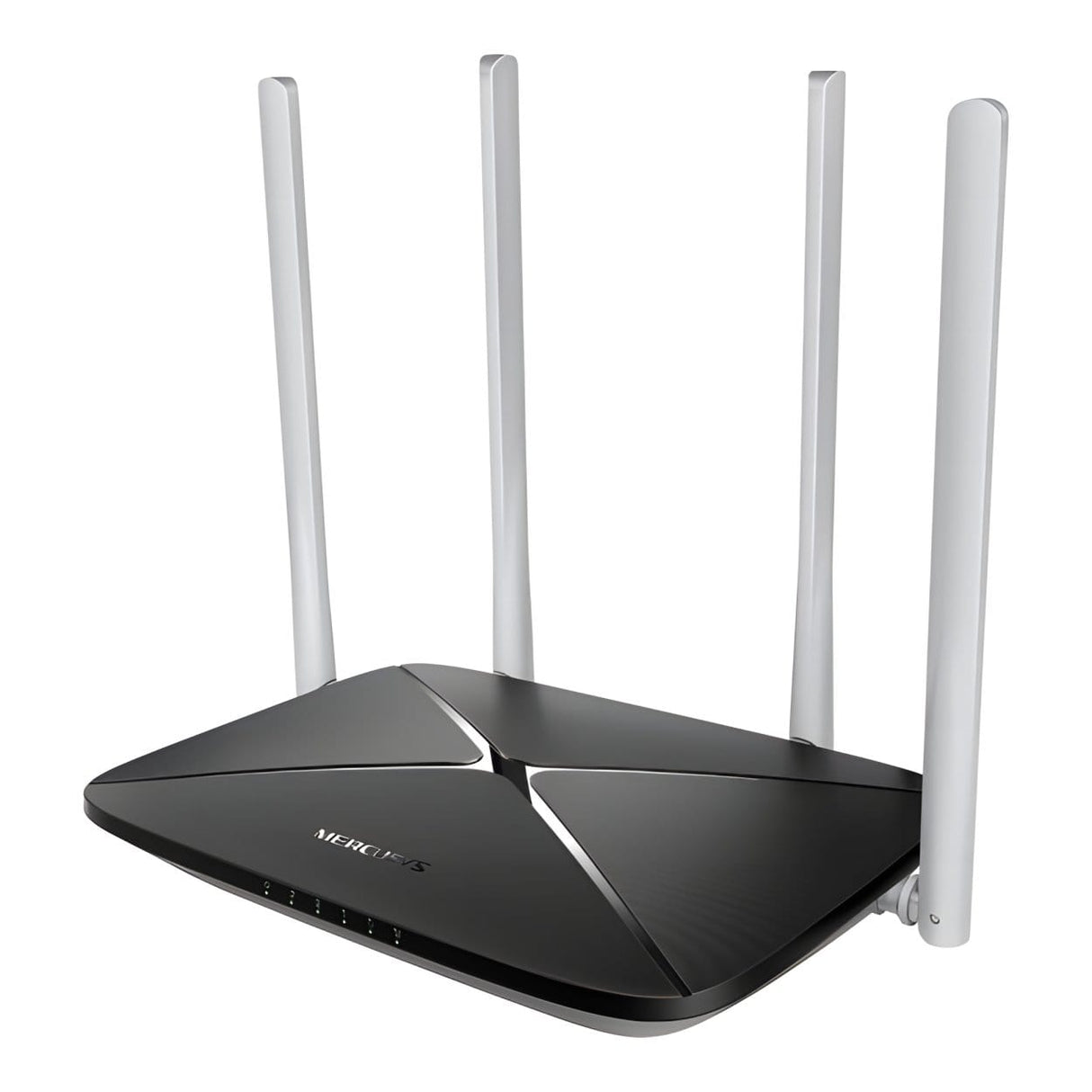

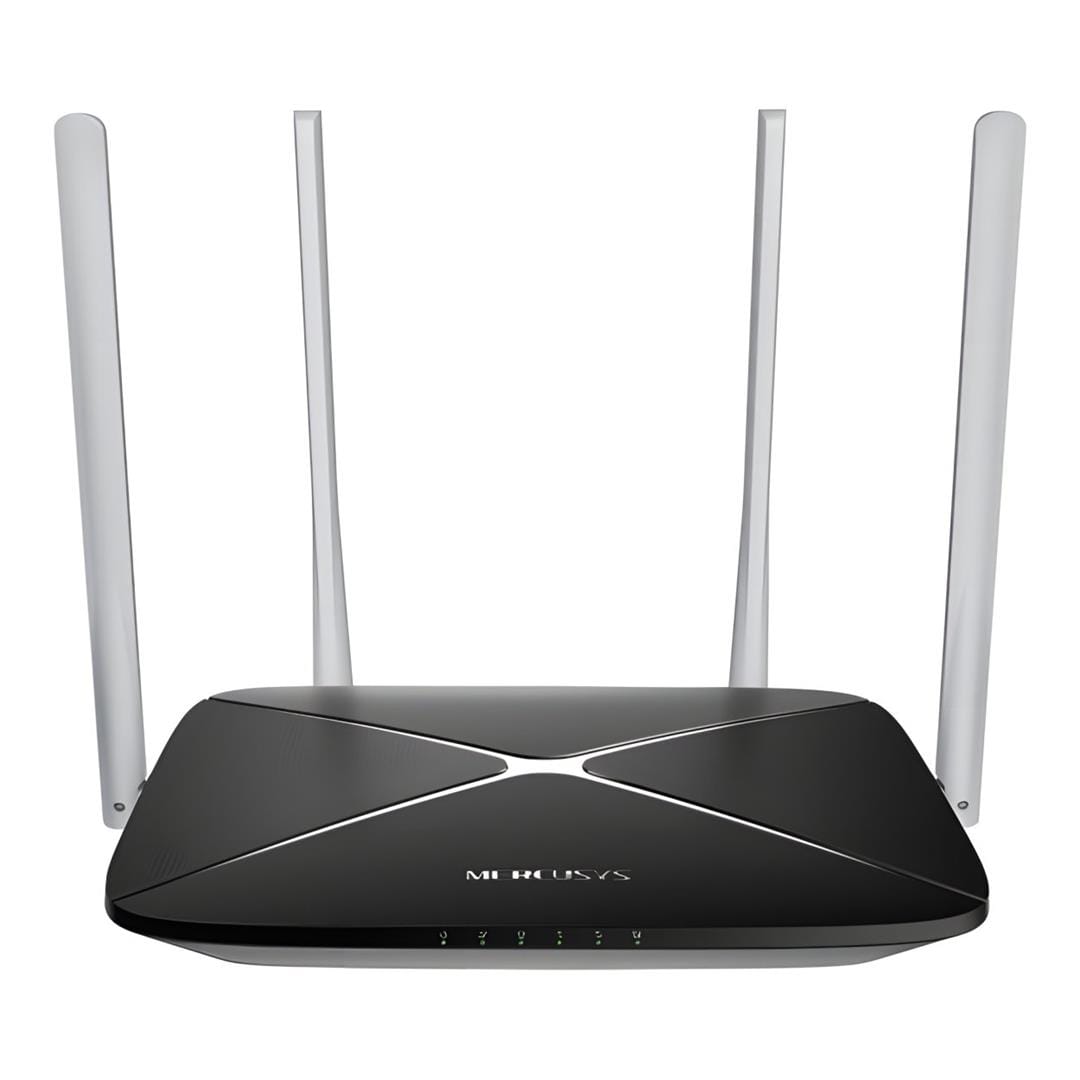

Mercusys MB135-4G AC1200 4G LTE Wireless Router - Dual Band 2.4GHz and 5GHz Gigabit Ethernet

Mercusys MB135-4G AC1200 4G LTE Wireless Router - Dual Band 2.4GHz and 5GHz Gigabit Ethernet

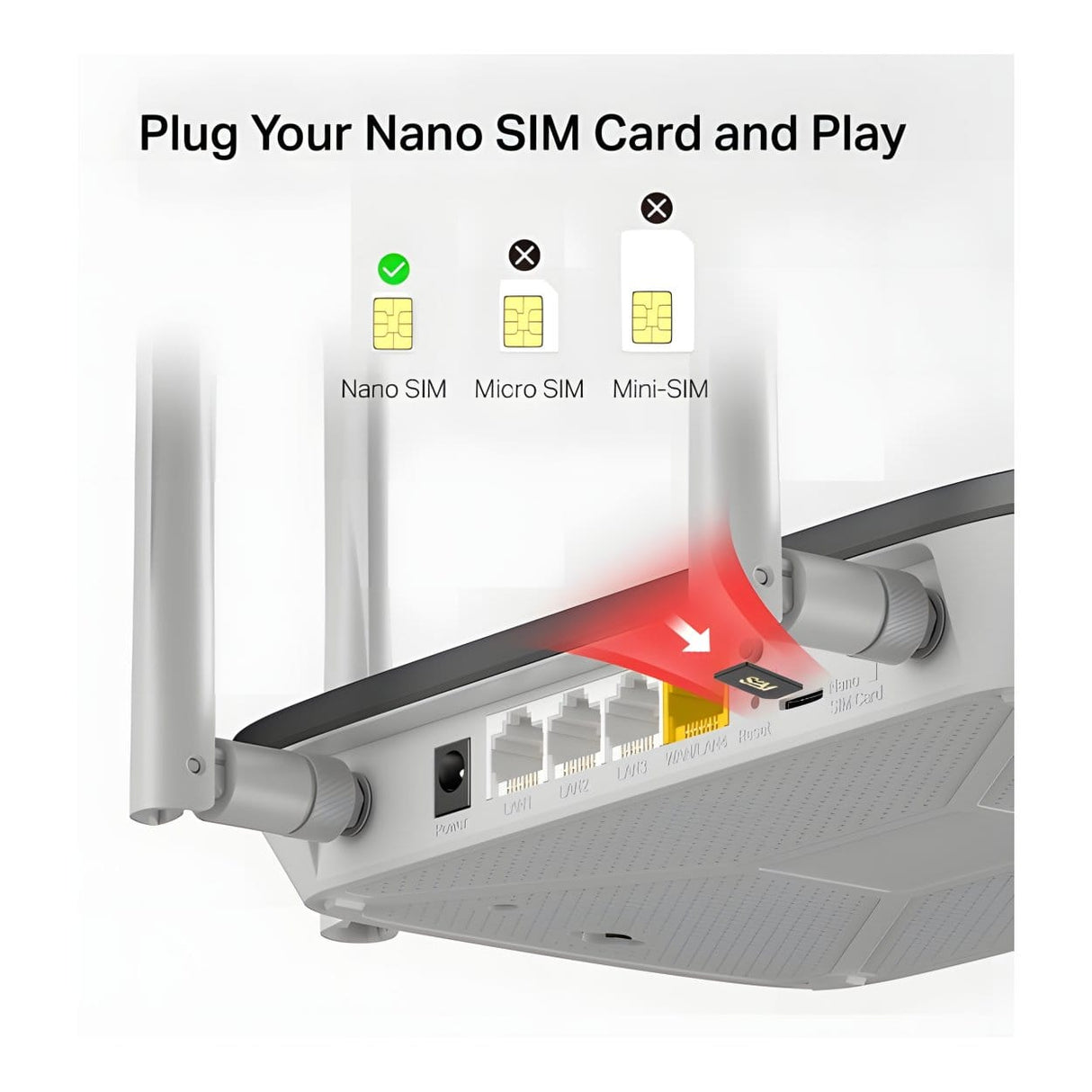

Plug Your Nano SIM Card and Play

Fully compatible with FDD-LTE and TDD-LTE for use with most service providers worldwide. Insert a nano SIM card and turn on the router to convert your 4G LTE network into WiFi and share it with multiple WiFi devices.

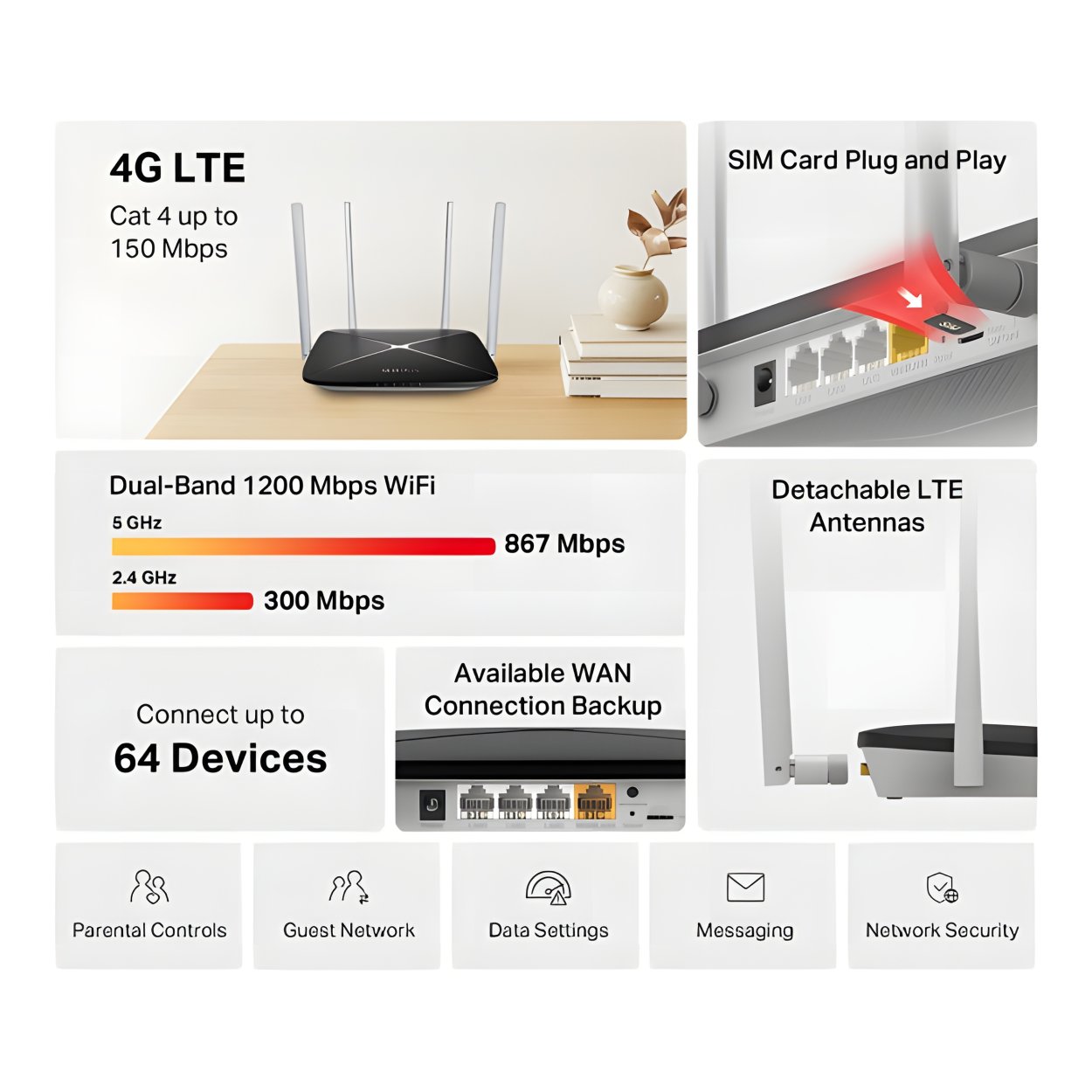

Features:

• 4G network – Share internet access with up to 64 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
• Plug a SIM card and play – No configurations needed, compatibility of SIM cards are assured by years of field tests*
• Dual Band 1200 Mbps WiFi – Fast WiFi speeds up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band.
• Maximum Network Coverage – Enjoy stable and efficient connections to every device thanks to the four external antennas
• Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection

WiFi Wherever You Need It

Enjoy unparalleled convenience and versatility with fast, stable WiFi—perfect for home or remote work.

Superfast 4G LTE Speed for Reliable WiFi

Working as a 4G router, MB135-4G uses 4G LTE technology to achieve speeds up to 150 Mbps download and 50 Mbps upload. It can also share dual-band WiFi network speeds up to 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.

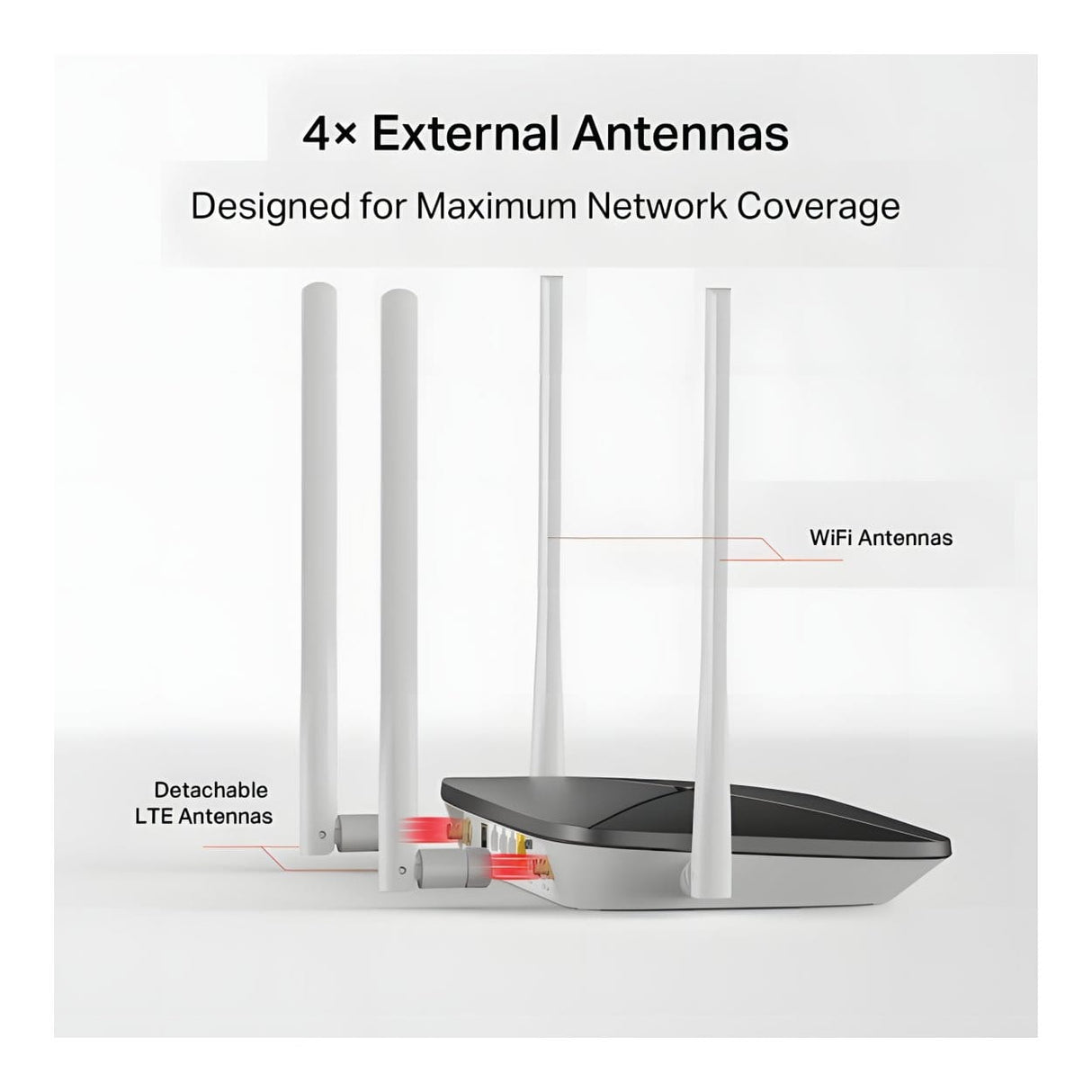

Designed for Maximum Network Coverage

Advanced external antennas deliver stable, efficient connections across all devices. LTE antennas can be replaced with high-power alternatives for enhanced 4G LTE signal strength and coverage.

Share WiFi with Your Friends

A remarkable number of wireless devices are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.

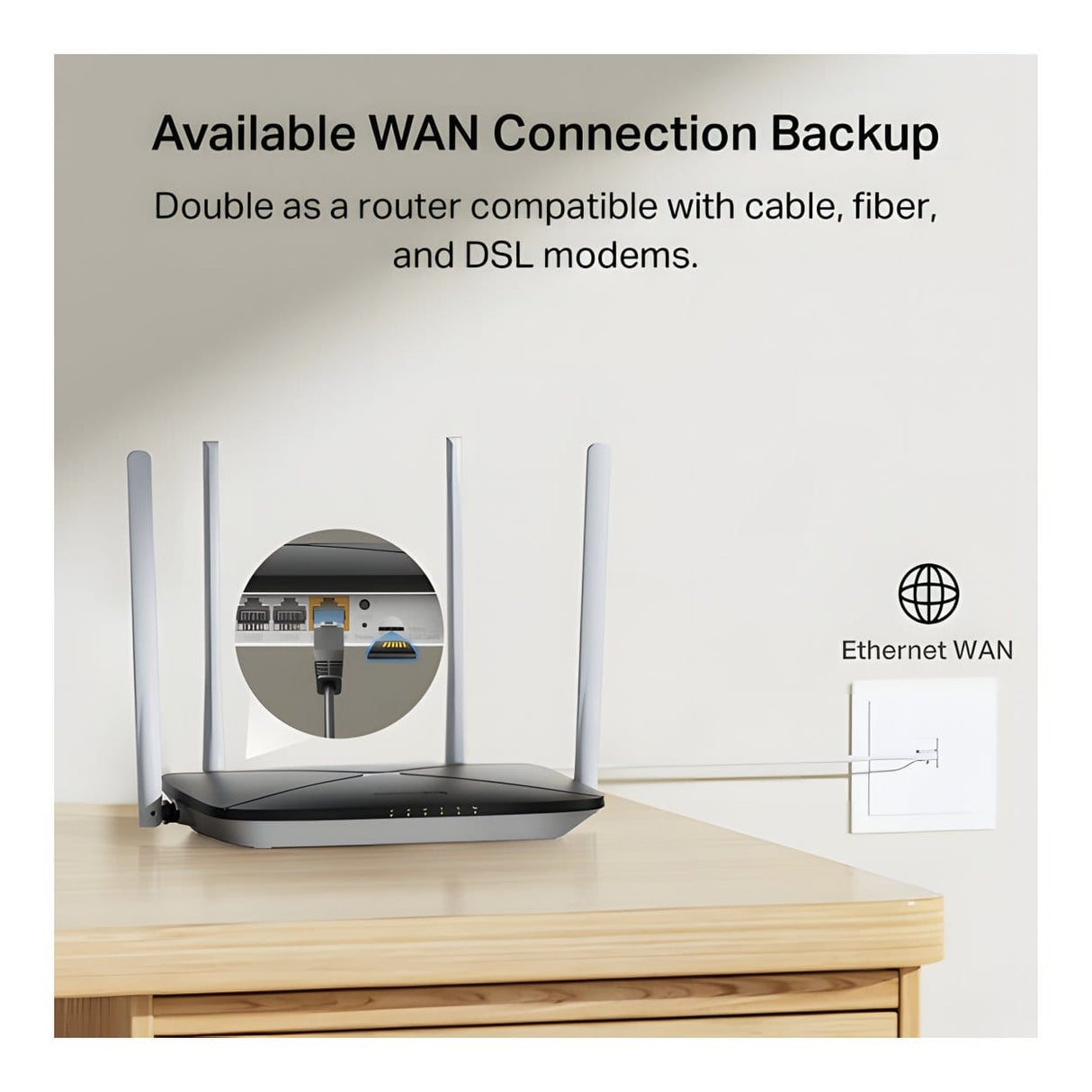

Available WAN Connection Backup

Equipped with a versatile LAN/WAN port, MB235-4G doubles as a router compatible with cable, fiber, and DSL modems, ensuring uninterrupted connectivity.

Technical Specifications:

Cellular

Cellular Standard: Cat 4
Maximum Cellular Speed: 150 Mbps Download / 50 Mbps Upload

Supported Cellular Bands (EU)

FDD-LTE Bands

• B1 (2100 MHz)
• B3 (1800 MHz)
• B5 (850 MHz)
• B7 (2600 MHz)
• B8 (900 MHz)
• B20 (800 MHz)
• B28 (700 MHz)

TDD-LTE Bands

• B38 (2600 MHz)
• B40 (2300 MHz)

HSPA+/UMTS Bands

• B1 (2100 MHz)
• B5 (850 MHz)
• B8 (900 MHz)

SIM Slot: 1 × Nano SIM Card Slot

Wireless

Wi-Fi Class: AC1200

Wi-Fi Speed

• 2.4 GHz: 300 Mbps
• 5 GHz: 867 Mbps

Wireless Standards: IEEE 802.11ac/a/b/g/n
Maximum Channel Width: 80 MHz

Maximum Capacity: 64 Devices
Recommended Client Limit: 32 Devices

Wireless Security

• WPA-PSK
• WPA2-PSK

Wireless Functions

• Smart Connect
• WPS
• Wireless Schedule
• Wireless Client Statistics

Reception Sensitivity

• 11g 6 Mbps: −95 dBm
• 11g 54 Mbps: −77 dBm
• 11n HT20 MCS7: −74 dBm
• 11n HT40 MCS7: −71 dBm
• 11a 6 Mbps: −92 dBm
• 11a 54 Mbps: −75 dBm
• 11ac VHT20 MCS8: −70 dBm
• 11ac VHT40 MCS9: −65 dBm
• 11ac VHT80 MCS9: −61 dBm

Hardware

Dimensions: 219 × 140 × 32 mm

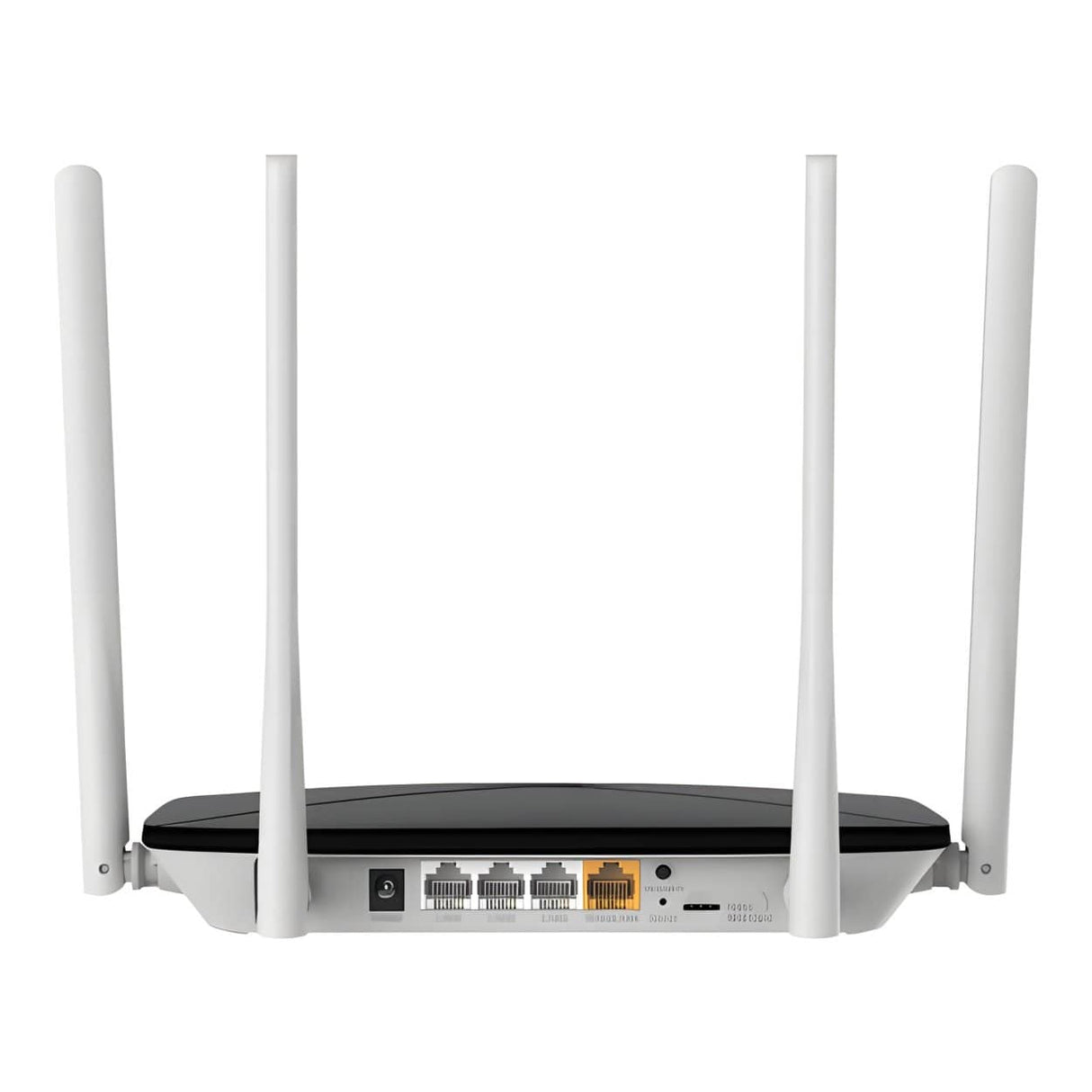

Interfaces

• 1 × FE LAN/WAN Port
• 3 × FE LAN Ports
• 1 × Nano SIM Card Slot

Antennas

• 2 × External Detachable 4G LTE Antennas
• 2 × External Wi-Fi Antennas

Buttons

• 1 × WPS/Wi-Fi Button
• 1 × Reset Button

Power Supply: 12 V / 1 A External Adapter

Installation: Desktop

LED Indicators

• 1 × Power
• 1 × Internet
• 1 × LAN
• 3 × Signal

Retail Package Dimensions: 303 × 288 × 65 mm
Units per Carton: 10
Carton Dimensions: 590 × 315 × 340 mm

Software

Operation Modes

• 3G/4G Router Mode
• Wireless Router Mode

Cellular Modes

• 4G Preferred
• 4G Only
• 3G Only

Cellular Features

• APN Settings
• Data Roaming
• Network Search
• Profile Creation
• ISP File Upgrade
• PIN Management

WAN Modes

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

NAT Forwarding

• ALG
• Virtual Server
• Port Triggering
• UPnP
• DMZ

Supported Protocols

• IPv4
• IPv6

Data Settings

• Data Statistics
• Data Limit

Guest Network

• 2.4 GHz Guest Network
• 5 GHz Guest Network

Parental Controls

• Time Control
• Website Filtering

DHCP Features

• DHCP Server
• DHCP Client List
• Address Reservation

DDNS Support

• DynDNS
• NO-IP

SMS Functions

• Inbox
• New Message
• Outbox
• Drafts

QoS: Supported

Security Features

• IPv4 SPI Firewall
• DoS Protection
• Service Filtering
• Access Control
• IP & MAC Binding
• IPv6 Firewall

ISP Features

• TR-069

System Features

• Time Settings
• LED Control
• Diagnostics
• Firmware Upgrade
• Backup and Restore
• Reboot
• Administration
• System Log
• CWMP Settings
• SNMP Settings
• Traffic Monitor

LED Management

• LED Control
• Night Mode

Device Management

• MERCUSYS App
• Web GUI

Cloud Features

• Firmware Upgrade Over Cloud
• Remote Management

Supported Languages

• English
• German
• Spanish
• Greek
• French
• Italian
• Polish
• Indonesian
• Russian
• Thai

Network Services

Default Enabled Services

• Web Server (HTTP/HTTPS, TCP Ports 80/443)
• DHCP Server (UDP Port 67)
• App Management (TCP Port 20001, UDP Port 20002)

Certifications

Compliance: CE

Environmental

Operating Temperature: 0°C to 40°C
Storage Temperature: −40°C to 60°C
Operating Humidity: 10%–90% Non-Condensing
Storage Humidity: 5%–90% Non-Condensing

What's in the Box:

• AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
