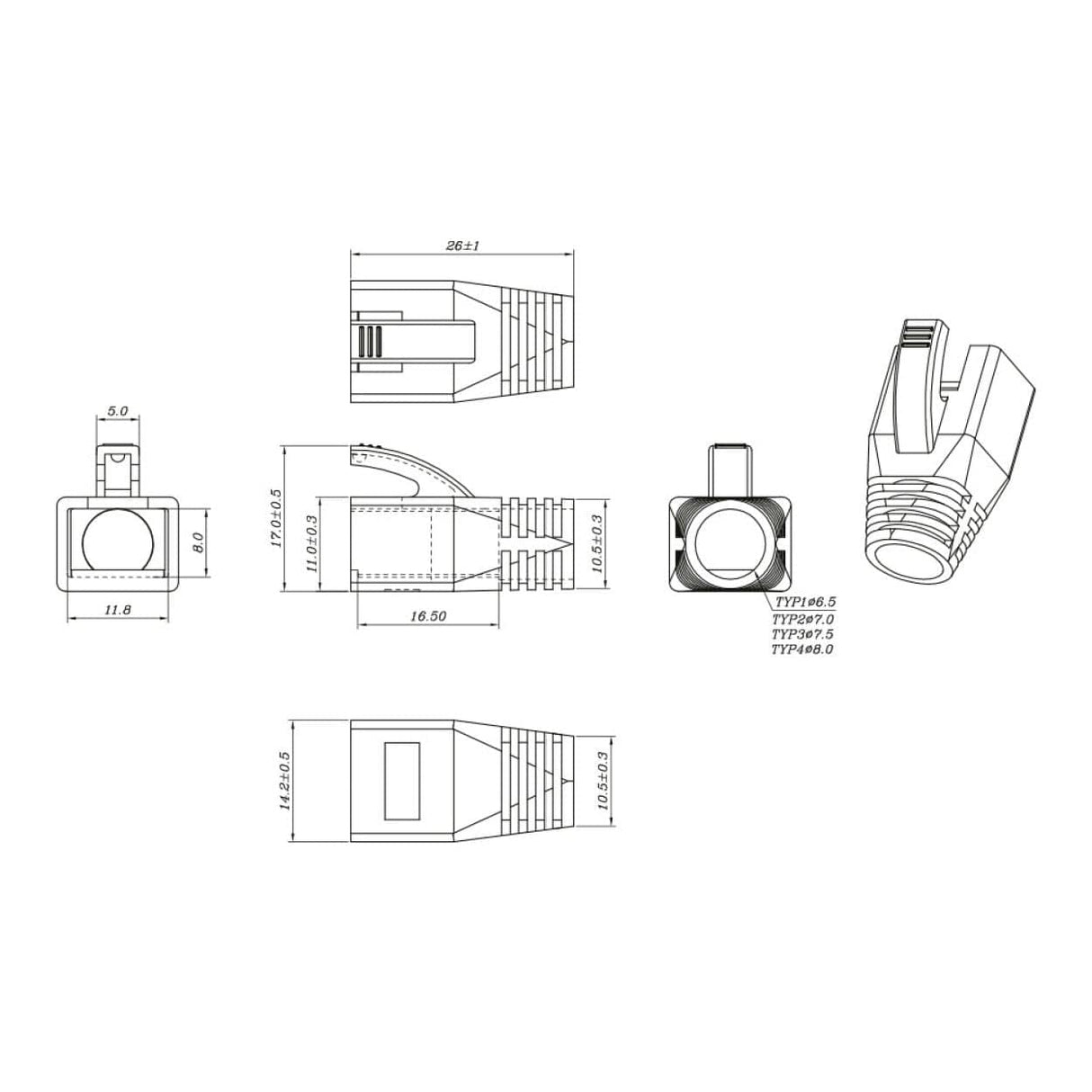

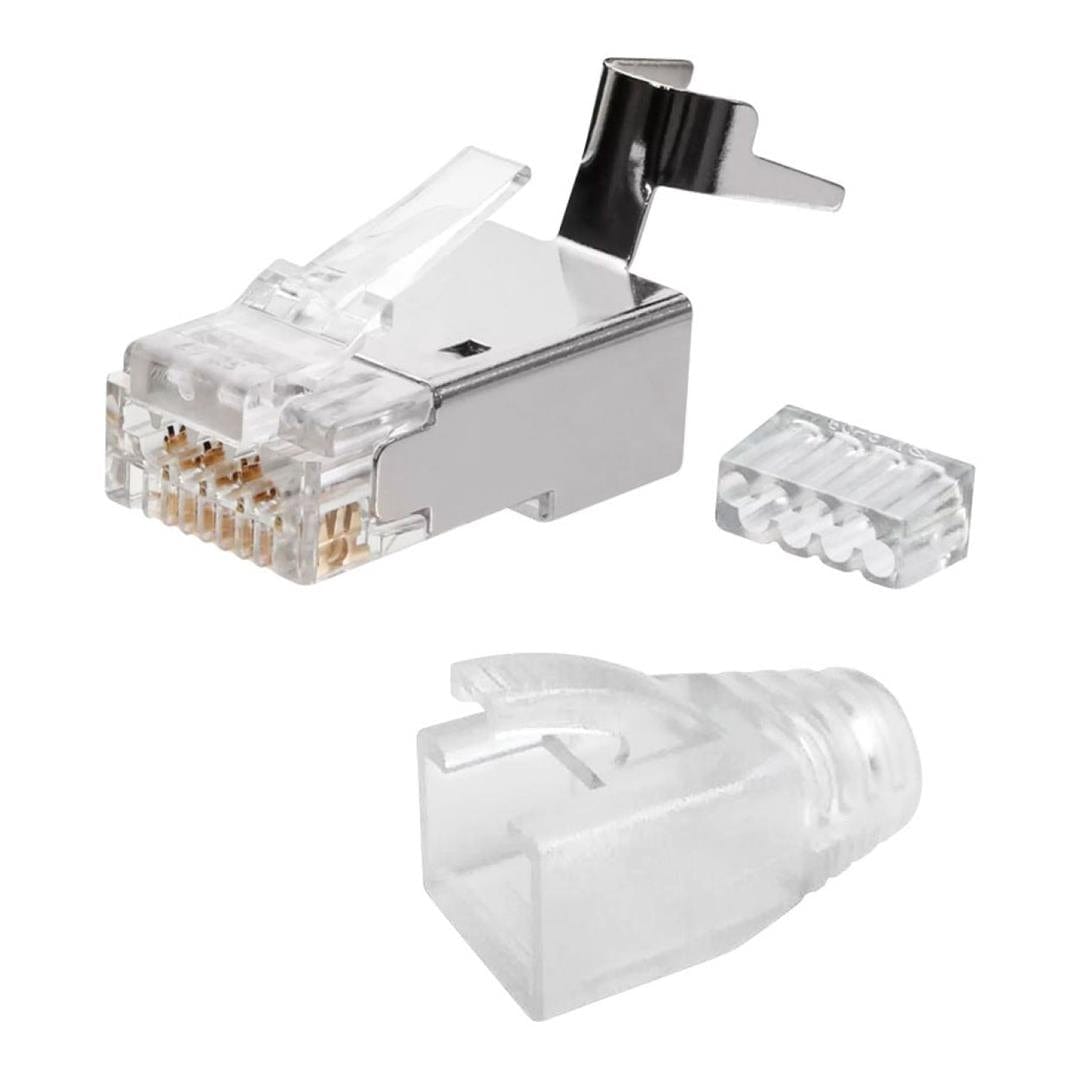

LinkQnet CAT6A STP Easy Pass Plug And Transparent Strain-Relief Boot NET-CAT6A-BOOTCRIMP

LinkQnet CAT6A STP Easy Pass Plug And Transparent Strain-Relief Boot NET-CAT6A-BOOTCRIMP

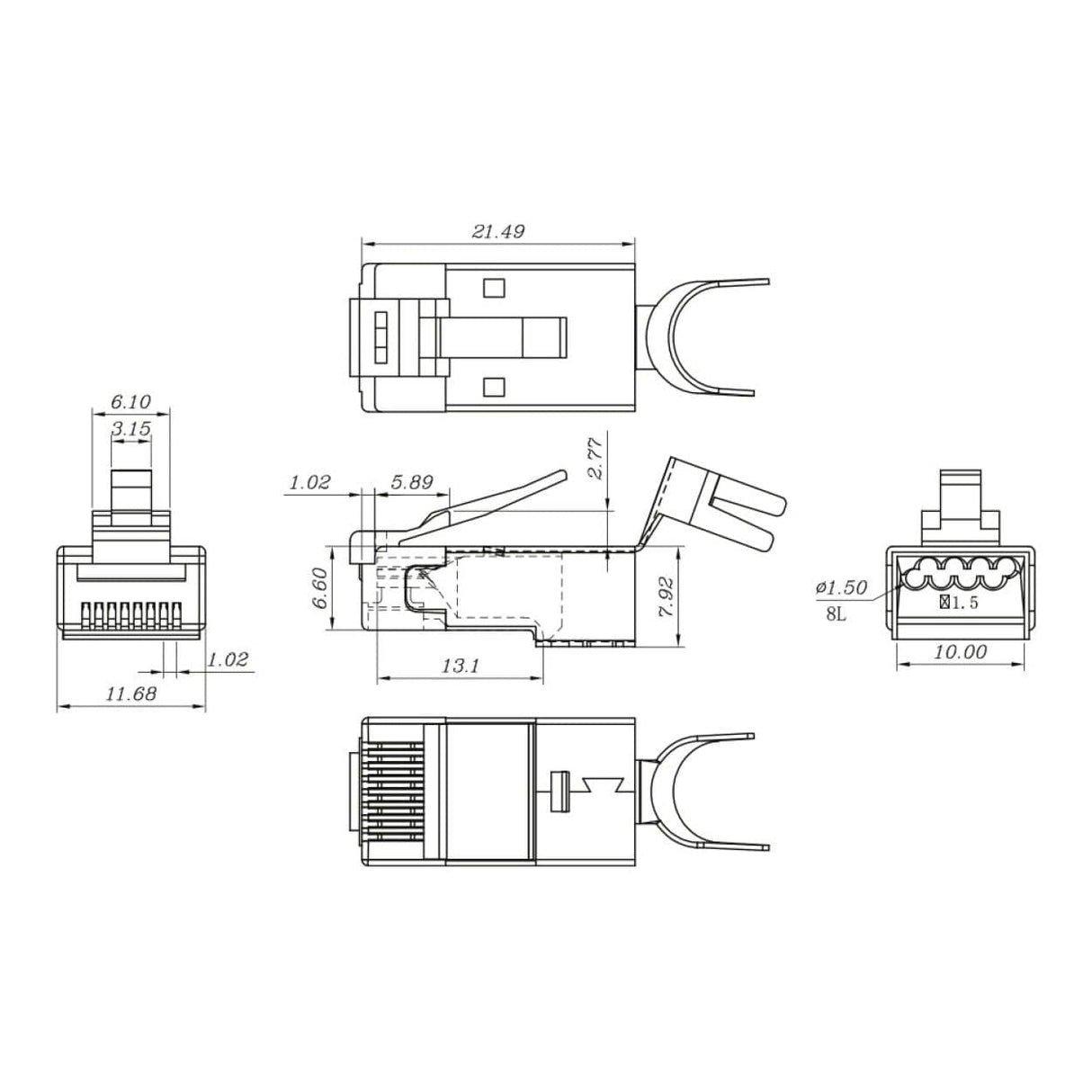

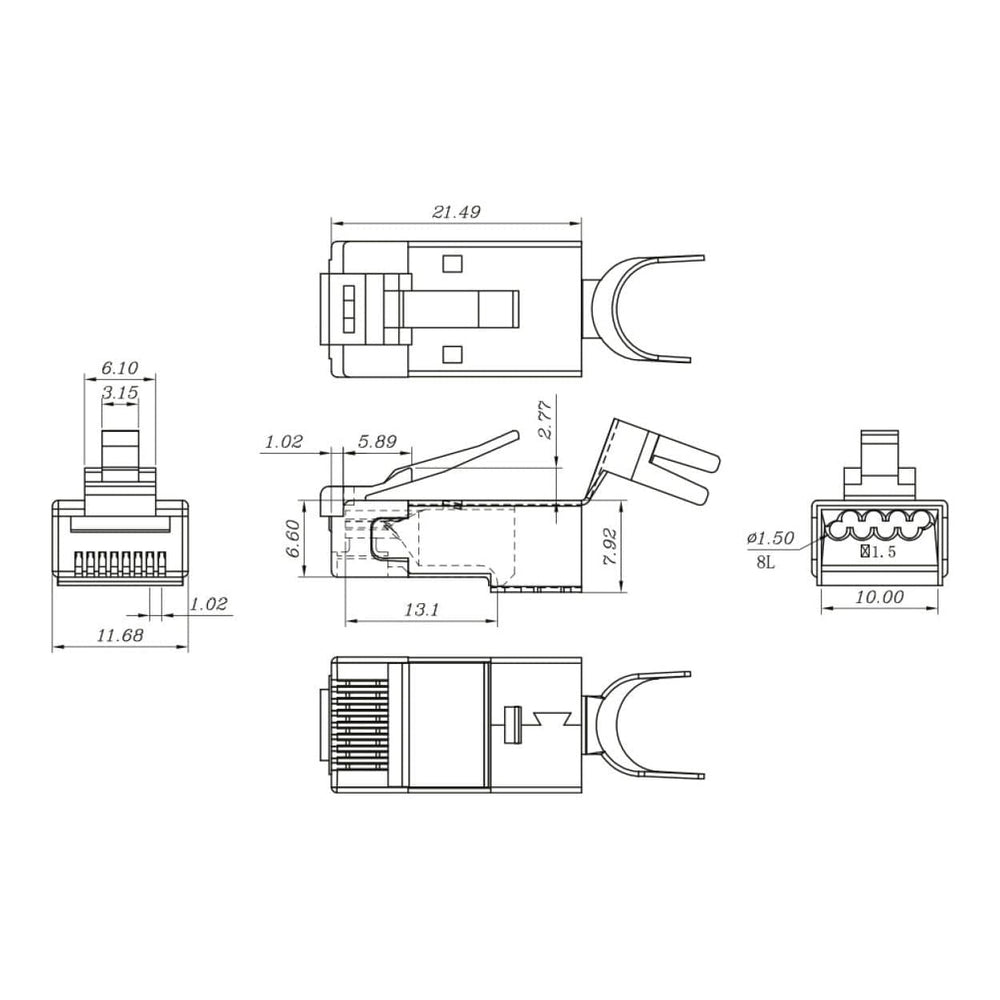

This modular plug is well-designed to be terminated with a wide range of CAT6A stranded and solid cables.  The 1.5mm pass-through plug is compatible with 1.35mm to 1.45mm stranded and solid cable ODs.

Technical Specifications:

Power over Ethernet (PoE)
Maximum Power from PSE: 90 W
Maximum Power at PD: 71.3 W
Number of Energized Pair: 4
IEEE 802.3bt: Type-4 Class-8
IEC: 60512-99-002:2022

Contact Pins (Conductors) Material: Copper-Alloy
Shielded: Copper-Alloy
Gold Plating Thickness: 50 µ"
Housing Material: Polycarbonate
Housing Standard: UL 94-V2
Mating Cycles: 1,200 Min.
Height of 8P8C Contact Pins: 6.02 mm ±0.13 mm
Storage Temperature: -40°C to 70°C
Operating Temperature: <35°C
Relative Humidity: <70% RH
UL Applications: 250 V AC Max. @2A
Dielectric Withstanding Voltage: 1000 V AC in 60 s
Insulation Resistance: 500 MΩ
Contact Resistance: 20 mΩ Max.

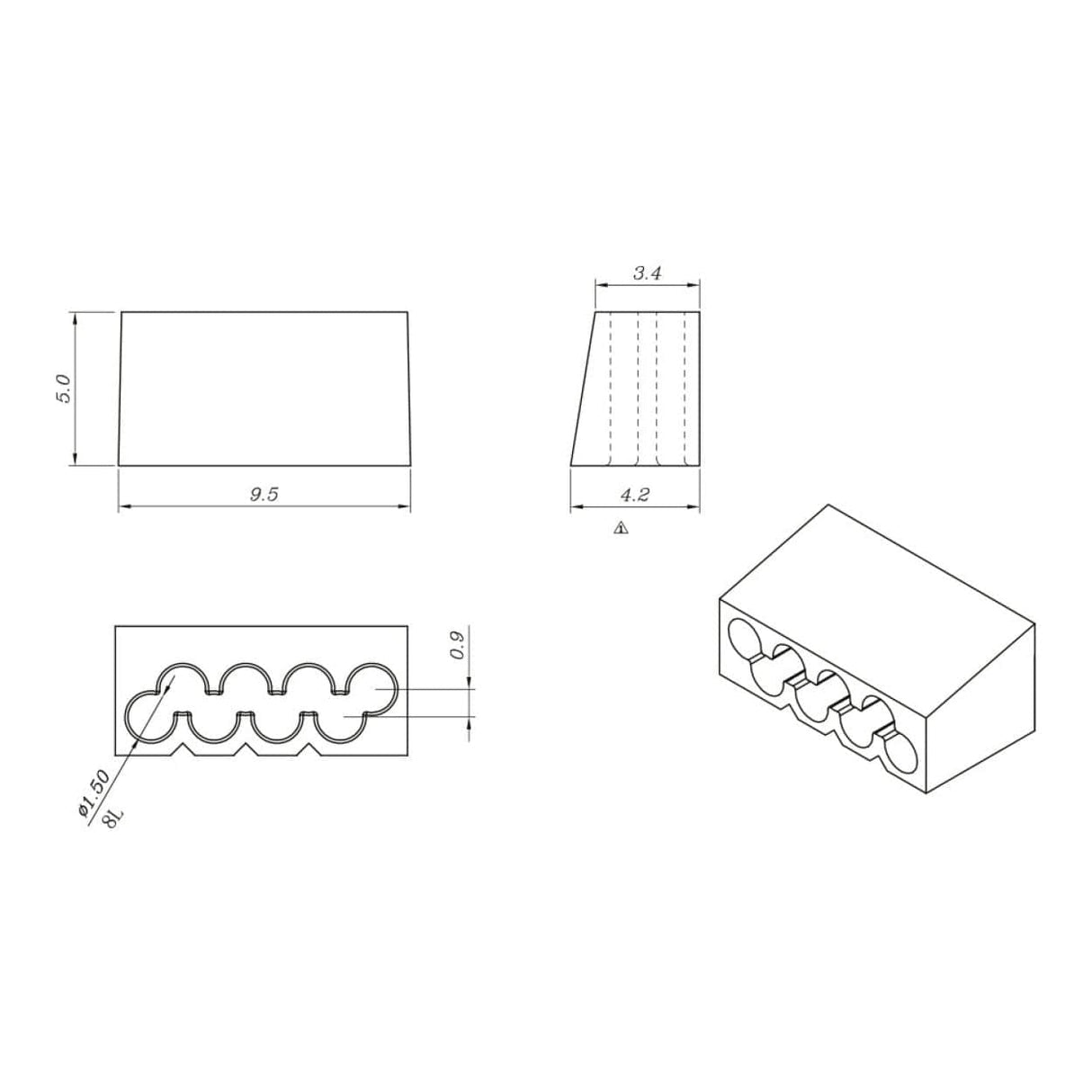

Two-Level Hole with Insert: 4+4

Compliant with International Standards
IEC 60512-99-002
IEEE 802.3bt Type-4 Class-8
ANSI/TIA-568.2-D
ISO/IEC 11801
IEC 60603-7-51
EN 50173-1
EN 50173-2
IEC 61935-2
ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)
