Lenkeng 9-port Video Wall Controller CNV-LKV109VW-V2.0

Lenkeng 9-port Video Wall Controller CNV-LKV109VW-V2.0

Engineered to work with various display formats, this video wall controller is equipped to manage high-definition content with precision, offering multiple configuration modes to suit diverse display arrangements.

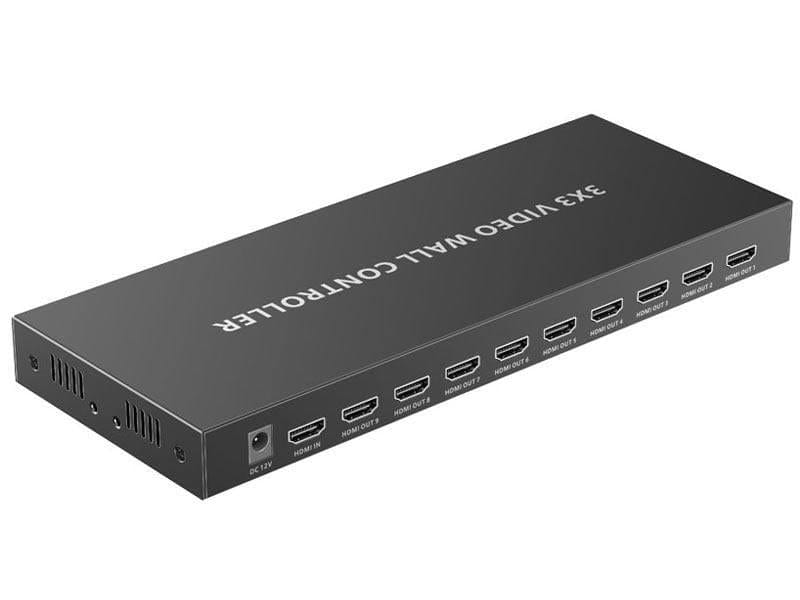

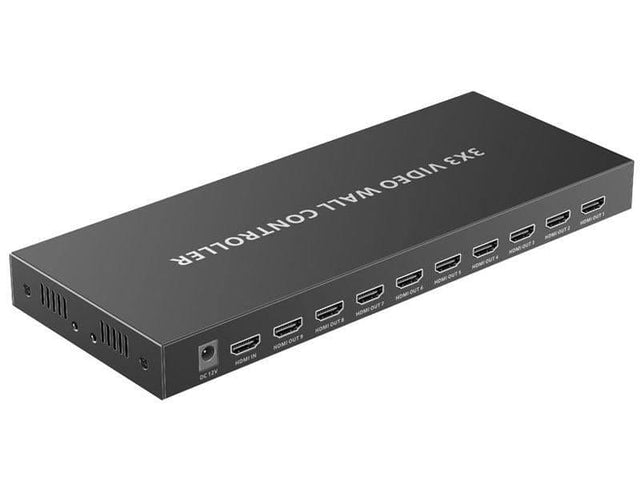

This product is a 1-in-9-out video wall controller, supporting one HDMI source input and nine HDMI outputs. It supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3 splicing modes, which can be set by RS232 or dip switch. Equipped with 3.5mm audio output, S/PDIF audio output and 180-degree rotation of the display image.

Features

• HDMI signal input and 9× HDMI signal outputs
• 4096×2160 @60Hz resolution input, 1080p output, downwards compatible
• Variety of splicing modes, such as 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/3x3, etc
• Dip switch switching splicing mode
• RS232 control instruction to set splicing mode
• 3.5mm left/right channel audio output
• S/PDIF audio output
• 180-degree rotation of HDMI display image in 2x2/2X3/2X4 mode (for when the upper displays are installed upside down)
• Firmware upgrading via micro USB port
• Lightning, surge and ESD protection

Specifications

Video signal

• HDMI Input: 1x HDMI
• HDMI Output: 9x HDMI
• Compatibility: HDMI 2.0
• HDCP 1.4/HDCP 2.2

Resolutions
Input:

• 4096×2160 @24/25/30/50/60Hz
• 3840×2160 @24/25/30/50/60Hz
• 3440×1440 @60Hz
• 2560×1600 @60Hz
• 2560×1440 @60Hz
• 2560×1080 @60Hz
• 2048×1536 @60Hz
• 1920×1200 @60Hz
• 1080p @24/25/30/50/60Hz

Output: 1080p @30/60Hz

Audio signal

• 3.5mm Output
• S/PDIF Output
• HDMI Output

Splice Settings

• Mode: 1×2/1×3/1×4/2×2/2×3/3×2/2×4/4×2/3×3, etc.
• DIP Switch: RS232 (GND/RxD/TxD)
• Baud rate: 9600 The mode can be switched using RS232 only when the DIP switch is set to 1111

Power

• Power Supply: DC12V 2A
• Power Consumption: <18W

Operating Environment

• Working Temperature: -20°C~60°C
• Storage Temperature: -30°C~70°C
• Humidity: 0~90%RH (No Condensation)

Physical Properties

• Housing: Iron
• Weight: 775g
• Colour: Black
• Dimensions (L × W × H): 265 × 105 × 25mm
