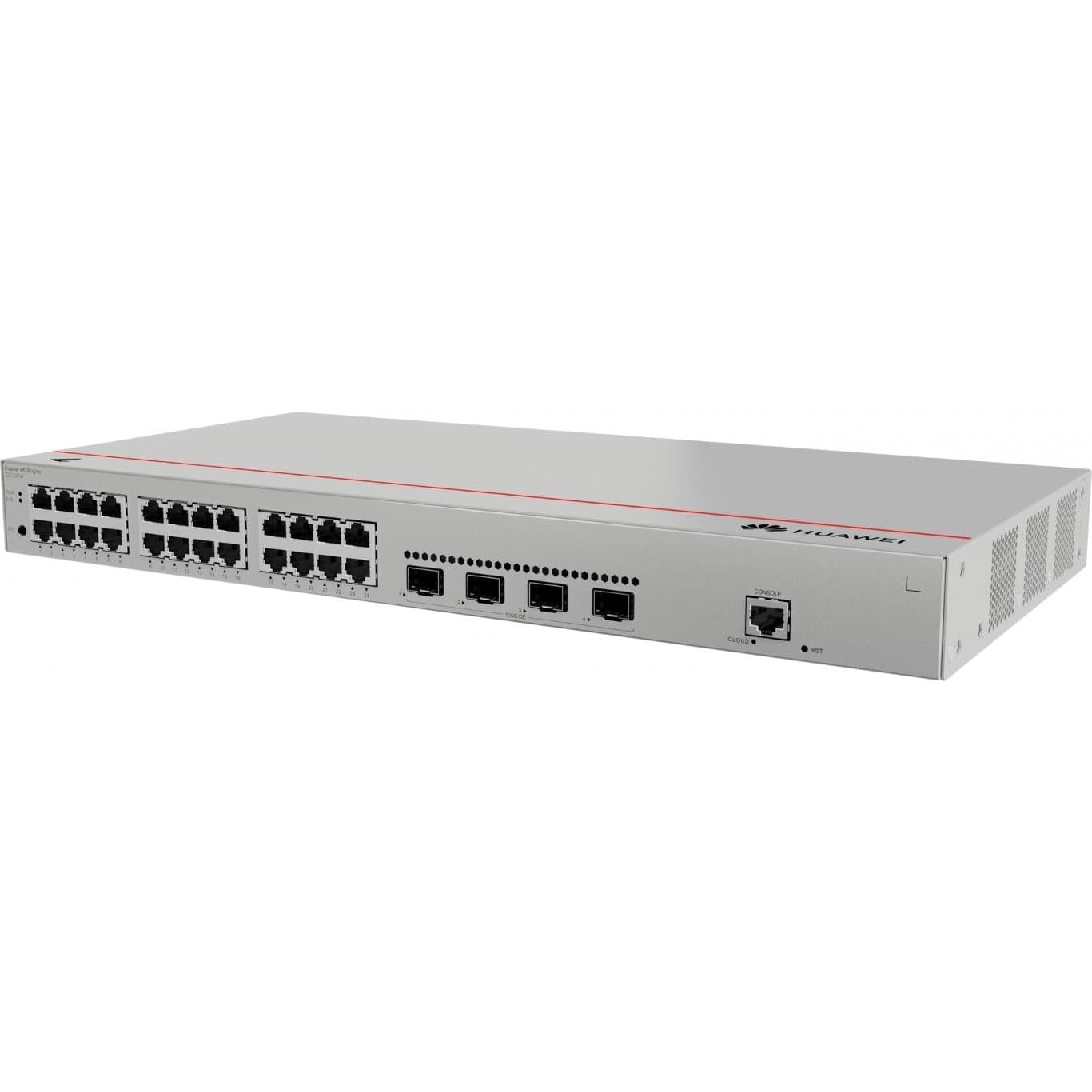

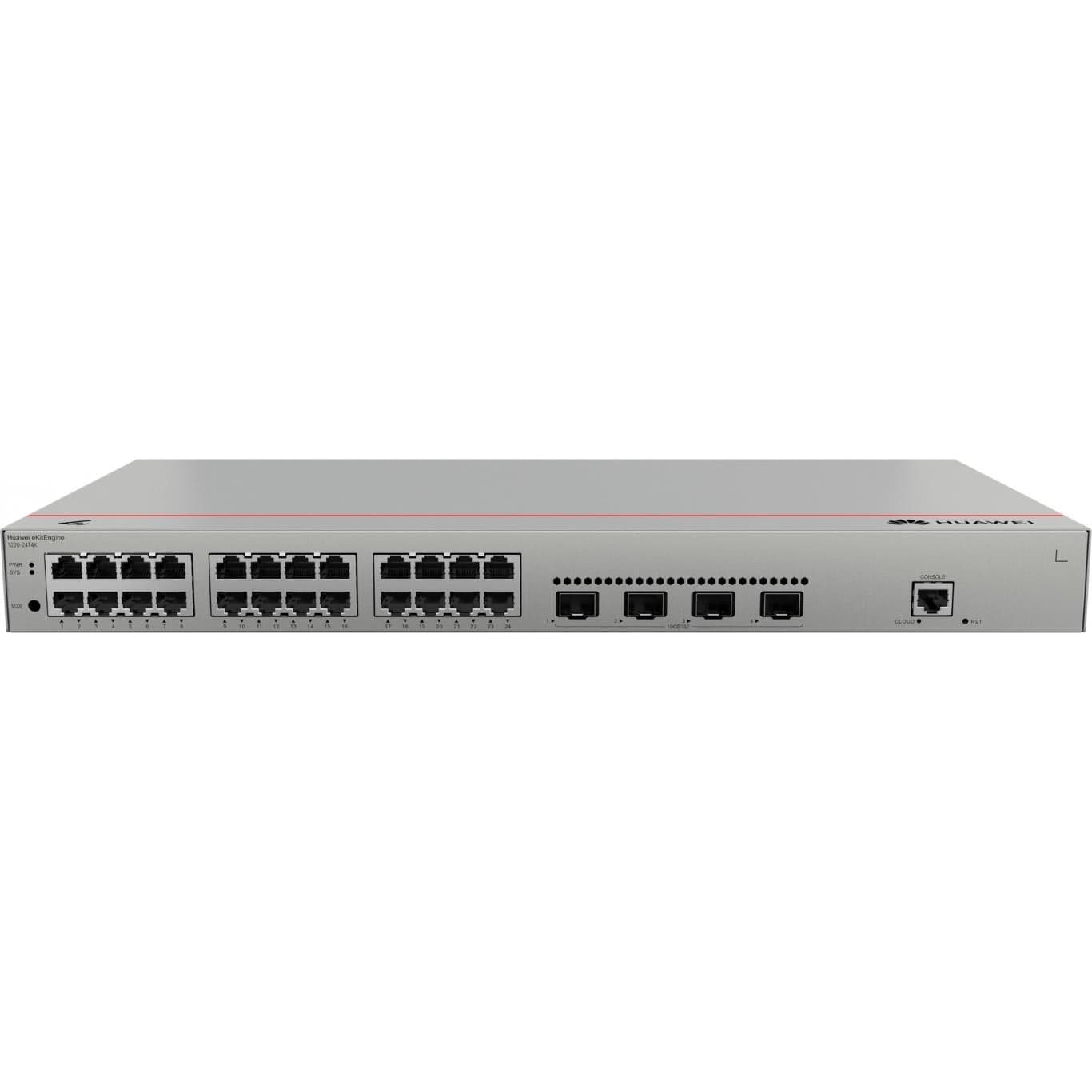

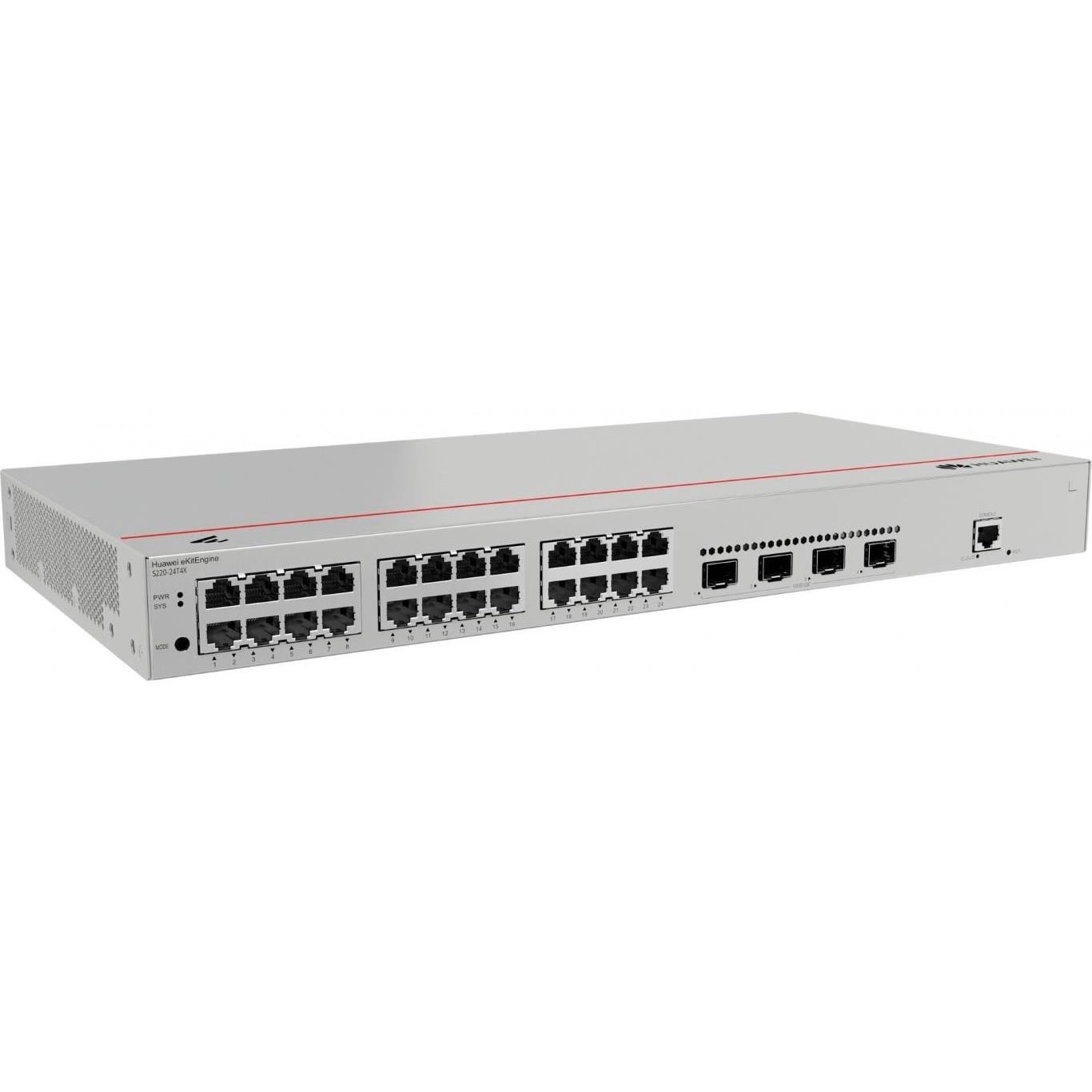

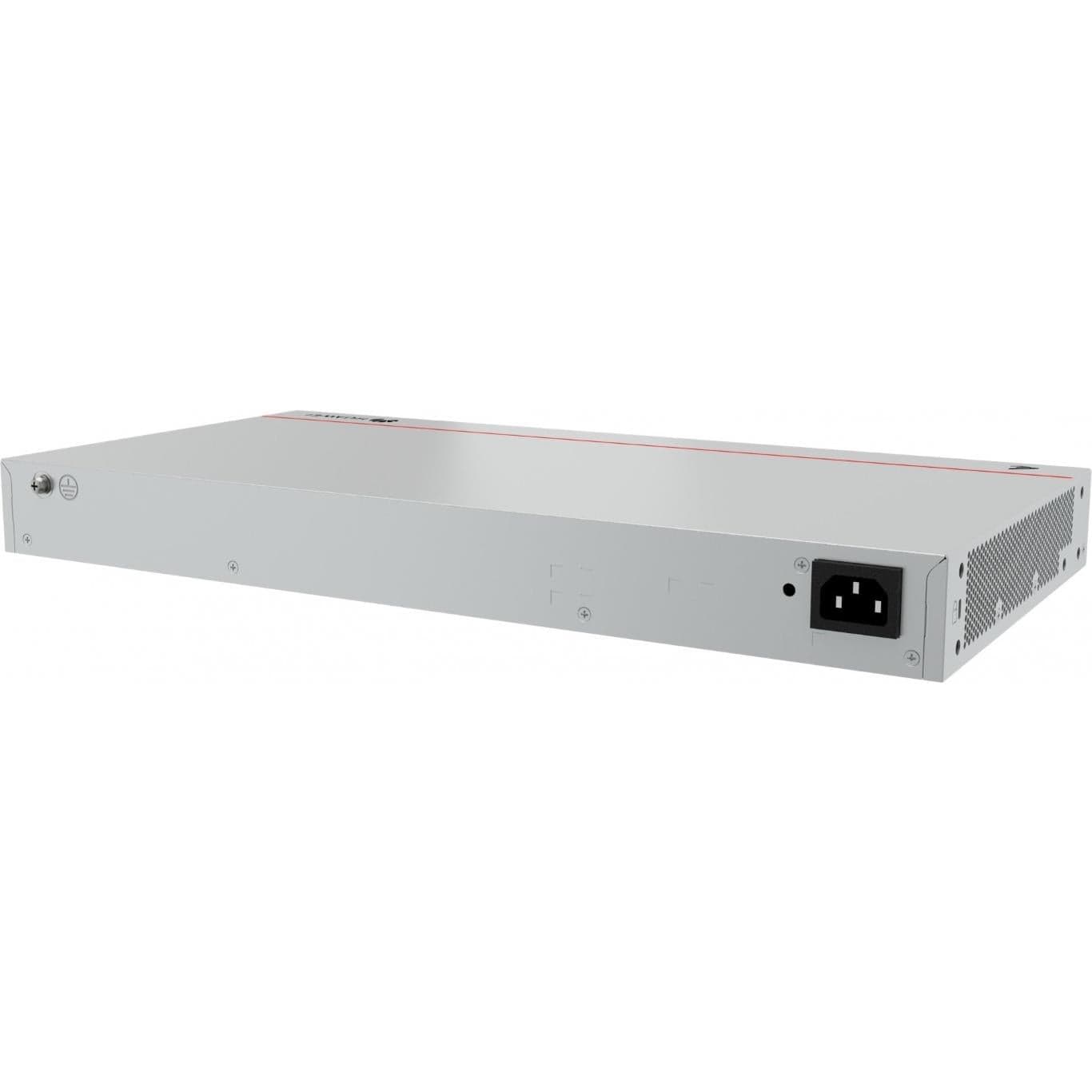

Huawei S220-24T4X 24-port GbE L2 Managed Network Switch with 4x 10GE SFP+ Ports

Huawei S220-24T4X 24-port GbE L2 Managed Network Switch with 4x 10GE SFP+ Ports

Discover the pinnacle of networking efficiency with the Huawei Switch S220-24T4X, a device engineered to streamline your network's performance and reliability. The model S220-24T4X is a testament to Huawei's commitment to technology that meets the demands of the future, today.

At the heart of your network should lie a switch that’s not just powerful but intelligent, and the Huawei S220-24T4X is exactly that. Boasting 24 Gigabit Ethernet ports, this switch is designed to handle high-volume traffic, ensuring smooth transmission of data across the network. The additional 4 10G SFP+ ports elevate its capabilities, allowing for high-speed uplinks and excellent connectivity to core networks or high-powered servers.

Specifications:

Downlink: 48 x 10/100/1000BASE-T ports (380W PoE+)
Uplink: 4 x 10GE SFP+ ports
Dimensions (H x W x D): 43.6 mm x 442.0 mm x 220.0 mm
Weight: 3.24 kg
Input Voltage: (AC: 100 V AC to 240 V AC, 50/60 Hz) (DC: 240 V DC)
Maximum Power Consumption: Without PoE: 64.7 W
Maximum Power Consumption: Full PoE Load: 462.80 W
Operating Temp: –5°C to +50°C (23°F to 122°F)
Storage Temp: –40°C to +70°C (–40°F to +158°F)
Operating Humidity: 5% RH to 95% RH (non-condensing)
Working Modes: Standard mode, PoE mode
Heat Dissipation Mode: Air cooling with intelligent fan speed adjustment
Fan Modules: 2 built-in
Power Supply Mode: AC built-in
RAM: 2 GB
Flash Memory: 1 GB
Console Port: RJ45
Service Port Surge Protection: ±7 kV (common mode)
vv Power Supply Surge Protection: ±6 kV (differential mode and common mode)
Ingress Protection Level: IP20
