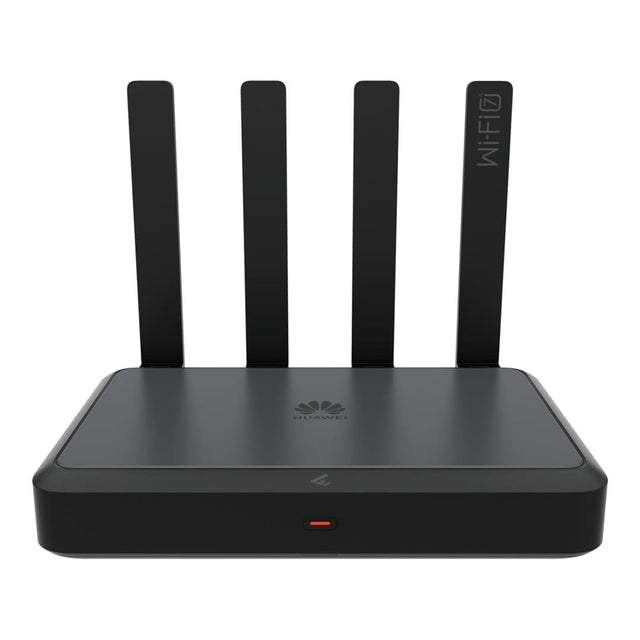

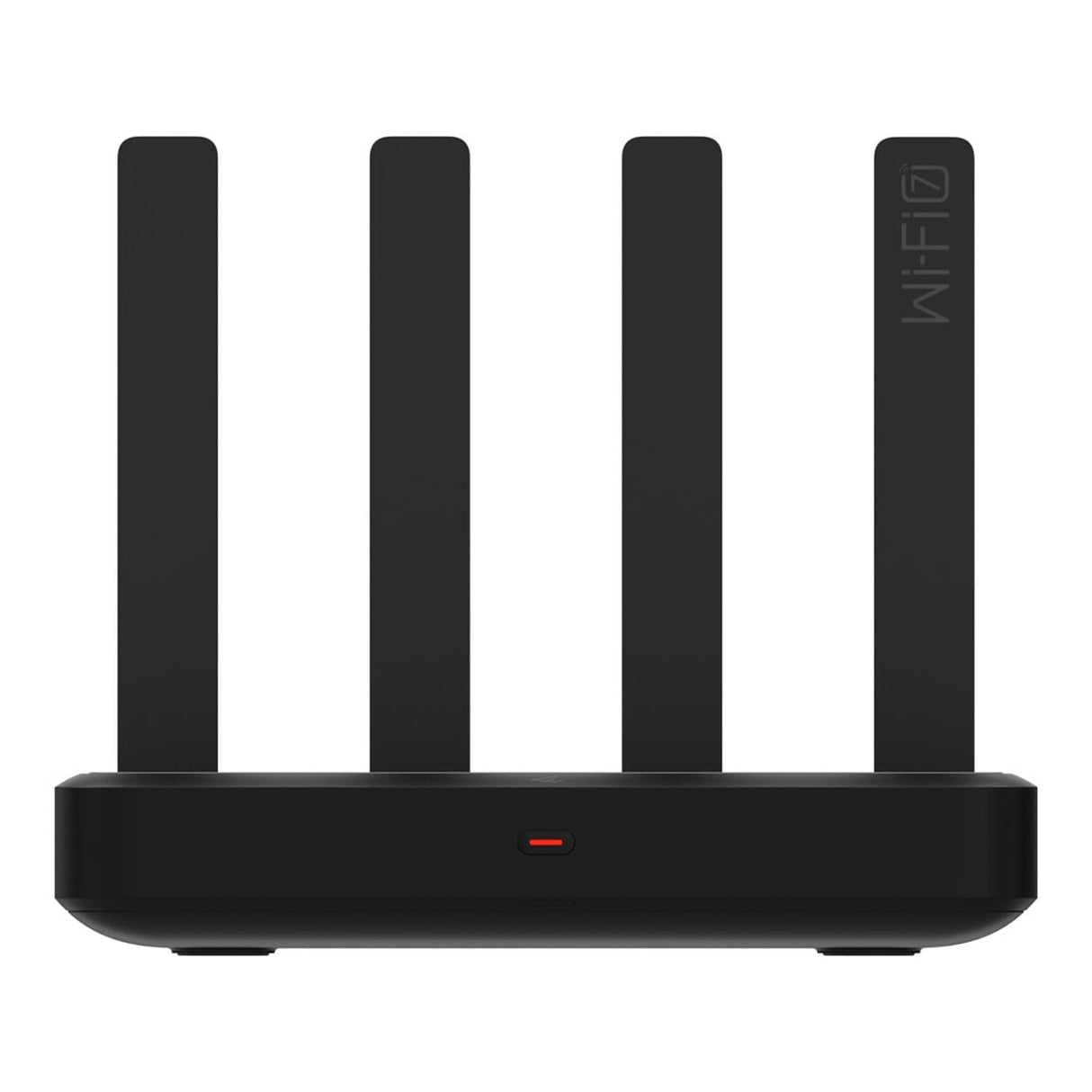

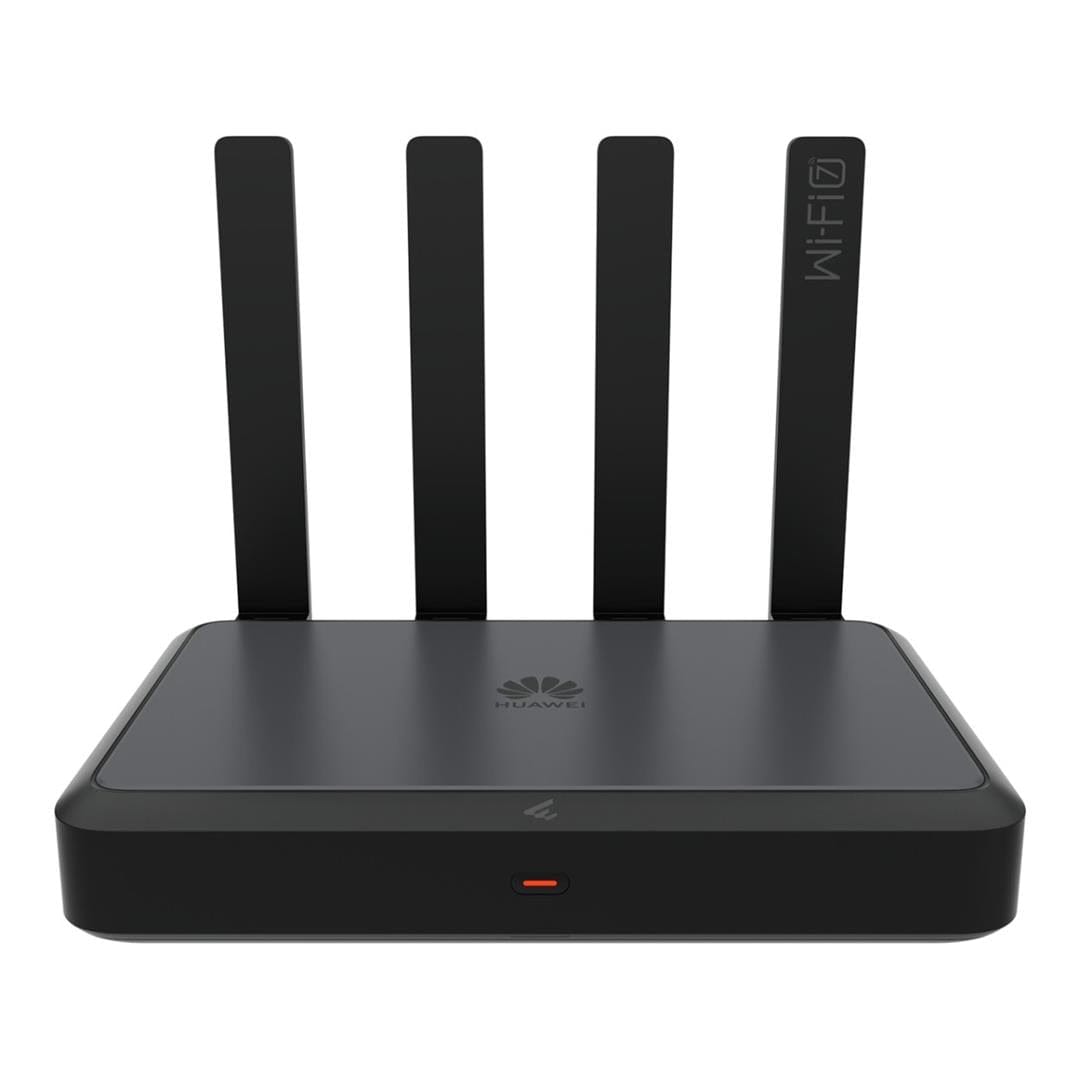

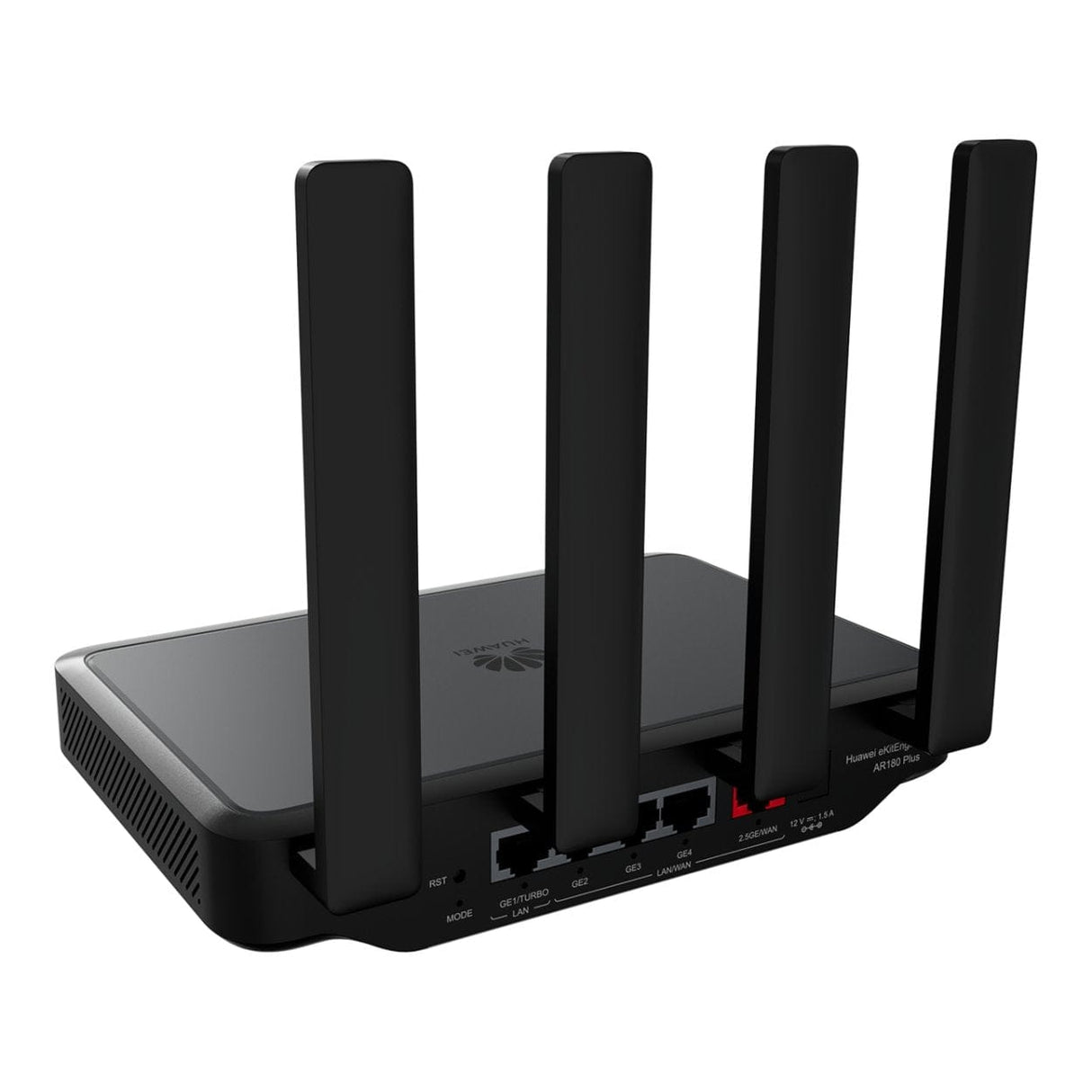

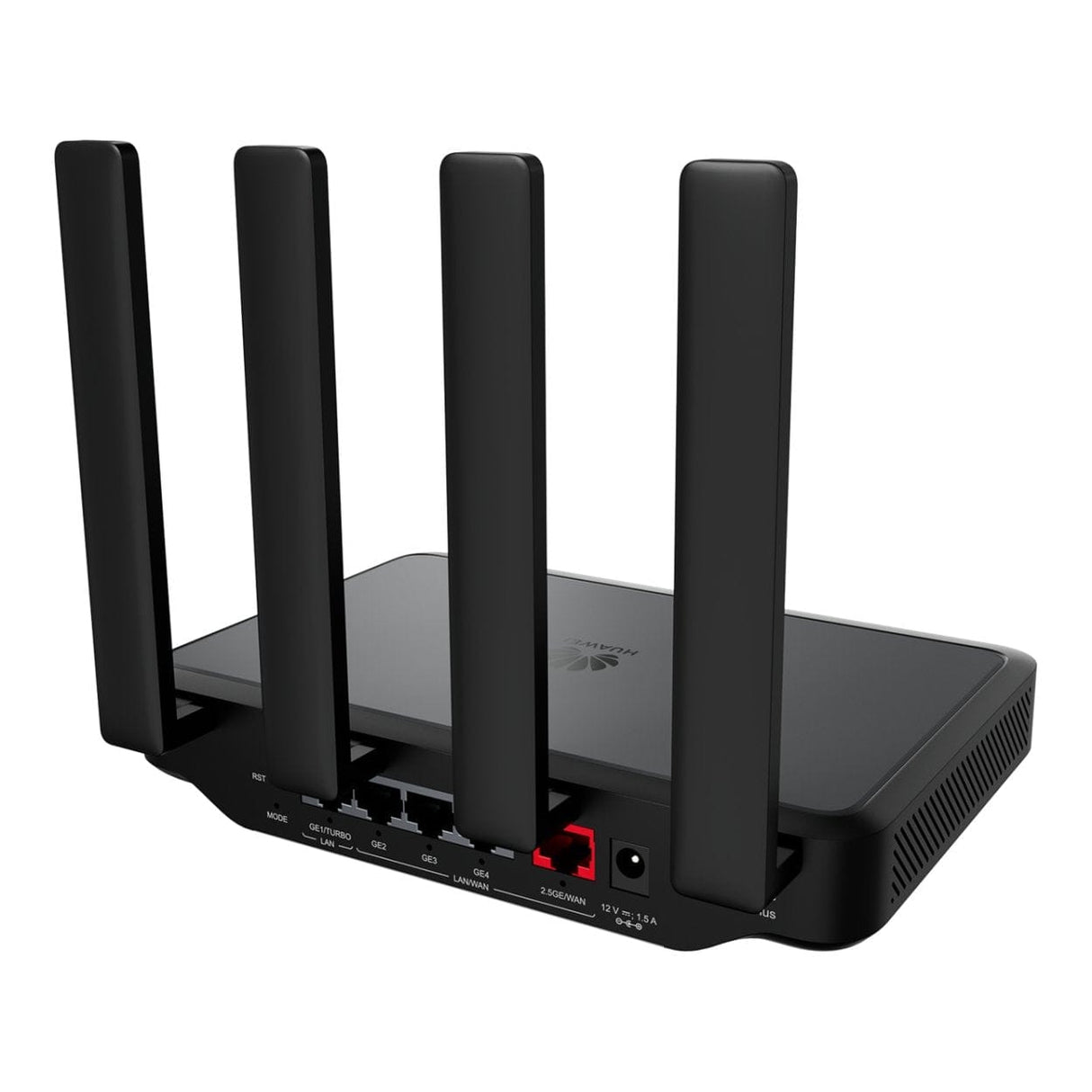

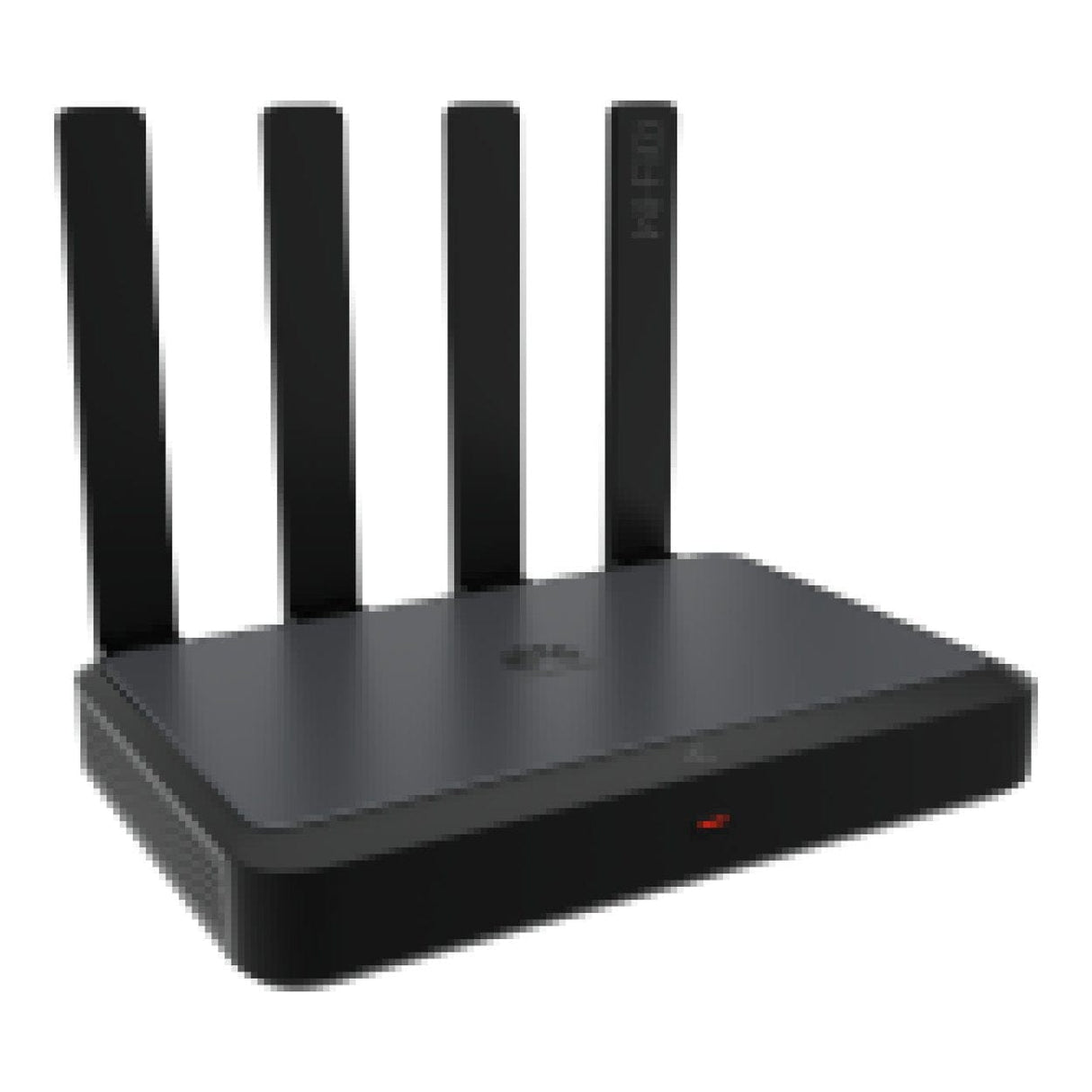

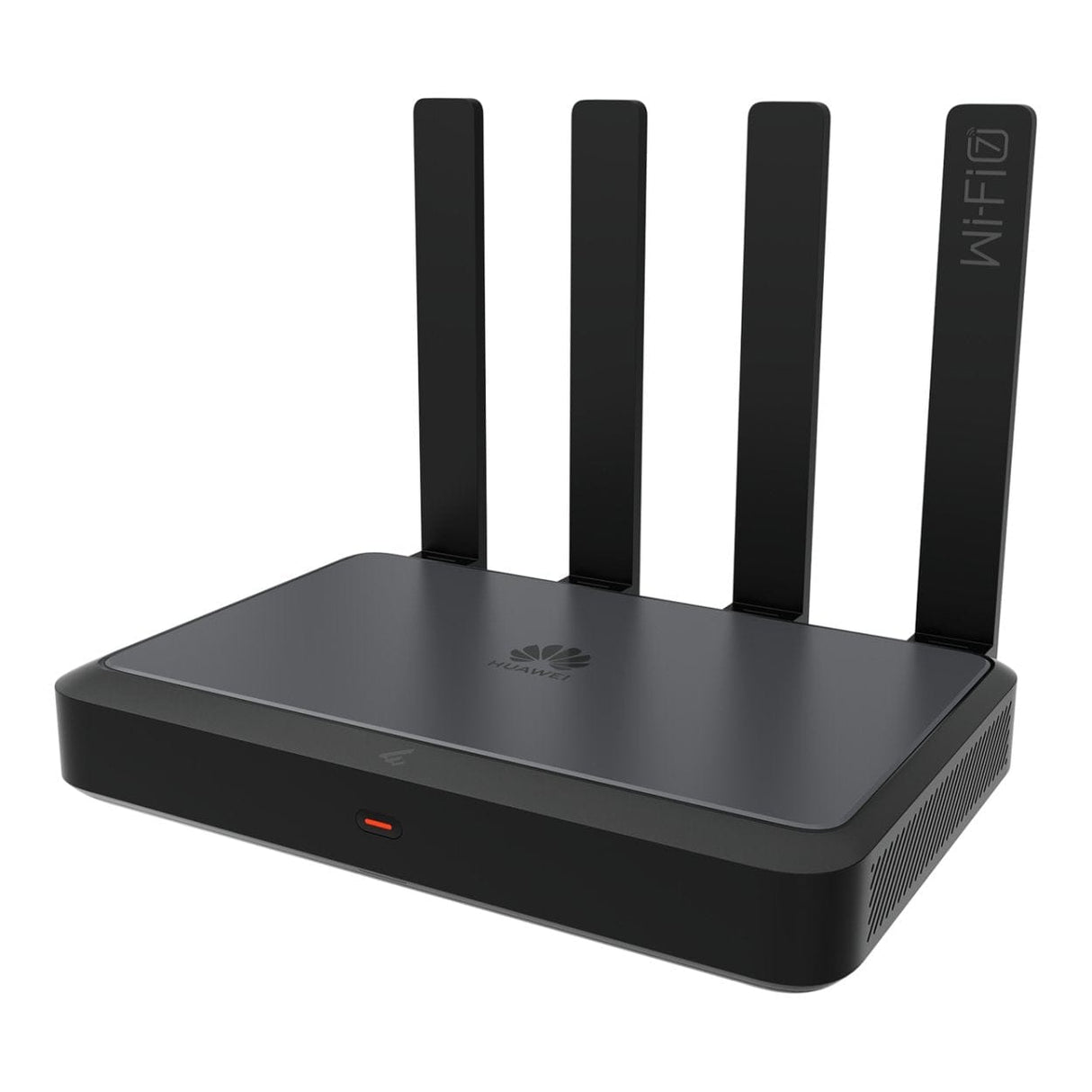

Huawei eKitEngine AR180 Plus 5-port Wireless Router 50010841

Huawei eKitEngine AR180 Plus 5-port Wireless Router 50010841

The Huawei eKitEngine AR280 is a high-performance enterprise-grade 2.5G multi-service routerdesigned for small and medium-sized enterprises (SMEs).It features a versatile port configuration, including one 2.5GE high-speed WAN port that can beswitched to a LAN port and four GE electrical ports (among which GE1 is fixed as a LAN port, while GE2 to GE4 default to LAN ports and can be switched to WAN ports). This port design enables flexible networking and fulfills the requirements of diverse scenarios, such as retail stores, enterprise offices, budget hotels, primary and secondary schools, and real estate pre-installation environments.

The AR280 supports perpetual PoE that ensures uninterrupted power supply to connected devices even during system restarts, and offers broad compatibility with hundreds of non-standard terminals. Additionally, it integrates features including static routing, switching, WAC, PoE, load balancing, IPSec VPN, and online behavior management, delivering a highly cost-effective all-in-one solution.

• Wi-Fi 7 (802.11be) - extremely fast and stable connectivity

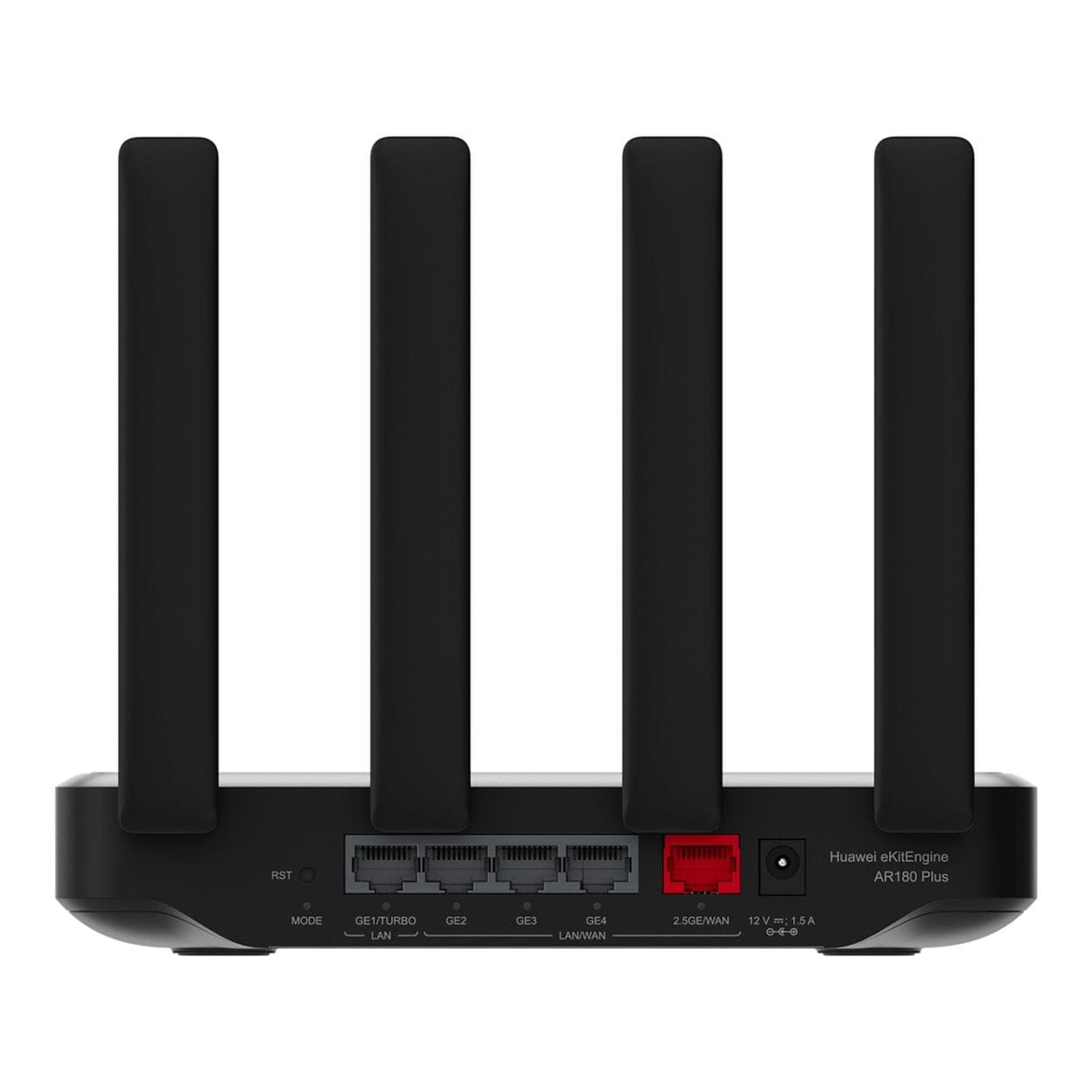

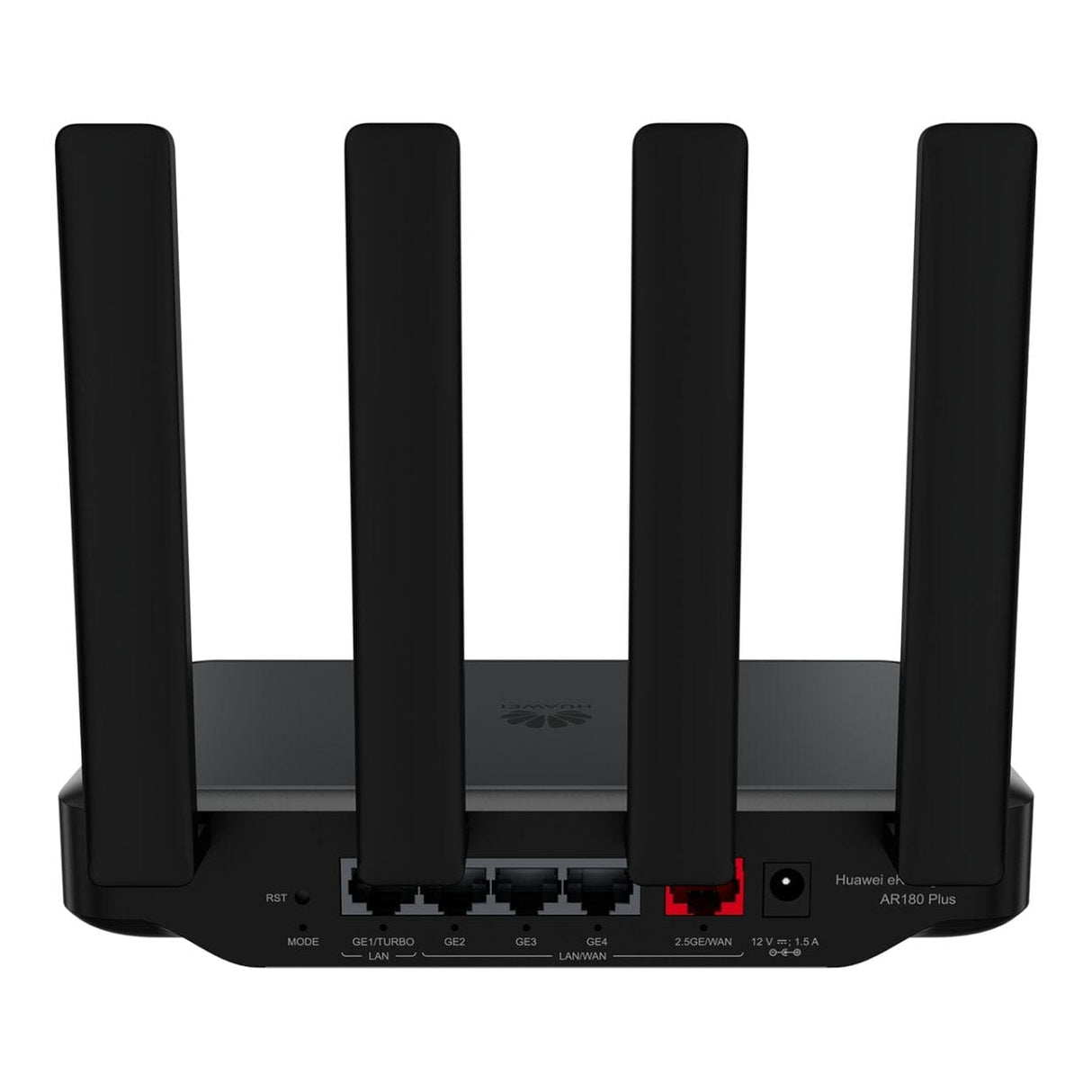

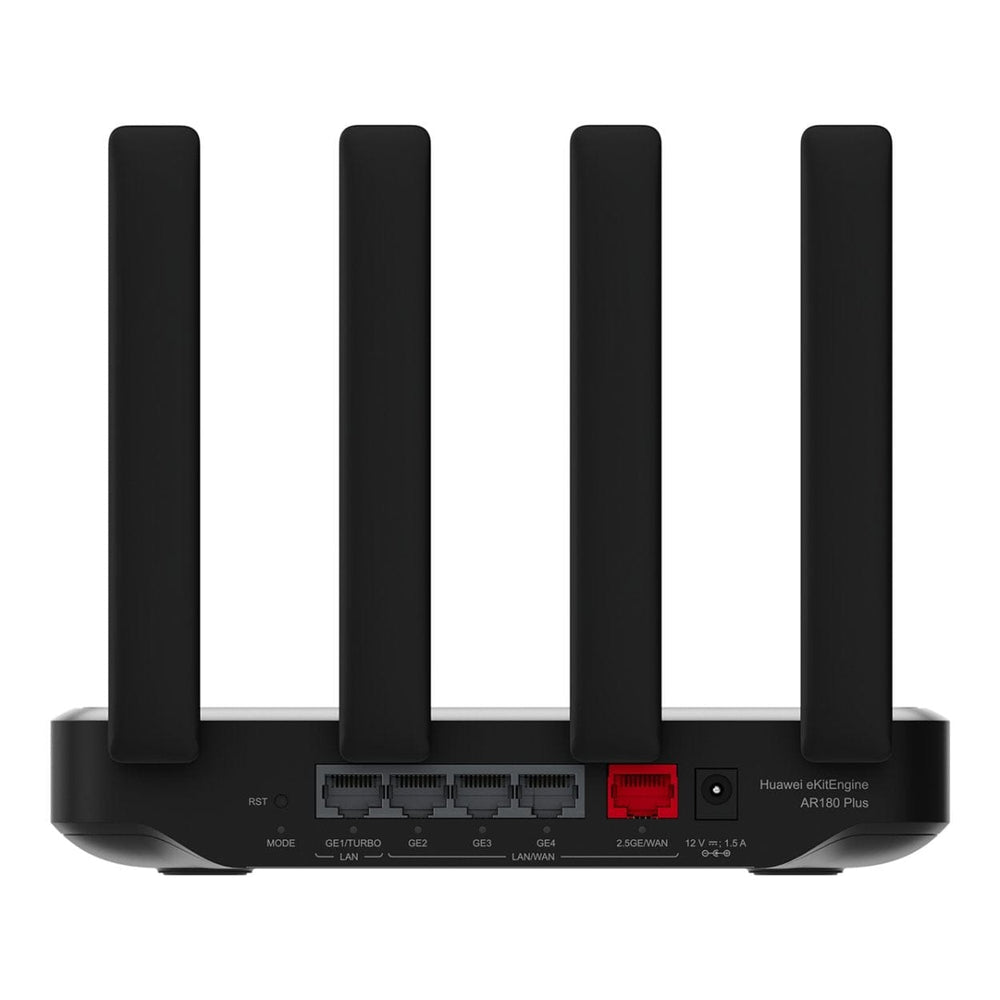

• (1) 2.5G LAN/WAN port, (3) Gbit LAN/WAN ports and (1) Gbit LAN Turbo port (preferential forwarding of Turbo port traffic)
• Total throughput up to 3.57Gbps - 0.69Gbps on 2.4GHz (2×2) and 2.88Gbps on 5GHz (2×2)
• Huawei Online Upgrade Platform (HOUP) - automatic one-click updates
• Easy management via the eKit SNC / eKit mobile app
• Smart Mesh technology allows up to 8 devices to form a unified mesh network, intelligently switching connections for stable operation and minimizing signal interruptions
• Automatic loop prevention, VLAN, QoS and IPSec VPN

Specifications:

Maximum modulation: 4096 QAM

Wireless frequency: 2.4 + 5 GHz (dual band)

WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2, 802.11ax, 802.11be

MU-MIMO: Yes

Transmission speed - 5GHz: 2880Mb/s

Transmission speed - 2.4GHz: 688Mb/s

Tx power 2.4GHz: 23dBm

Tx power 5GHz: 23dBm

2.4GHz MIMO: 2 x 2

5GHz MIMO: 2 x 2

Type of antenna: Fixed

Fixed antennas: 4

Roaming: Yes

Antenna gain: 4dBi

LAN speed: (1) 10/100/1000/2500Mbps LAN/WAN + (3) 10/100/1000Mbps LAN/WAN + (1) 10/100/1000Mbps

Gigabit LAN: Yes

Max. power consumption: 13W

Power via connector/terminal: 12V / 1,5A

Purpose: Indoor

Buttons: Reset, LED

Operating temperature [°C]: 0 up to 40

Weight: 750g

Width: 195mm

Height: 35mm

Depth: 130mm

Colour: Black

CPU: Dual Core

CPU frequency: 1300MHz

RAM: 512MB

Supported VPN: IPSec

Operating mode: AP Router, Access Point

Management: Web management, Mobilní aplikace, eKit cloud / eKit app

Default IP address: 192.168.112.1

Default login and password: Is set by the user at the first startup
