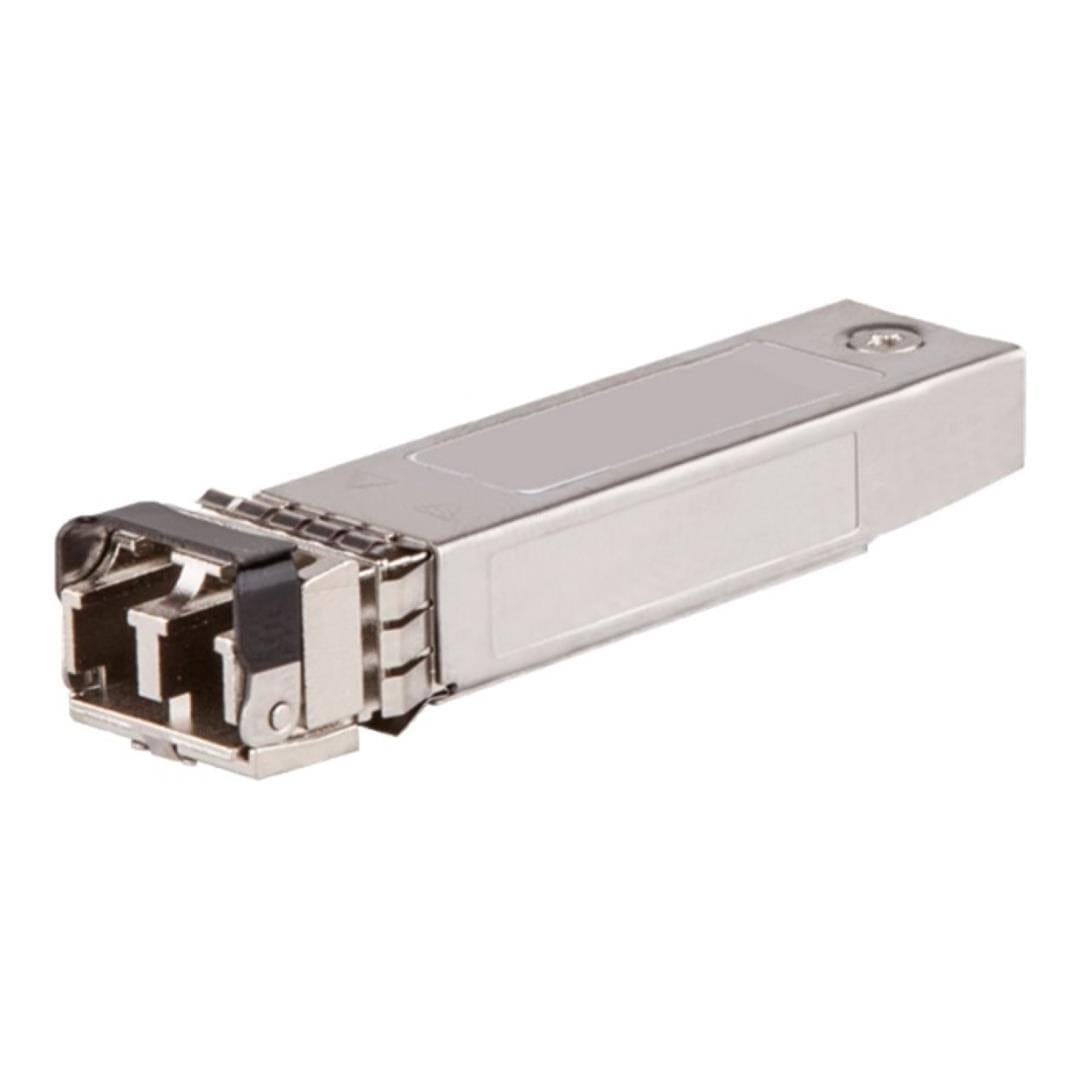

HPE Aruba 10G SFP+ SR MM 850nm 300m LC Transceiver Module 1PJ9150D

HPE Aruba 10G SFP+ SR MM 850nm 300m LC Transceiver Module 1PJ9150D

HPE Aruba J9150D compatible SFP+ transceiver supports up to 400m link lengths over OM4 MMF (300m over OM3 MMF) via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards and for seamless interoperability in multivendor environments. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption and high speed, this 10G SFP+ transceiver is ideal for data centres, enterprise wiring closets, service provider transport applications, Radio & Baseband Units, etc.

Features:

• Max. Power Consumption 1W, and TO Packaging Features High Reliability
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Small 10G Form Factor for Greatest Density per Chassis
• Support 4x10G Fan out and Easy Migration to 40G Platforms
• Hot Pluggable SFP+ MSA and RoHS Compliant
• Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
• Digital optical monitoring capability for strong diagnostic capabilities

Technical Specifications:

HPE Aruba Compatible: J9150D
Vendor Name: FS
Form Factor: SFP+
Max. Data Rate: 10.3125Gbps
Wavelength: 850nm
Max. Transmission Distance: 300m @ OM3 / 400m @ OM4
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
TX Power: -7.3 ~ -1dBm
Receiver Sensitivity: < -11.1dBm
Power Budget: 3.8dB
Receiver Overload: -1dBm
Max. Power Consumption: ≤ 1W
Extinction Ratio: > 3dB
DDM/DOM: Supported
Operating Temperature: 0 to 70°C (32 to 158°F)
Core Size: 50/125µm
Modulation: NRZ
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
Warranty: 5 Years
