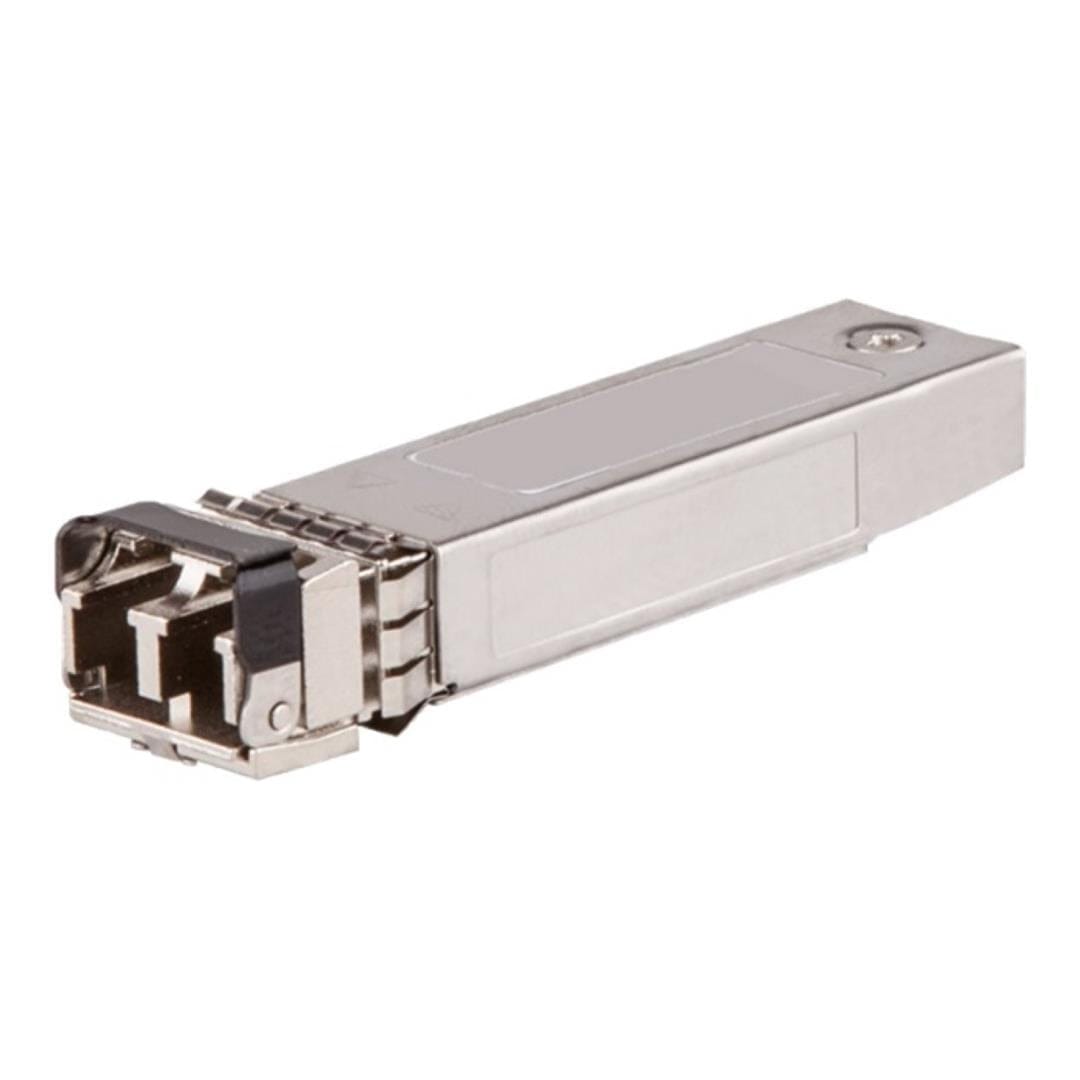

HPE Aruba 10G SFP+ LR SM 1310nm 10km L Transceiver Module 1PJ9151A

HPE Aruba 10G SFP+ LR SM 1310nm 10km L Transceiver Module 1PJ9151A

J9151A HPE ProCurve compatible SFP+ transceiver supports up to 10km link lengths over LC duplex SMF fibre. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data centre, enterprise wiring closet, service provider transport application, Radio & Baseband Unit, etc.

Features:

• Built-in Semtech Chip，Max. Power Consumption 1W
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Hot Pluggable SFP+ MSA Compliant
• Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link
• TO Package Features High Reliability and Robust Physical Protection
• Class 1 FDA Laser Safety and RoHS Compliant
• IEEE 802.3ae Compliant

Technical Specifications:

HPE ProCurve Compatible: J9151A
Vendor Name: FS
Form Factor: SFP+
Max. Data Rate: 10.3125Gbps
Wavelength: 1310nm
Max. Transmission Distance: 10km
Connector: Duplex LC
Media: SMF
Transmitter Type: DFB
Receiver Type: PIN
TX Power: -8.2 ~ 0.5dBm
Receiver Sensitivity: < -14.4dBm
Power Budget: 6.2dB
Receiver Overload: 0.5dBm
Max. Power Consumption: ≤ 1W
Extinction Ratio: > 3.5dB
Core Size: 9/125µm
Modulation: NRZ
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
