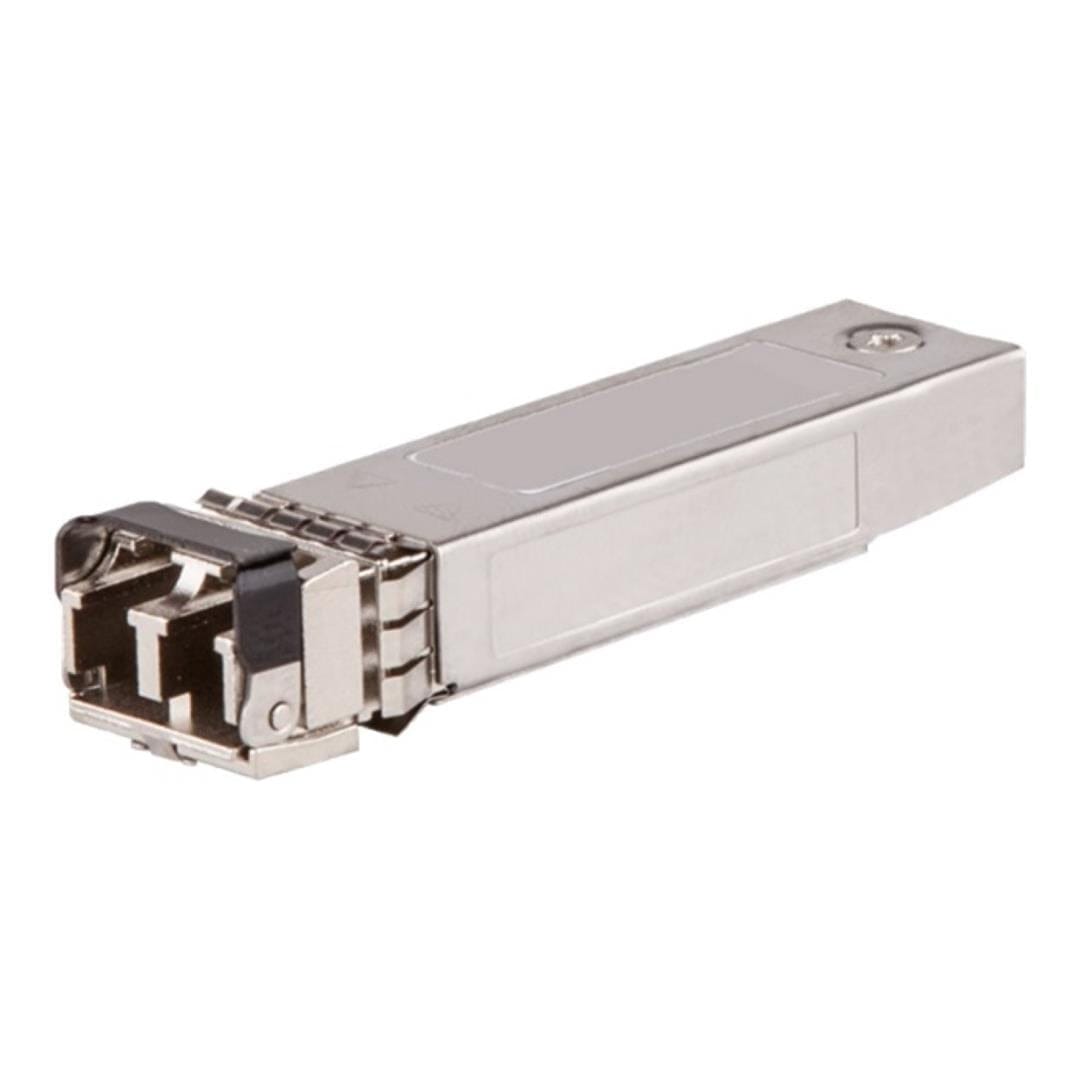

HPE Aruba 1.25G SFP 850nm MM 550m LC Transceiver Module 1PJ4858D

HPE Aruba 1.25G SFP 850nm MM 550m LC Transceiver Module 1PJ4858D

J4858D HPE Aruba compatible SFP transceiver supports up to 550m link lengths over multi-mode fibre (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of HPE switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features:

• Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
• Max. Power Consumption 0.8W Allowing for Prolonged Service Life
• Commercial Temperature Range 0 to 70°C (32 to 158°F)
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• FS BOX - Support Real-time Configuration
• Compliant to IEEE 802.3z Gigabit Ethernet
• Class 1 FDA Laser Safety and RoHS Compliant
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Technical Specifications:

HPE Aruba Compatible: J4858D
Vendor Name: FS
Form Factor: SFP
Max. Data Rate: 1.25Gbps
Wavelength: 850nm
Max. Cable Distance: 550m @ 50/125µm OM2 MMF, 275m @ 62.5/125µm OM1 MMF, 220m @ 62.5/125µm FDDI MMF
Connector: Duplex LC
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -9.5 ~ -3dBm
Receiver Sensitivity: < -17dBm
Typical Power Consumption: ≤ 0.8W
Receiver Overload: -3dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: > 9dB
EMC (Electro Magnetic Compatibility): Supported
MTBF (SX): 2,457,002 Hours
Protocols: IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty: 5 Years
