Hikvision Wi-Fi 6 3000M Indoor Celling Access Point DS-3WAP622E-SI

Hikvision Wi-Fi 6 3000M Indoor Celling Access Point DS-3WAP622E-SI

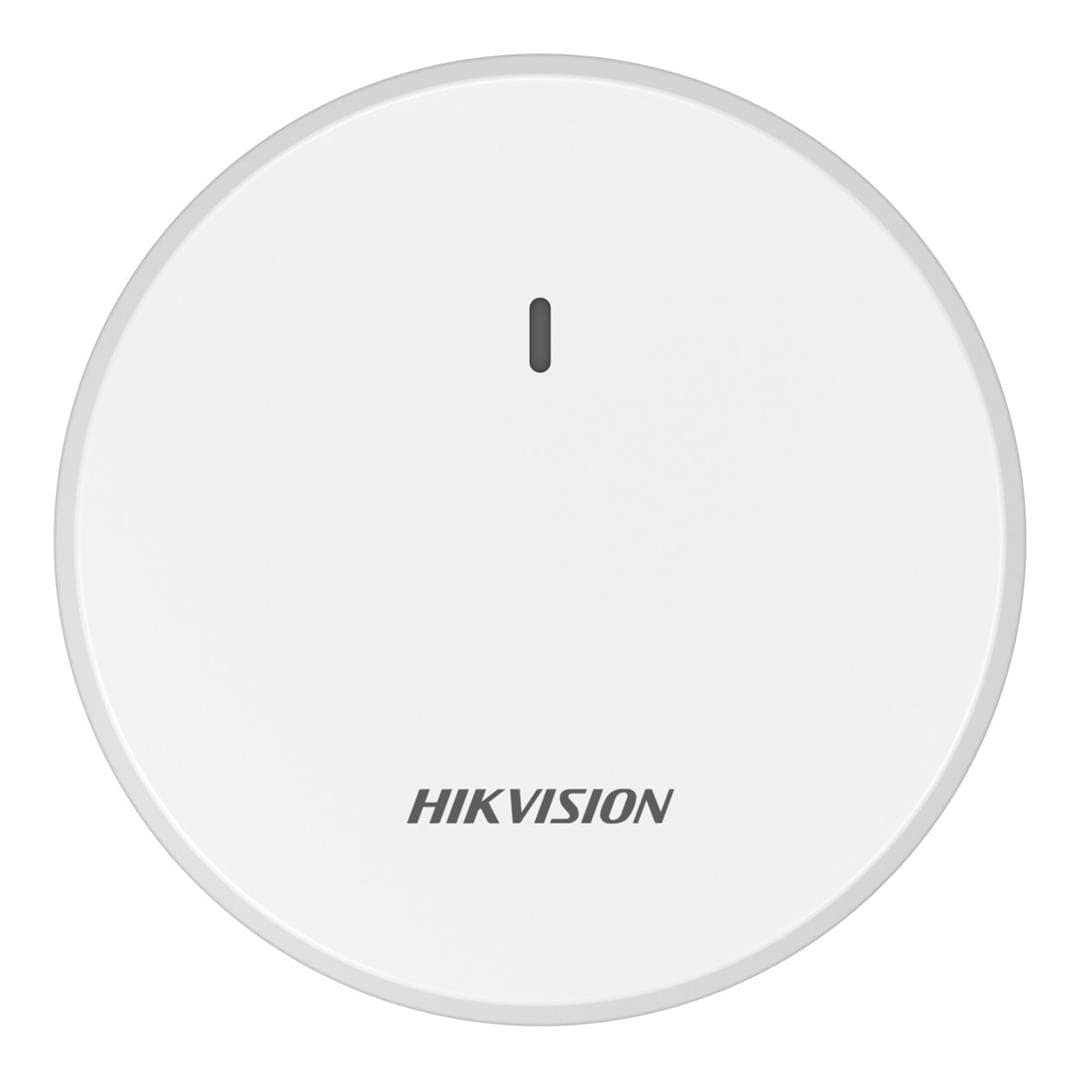

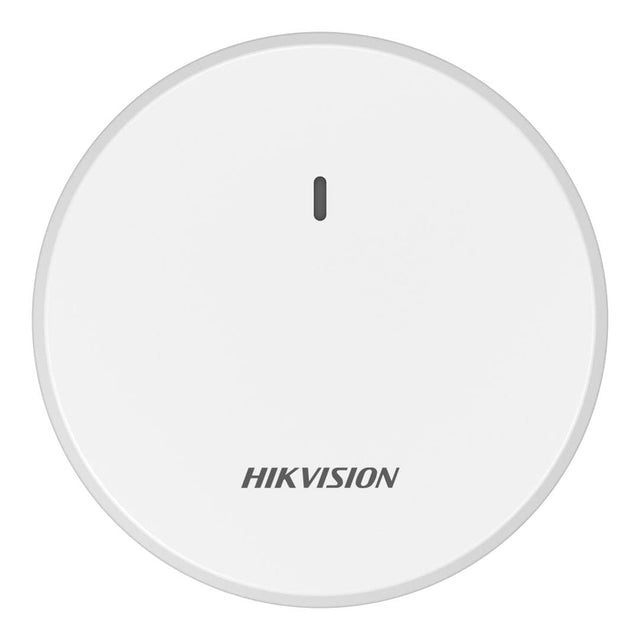

DS-3WAP622E-SI is an indoor 802.11ax AP product with dual-frequency four-flow design, which meets the wireless coverage requirements of small, medium and micro enterprises.

Features

• 2.5 Gigabit Port with PoE Input
• 802.11ax Wi-Fi 6 2975 Mbps
• 100+ Concurrent User Connections
• Auto RF Optimization
• Support Intelligent Fast Roaming

Technical Specification

Interface: 1x 2.5 Gigabit RJ45 uplink port

Maximum Number of Clients: 256

Recommended Number of Clients: 100

Maximum Number of SSIDs: 8

Working Frequency Band: Radio 1: 5G(11a/n/ac/ax), Radio 2: 2.4G(11b/g/n/ax)

Wi-Fi Standards: Wi-Fi 6

Wi-Fi Speed: 2.4G: 575 Mbps ; 5G: 2400 Mbps

Spatial Streams: 2.4GHz, 2 × 2 , MU-MIMO ; 5GHz, 2 ×2 , MU-MIMO

Channel Width: 2.4 GHz: Auto/20 /40 MHz ; 5 GHz: Auto/20 /40 /80/ 160MHz

Number of Antennas

• 2.4GHz: 2
• 5GHz: 2

Antenna Type: Built-in omnidirectional antennas

Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 4 dBi

Transmit Power: 20 dBm

Modulation Technology

• OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
• MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9

Power Supply: IEEE 802.3af/at POE,12 VDC 1.5 A

LED Indicator: Yellow/green/blue for different working states, flashing mode

Reset Button: Hardware Resetting Button

Installation Mode: Desk-Mounted, Wall-Mounted, Ceiling Mounting

Product Dimensions (W × H × D): 220 x 220 x 39 mm

Weight: 0.38 kg

Packing List

• 1x 3000 M Access Point
• 1x Screw Pack
• 1x Quick Start Guide
• 1x Regulatory Compliance and Safety Information
