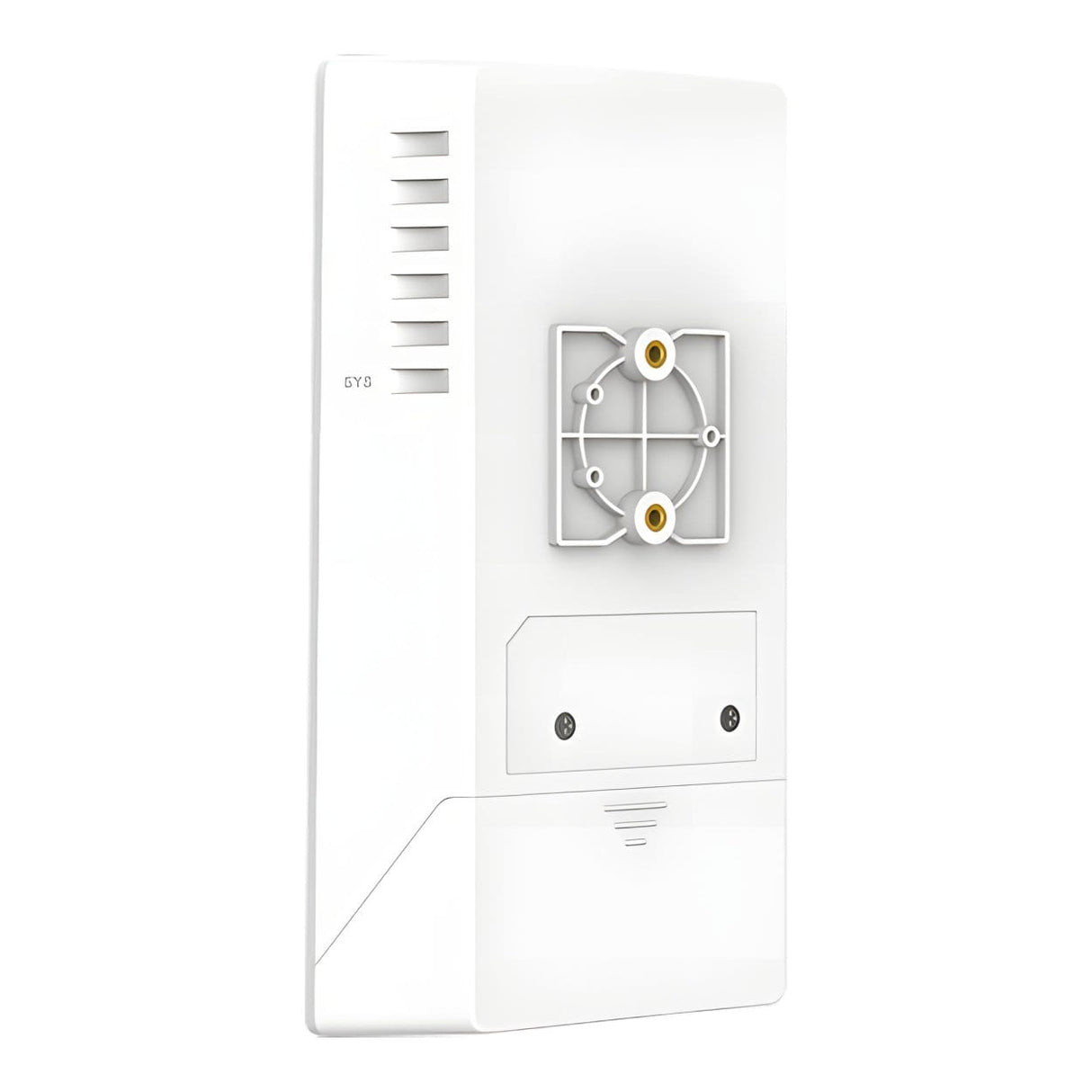

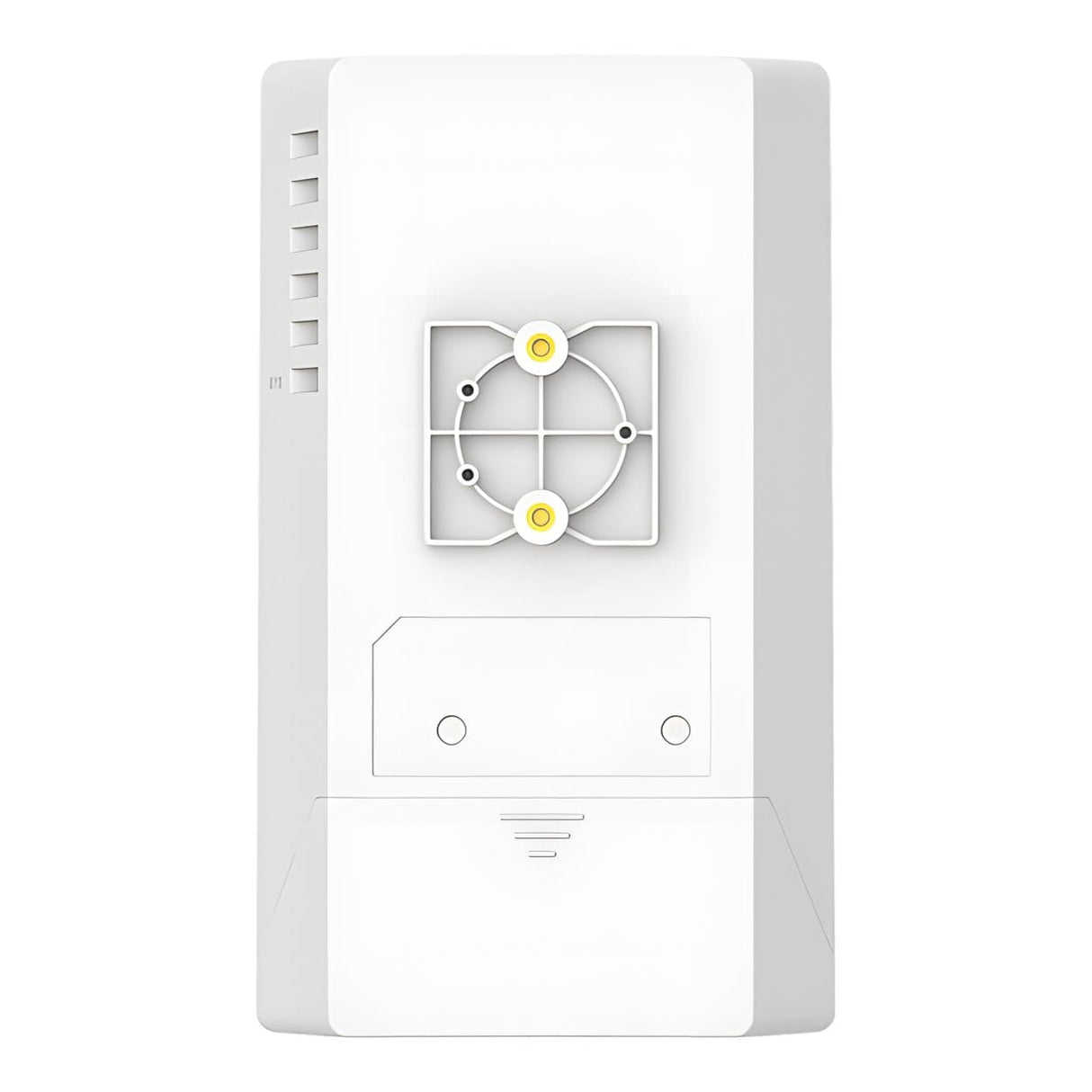

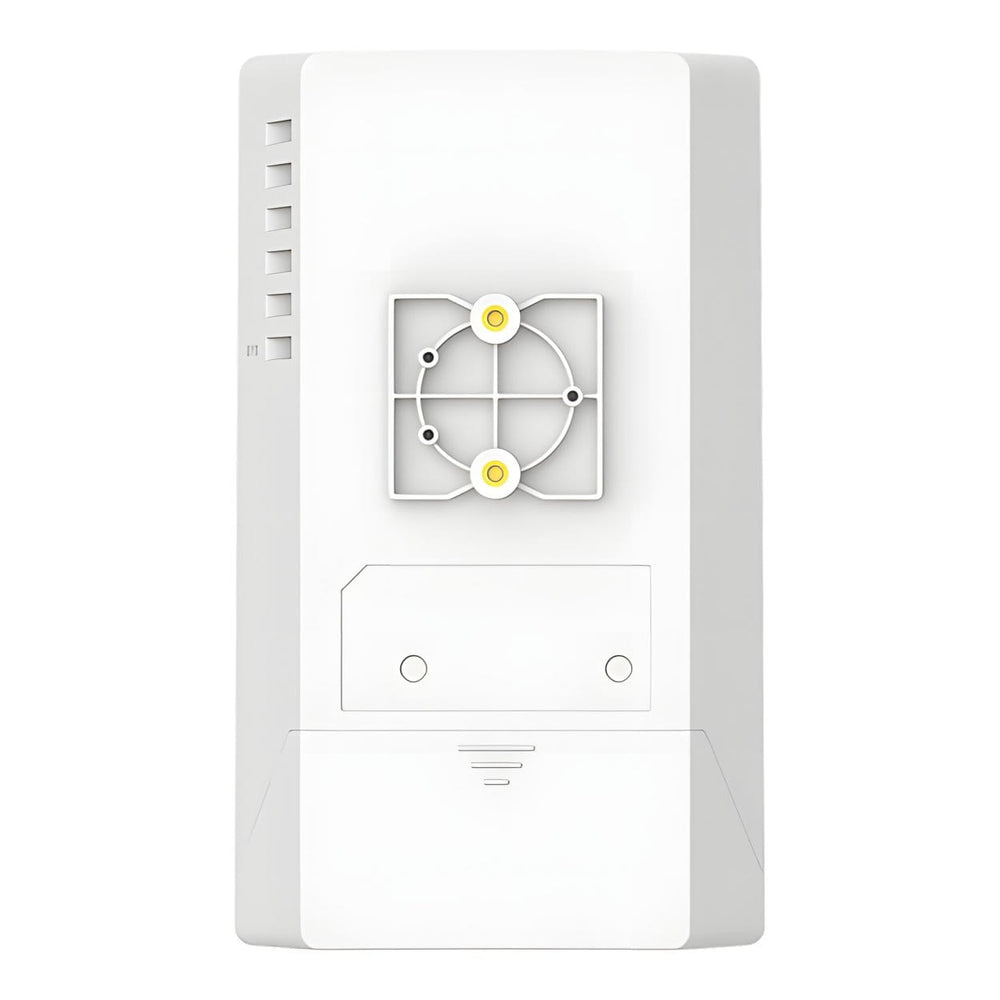

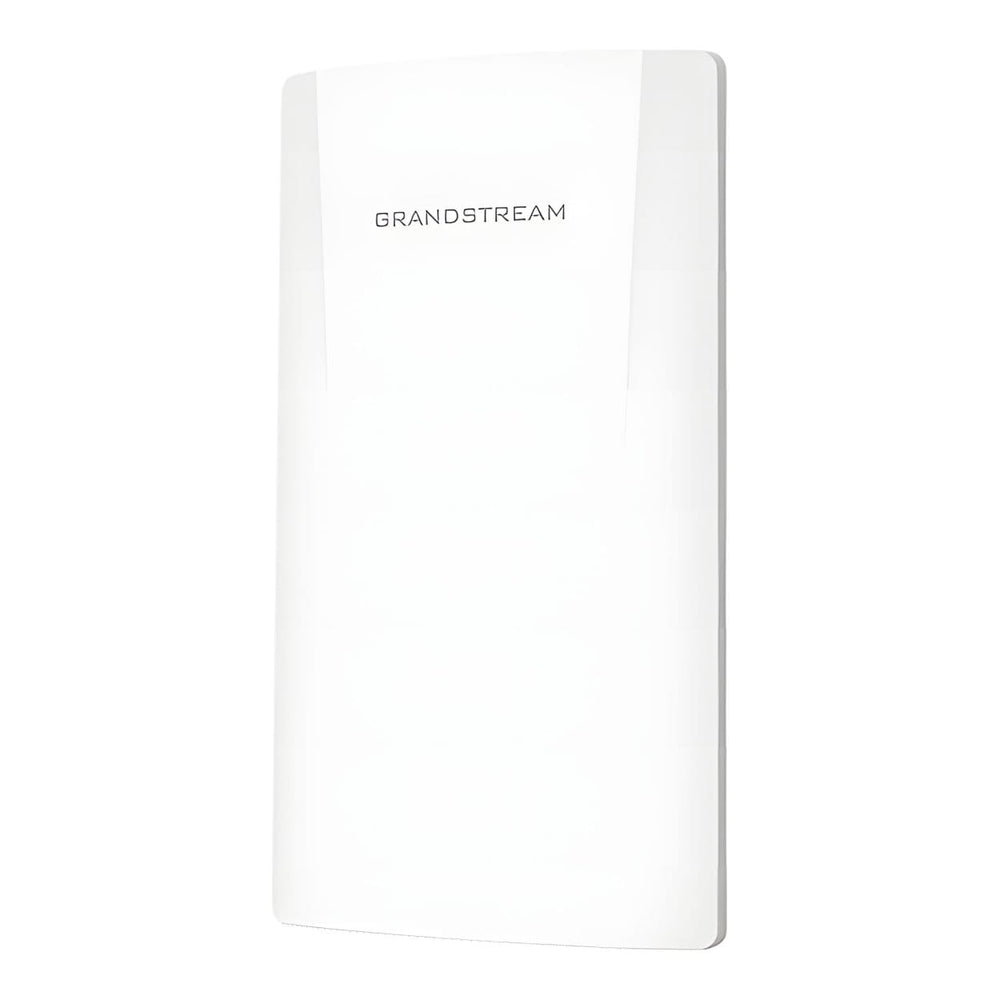

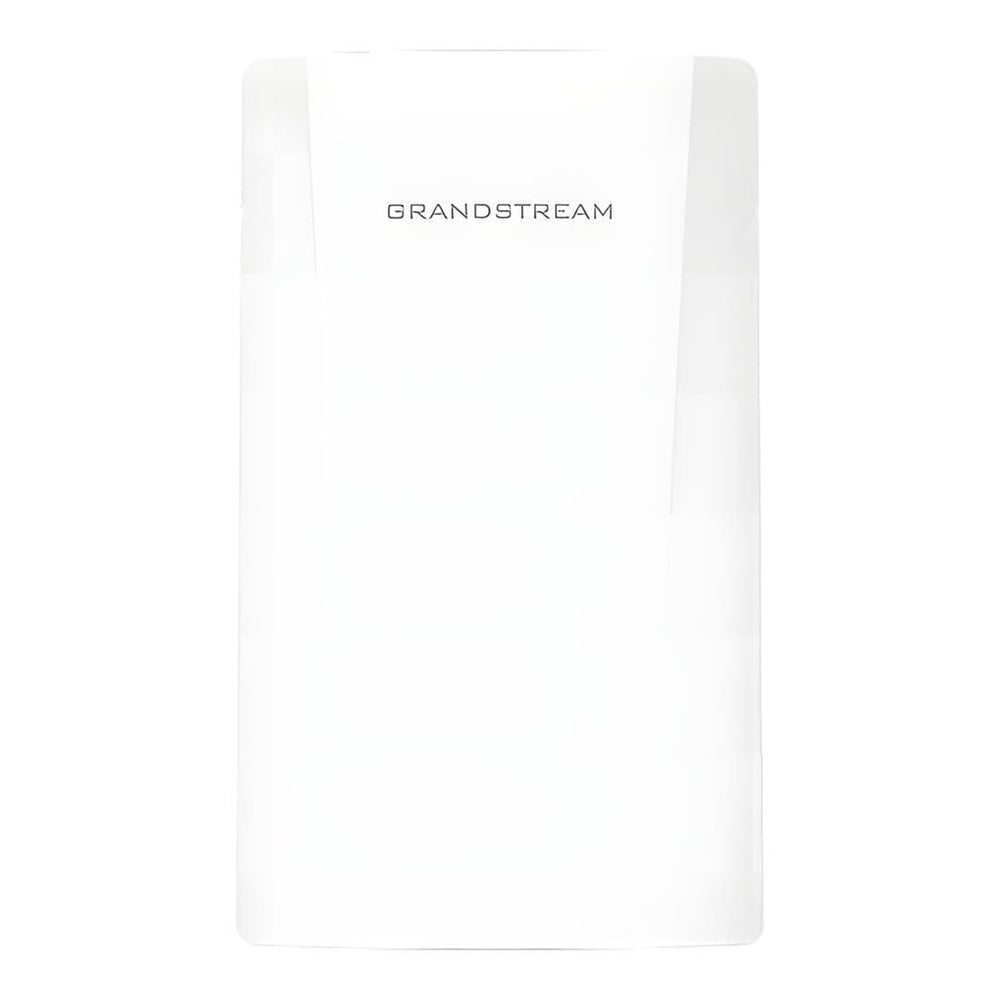

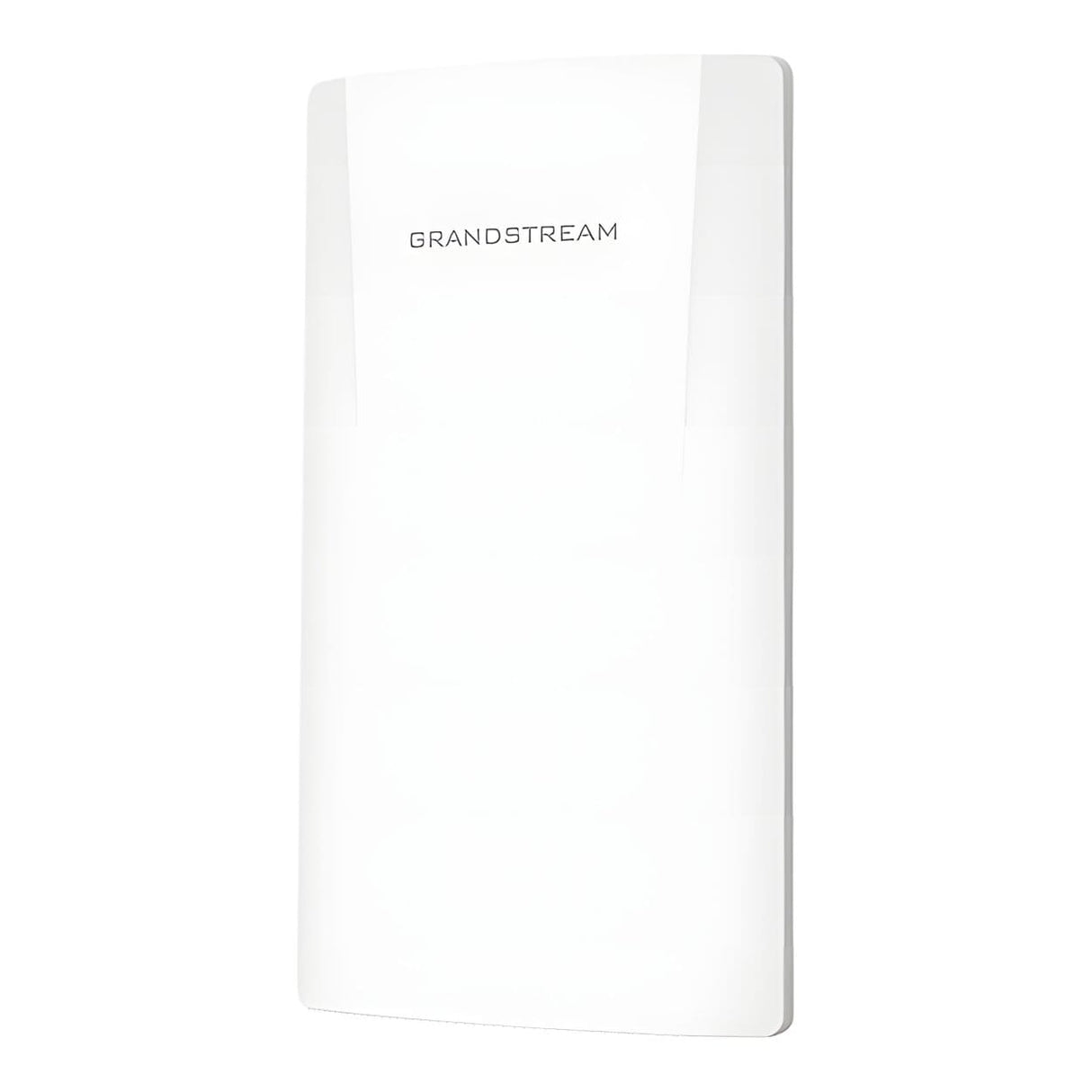

Grandstream GWN7605CLR Outdoor 802.11ac Wave-2 Wi-Fi Access Point with Phoenix Connector

Grandstream GWN7605CLR Outdoor 802.11ac Wave-2 Wi-Fi Access Point with Phoenix Connector

The GWN7605CLR provides 150-meter coverage range and IP66-rated weatherproof protection to support deployment in any outdoor environment. It includes a built-in Phoenix Connector to power the device through 12-24V wiring, enabling easy installation in locations where PoE and power outlets are not available.

Features:

• 1.27Gbps aggregate wireless throughput and 2x Gigabit ports
• Dual-band 2×2:2 MU-MIMO Wi-Fi 5 with beam-forming technology
• Self-power adaptation upon auto detection of PoE or PoE+

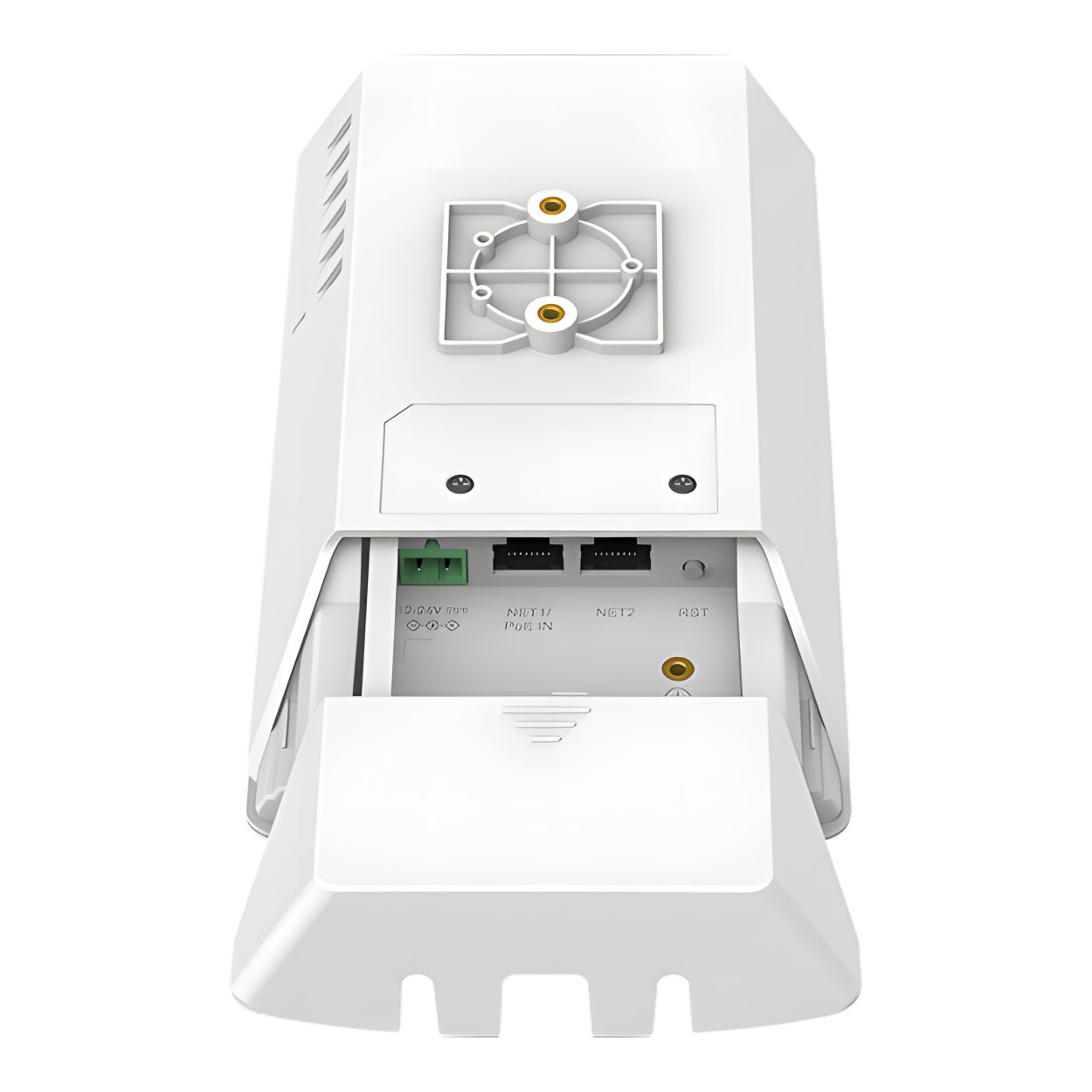

• Supports 12V-24V electrical power through the Phoenix Connector
• 100+ concurrent Wi-Fi client devices
• Up to 150-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown
• 2 internal antennas
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

Technical Specifications:

Client Devices
100

Range
150 m

Network Interfaces
1× autosensing 10/100/1000 Base-T Ethernet port, RJ-45, PoE input
1× autosensing 10/100/1000 Base-T Ethernet port, RJ-45

PoE / PoE+
Supports PoE 802.3af/at
Maximum power consumption: 10 W

Wireless Performance
2.4 GHz throughput: 400 Mbps (2×2:2 MIMO)
5 GHz throughput: 867 Mbps (2×2:2 MIMO)

Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac (Wave-2)

SSIDs
16 SSIDs total (8 per radio)

Antennas
2 dual-band internal antennas

Security Features
Open system, OSEN
WPA2-PSK, WPA2-802.1x
WPA3-SAE, WPA3-802.1x
WPA/WPA2 and WPA2/WPA3 mixed modes
Anti-hacking secure boot and data lockdown via digital signatures
Unique security certificate and random default password per device
MAC filtering, client isolation, OS filtering
Inbound/outbound traffic rules
Rogue AP detection and containment
ARP and ND attack defense

Dimensions
187 mm × 107 mm × 45 mm

Mounting
Outdoor metal bar mount or wall mount
Mounting kits included
