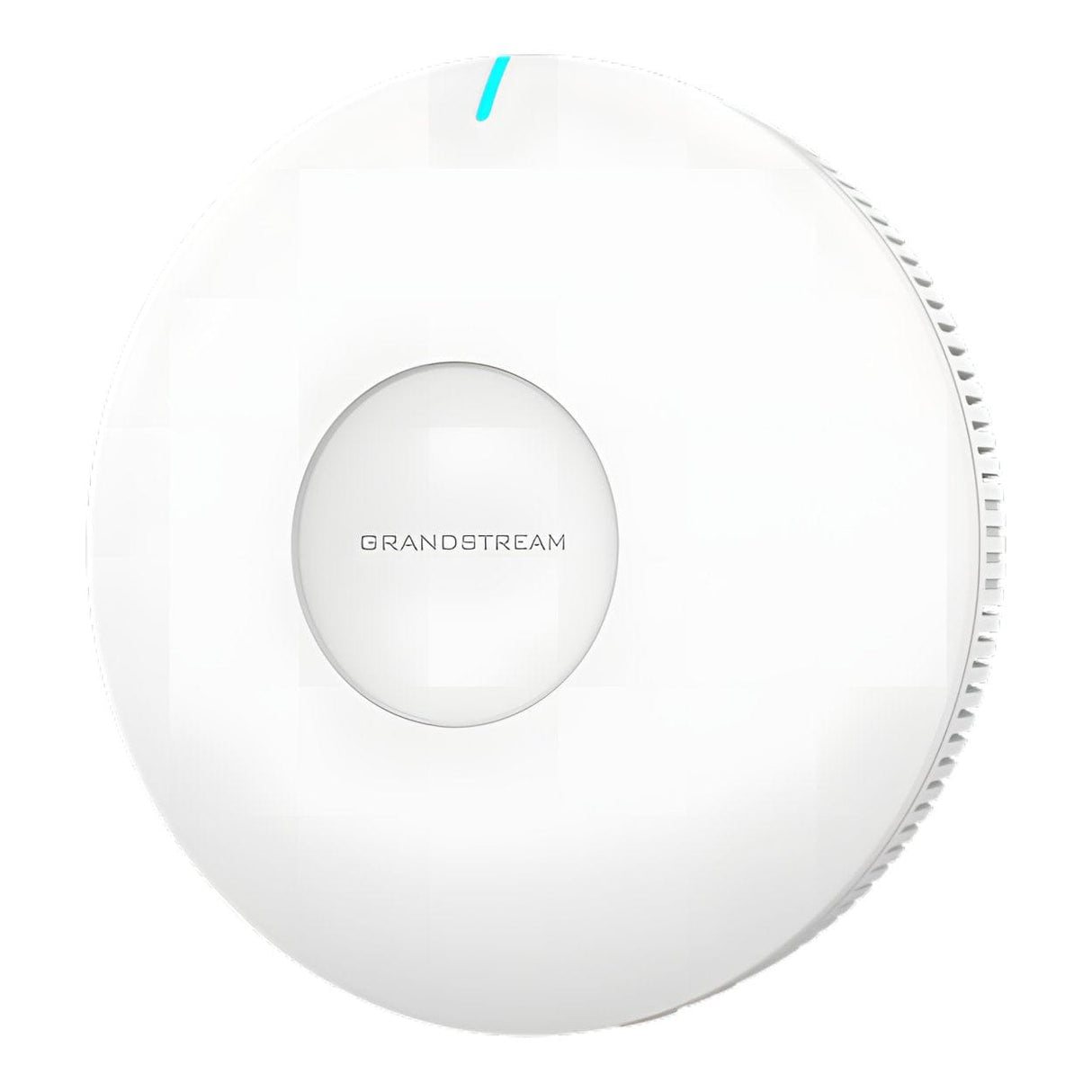

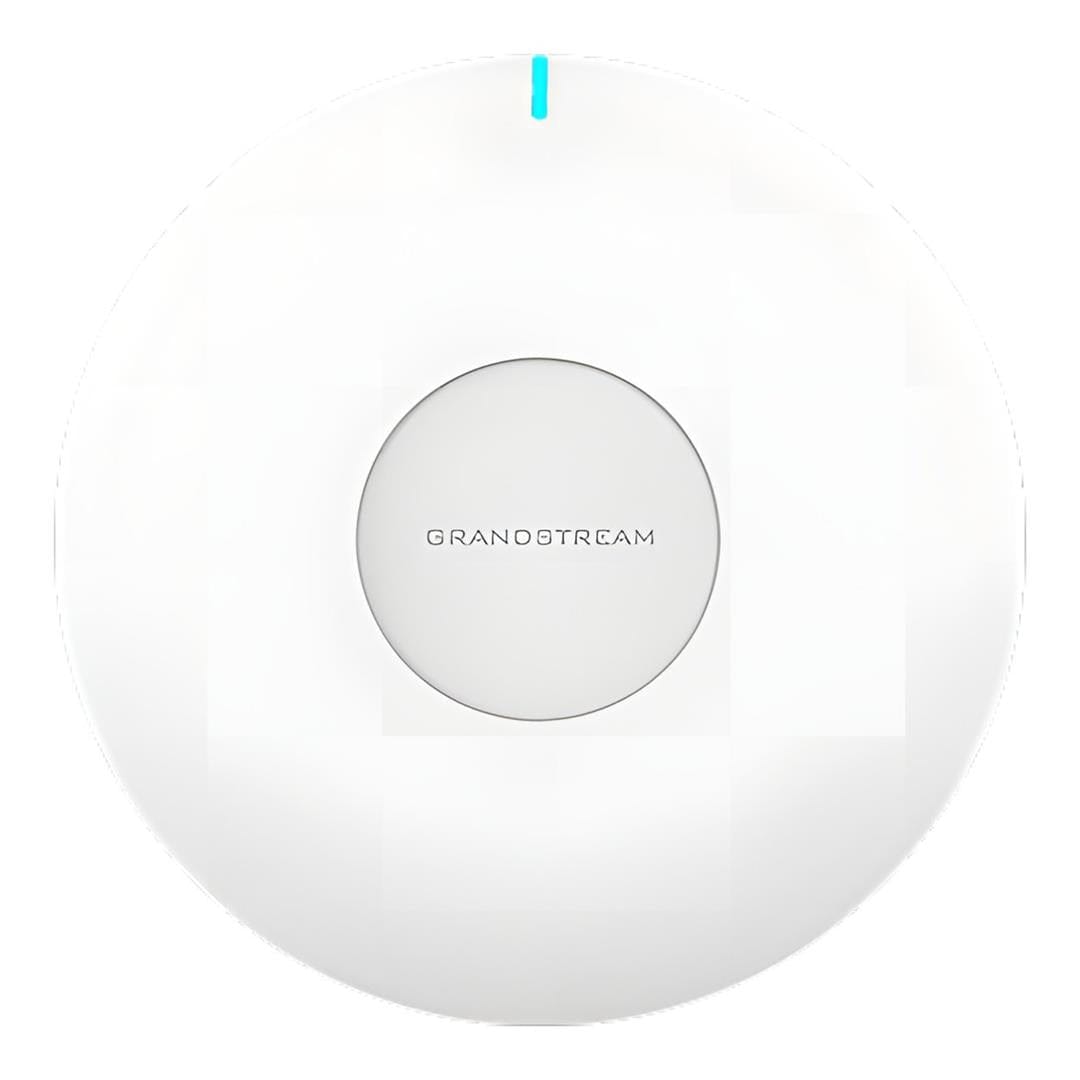

Grandstream Enterprise GWN7660EM Wi-Fi 6 Wireless Access Point

Grandstream Enterprise GWN7660EM Wi-Fi 6 Wireless Access Point

The GWN7660EM is an AX3000 Wi-Fi 6 access point with a socket design, enabling simple deployment and superior performance. It can be used as a wireless extender to build a home wireless mesh network to expand network coverage.

Features:

• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 120-meter coverage range
• Supports 128 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to
• provide easy network expansion
• Embedded controller can manage up to 10 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller

Wi-Fi 6

Wi-Fi Alliance® is the worldwide network of companies bringing you Wi-Fi®, one of the world’s most valued communications technologies. Our vision is to connect everyone and everything, everywhere. Wi-Fi Alliance drives global Wi-Fi adoption and evolution through thought leadership, spectrum advocacy, and industry-wide collaboration. Grandstream’s Wi-Fi 6 access points have been CERTIFIED, meaning they have undergone rigorous testing. When a product passes the tests successfully, the manufacturer can use the Wi-Fi CERTIFIED logo.

Certification means that a product has been tested in numerous configurations with a diverse sample of other devices to validate interoperability with other CERTIFIED Wi-Fi equipment operating in the same frequency band.

The GWN7660EM comes equipped with advanced performance-boosting features:

UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands

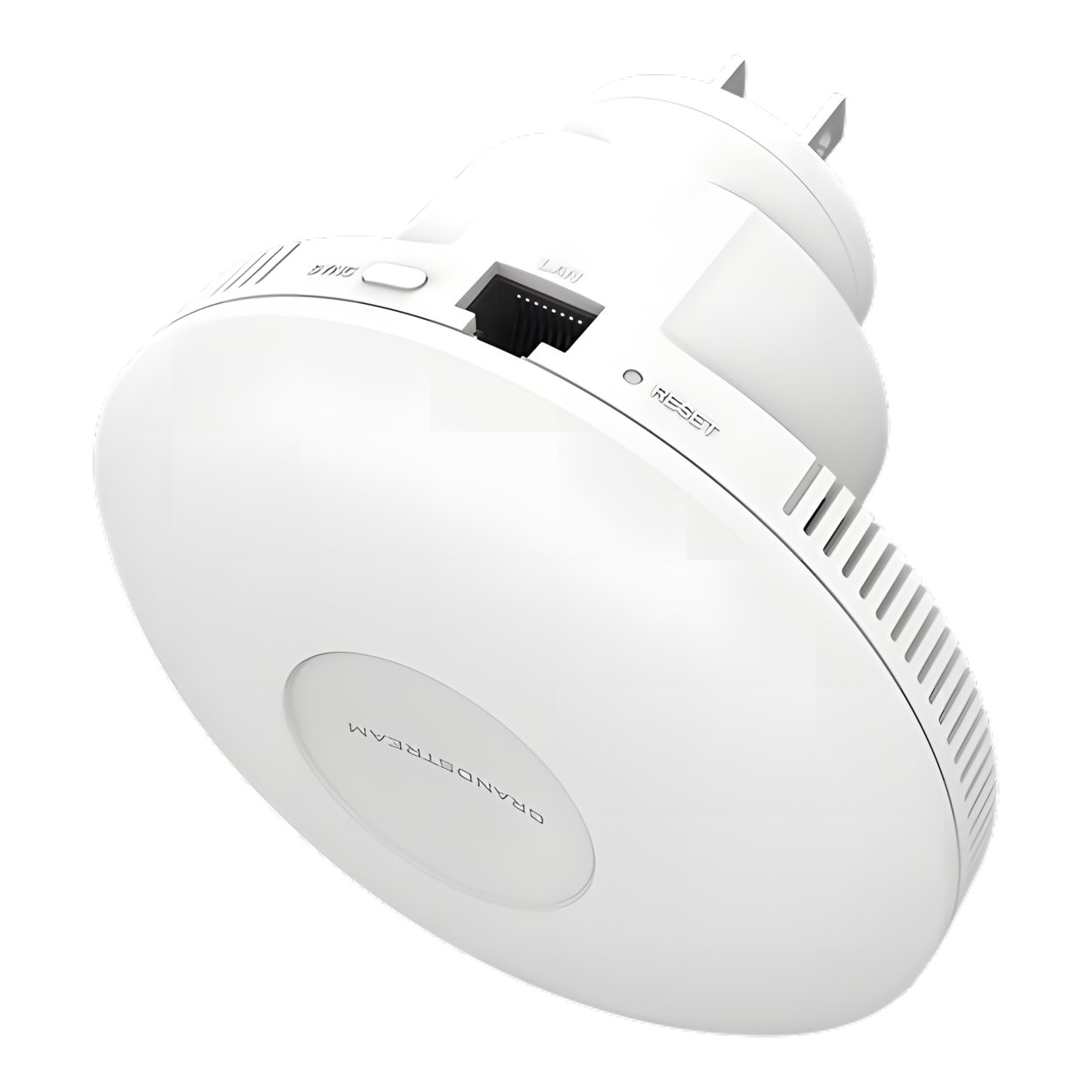

Plug-in Access Point and Wi-Fi Extender: GWN7660EM has a socket like design, which enables simple deployment and can be easily plugged in to be used as either an Access Point or an Extender.

MESH Networking: Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion

Multiple Customized SSIDs: Up to 16 SSID channels with customized client configurations, captive portal, and bandwidth limits

QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

Market-Leading Features

The GWN7660EM comes equipped with advanced performance-boosting features:

UL/DL OFDMA: Access points running on the 801.11ax standard perform better in dense environments and are designed to manage multiple Wi-Fi devices with varying bandwidth demands

Plug-in Access Point and Wi-Fi Extender: GWN7660EM has a socket like design, which enables simple deployment and can be easily plugged in to be used as either an Access Point or an Extender.

MESH Networking: Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion

Multiple Customized SSIDs: Up to 16 SSID channels with customized client configurations, captive portal, and bandwidth limits

QoS Standards: Prioritizes certain network traffic/devices so critical tasks don't compete for bandwidth, can be customized based on deployment

Technical Specifications:

Client Devices
128

Wi-Fi Throughput
2.4 GHz: 573.5 Mbps (2x2:2 MU-MIMO)
5 GHz: 2.4 Gbps (3x3:2 MU-MIMO)
6 GHz: N/A

Range
Up to 120 Meters

Network Interfaces
1x autosensing 10/100/1000 Base-T Ethernet Port

PoE/PoE+
Not supported

Wi-Fi Standards
IEEE 802.11a/b/g/n/ac/ax

SSIDs
16 total, 8 per radio (2.4 GHz and 5 GHz)

Antennas
1 single-frequency antenna
2 dual-frequency antennas

Wi-Fi and Security Systems
WPA2-PSK (personal)
WPA2-802.1x (enterprise)
WPA3-SAE (personal)
WPA3-802.1x (enterprise)
WPA/WPA2, WPA2/WPA3
Anti-hacking secure boot and critical data/control lockdown via digital signatures
Unique security certificate and random default password per device
Open system OSEN
MAC filtering
Client isolation
OS filtering
Inbound/outbound traffic rules
Rogue AP detection and containment
ARP attack defense
ND attack defense

Dimensions
110 x 110 x 56.7 mm
