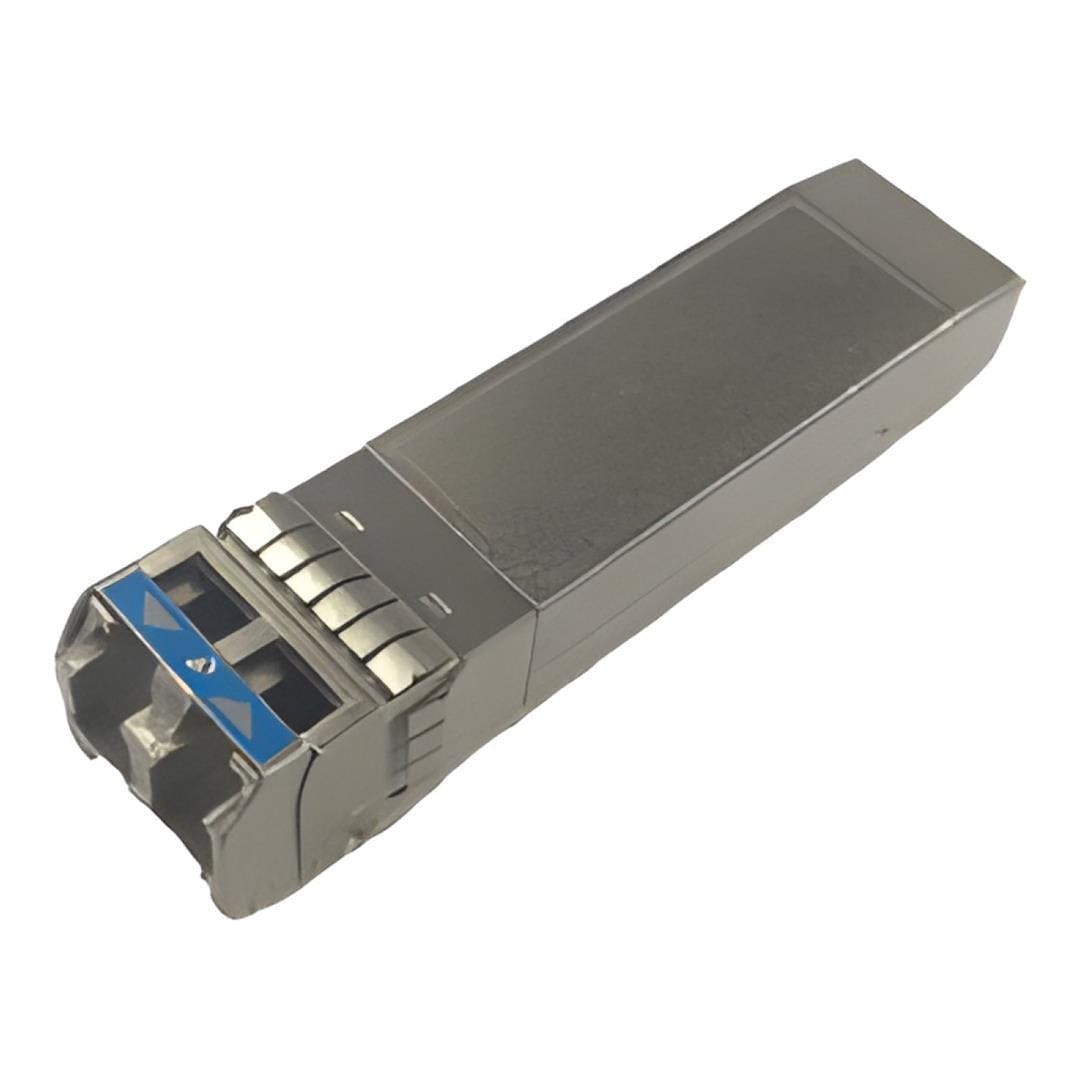

Globalsix Compatible Huawei 1.25G SFP 850nm MM 550m LC Transceiver Module 1PSFP1GESXHUA

Globalsix Compatible Huawei 1.25G SFP 850nm MM 550m LC Transceiver Module 1PSFP1GESXHUA

1000BASE-SX SFP transceiver supports up to 2km link lengths over LC duplex SMF or MMF fibre. Each SFP transceiver module is individually tested to be used on a series of FS switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

Features:

• Hot Pluggable SFP MSA Compliant to Maximize Uptime and Simplify Maintenance
• Max. Power Consumption 1W Allowing for Prolonged Service Life
• Commercial Temperature Range 0 to 70°C (32 to 158°F)
• Digital Optical Monitoring Capability for Strong Diagnostic Capabilities
• FS BOX - Support Real-time Configuration
• Compliant to IEEE 802.3z Gigabit Ethernet
• Class 1 FDA Laser Safety and RoHS Compliant
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability

Technical Specifications:

Part Number: SFP1G-SX-31
Vendor Name: FS
Form Factor: SFP
Max. Data Rate: 1.25Gbps
Connector: Duplex LC
Max. Cable Distance: 2km
Media: SMF/MMF
Wavelength: 1310nm
Modulation: NRZ
Power Consumption: < 1W
Transmitter Type: FP
Receiver Type: PIN-TIA
TX Power: -9~-3dBm
Receiver Sensitivity: < -21dBm
BER: 1E-12
DOM Support: Yes
Protocols: SFF-8472, MSA, IEEE 802.3
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
