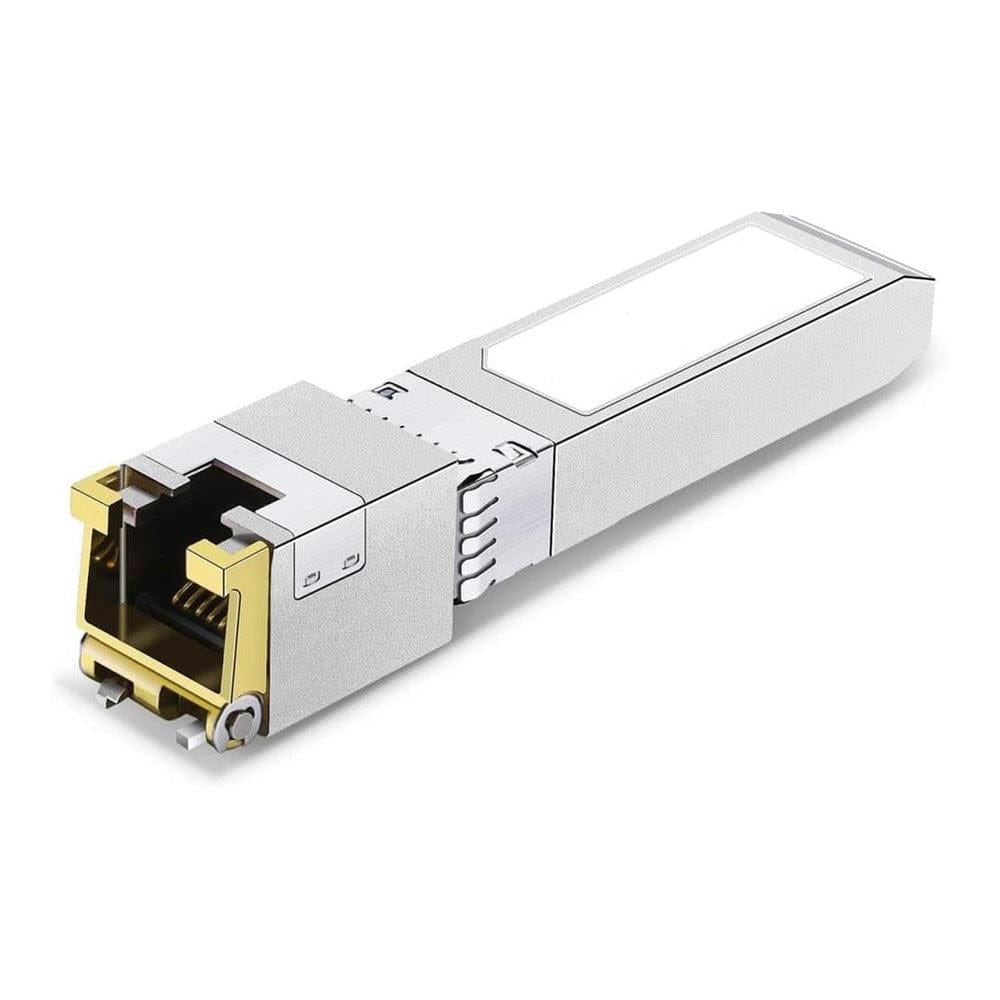

Globalsix Compatible Cisco 10G SFP+ T Copper RJ-45 30m Transceiver Module 1PSFP10GUTPCIS

Globalsix Compatible Cisco 10G SFP+ T Copper RJ-45 30m Transceiver Module 1PSFP10GUTPCIS

The 10GBASE-T module offers connectivity options at 10Gbps data rates. The module features an SFP+ form factor and an RJ-45 interface, enabling the use of CAT6A/CAT7 cables for connecting to endpoints with embedded 10GBASE-T ports. It supports distances of up to 30 metres, providing a cost-effective solution for intra-rack and inter-rack connections.
This transceiver is compliant with IEEE 802.3an, IEEE 802.3az, SFF-8431 and SFP+ MSA. Each SFP transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card (NICs) etc. Featuring low power consumption, this easy to install, hot swappable 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections.

Features:

• Built-in Marvell Chip, Max. Power Consumption 2.5W
• Tested in Targeted Switches for Superior Performance, Quality, and Reliability
• Terminated RJ45 Connectors, Allowing 10G Bandwidth over Cat6a/7 Cable
• FS BOX - Support Real-time Configuration
• Hot Pluggable SFP+ MSA , IEEE 802.3an and IEEE 802.3az Compliant

Technical Specifications:

Part Number: SFP-10G-T-30
Vendor Name: FS
Form Factor: SFP+
Max. Data Rate: 10Gbps
Max. Power Consumption: ≤2.5W
Max. Transmission Distance: 30m @ Cat6a/Cat7 or Better
Connector: RJ-45
Media: Copper
Special Features: RX_LOS
DDM/DOM: Not Implemented
Multi-rate Application: Not Supported
EMC (Electro Magnetic Compatibility): Supported
MTBF: 5,000,000 Hours
Operating Temperature: 0 to 70°C (32 to 158°F)
Protocols: IEEE 802.3an, IEEE 802.3az, SFP+ MSA, SFF-8431
Warranty: 5 Years
