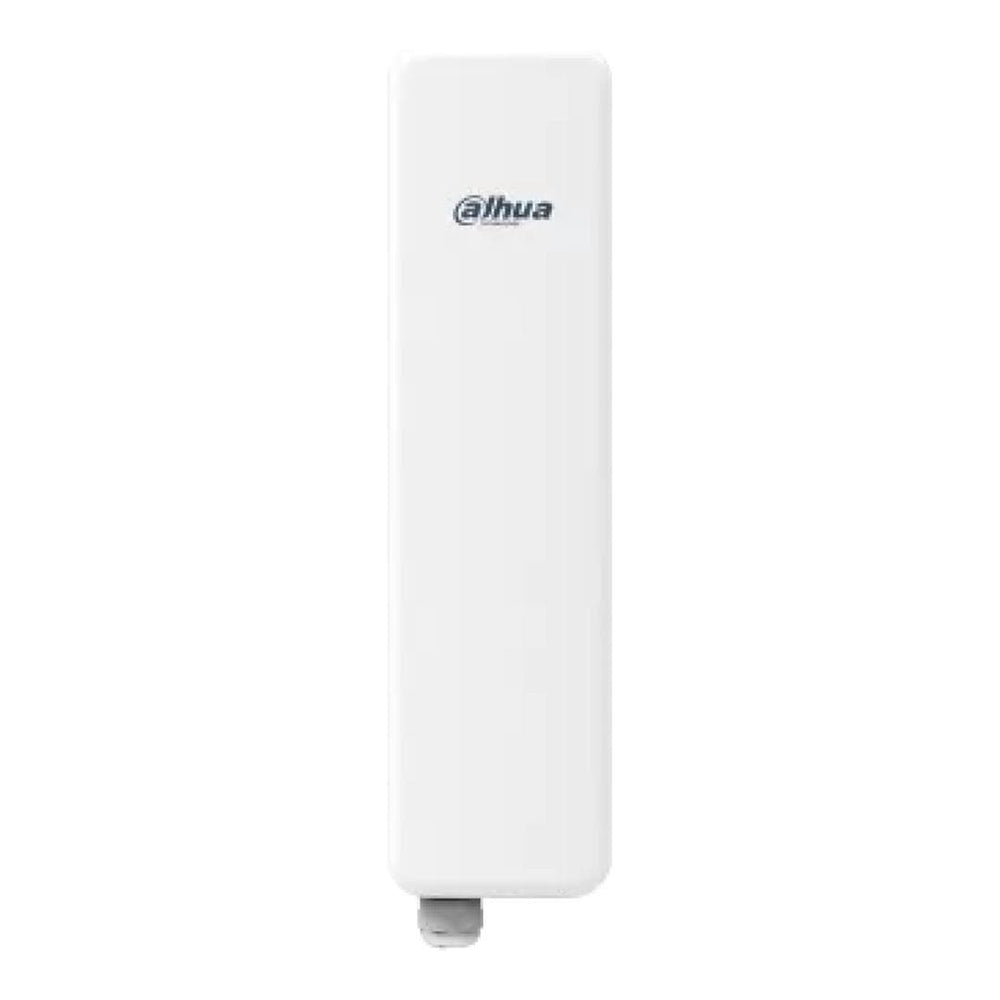

Dahua PFWB5-90n N300 V-Radio Wireless Bridge 11n 5GHz Outdoor Base Station

Dahua PFWB5-90n N300 V-Radio Wireless Bridge 11n 5GHz Outdoor Base Station

DH-PFWB5 series is a line of PTP and PTMP base stations and customer premises equipment dedicated to last-mile and video surveillance applications. It offers a wide variety of devices ideal for Internet service providers and operators to run their networks using unlicensed bands. The powerful software platform with a proprietary communication protocol ensures smooth performance even in the most congested environments. The professional-grade integrated hardware design allows for quick return on investment and minimizes operational costs.

TDMA Enhancement

Adopts TDMA (Time Division Multiple Access) technology to stabilize video transmission bandwidth, and to locate wireless transmission hidden nodes.

Wide Operating Temperature (–30 °C to +70 °C)

Supports working at ambient temperatures of –30 °C to +70 °C, and has built-in professional lightning-proof circuits that effectively reduce the impact of thunderstorms on network systems and improve system robustness, allowing the device to adapt to harsh environments.

Enhanced Antenna

Features enhanced antenna gain for the stable transmission of wireless signals over long distances, and it has strong anti-interference capabilities.

Minimal WEB

Designed with a minimalist graphical WEB, easy to operate, which improves configuration efficiency.

MU-MIMO

This advanced technology allows multiple users to communicate through one single access point, which vastly improves wireless throughput.

Specifications:

Sold in Pairs: Yes

Function Slots: 1 × RJ-45 10/100/1000 Base-T

Power Supply: 100 – 240 VAC

Power Consumption: Full load: 4.5 W

Memory: DDR 64 MB

Indicator Light:

• 1 × PWR light
• 1 × LAN light
• 4 × RSSI LEDS

Wireless Standard: 5 GHz: 802.11a/n/ac

Operating Frequency: 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Wireless Transmission Rate: 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps; 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Channel Width: 5/10/20/40 MHz

Max. Output Power:

CE EIRP:

• ≤23 dBm@5150-5250 MHz;
• ≤23 dBm@5250-5350 MHz;
• ≤27 dBm@5470-5725 MHz;
• ≤14 dBm@5725-5850 MHz

FCC output power:

• ≤24 dBm@5150-5250 MHz;
• ≤24 dBm@5250-5350 MHz;
• ≤24 dBm@5470-5725 MHz;
• ≤30 dBm@5725-5850 MHz

Antenna Direction: Angle Horizontal: 90°, vertical: 90°

Transmission Distance: 5000 m (16404.20 ft)

PoE

• PoE In: 24 V/0.5 A
• PoE Out: NA

Operating Mode: AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)

Equipment Management: WEB

Encryption Mode: WPA/WPA2-Personal; WPA/WPA2-Enterprise

Security Mechanism: ACL; user isolation

OFDMA: Yes

MU-MIMO: 2 × 2

DFS: Yes

DHCP: Yes

Firmware Update: Web update

Software: DHCP server; SNMP server; NTP client; router; advertisement daemon; ping watchdog
