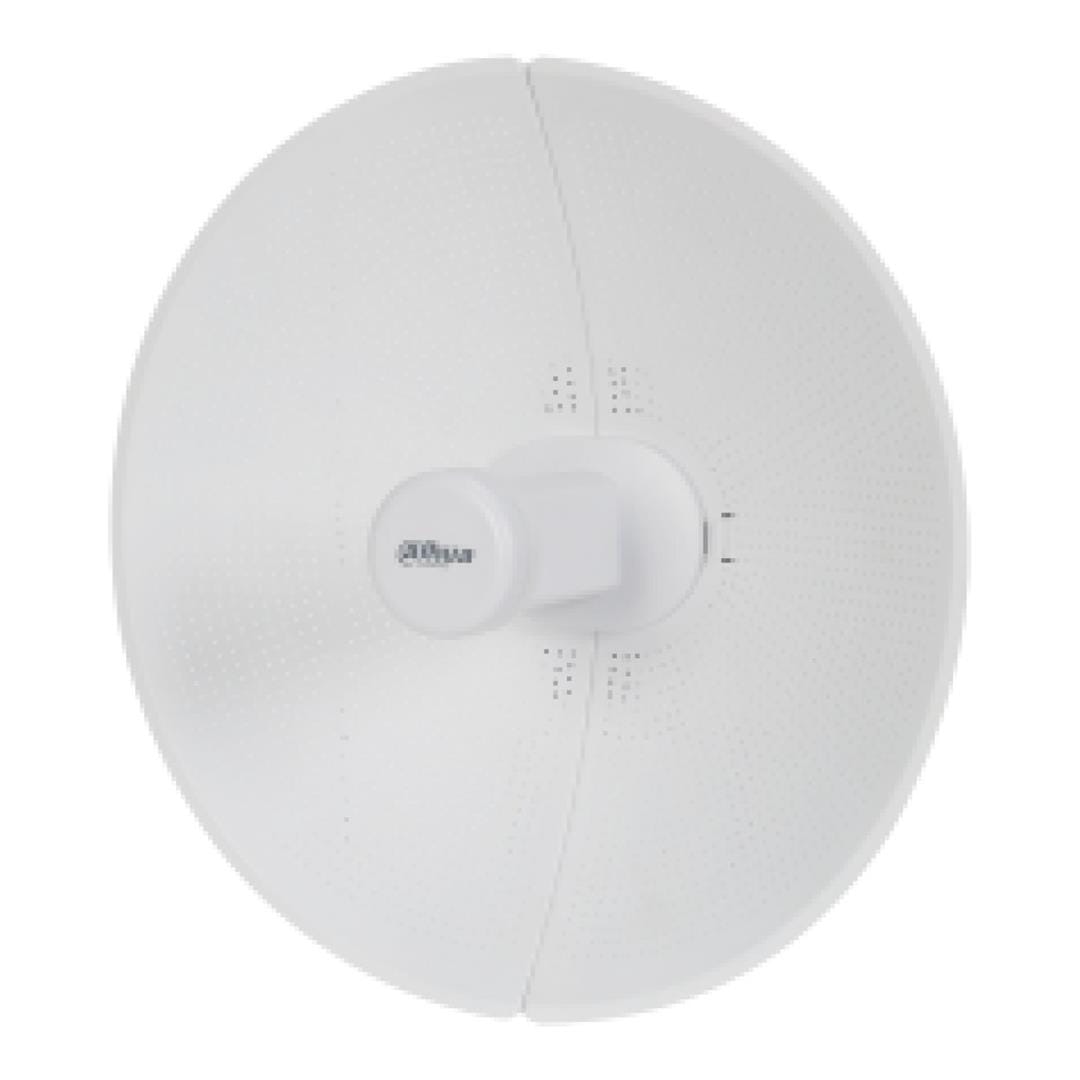

Dahua PFM886-15 Outdoor Long Range 5G Wireless Bridge

Dahua PFM886-15 Outdoor Long Range 5G Wireless Bridge

Outdoor Long Range 5G Wireless Bridge

• Use the high-performance 802.11ac MIMO chip, and the highest rate can achieve
• 867Mbps in theory
• Supports 5 working mode: Access Point, Client, WDS Access Point, WDS Client, WDS Repeater
• “Back to back” connection enables multiple links using multiple devices, which suits outdoor complicated terrain better
• Supports Point-to-Point wireless transmission
• TDMA technology best utilizes the bandwidth to support Point-to-Multi-Point wireless transmission
• Supports PoE power input
• Water-proof and ultraviolet-proof enclosure ensures stable performance in outdoor environment
• Supports management by web and Access Controller

Specifications:

Wireless Features

Wireless Standard: IEEE802.11 a/n/ac

Working Frequency: 5745~5825MHz (support frequency to extend, extendedrange: 4920~6100MHz)

Wireless Speed: 867Mbps

Modulation Mode: OFDM

Antenna: 23dBi

Output Power: 27dBm (max)

Receiving Sensitivity:

• 11a： 6Mbps -91 dBm 54 Mbps -72dBm
• 11n： MCS0 -85 dBm MCS7 -67dBm
• 11ac：MCS0 -85 dBm MCS9 -60dBm

Transmission Distance: ≤15km

Wireless Direction Angle: Horizontal 10°, vertical 10°

Hardware

Power: 1*PoE RJ45 (PoE input via PoE switch or PoE adapter)

Power Consumption: ≤25W

Ethernet Port: 1×10/100M/1000MBase-TX (Cat. 5/5E, RJ-45)

Indicator Light: 3×Link Quality

Working Temperature: -30℃～+70℃

Storage Temperature: -40℃～+85℃

Working Humidity: 5%～95%RH(no condensation)

Equipment Dimension: 240mmâ…¹Ø373mm

Equipment Weight: 0.94kg

Protection Level: IP66

Software

Encryption Type: 802.1x/WPA-PSK/WPA2-PSK

Network Mode: Route/Network Bridge

Working Mode: Access Point/Client/WDS AP/WDS client/WDS Repeater

Security Mechanism: IP/MAC address filtering, hide network name

Network Protocol: TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP

TDMA Enhancement: Support

Auto ACK Timing Adjustment: Support

Management and Log: NTP, Syslog, Telnet, AC, NMP

Webpage Configuration Management: Web, SNMP, Access Controller

Firmware Update: Web, Access Controller

Bandwidth Flexible Configuration: 10/20/40/80MHz
