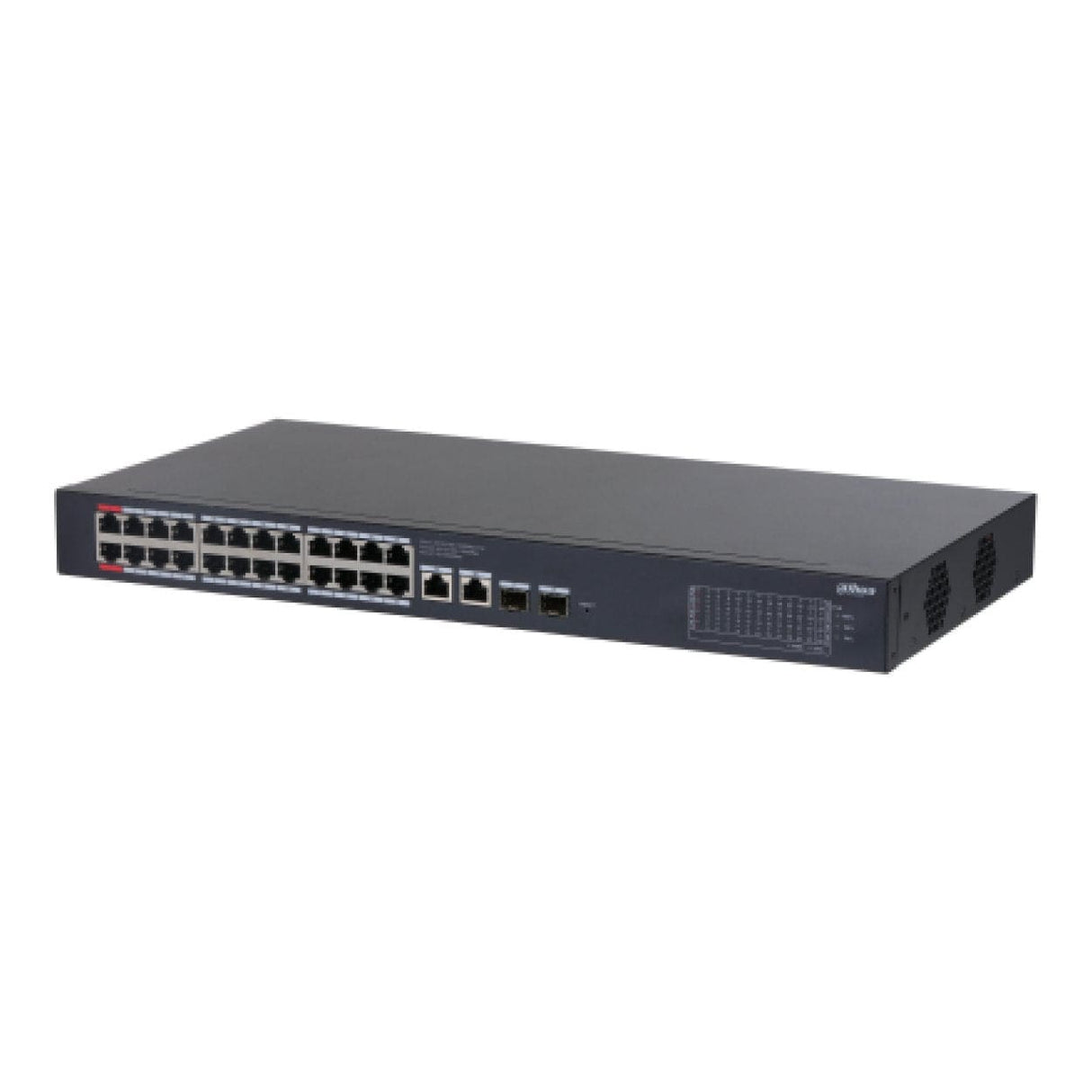

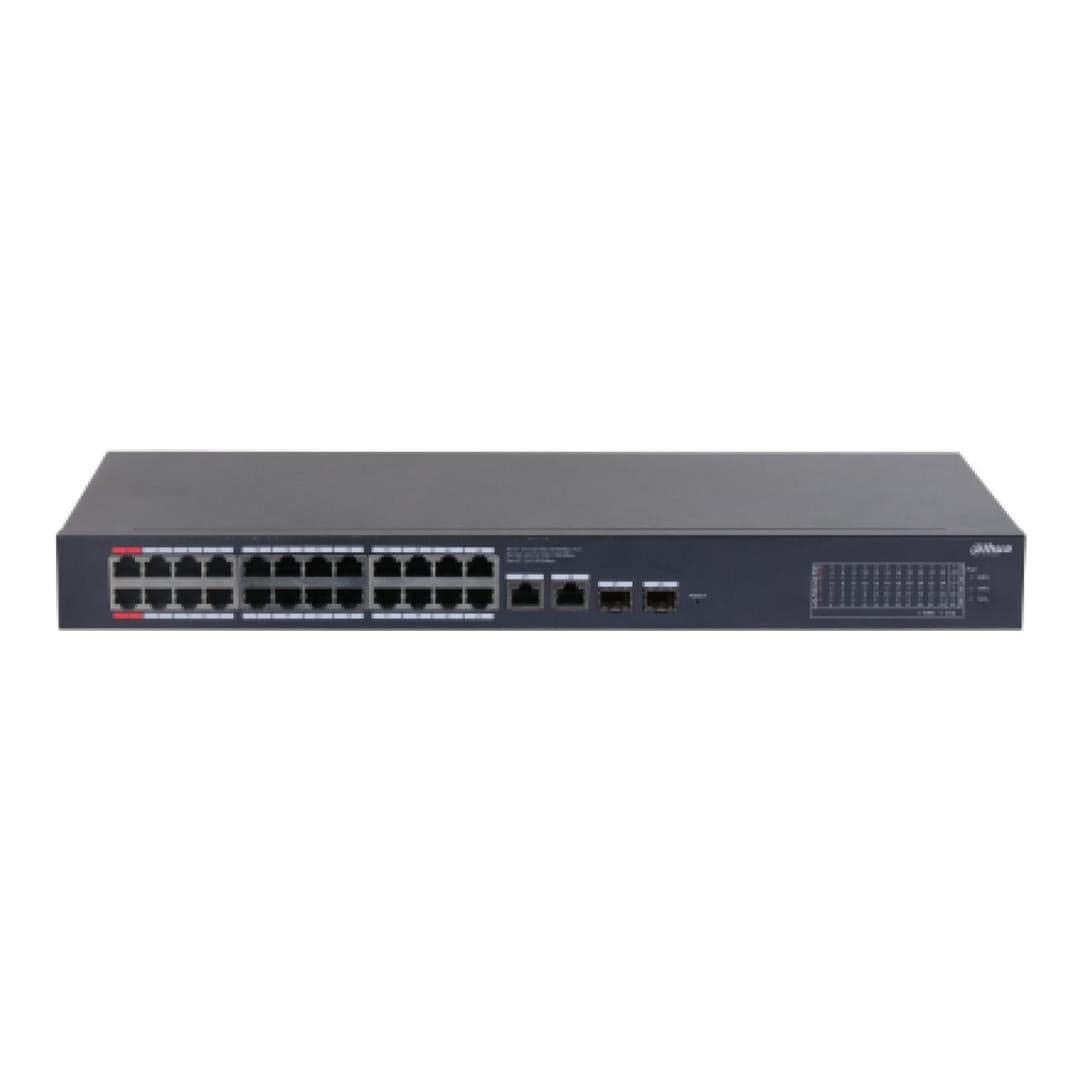

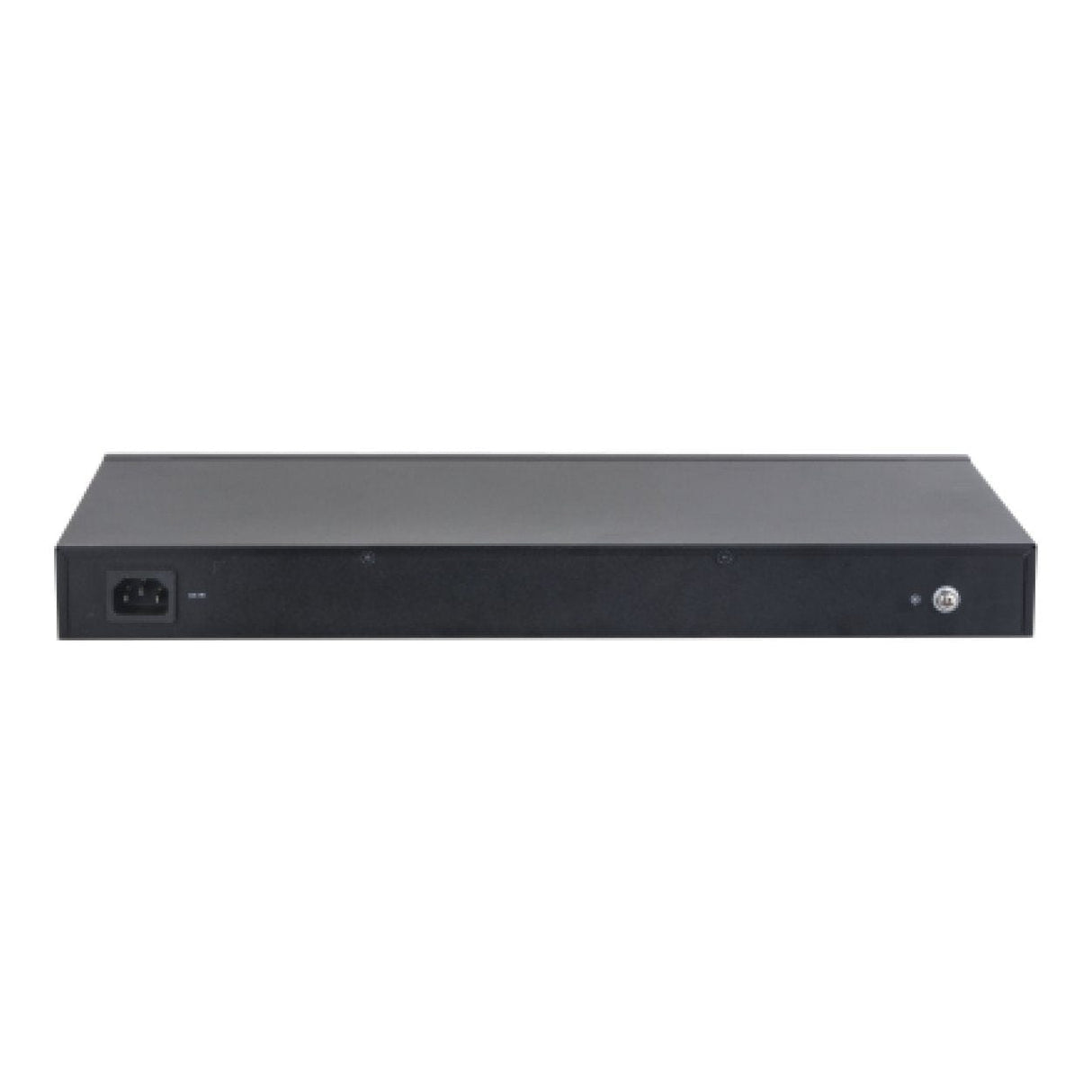

Dahua CS4228-24GT-375 28-port Cloud Managed L2 Network Switch with 2x SFP Ports

Dahua CS4228-24GT-375 28-port Cloud Managed L2 Network Switch with 2x SFP Ports

Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

Cloud Management

Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications.

Network Topology Management

Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the topology.

BT 90W (Red Port)

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and HiPoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

Long Distance PoE

The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

Spanning Tree Protocol (STP)

Uses algorithms that calculate the best loop-free path through a Layer 2 network while providing path redundancy to prevent the occurrence of broadcast storms and enhance the stability of operations and services.

PoE Watchdog

Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Loop Protection

When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.

Specifications:

Included Power Adapter: Yes

PoE: Yes

Ethernet Port: 24

Ethernet Port Speed: 10/100/1000 Mbps

Optical Port Speed: 1000 Mbps

Ethernet Port Uplink Speed: 10/100/1000 Mbps

Optical Port Uplink Speed: 1 Gbps

Description of Function Slots: Port 1-24: 24 × RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 × RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 × SFP 1000 Mbps (uplink)

Reset Button: 1

Power Supply: Built-in power supply: 100-240 VDC, 47-63 Hz, max 7 A

Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity: 5%–95% (RH), non-condensing

Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity: 5%–95% (RH), non-condensing

Power Consumption: Idling: ≤12.5 W ; Full load: 400 W

Performance

Layer: Layer 2

Management Type: Yes

Smart Managed Switch: Yes

MTBF: 67.80 years

Switching Capacity: 56 Gbps

Packet Forwarding Rate: 41.66 Mpps

Packet Buffer Size: 4 Mbit

Jumbo Frame: 15K Byte

MAC Table Size: 8K

VLAN Number: 32

Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z

Feature

PoE Protocol: IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power: Port 1-2 ≤ 90 W, Port 3-24 ≤ 30 W, total ≤ 375 W

PoE Power Consumption Management: Yes

PoE Pin Assignment: 1,2,4,5（V+）,3,6,7,8（V-）

Long Distance PoE Transmission: Yes

Spanning Tree Protocol: STP/RSTP

VLAN Function: Port-based VLAN

IEEE 802.3x Flow Control: Yes

DHCP Function: DHCP Client

Equipment Management: Web management; App management

General

Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV

Lighting Protection: Common mode: 4 kV; Differential mode: 2 kV

Net Weight: 2.66 kg (5.85 lb)

Gross Weight: 3.26 kg (7.17 lb)

Product Dimensions: 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)

Casing Material: Sheet metal

Installation: Desktop mount; rack mount
