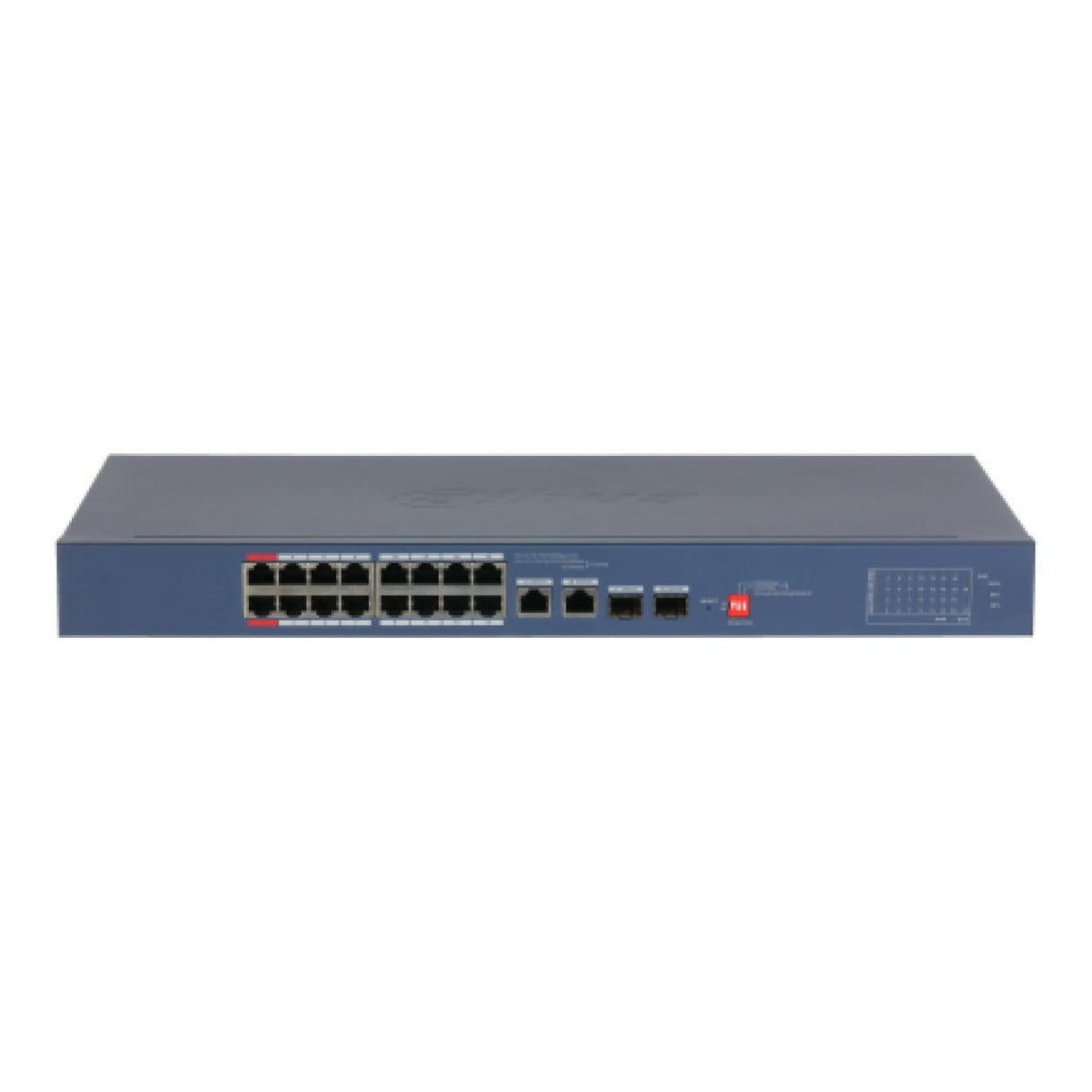

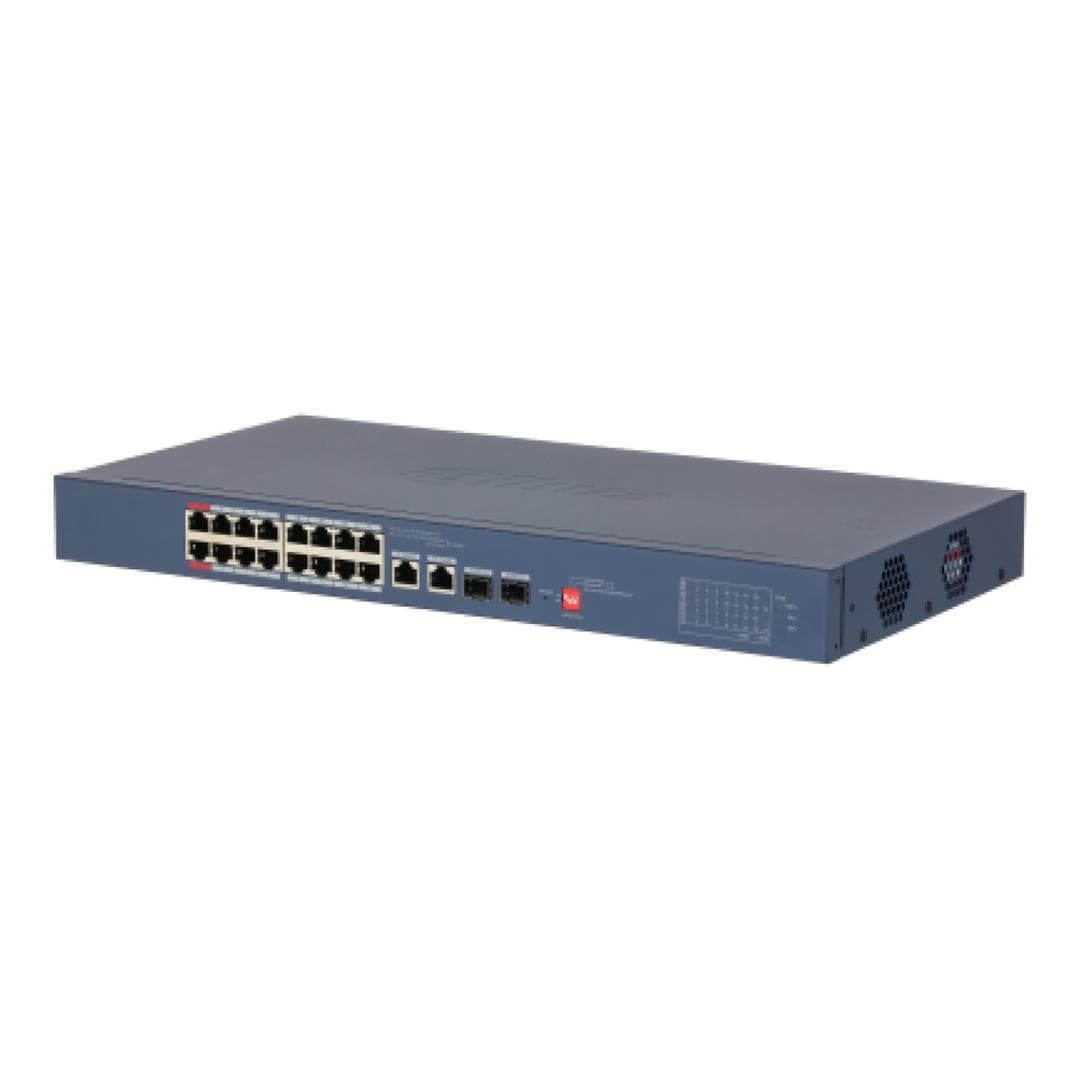

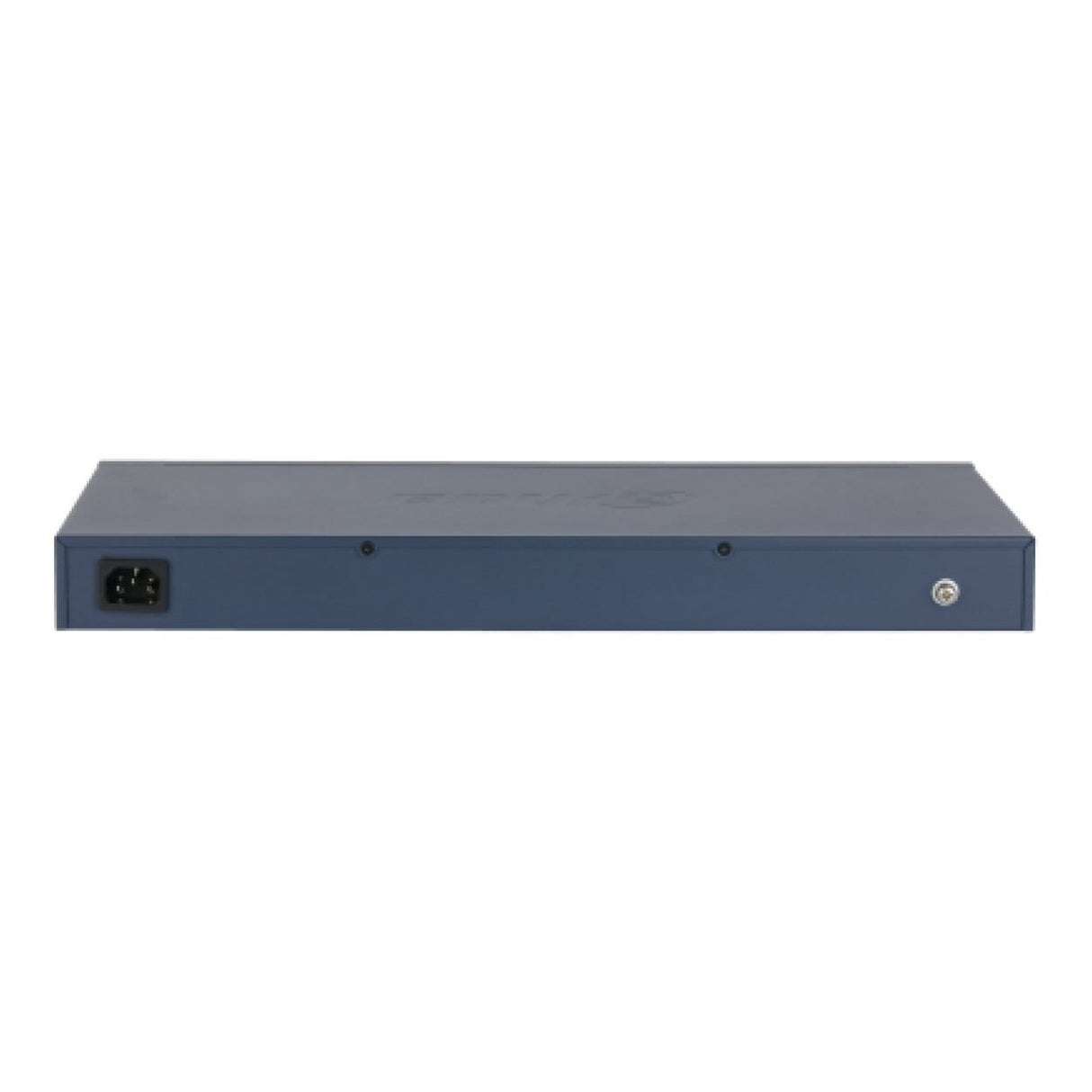

Dahua CS4218-16ET-240 18-port Cloud Managed L2 Network Switch

Dahua CS4218-16ET-240 18-port Cloud Managed L2 Network Switch

Highly intuitive, the Cloud Managed Switch can be managed in local networks. With the DoLynk Cloud-Management platform, it additionally enables seamless cloud management capabilities. With just one click, you can start both the CCTV and IT system through EasyConfig. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices. It can effortlessly turn on and off its managed mode with the simple flip of a switch. Additionally, the switch supports abundant PoE 2.0 features. With full metal design, it has great heat dissipation and can operate in temperatures ranging –10 °C to 55 °C. It also features surge protection against up to 6 kV, resisting interference from static electricity, lightning and pulses. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.

Managed Mode ON/OFF

Easily switches between managed and unmanaged mode with just the flip of a switch. When in managed mode, you can perform management through the webpage locally or the cloud platform. This allows the device to seamlessly adapt to a variety of scenes.

Network Topology Management

Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the topology.

BT 90W (Red Port)

The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

Long Distance PoE

The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

PoE Watchdog

Adopts the innovative PoE Watchdog. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Loop Protection

When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.

Cloud Management

Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends notifications.

Specifications:

Layer: Layer 2

Switching Capacity: 7.2 Gbps

Packet Forwarding Rate: 5.36 Mpps

Description of Function Slots:

• Port 1-16: 16 × RJ45 10/100 Mbps(PoE)
• Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo)
• Port 17-18: 2 × SFP 1000 Mbps(Combo)

Power Supply: Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A

Power Consumption:

• Idling: 3 W
• Full load: 246.8 W

Statics Protection:

• Air discharge: 8 kV
• Contact discharge: 6 kV

Lightning Protection:

• Common mode: 6 kV
• Differential mode: 1 kV

Net Weight: 2.5 kg

Product Dimensions: 440 mm × 228.81 mm × 43.65 mm (L × W × H)

Casing Material: Sheet metal

Installation: Desktop mount; rack mount

Certifications: CE

PoE: Yes

PoE Power: Port 3-16≤30 W, port 1-2≤90 W, total≤240 W

PoE Protocol: IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power Consumption Management:

• PoE power consumption management
• PoE power on/off
• turns off PoE if overload is detected

PoE Pin Assignment:

• Port 1-2: 1, 2, 4, 5 (V+) , 3, 6, 7, 8 (V-)
• Port 3-16: 1, 2, (V+), 3, 6, (V-)

Long Distance PoE Transmission: Yes

DIP Switch:

• Managed Mode: On by default for local web and cloud management. Off for Unmanaged Mode.
• PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
• Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)

Reset Button: 1

MTBF: 1626836 h

Packet Buffer Size: 4 Mbit

Jumbo Frame: 9216 Byte

MAC Table Size: 8K

Communication Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az

VLAN Number: 32
