ASUS ZenWiFi BT10 Tri-band 2.4GHz 5GHz 6GHz Wi-Fi 7 Mesh System White 90IG08Y0-MO3C60

ASUS ZenWiFi BT10 Tri-band 2.4GHz 5GHz 6GHz Wi-Fi 7 Mesh System White 90IG08Y0-MO3C60

Worry-Free Smart Home Mesh

The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT10 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 18 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 10-gigabit Ethernet ports and a suite of advanced network and security technologies, this mesh WiFi system is ready for the future of your smart home network today.

DESIGN

The Pinnacle of WiFi

ASUS ZenWiFi BT10 embodies our unwavering commitment to developing incredible in-house WiFi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.

IEEE 802.11be

WiFi 7 Powering Premium Mesh

The ZenWiFi BT10 boasts cutting-edge WiFi 7 technology. This superior tri-band mesh system unleashes the full potential of WiFi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.

Superior 6 GHz WiFi

Boasting a superior 6 GHz band, ZenWiFi BT10 unleashes blazing-fast tri-band WiFi 7 speeds up to 18 Gbps. It ensures comprehensive WiFi compatibility for a wide range of devices, from cutting-edge WiFi 6E mobile devices to legacy IoT devices.

Comprehensive MLO Support

Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT10 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they use.*

*Supported MLO modes and bands may vary by device. Please refer to device specifications for details.

Ultrawide 320 MHz Channels

WiFi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.

Efficient 4K-QAM Transmission

Compared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20%* more efficient data transmission.

MESH TECHNOLOGY

AI-Boosted Smart AiMesh

ZenWiFi BT10 harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.

Intelligent Mesh Backhaul

Smart AiMesh backhaul intelligently leverages WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.

Scalable 10G Connectivity

Experience lightning-fast speeds even in homes with thick walls. With dual 10G ports, you can extend the 10G wired mesh backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected and ready for the future.

Smart MLO Connect

Smart AiMesh uses Multi-link Operation to achieve a faster connection. Intelligent algorithms direct low-priority packets to the less congested band, ensuring that high-priority packets remain lightning-fast for optimal data transmission.

Values Beyond Extension

AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.

Performance

Engineered for Always-Connected Home

ASUS engineering shines in ZenWiFi BT10's robust design, delivering superior coverage and unrivaled reliability.

Unrivaled Coverage and Reliability

With eight internal antennas and ten high-power front-end modules, the ZenWiFi BT10 eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.

Up to 17% Faster CPU Power

Fueled by a powerful CPU and 2 GB of RAM, the ZenWiFi BT10 delivers exceptional processing power. This unleashes advanced features, optimizing your network for smoother 8K streaming, HDR gaming and an enhanced AI network experience.

Next-Gen Connectivity

Embrace the future of 10G home networking with the ZenWiFi BT10.

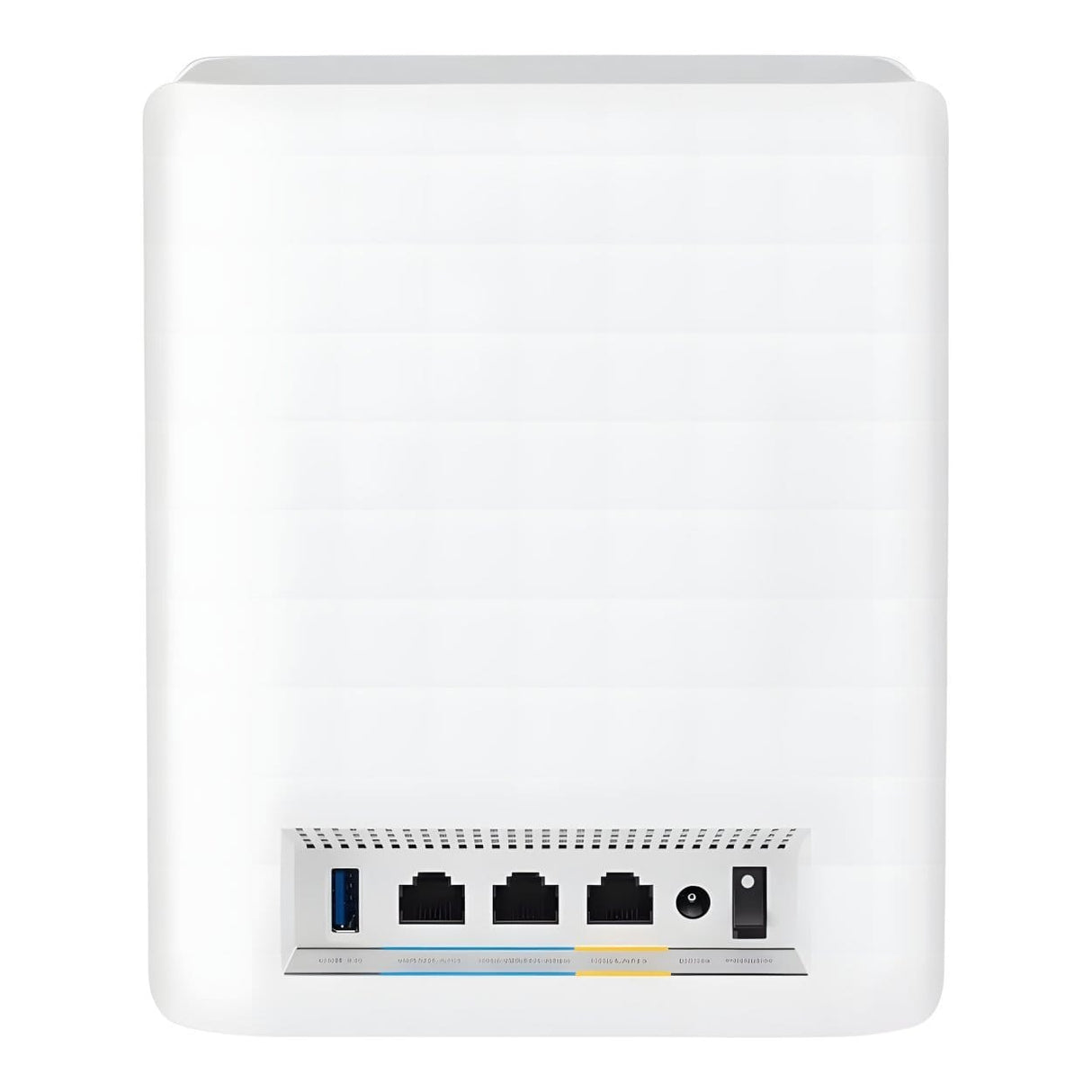

Dual 10G Ports

The ZenWiFi BT10 includes one 10G WAN/LAN port and one 10G LAN port, ready for next-gen entertainment, home studios and ultra-fast 10G Ethernet backhaul.

Versatile WAN Options

The ZenWiFi BT10 provides versatile WANs, including a 10G WAN/LAN port, a Gigabit WAN/LAN port and an USB WAN for flexible network configurations.

4G LTE & 5G Mobile Tethering

Stay connected anytime with the convenient USB 4G LTE and 5G mobile tethering, even during Internet outages or while on the go.

Worry-Free WiFi

Network Security

Safeguard Everyone and Every Connected Device

In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.

Comprehensive Triple-level Protection

Robust router safeguards with commercial-grade cloud protection powered by Trend Micro™ shield your smart home network, while feature-packed controls and management empower every member of your household to manage their connected devices securely for ever-evolving cybersecurity landscape. Additionally, advanced encrypted connection protects your online activity and data, keeping them private and secure.

Top-Notch Security Within Reach

The intuitive ASUSWRT interface and mobile router app let you easily monitor, control and manage your network security, including advanced features such as VPNs.

Extendable Custom Network

AiMesh technology ensures your whole-home WiFi remains protected under the same SSID. The new Smart Home Master unlocks even more advanced settings for further customization.

One-Stop Solutions

ASUS partners with trusted security and VPN solution providers to offer one-stop security solutions with optimal network performance.

User Friendly

Router Protection Made Easy

ASUS Network Security includes convenient network tools such as a one-tap Security Scans for diagnosing network health, fine-tuned settings options, and on-the-go notifications.

Instant Notifications

Receive instant notifications for new device connections to block unknown devices from accessing your network or group new devices into a user profile.

Auto Security Updates

Secure your router with integrated defense measures that continuously update and scan to protect against malware and emerging threats.

Network Segmentation

Feature-Packed Smart Home Master SSIDs

ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated SSIDs with advanced features like parental controls and VPNs.

IoT Network

Set up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.

Kid’s Network

Create a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.

VPN Network

Connect to your preferred VPN service with a single click through a dedicated subnetwork.

Parental Controls

Safer, Smarter Family Protection

Advanced family protection and parental controls empower you to nurture a balanced digital life for you and your kids, all without subscriptions.

Internet Activity Dashboard

Monitor your kids' Internet usage through a comprehensive graphical dashboard. See their online time, data consumption, and device-specific activity at a glance.

Preset Age-Level Profiles

Preset profiles automatically filter inappropriate content and set screen time schedules, making it easy to apply settings based on your children's ages.

Flexible Time Scheduling

Define online and offline hours for each child, ensuring balanced screen time and fostering healthy digital habits. Reward good behavior with extra online time as positive reinforcement.

Safe Browsing

Customize protection for individual users or a group of devices with safety filters to secure your online activities.

VPN

Stay Protected Anywhere, Anytime

Enjoy secure browsing, data privacy, remote access – extensive ASUS VPN capabilities handle it all. The ZenWiFi BT10 supports versatile VPN protocols, including the cutting-edge WireGuard® for lightning-fast speeds and optimal performance.

Instant Guard

When away from home, ASUS Instant Guard gives you a one-tap secure VPN*, and you can even easily share it with your family and friends through a URL link.

Multiple VPN Connection

Connect to multiple encrypted VPN tunnels simultaneously while maintaining the Internet access without interruption.

ASUS Router App

Three-Step Easy Setup, Powerful Controls

The intuitive interface of the ASUS Router mobile app makes managing your network simple on your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!

Network Standard
Wireless Standards IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 6E (802.11ax), WiFi 7 (802.11be), IPv4, IPv6

Product Segment
Performance Class BE18000 ultimate BE performance : 688+5764+11529 Mbps

WiFi Data Rate
2.4GHz WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
5GHz WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
6GHz WiFi 7 (802.11be) (6GHz): up to 11529 Mbps

Antenna
Antenna Type Internal antennas x 8

Transmit / Receive
MIMO Configuration 2.4GHz 2x2
5GHz 4x4
6GHz 4x4

Processor
CPU 2.0GHz quad-core processor

Memory
RAM 2GB
Flash 256MB

Boosts Speed
Technologies OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

Operating Frequency
Frequency Bands 2.4 GHz
5 GHz
6 GHz

Operating Mode
Modes Wireless Router Mode
AiMesh Node Mode
Access Point Mode

I/O Ports
Ports 10G WAN/LAN x 1
10G LAN x 1
1G WAN/LAN x 1
USB 3.0 x1

Buttons
Controls WPS button
Reset button
Power switch

LED Indicator
Indicators Power x 1

Power Supply
Input AC Input : 110V~240V(50~60Hz)
Output DC Output : 12V with max. 3A current

Package Content
Included Items ZenWiFi BT10
RJ45 cable
Power adapter
Warranty card
Quick start guide

Product Dimensions
Dimensions 159 x 72 x 186 mm

Remark
Notes Content may vary in different regions and packages.

AiMesh
AiMesh Support Primary AiMesh Router
AiMesh Node

Parental Control
Features Allow you to block access to unwanted websites and apps.
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule

Router APP
Mobile App APP: ASUS Router APP

Guest Network
Guest Access The Guest Network provides Internet connection for guests but restricts access to your local network.
Support Guest Network

Security
Security Features AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall

AiProtection
AiProtection Pro Features Router Security Assessment
Malicious Site Blocking
Two-Way IPS
Infected Device Prevention and Blocking

VPN
VPN Features Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control
QoS Features Adaptive QoS
Bandwidth Monitor
Bandwidth Limiter
Traditional QoS
Traffic Monitor
Traffic Analyzer
Website History

WAN
WAN Features Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
Port Triggering
DMZ
DDNS

LAN
LAN Features DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
Wake on LAN (WOL)

Wireless
Wireless Features MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

USB Application
USB Features 4G / 5G Auto Mobile Tethering
HDD Hibernation
Safely Remove Disk
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Administration
Management Features Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update

Smart Home
Smart Integration Support Google Assistant
