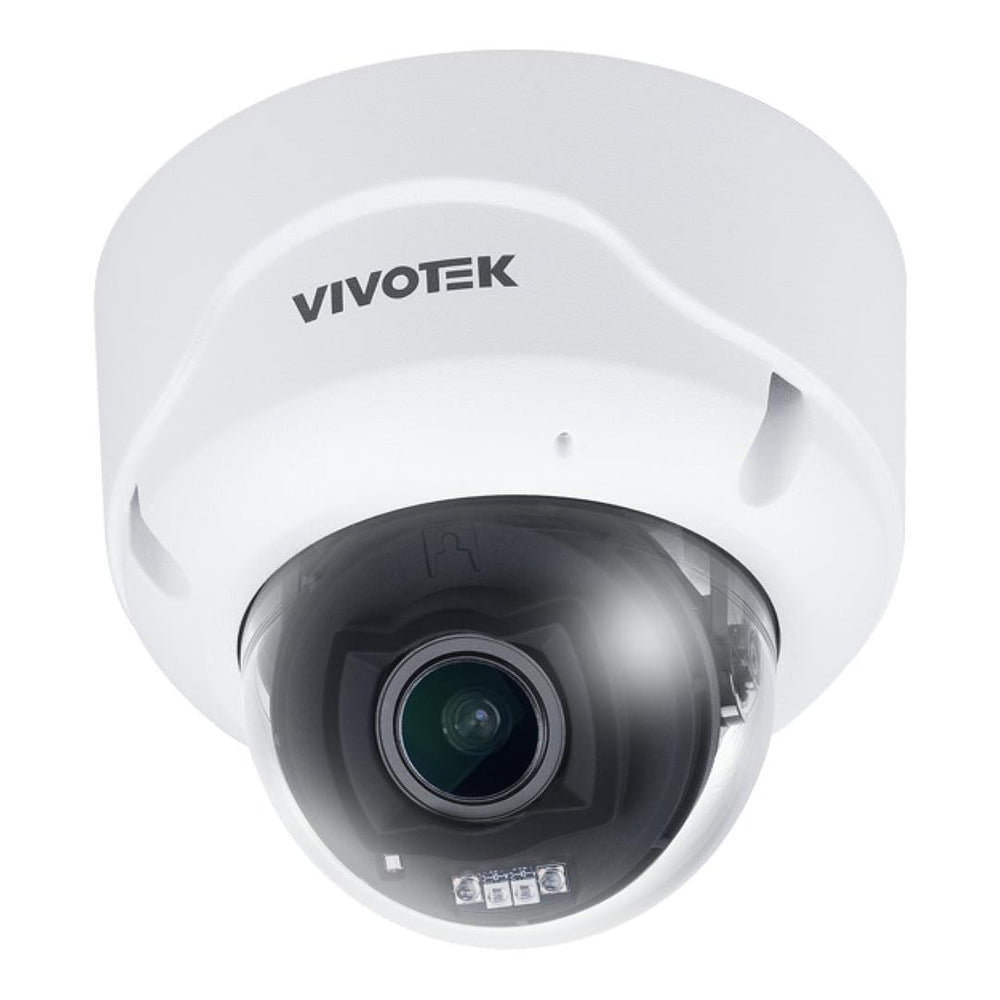

Vivotek FD9399-EHTV 8MP Outdoor Dome Camera

Vivotek FD9399-EHTV 8MP Outdoor Dome Camera

Great Image Performance Powered by RealSight Engine

RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.

Features:

• AI-powered Smart Motion Detection and Smart VCA
• RealSight Engine for unparalleled visibility
• Built-in IRs up to 40M
• IP66/IK10/NEMA 4X Protection
• Signed Firmware, Secure Boot, TPM 2.0

AI Detection for Accurate Alarm

VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.

Enhanced Security with TPM 2.0

The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security.

Engineered for Endurance in Most Environments

IP66, IK10 & NEMA 4X for weather-resistant, vandal-proof and anti-corrosion, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment.

Build for Easy Cabling

Just simply pass the existing network cable through and plug it directly into the network port. Two-way audio and alarm I/O expansion are also available, interchangeable cable making replacement and installation quick and effortless.

Complete Video Security with VIVOTEK Solution

Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.

Technical Specifications:

System Information
CPU: Multimedia SoC (System-on-Chip)
Flash: 8 GB
RAM: 2 GB

Camera Specifications
Image Sensor: 1/1.8" Progressive CMOS
Max Resolution: 3840 × 2160 (8MP)
Lens Type: Motorized, Vari-focal, Remote Focus
Focal Length: 4.3–9.8 mm
Aperture: F1.6–F2.6
Iris Type: P-iris

Field of View:
Horizontal: 110.4°–45.1°
Vertical: 57.9°–25.4°
Diagonal: 133.9°–51.8°

Shutter Time: 1/5 sec to 1/32,000 sec
WDR Technology: WDR Pro
Day/Night: Yes
Removable IR-Cut Filter: Yes
Illuminators: 4× IR LEDs, up to 40 m with Smart IR
Minimum Illumination: 0.02 lux (Color); <0.005 lux (B/W); 0 lux with IR

Pan Range: 350°
Tilt Range: 80°
Rotation Range: 350°
ePTZ: 48× digital zoom (4× on IE plug-in, 12× built-in)

Storage: MicroSD/SDHC/SDXC (up to 1TB); NAS support
Built-in Installation Aids: Remote focus; remote zoom; pixel calculator

Video
Compression: H.265; H.264; MJPEG
Maximum Frame Rate: 30 fps @ 3840 × 2160
Maximum Streams: 3 (up to 8 configurable profiles)

Main Stream:
30 fps @ 3840×2160; 3328×1872; 3072×1728; 2688×1520; 2560×1440; 1920×1080; 1280×720; 640×360

Second Stream:
30 fps @ 1920×1080; 1280×720; 640×360

Third Stream:
30 fps @ 1280×720; 640×360

S/N Ratio: 54 dB
Dynamic Range: 120 dB
Video Streaming: Adjustable resolution; quality; CBR; Smart Stream III

Image Settings:
Overlay; orientation; day/night; Smart IR III; white balance; brightness; contrast; saturation; sharpness; gamma; defog; 3DNR; EIS; scene mode; BLC; HLC; exposure control; AE speed; WDR; zoom; focus; privacy mask; scheduled profiles

Audio
Two-Way Audio (Full Duplex, AO-015 cable required)
Compression: G.711; G.726; MPEG-2 AAC-LC
Interface: Built-in microphone; external mic input; external line output (AO-015 required)
Effective Range: 5 m

Network
Users: Up to 10 clients live viewing
Security: Access list; CSRF protection; digest authentication; HTTPS; IEEE 802.1X; secure boot; signed firmware; Trend Micro IoT Security; FIPS 140-2 Level 2 TPM
Protocols: 802.1X; ARP; Bonjour; CIFS/SMB; DDNS; DHCP; DNS; FTP/SFTP; HTTP; HTTPS; ICMP; IGMPv3; IPv4; IPv6; NTP; PPPoE; QoS; RTSP/RTP/RTCP; SMTP; SNMP; SSL; TCP/IP; TLS 1.2/1.3; UDP; UPnP
Interface: 10/100 Base-TX Ethernet (RJ-45)
ONVIF: Profile G; S; T; M

AI Analytics
Compute Capability: SoC with hardware deep learning accelerator

Vision Object Analytics:
Object Detection; People; Vehicles (2/4-wheeled); Bestshot; Path Extraction
Attribute Extraction: People (gender, clothing color, bag, hat); Vehicle (type, color)
Face Bestshot; Re-Search Extraction

Applications: Deep Learning VCA (Smart Motion Detection; Smart VCA)
Smart VCA Group 1: Intrusion; Loitering; Line Crossing; Face Detection
Smart VCA Group 2: Unattended Object; Missing Object; Crowd Detection
Smart VCA Group 3 (License Required): Running; Parking Violation; Restricted Zone

RealSight Engine: Smart IR III; Deblur; WDR; White Balance; Exposure Control

Alarm and Event
Event Trigger: Audio detection; tampering; cybersecurity events; digital input; motion; scheduled; SD life; shock; system boot
Event Action: Audio clip; camera link; digital output; email; HTTP; FTP/SFTP; NAS; SD card upload

General
Connectors: RJ-45 (PoE); audio in/out; 1× DI; 1× DO (AO-015 required)
LED Indicator: Power and status
Power Input: IEEE 802.3af PoE Class 3
Power Consumption: Max 12.4W (IR on); 9.6W (IR off)
Dimensions: Ø134 × 116 mm
Weight: 990 g

Certifications: CE; UKCA; FCC; RCM; VCCI; IC; UL; CB; NEMA 4X; IK10; IP66; BIS; BSMI

Operating Temperature:
Start: -20°C to 50°C
Working: -35°C to 60°C (IR off); -35°C to 50°C (IR on)

Humidity: 98% RH (non-condensing)

System Requirements
OS: Windows 10/8/7; macOS 10.12 (Chrome only)
Browser: Chrome 58+
Other Player: VLC 1.1.11+

Included Accessories
Quick Installation Guide
Alignment Sticker
Screw Pack
L-Shaped Wrench

DORI (EN 62676-4)
Detection: 88.1 m (Wide); 197.6 m (Tele)
Observation: 35.0 m (Wide); 77.9 m (Tele)
Recognition: 17.5 m (Wide); 39.0 m (Tele)
Identification: 8.7 m (Wide); 19.5 m (Tele)
