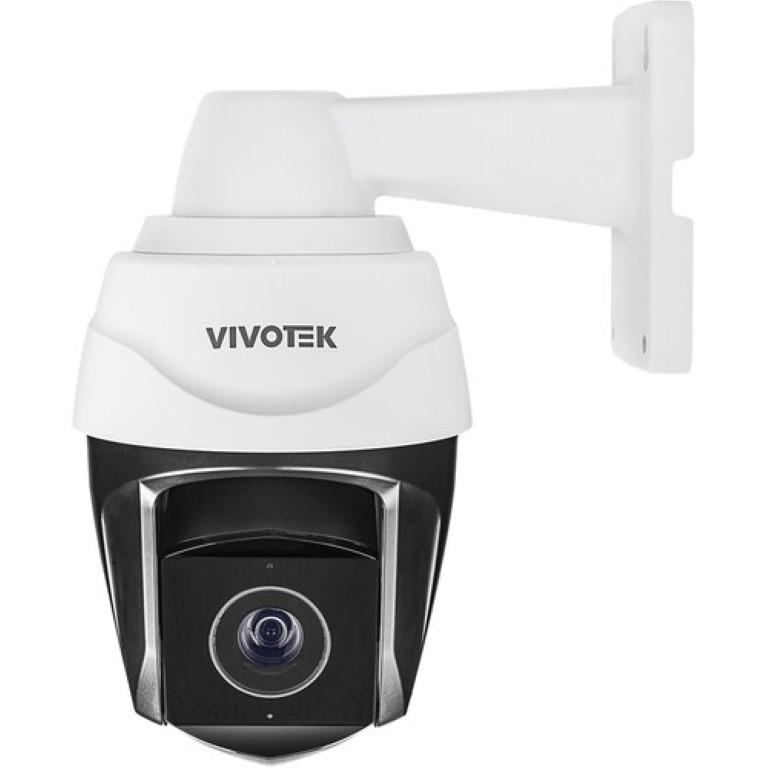

Vivotek 2MP Outdoor Network PTZ Dome Camera with Night Vision VIVOTEK SD9368-EHL

Vivotek 2MP Outdoor Network PTZ Dome Camera with Night Vision

Suitable for monitoring outdoor spaces, the SD9368-EHL 2MP PTZ Network Dome Camera from Vivotek uses a 1/2.8" progressive scan CMOS sensor to capture 1080p resolution video at 60 fps. Eight IR LEDs provide up to 820' of night vision. A 4.25-170mm varifocal lens delivers a 65.7 to 1.88° horizontal field of view. The camera features endless panning, a -20 to 90° tilt range, and 40x optical zoom. Two-way audio is possible thanks to an audio input and output. A built-in memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

This PTZ camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for safe outdoor use in areas at risk of vandalism.

Multimedia SoC CPU

• Removable IR cut filter enables day and night functionality
• Supreme Night Visibility (SNV) for low-light conditions
• Smart IR technology
• H.265, H.264, and MJPEG video codecs
• Triple streaming
• Smart Stream III optimizes bandwidth efficiency
• Seamless recording to microSD/SDHC/SDXC cards and NAS
• WDR Pro
• 120 dB dynamic range
• 60 dB S/N ratio
• Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3D-DNR, EIS, scene mode (auto, deblur), BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, privacy masking, scheduled profile settings, and pixel calculator
• Smart Tracking Advanced (embedded license for intrusion detection, loitering detection, line crossing detection, and face detection)
• 100M RJ45 Ethernet
• Audio input and output
• 2 x digital inputs and 1 x digital output
• System power and status LED indicators
• Live viewing for up to ten clients
• Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, VLC 1.1.11 or above, and Stratocast
• 3-year free trial of Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)

PTZ Functions

• Endless panning
• 450°/s preset pan speed
• -20 to 90° tilt range (auto flip)
• 450°/s preset tilt speed
• 40x optical zoom
• 32x digital zoom
• 256 preset locations
• Auto pan mode
• Auto patrol mode
• Mechanical auto flip
• DORI Ranges (Wide to Tele)
• 200 to 7346' detection range
• 80 to 2915' observation range
• 40 to 1469' recognition range
• 20 to 735' identification range

Specifications:

• 1920 x 1080 Resolution at 60 fps
• IR LEDs for Night Vision up to 820'
• 4.25-170mm Varifocal Lens
• Endless Panning, -20 to 90° Tilt Range
• 65.7 to 1.88° Horizontal Field of View
• 40x Optical Zoom
• Two-Way Audio
• Complies with ONVIF Profiles G, S & T
• IP66 & NEMA 4X Rated for Outdoor Use
• IK10-Rated Vandal Resistance
