Yealink MVC S98-C5U-004 Teams Video Conferencing System 1106797

Yealink MVC S98-C5U-004 Teams Video Conferencing System 1106797

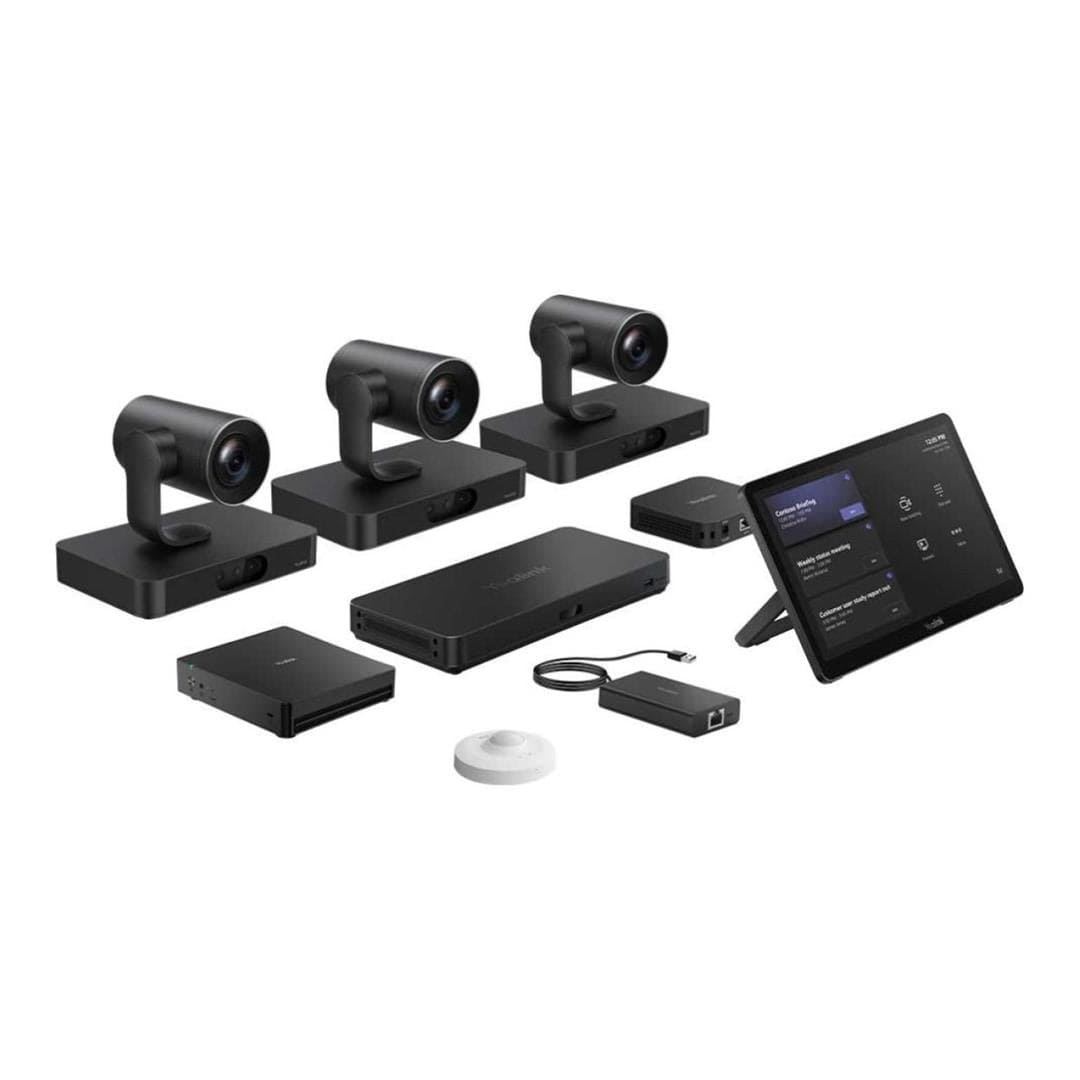

The Yealink MVC S98-C5U is a high-performance Microsoft Teams Rooms solution, purpose-built for extra-large meeting spaces. This comprehensive bundle includes the MCore 4 mini-PC, MTouch Plus large-screen touch panel, three SmartVision 80 four-lens cameras, the AVHub audio-video processor, the RCH40 E2 Gigabit PoE+ switch, the RoomSensor, and the MVC-BYOD-Extender. Powered by the Intel Ultra5 125H processor, the MCore 4 delivers exceptional data processing and AI capabilities for a stable and efficient conferencing experience. The SmartVision 80 cameras feature a four-lens system—including a PTZ camera and three electronic cameras—providing full-room coverage and detailed close-ups. When paired with AVHub, users can customize screen layouts and deploy Yealink’s multi-camera solution, supporting up to nine cameras and enabling multi-speaker tracking with voice-activated switching—ideal for large conference rooms, classrooms, and training facilities. The MVC-BYOD-Extender allows users to connect their PC via USB and instantly access the room’s AV system, transforming the Teams Room into a versatile, multi-functional space. The MTouch Plus offers an intuitive 11.6-inch touch interface for streamlined control, while the RoomSensor detects occupancy and displays real-time environmental data—such as temperature and humidity—on the MTouch interface for intelligent room management. With support for wired and wireless content sharing, simple deployment, and remote management, the MVC S98-C5U delivers a powerful, scalable solution for complex meeting environments.

Features:

• Four-lens Camera Captures Every Detail with Exceptional Clarity
• Powerful Intelligent Tracking delivers immersive Meetings
• Multi-cam solution, Flexible layout
• Outstanding Data Processing Capability
• Real-Time Content Sharing for Enhanced Collaboration
• Simple Deployment and Easy Use
• Remote Device Management
• Teams Certified

MVC S98 - Microsoft Teams Rooms System for ProAV Rooms

Designed for ProAV rooms, MVC S98 is a bundle solution with multiple SmartVision 80 cameras, mini-PC MCore 4 and touch panel MTouch Plus. It features advanced AI features powered by unrivalled four-lens camera system and future-proof computing power, supporting easy deployment & flexible design and seamless ProAV integration.

Multi-Camera Best View

Multiple SmartVision 80 cameras work together as a system to cover large rooms, ensuring everyone is clearly seen from the best possible angle.

Multi-Camera IntelliFocus

The IntelliFocus feature smoothly displays real-time close-ups of the recent speakers, enhancing major focus on active speakers and face-to-face experience.

Multi-Stream IntelliFrame

Each participant has their own video stream and name tag, clearly and equally visible in Teams. Every speaker is presented front and centered.

Presenter Tracking

Presenter Tracking delivers smooth, lossless tracking with up to 20x optical zoom, maintaining crystal-clear image quality even at distances of up to 20 meters.

Future-Ready AI Power

Empowered by Intel Core Ultra 5 and an integrated NPU delivering up to 34 TOPS AI processing, MCores4 is future-ready to unlock advanced AI-driven collaboration experiences. Purpose-built for smarter meetings, it features a built-in EDID module, CEC support, and seamless IP-based integration with touch consoles, ensuring streamlined deployment and control.

With AVLAN and Internet separation by design, MCores4 upholds enterprise-grade security while enabling high-performance, intelligent meeting spaces. Enjoy frictionless deployment, easier configuration, more smooth and premium meeting experience.

Control Freely

The MTouch Plus features a spacious 11.6-inch screen for improved visibility and convenient meeting controls. You can also set up multiple touch panels within the same room, whether on the wall or table for flexible collaboration needs.

Designed for ProAV Rooms

Flexible Audio Solutions

MVC S98 can be seamlessly integrated with Yealink pro audio solutions. Choose from a range of voice pickup devices, such as CM50 ceiling microphone, CS10-D ceiling loudspeaker, and AP08 digital signal processor to meet your specific audio needs.

Technical Specifications:

PRELOAD
Windows 11 IoT Enterprise X64
Windows 11 IoT Enterprise License
Microsoft Teams Rooms App
Yealink RoomConnect

MCORE 4 (Gen-4 Mini-PC)
Processor: Intel Ultra5 125H
Memory: 16GB (2×8GB) DDR5
Storage: 256GB SSD
BIOS Feature: 3× HDMI video output, CEC, EDID, TPM2.0, Kernel DMA
Interfaces: 1× HDMI-Out 2.1 port, 2× HDMI-Out 2.0 port, 1× HDMI-In port, 4× USB 3.0 Type-A port, 1× MTouch port (RJ-45), 1× LAN port for AV network, 1× 10/100/1000 Gigabit Ethernet port, 1× Power supply port, 1× 3.5mm headphone port, 1× Reset port, 1× Security slot
Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
Bluetooth: BT 5.2

MTOUCH PLUS
Physical Features: 11.6-inch narrow bezel IPS display, angle between screen and desktop 30°~70°, adjustable support frame 50°~180°
Function Features: 1920×1080 resolution, support wired and wireless content sharing (with WPP30), external PD power supply support, HDMI/USB-C video input, desktop placement, desktop fixed, wall-mounted deployment

ROOMSENSOR
Detection Angle: 120° (adjustable ±20°)
Operating Temperature: 0~40°C
Operating Humidity: 10~95%

SMARTVISION 80
PTZ Camera: 20× optical zoom, DFOV 69°, HFOV 61.5°, VFOV 36°
Panoramic Camera: DFOV 110°, HFOV 98°, VFOV 82°
Telephoto Camera: DFOV 51°, HFOV 41.6°, VFOV 32°
AI Features: IntelliFrame, Participant Identification, IntelliFocus, Speaker Tracking, Presenter Tracking, Video Fence, PIP, Auto Framing
Interfaces: 1× USB 3.0 Type-B, 1× USB 2.0 Type-A, 2× VCH (RJ45), 1× Network port (RJ45), 1× HDMI out, 1× Line in, 1× Line out, 1× Reset button, 1× DC power port

AVHUB (Audio and Video Processor)
Interfaces: 2× USB-A, 1× USB-B, 1× Codec port, 7× Yealink VCH (RJ-45), 1× RCA in/out, 1× 6.3mm Line in, 1× 6.3mm Line out, 1× Power interface
Function Features: Support dividable and merging meeting rooms, support intelligent multi-speaker tracking

RCH40 E2
Interfaces and LED: 4× 10/100/1000 Mbps port, 1× LED power state indicator, 1× LED PoE budget indicator
Physical Features: Multiple deployment methods, 90W total PoE budget (30W per port), support standard PoE supply (802.3af), power adapter PSE 48V 2A
Dimensions: 100×100×23 mm
Operating Humidity: 5%~90%

BYOD-EXTENDER
Interfaces: 1.5m USB 2.0 Type-A cable, 1× VCH port (RJ45)
Physical Features: Operating temperature 0~40°C, operating humidity 10%~95%, dimensions 89×48×17 mm

What's in the Box:

• MCore 4
• MTouch Plus
• RoomSensor
• SmartVision 80 x 3
• AVHub
• RCH40 E2
• BYOD-Extender
