Veracity LONGSPAN Max Quad Camera 8-port PoE+ PoE 4 Extender VLS-LSM-C4

Veracity LONGSPAN Max Quad Camera 8-port PoE+ PoE 4 Extender VLS-LSM-C4

4-port camera adaptor for long range Ethernet and high power POE

Features:

• Quad LONGSPAN camera device with 802.3bt POE.
• Long range point-to-point Ethernet over Cat5e or Cat6 cable.
• Unrestricted 100Base-TX at up to 820 metres.
• Delivers power for 4 x 13W IP cameras up to 330m from Base device.
• With local power, can deliver POE for 71W IP cameras at 820 metres.

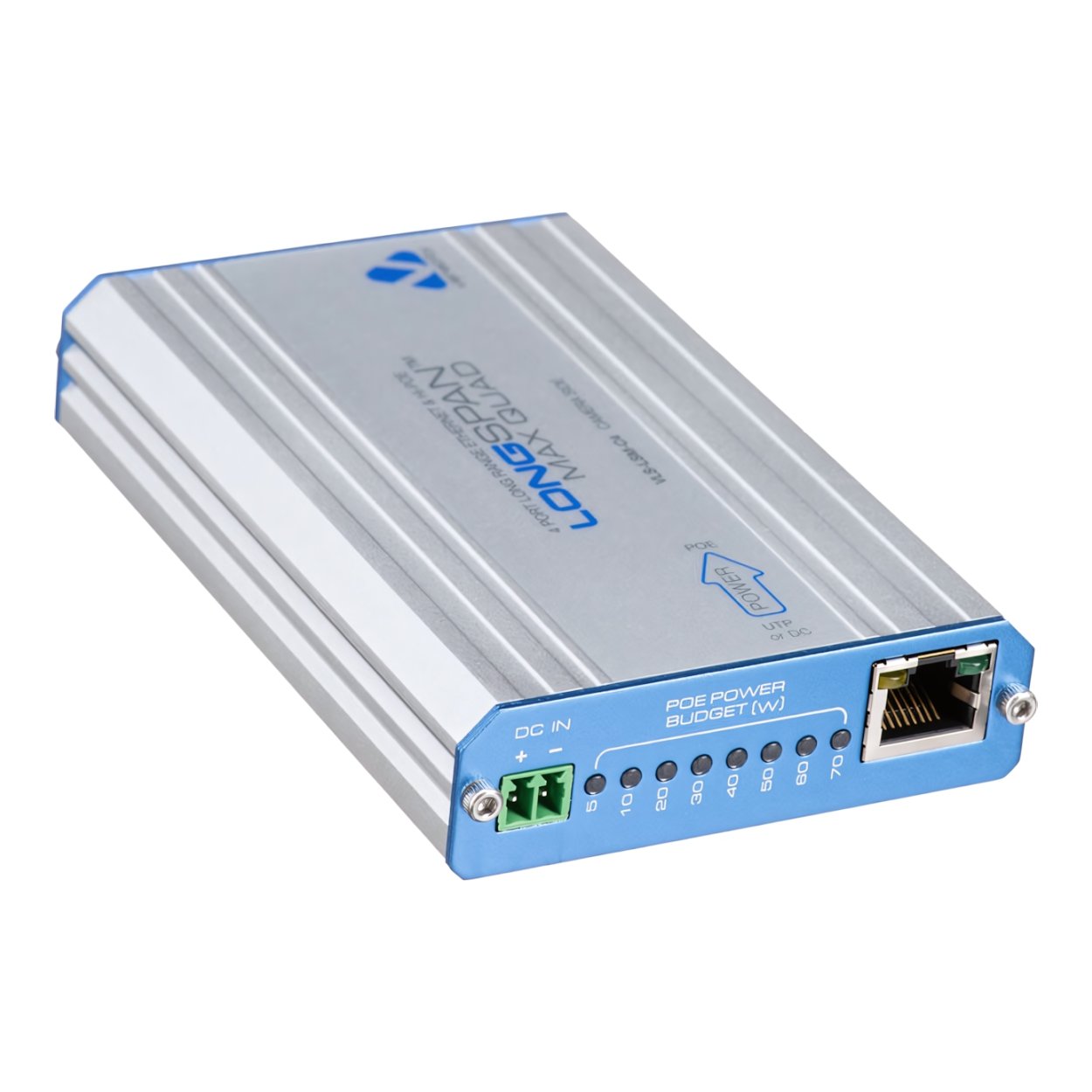

• Smart power and diagnostic display for reliable installation.

Max Quad provides an extremely cost-effective way of connecting up to four high-power IP cameras (or other devices) over a single long-distance 100Base-TX Ethernet connection. This LONGSPAN device with integrated four-port POE switch may also be locally powered for maximum 802.3bt POE output per port.

Long range Ethernet and high power POE to four-port POE output

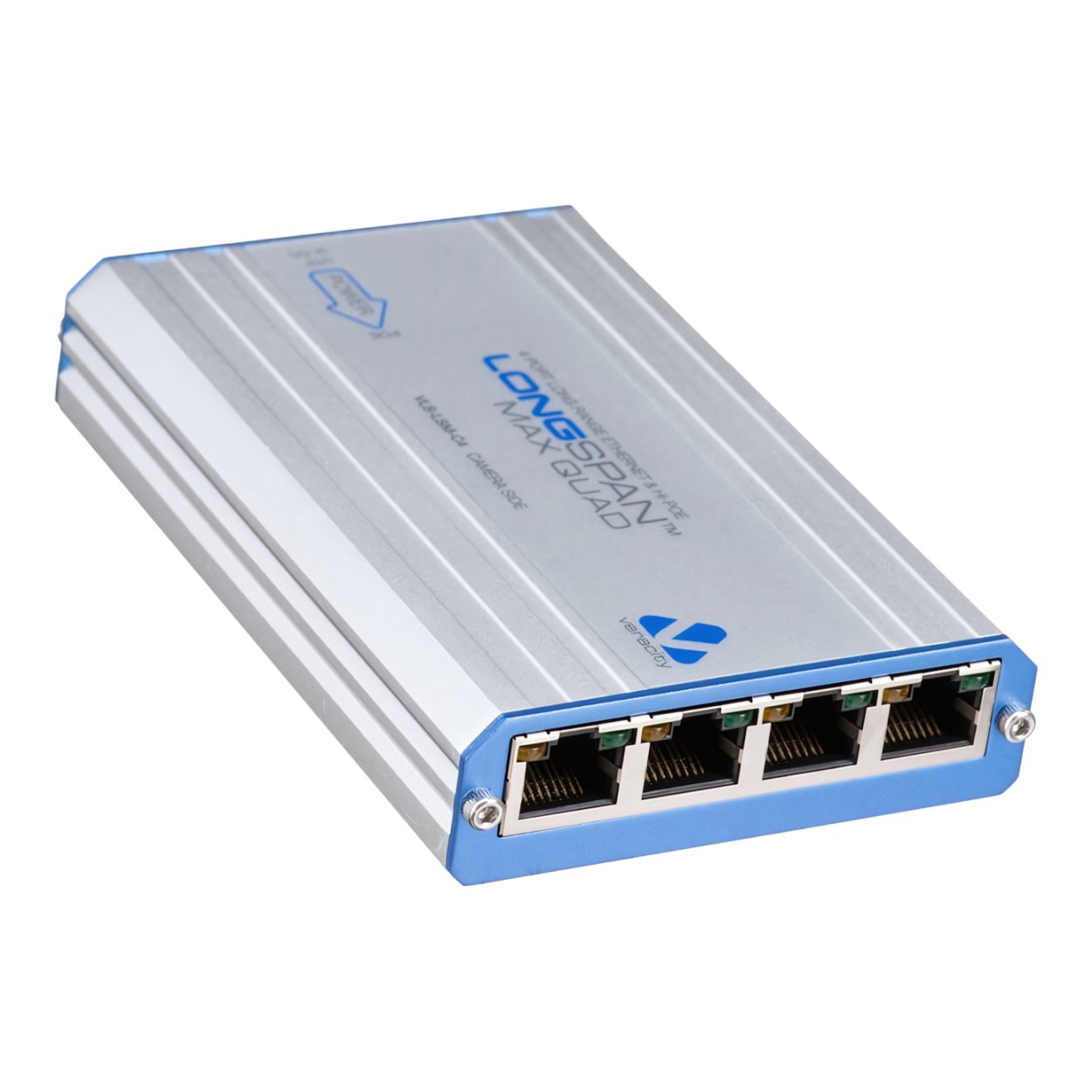

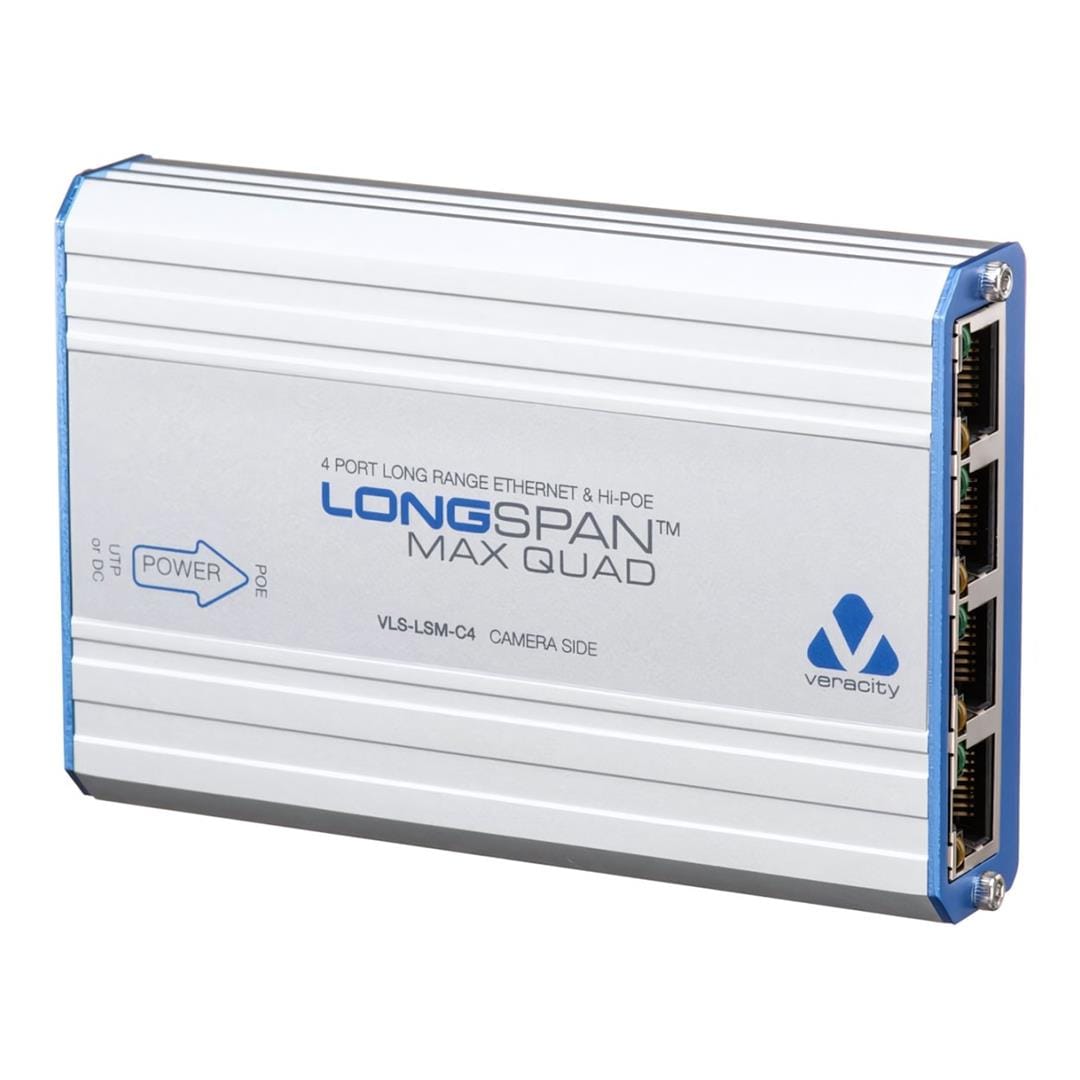

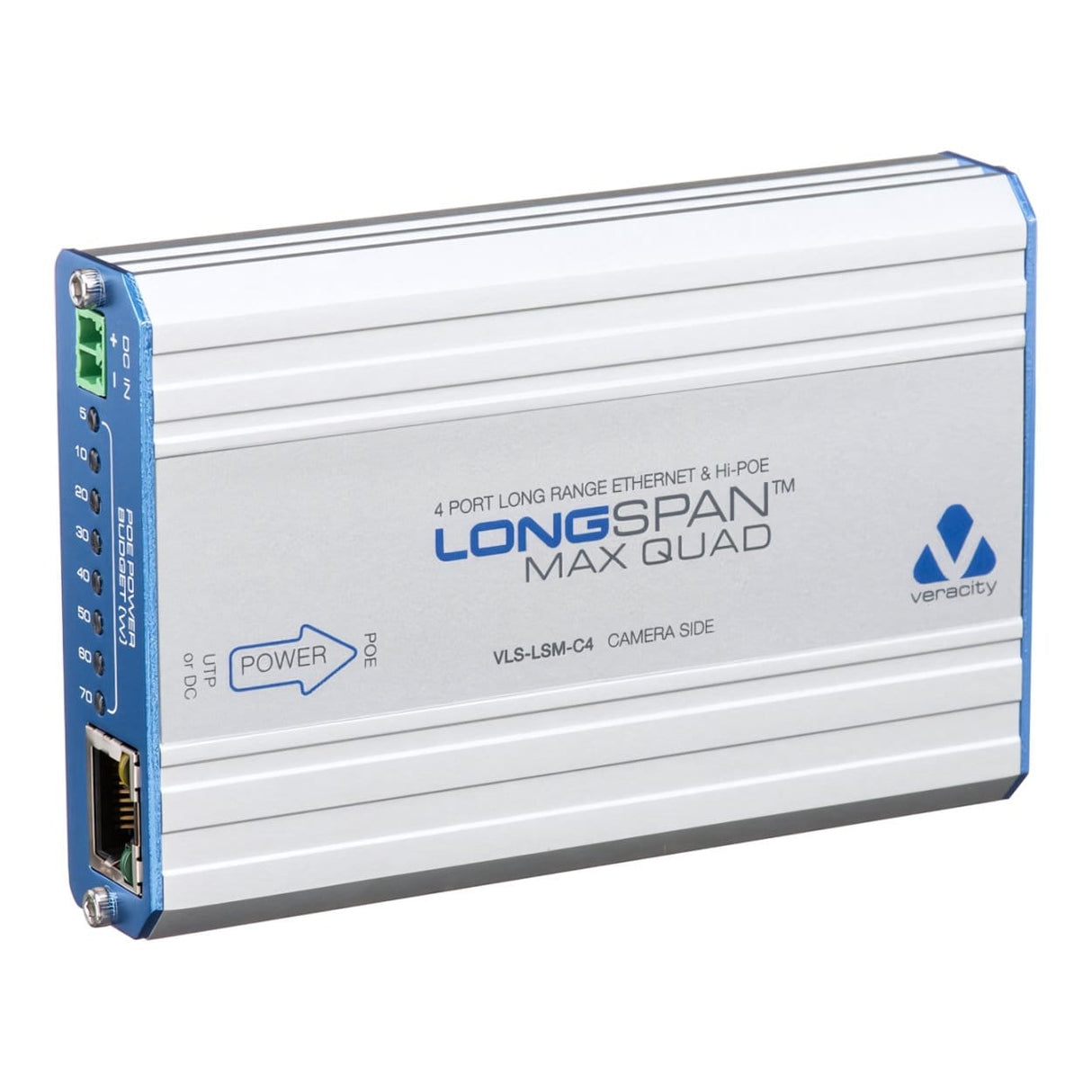

LONGSPAN Max Quad

The Max Base device can output the maximum POE permitted by the 802.3bt standard, allowing the Max Quad to power 4 x 13W cameras at up to 330 metres. POE power levels drop quickly with distance. For higher power delivery to the IP cameras, a local PSU may be used to power the LONGSPAN Max Camera Quad device.

Technical Specifications:

General
Compatibility: Veracity LONGSPAN
Range: 2690' / 820 m

Inputs/Outputs
4 x 10/100 Mb/s Gigabit Ethernet (RJ45) PoE+
4 x 10/100 Mb/s Gigabit Ethernet (RJ45) PoE (Type 4)
1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) Uplink
1 x 10/100/1000 Mb/s Gigabit SFP Uplink

Wireless
Mobile App Compatible: No

Power
Power Source: Proprietary Interface (Not Included)
DC Input Power: 57 VDC at 5 to 6 A
Power Consumption: 20 W (Maximum), 8 W (Idle)
PoE Support: 30 to 70 W per Port, 400 W Power Budget

Physical
Dimensions: 6.1 x 4.3 x 1.6" / 154 x 110 x 40 mm
Weight: 16.1 oz / 456 g

Packaging Info
Package Weight: 0.455 lb
Box Dimensions (LxWxH): 5.5 x 3.95 x 1.4"

Compatibility
Veracity LONGSPAN
