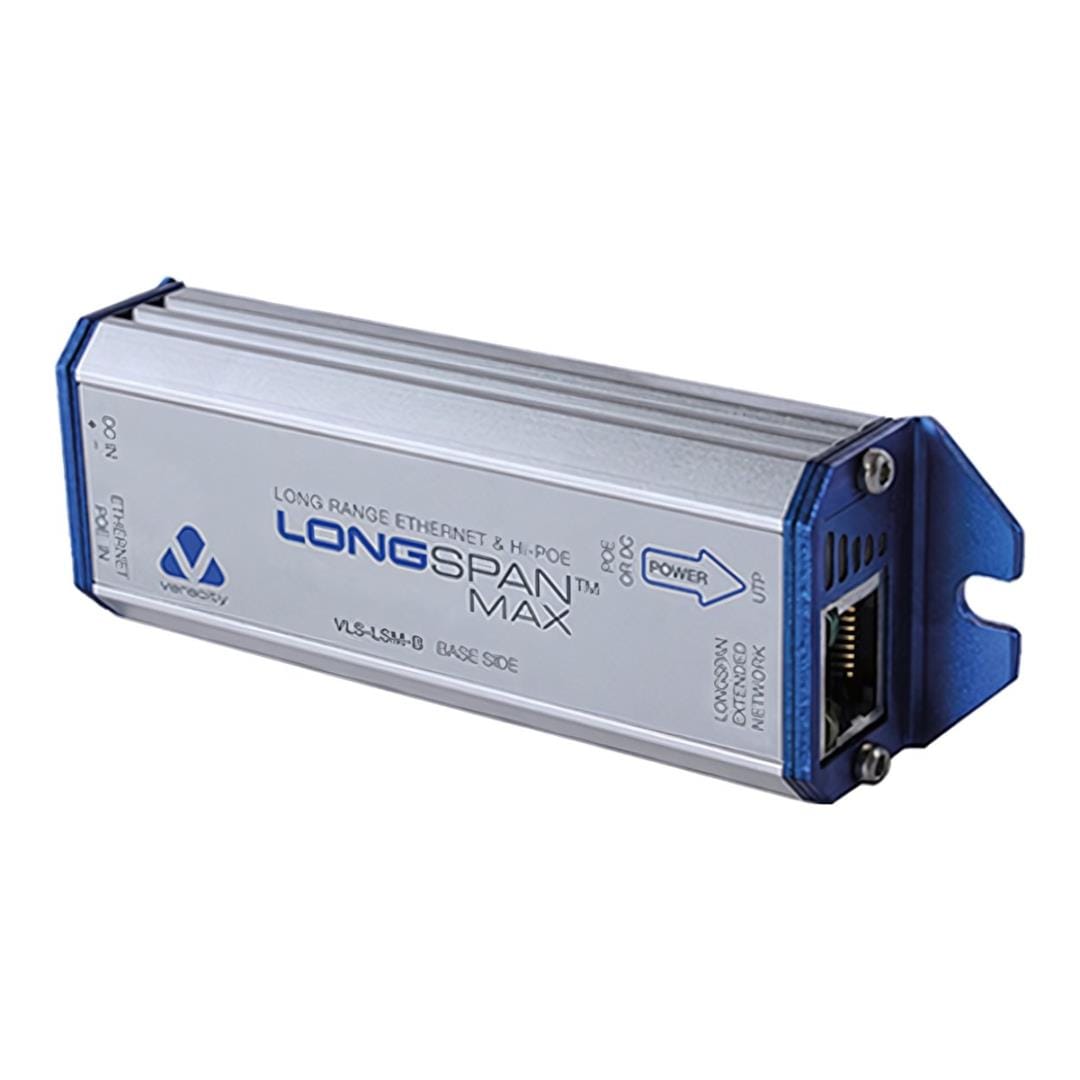

Veracity LONGSPAN Max Hi-PoE Extender Base Unit VLS-LSM-B

Veracity LONGSPAN Max Hi-PoE Extender Base Unit VLS-LSM-B

Base adaptor for long range Ethernet and high power POE

Features:

• LONGSPAN enhanced with 90W POE capability (802.3bt).
• Long range point-to-point Ethernet over Cat5e or Cat6 cable.
• Unrestricted 100Base-TX at up to 820 metres.
• Can deliver 60W at 200 metres, 40W at 350 metres.
• Ruggedised, high performance over a wide temperature range.
• Smart power and diagnostic display for reliable installation.

LONGSPAN Max Base delivers unrestricted 100Base-TX with 802.3bt maximum power POE at distances far beyond the normal Ethernet limits for problem-free external PTZ IP camera installation. Each device offers SAFEVIEW diagnostics to indicate data link status and available POE power levels.

Long range Ethernet and high power POE over CAT 5e / CAT 6

LONGSPAN Max (Base)

POE power levels drop quickly with distance. For maximum power delivery to the IP Camera, a local PSU may be used to power the LONGSPAN Max Camera device, in which case LONGSPAN Max Base could be replaced with a LONGSPAN Lite. The Base unit can output the maximum POE permitted by the 802.3bt standard.

Technical Specifications:

General
Range: 2690' / 820 m
Supported Cable Types: Cat 6, Cat 5e

Inputs/Outputs
Ethernet: 100M RJ45 Full-Duplex with Auto-Negotiation
PoE Support: 802.3bt PoE Input

Power
Power Source: PoE, AC Input
DC Input Power: 57 VDC
Power Consumption: 1 W

Physical
Mounting: Multiple PSU
Color: Blue / Silver
Dimensions: 4.7 x 1.4 x 0.9" / 120 x 36 x 23 mm (Including Brackets)
Weight: 3.5 oz / 100 g
Certifications: CE, EN, FCC, RoHS

Packaging Info
Package Weight: 0.27 lb
Box Dimensions (LxWxH): 5.5 x 2.4 x 1.1"

Compatibility
Veracity LONGSPAN
