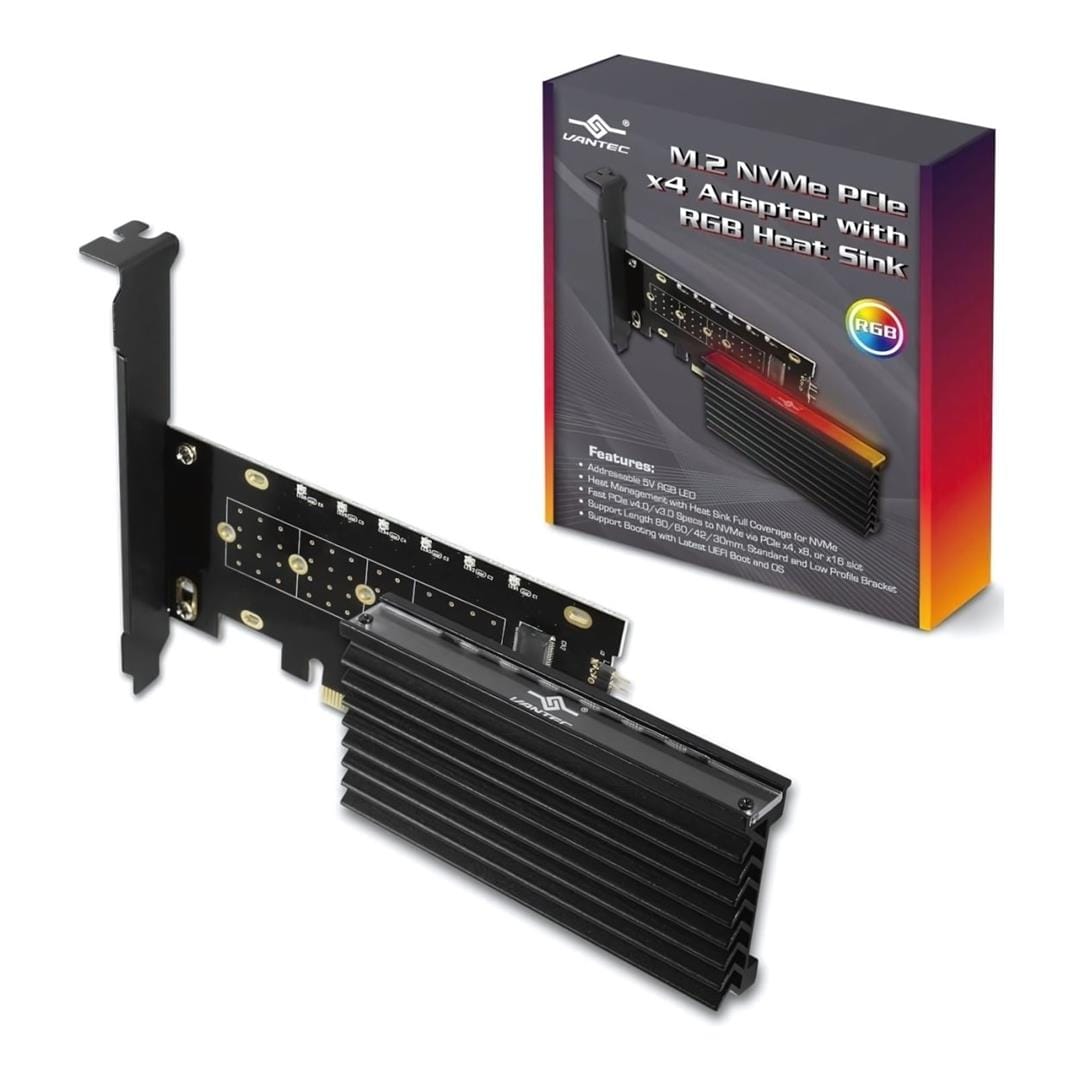

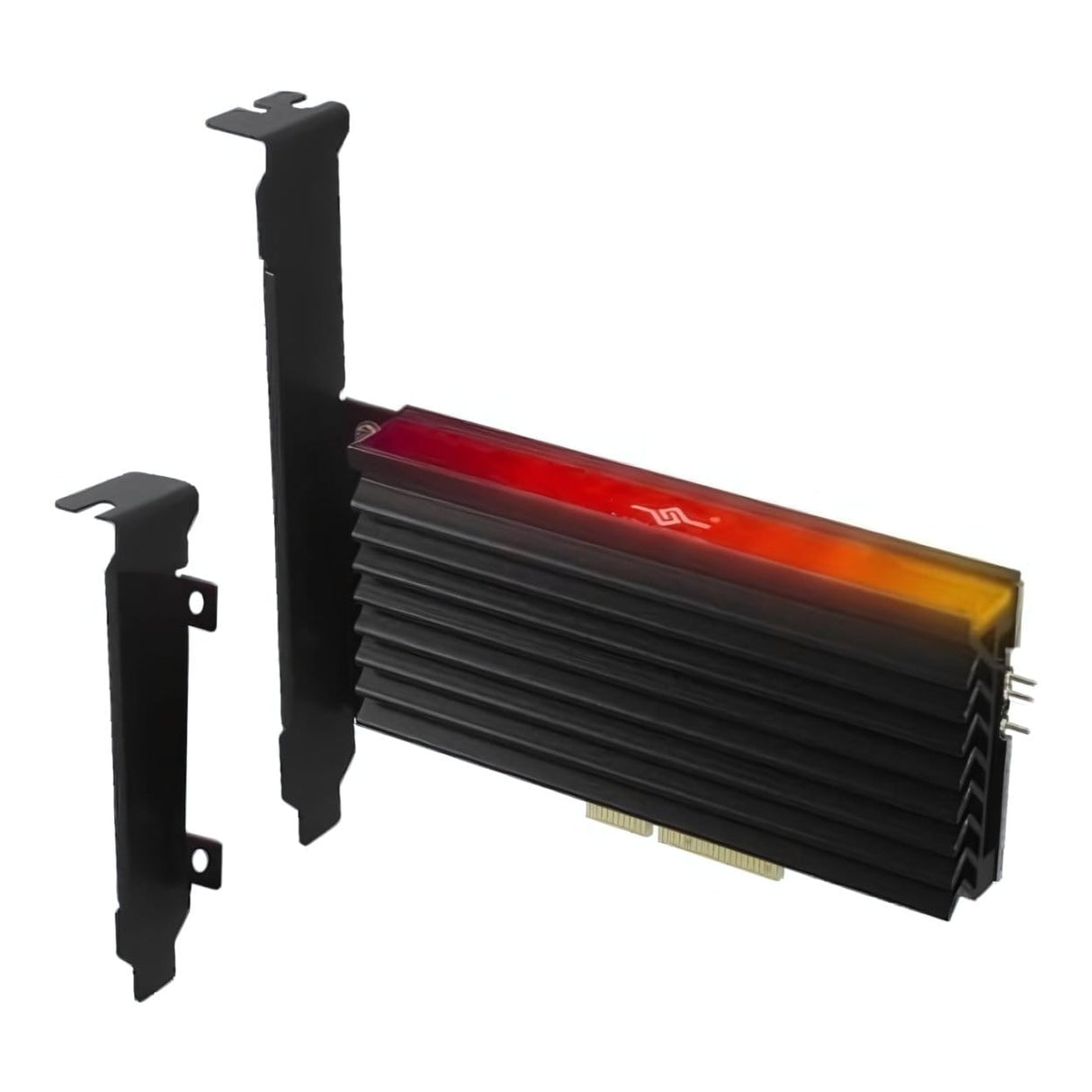

Vantec M.2 NVMe SSD PCIe X4 Adapter Card with ARGB Heat Sink UGT-M2PC12-RGB

Vantec M.2 NVMe SSD PCIe X4 Adapter Card with ARGB Heat Sink

This M.2 NVMe PCIe x4 Adapter with ARGB Heat Sink is a unique product, it is designed for a very fast M.2 NVMe module and comes with ARGB (Addressable RGB) LED to enhance the lighting in your system chassis. It is enhanced with two-level of heat management to protect the NVMe module; a Big Aluminum Heat Sink Block to covering the whole NVMe module for dissipating heat. The NVMe mounting support M.2 module of different length from 30, 42, 60, or 80 mm. This adapter offers the fastest boot or data access. The PCIe interface using 4 lanes of data path straight to the NVMe resulting in super-fast boot/data transfer and the coolest ARGB lighting inside the chassis.

Features

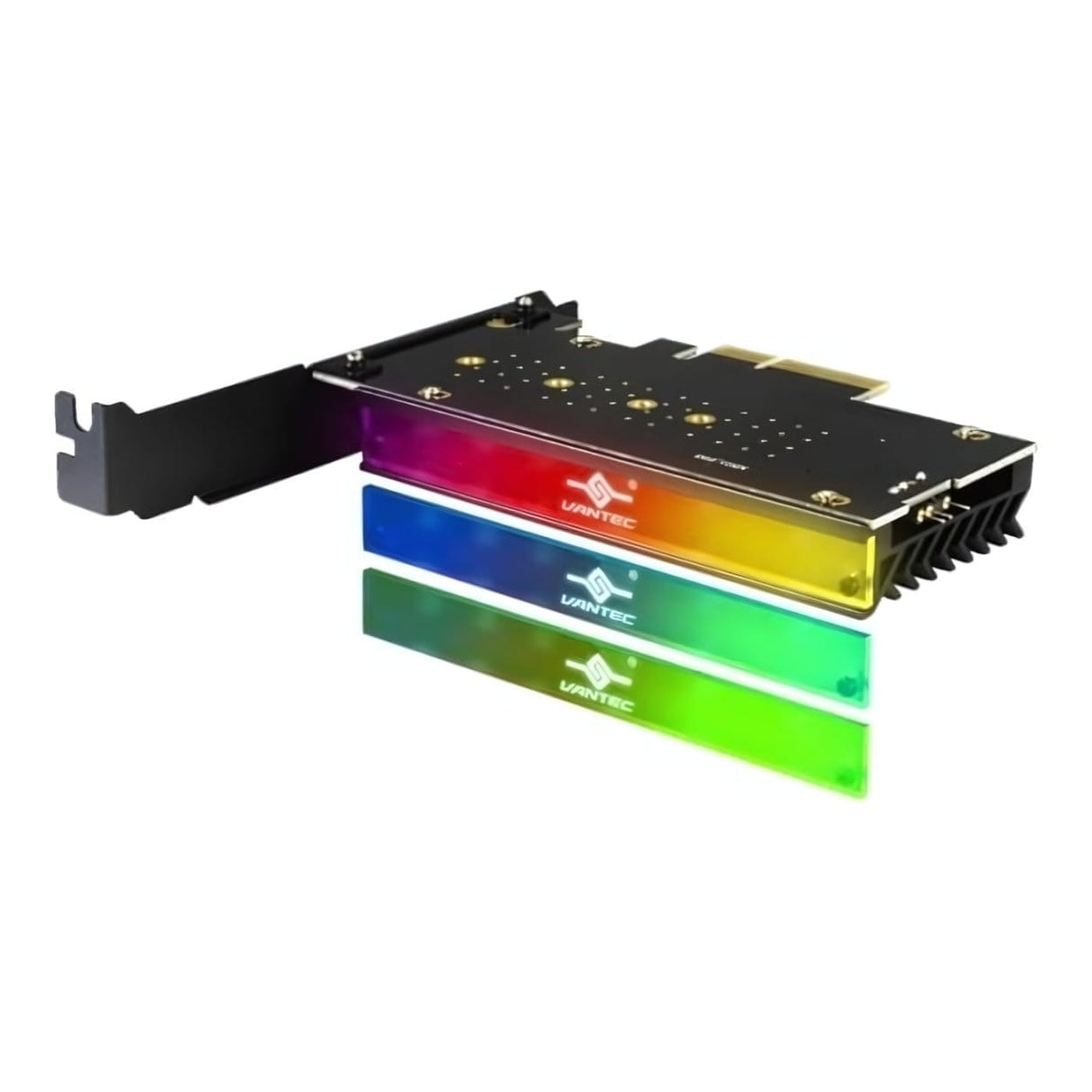

• Addressable 5V RGB LED
• Heat Sink Full Coverage to Protect NVMe
• Support M.2 NVMe Module like  80, 60, 42, 30mm
• Fast PCI Express v4.0/v3.0 Specs to NVMe via PCIe x4, x8, or x16 slot
• Support Booting with Latest UEFI System Boards and OS
• Standard and Low Profile Bracket included
• Compatible with any OS including Windows, Linux
• Support M.2 interface with NVMe M key (PCIe 3.0x4) or NVMe B+M Key (PCIe3.0x2)
• Uses minimum power from PCIe 3.3V for better power management

Specifications:

M.2 Type Support:    NVMe using M Key (PCIe 3.0x4) or NVMe using B+M Key (PCIe 3.0x2)

M.2 size:    Length support 22x80, 22x60, 22x42, 22x30mm

Internal Interface:    1 x M.2 (NGFF), M Key

PCIe Interface:    PCIe v4.0/v3.0/v2.0 x4 (4 lanes)

Power:    PCIe Bus powered (3.3V)/RGB Powered

Dimensions:    4.7 x 2.5 x 0.6 inches / 120 x 62 x 16 mm

Weight:    5.1 oz. / 146 g

RGB Cable length:    19.7 inches /500 mm

RGB Header:    5V ARGB, 3-pin header

RGB Specs Support:    Asus Aura, MSI Mystic Light, Gigabyte Fusion

OS support:    Windows® 7/8/8.1/10, or Linux

System Requirements:

Available system board PCIe x4 or x8 or x16 slot

Optional: 5V RGB header (3-pin)

OS support like Windows® 7/8/8.1/10, or Linux

For booting, requires UEFI System Board and latest OS

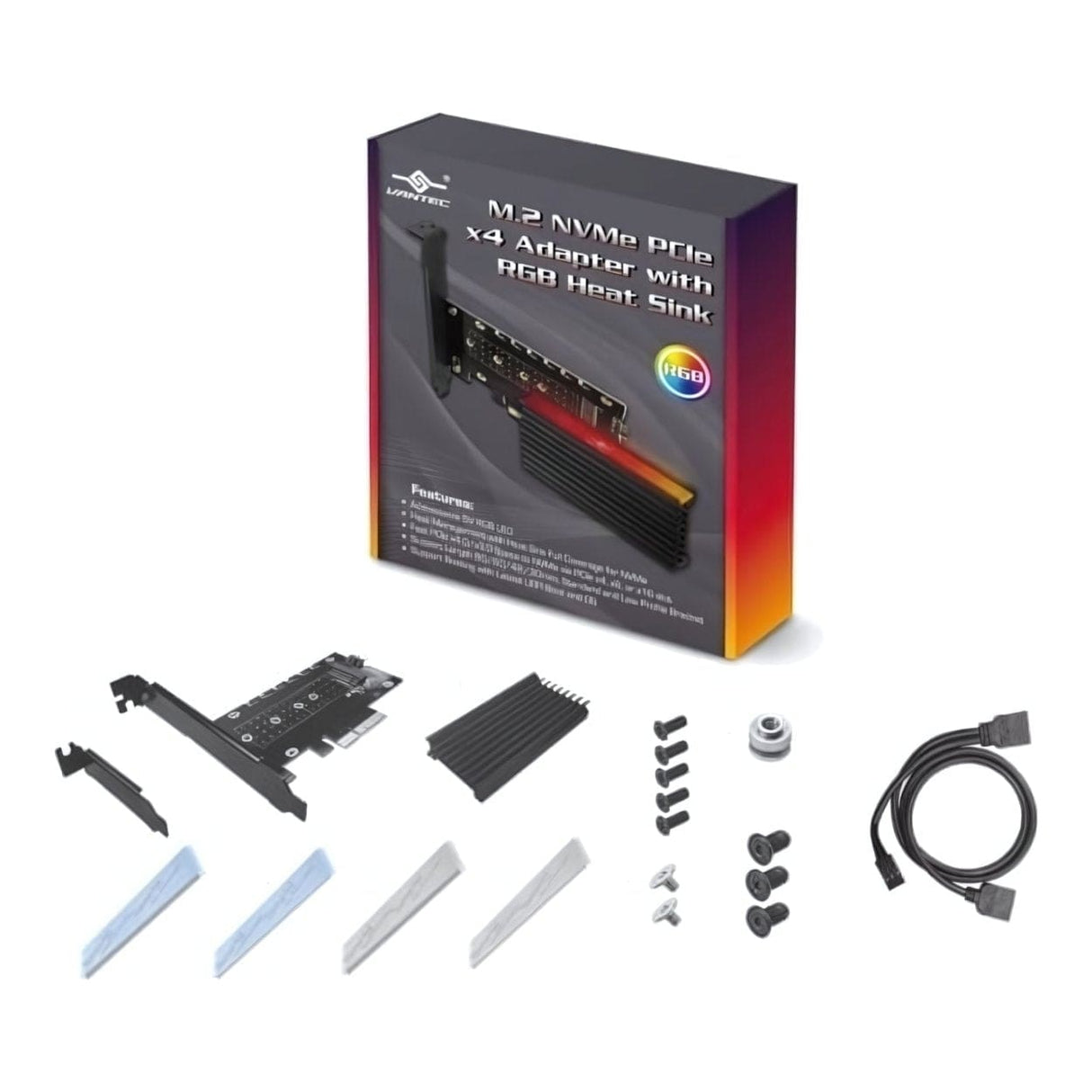

What's in the Box:

M.2 NVMe PCIe x4 Adapter with RGB Heat Sink, Quick Installation Guide, Mounting Kit, Thermal pads, and Screws set, Low Profile Bracket, ARGB cable
