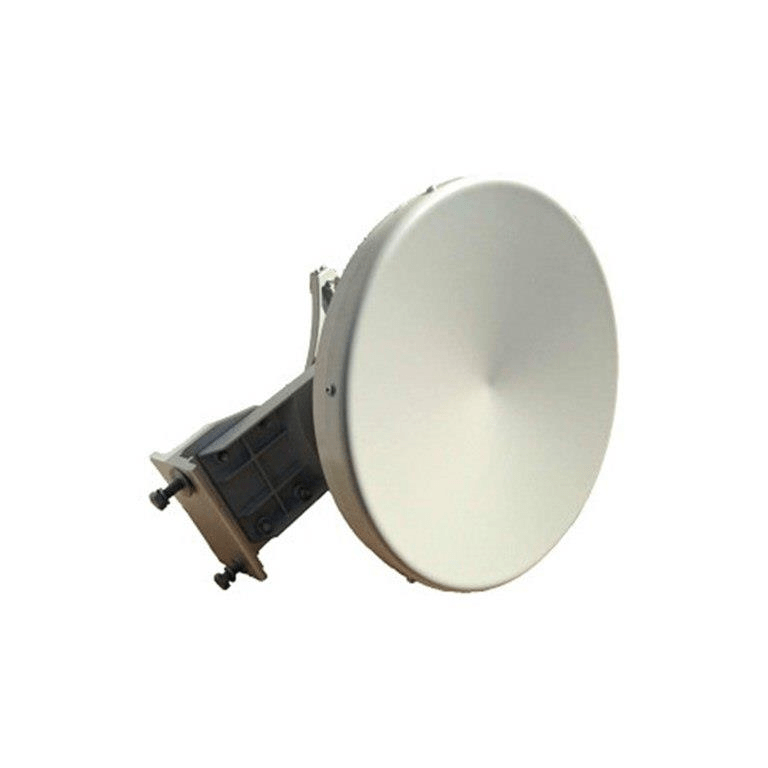

SIAE ANTSP09 17GHz 40dBi 90cm Outdoor Parabolic Dish SI-1740-DISH

SIAE ANTSP09 17GHz 40dBi 90cm Outdoor Parabolic Dish SI-1740-DISH

0.8m Ultra High Performance Low Profile Antenna, single-polarized, 17.7÷19.7 GHz

Technical Specification

General

Antenna Type: Ultra High Performance Low Profile Antenna, Single-Polarized Antenna
Diameter, nominal: 0.8m
Polarization: Single
Reflector Construction: One-piece reflector
Antenna Color: White
Radome Color: White
Radome Material Description: ABS

Electrical

Mechanical

Wind Velocity Operational: 110km/h
Wind Velocity Survival Rating: 240km/h
Fine Azimuth Adjustment: Coarse 360° Fine ±15°
Fine Elevation Adjustment: Fine ±10°
Mounting Pipe Diameter: Φ114 mm
Ice-load: 25.4 mm
Operational Temperature: -45÷+75 ℃
Side Struts, Included: 1
Net Weight: 38.4 kg

Wind Forces at Wind Velocity Survival Rating

Axial Force(FA): 3926 N
Side Force(FS): 1230 N
Twisting Moment(MT): 1548 N·m
Zcg without Ice: 168 mm
Zcg with 1”(25.4mm) Ice: 247 mm
Weight with 1”(25.4mm) Ice: 68.2 kg
