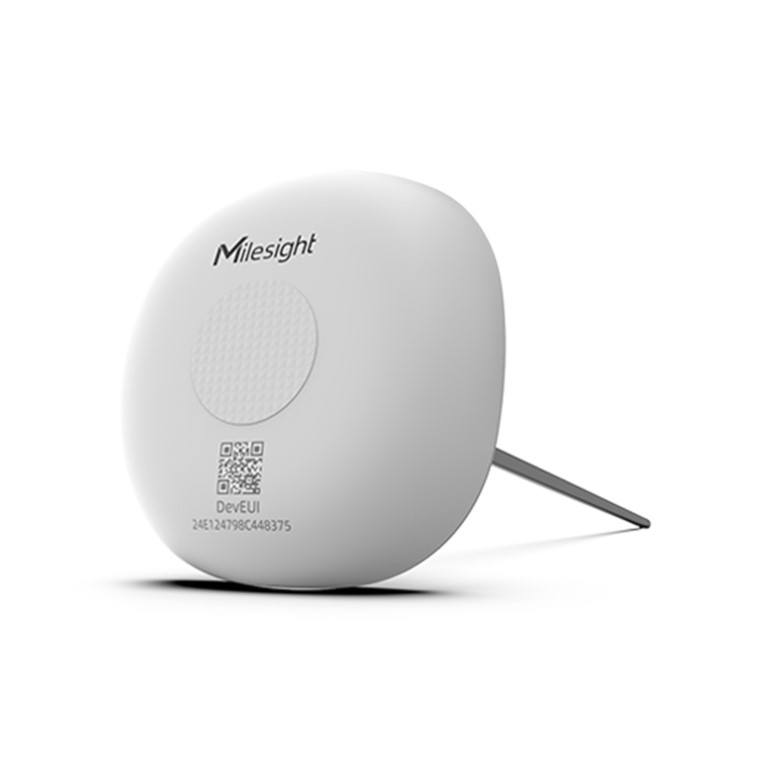

Milesight TS101 Insertion Temperature Sensor TS101-868M(1-pack)

Milesight TS101 Insertion Temperature Sensor TS101-868M(1-pack)

Milesight TS101 is an all-in-one insertion temperature sensor with an integrated transmitter. It is equipped with an advanced measuring unit that provides a wide temperature measuring range.

With IP67 and IK10 ratings, the exquisite TS101 sensor is suitable for monitoring the inner temperature of Tobacco or grain stacks. It can also be applied in other warehousing scenarios which require inner temperature detection with high efficiency.

TS101 is compatible with Milesight LoRaWAN gateway and mainstream LoRaWAN network servers. With this low power consumption technology, TS101 can work for up to 10 years with a 4,000mAh battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

Features

• Precise and Accurate: ±0.5 °C
• Safe and Hygienic: Food-Grade Enclosure and Probe
• Exceptionally Durable: IP67 Waterproof Rating and Phosphine Corrosion Resistant
• Built to Last: IK10 Rated Transceiver for Impact Resistance
• Data Integrity and Easy Management
• Long-Lasting and Low-Maintenance: 10 Years Battery Life

Technical Specification

Wireless Transmission
Protocol: LoRaWAN
Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power: 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity: -137 dBm @300bps
Mode: OTAA/ABP Class A

Measurement
Detecting Range: -30°C - +70°C
Accuracy: ± 0.5°C
Resolution: 0.1°C

Operation
Power On & Off: NFC, Power Button (Internal)
Configuration: NFC Configuration via Mobile App
Advanced Feature: Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
