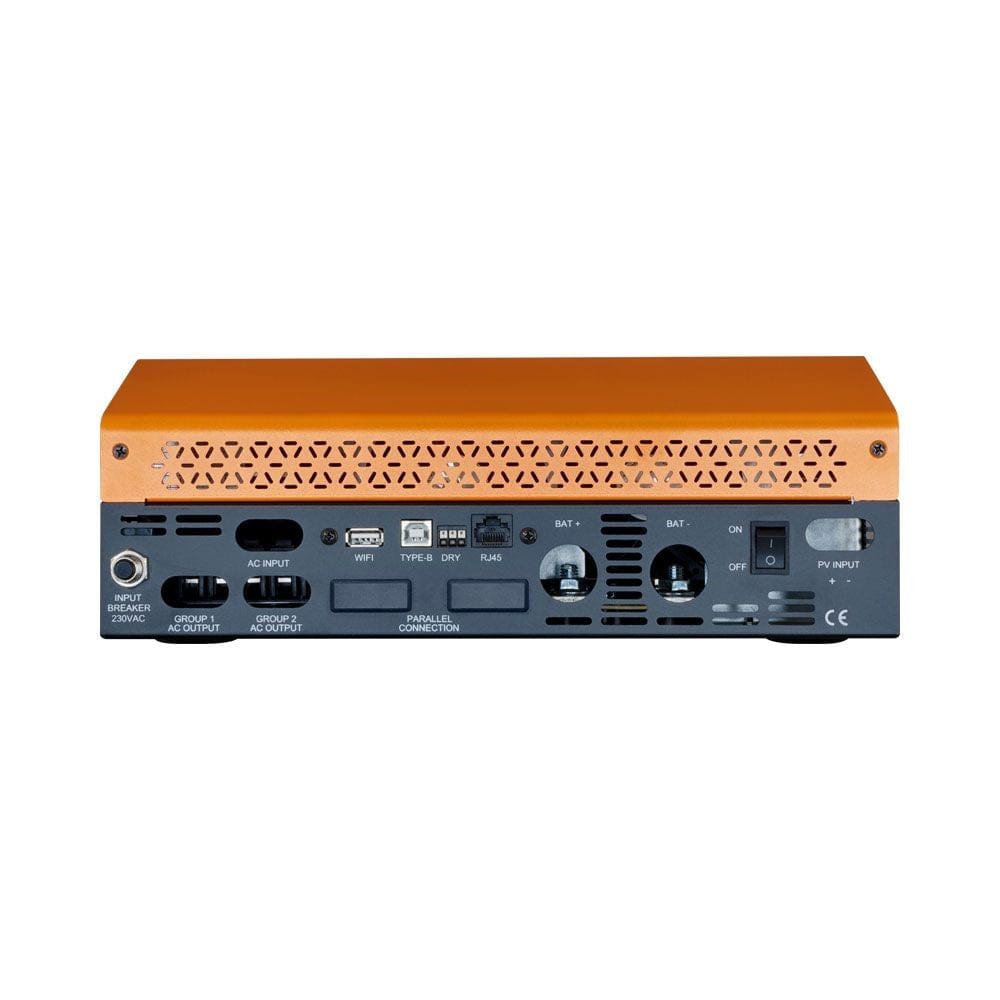

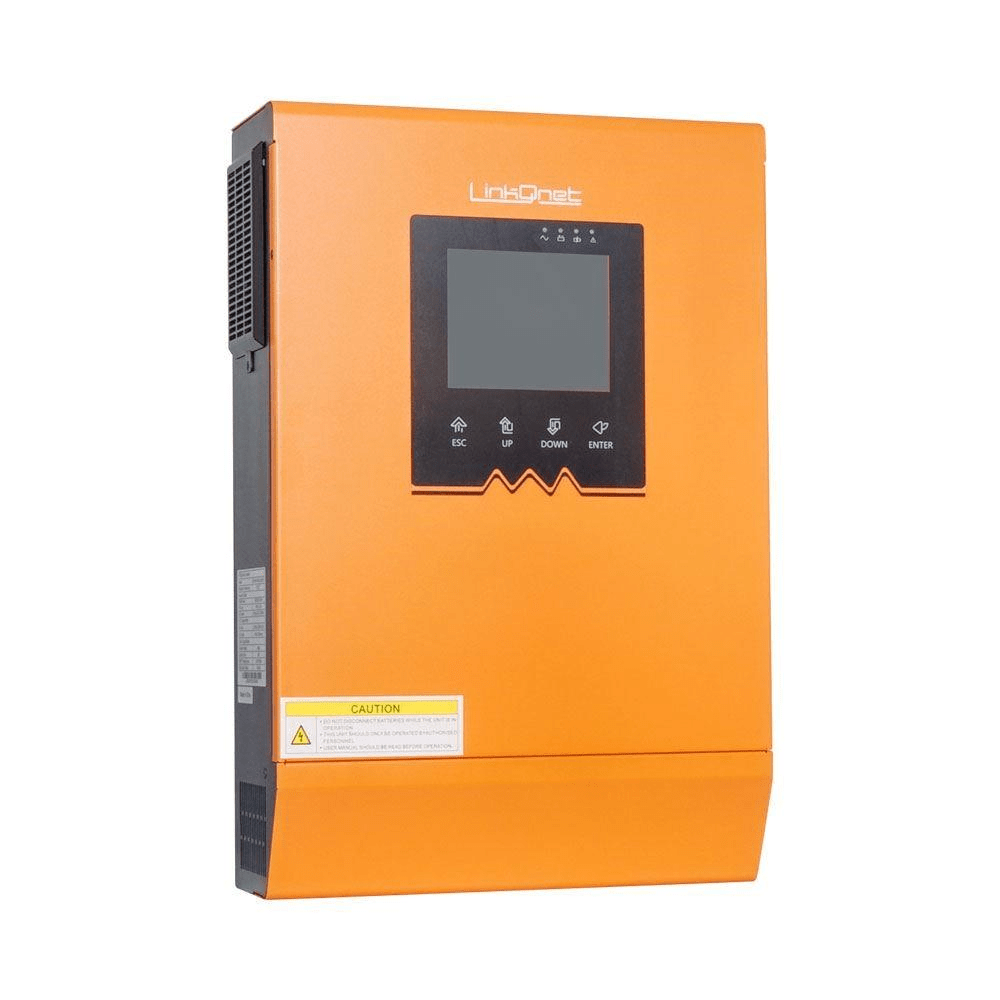

LinkQnet 3024TG2 Pro 3KVA 24V Pure SineWave Off-Grid Hybrid Inverter UPS-INV-3KVA-PRO-TG

LinkQnet 3024TG2 Pro 3KVA 24V Pure SineWave Off-Grid Hybrid Inverter UPS-INV-3KVA-PRO-TG

Specifications:

Peak Power: 3000VA

RMS Power: 3000W

AC Voltage: 230V

DC Voltage: 24V

Transfer Time: 10ms

AC Charge: 120A

SCC Type: MPPT

Ideal SCC Voltage: 120V – 430V DC

Max. PV OC Voltage: 500V DC

Max. SCC Power: 4000W

SCC Charge: 120A

Max. Combined Charge: 120A

Parallel Capable: No

Communication: USB, RS485, CAN, Dry Contact

Direct Bluetooth: No

Wi-Fi Option: Yes

3G Option: No

SNMP Option: No

Battery Types: Flooded, AGM, GEL, Li-Ion, Super Capacitor, Custom

BMS Support: Yes

Warranty: Two Years – Conditional

Product Dimensions: (H × W × D)310 × 467 × 116mm

Package Dimensions: (H × W × D)570 × 375 × 200mm

Net Weight: 9.25kg

Gross Weight: 10.85kg
