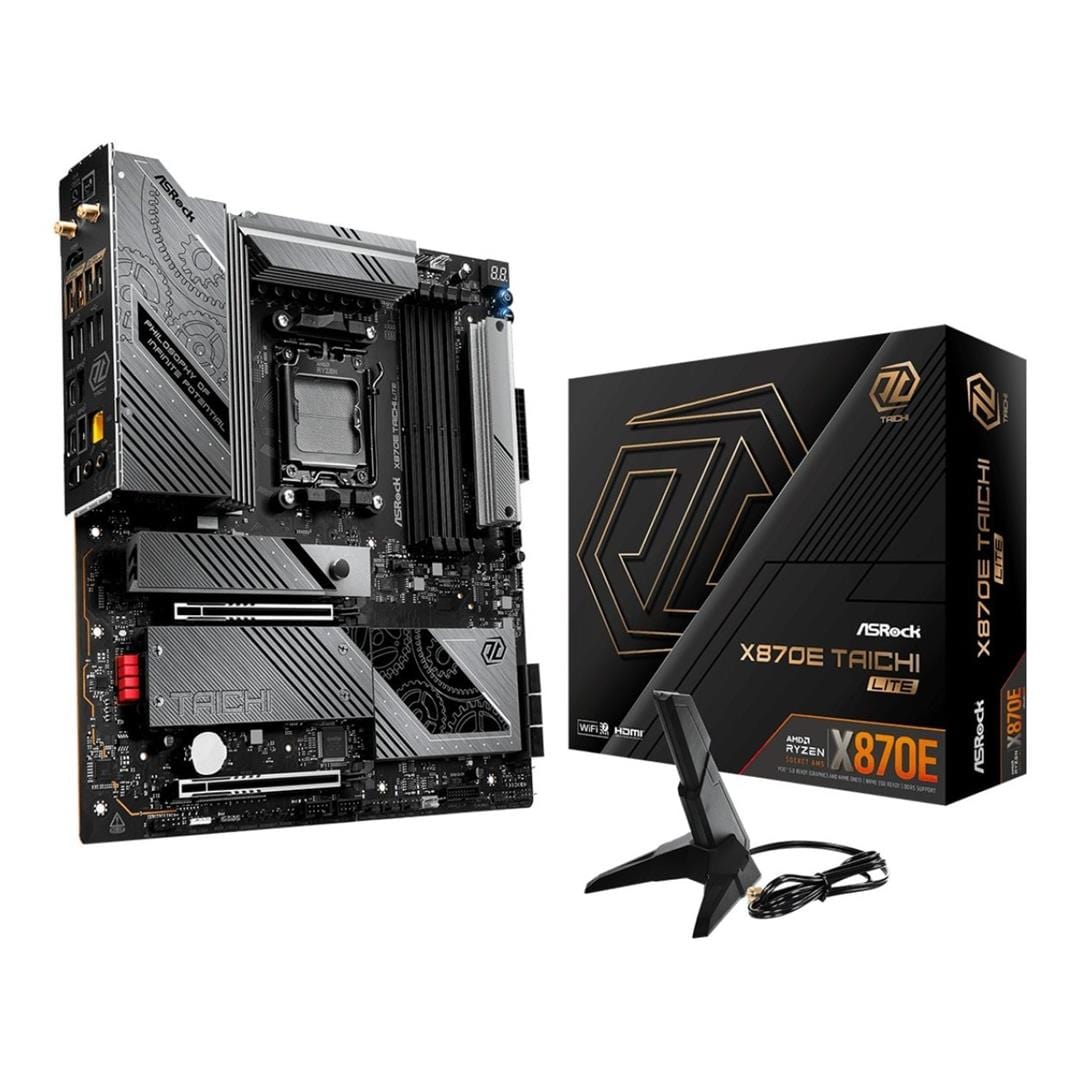

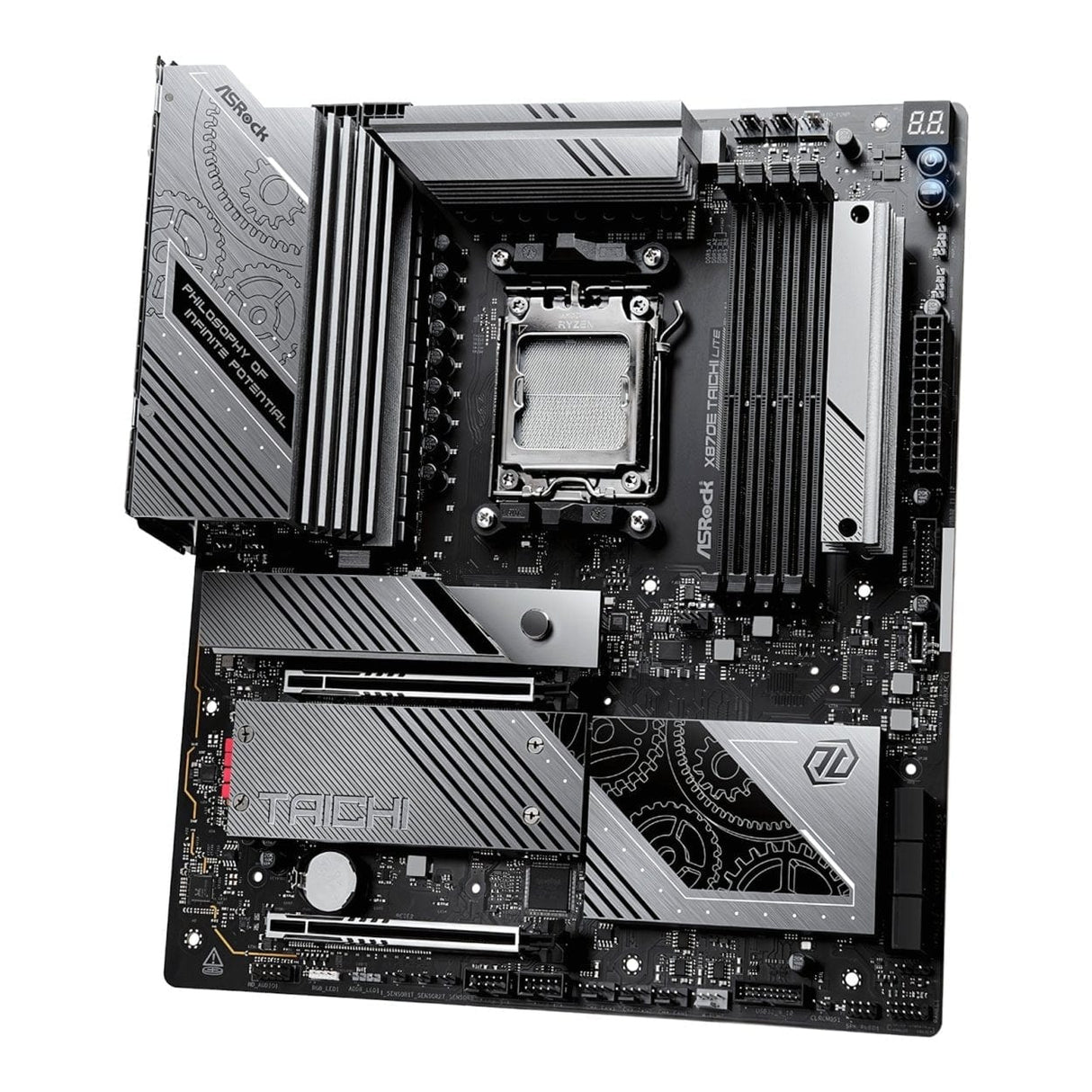

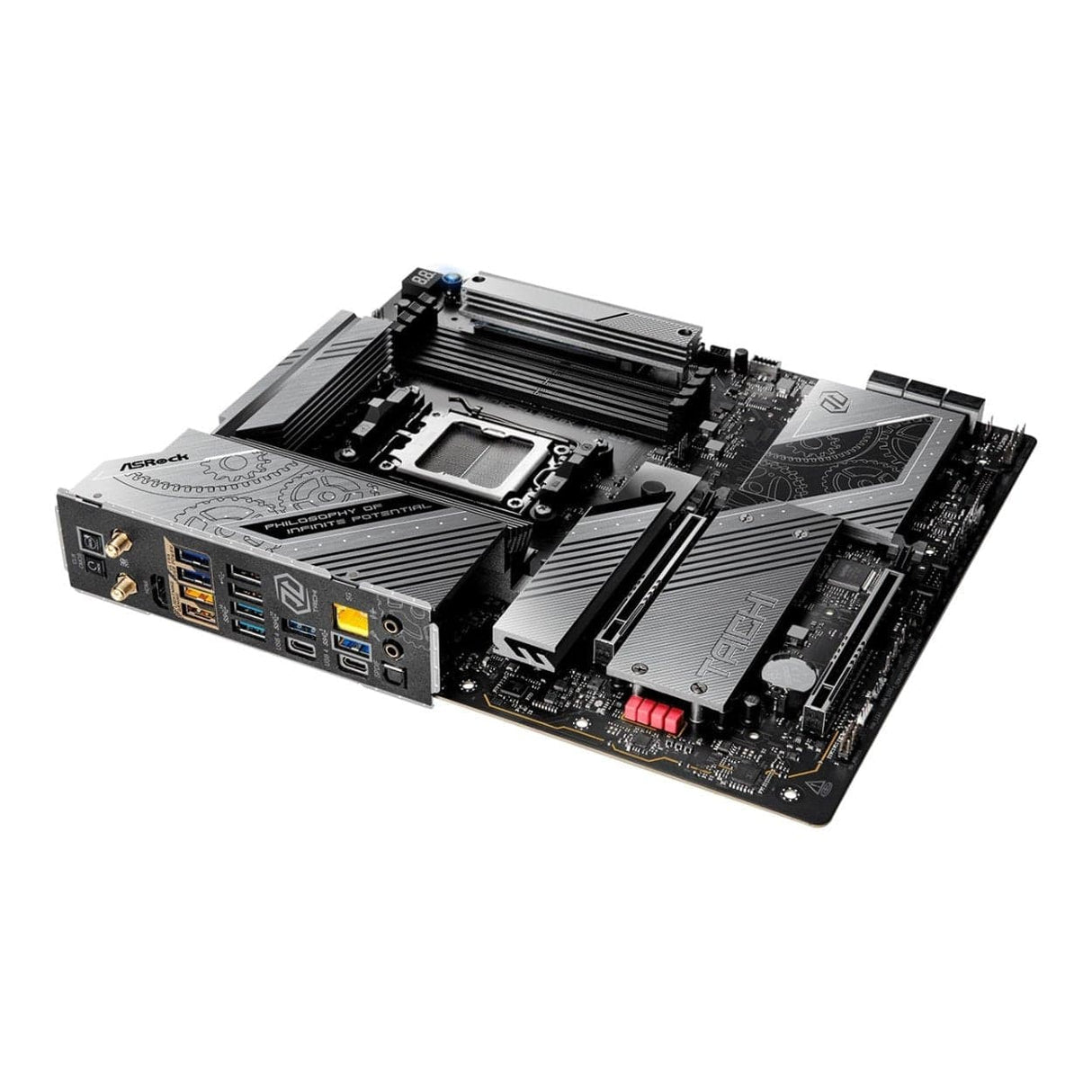

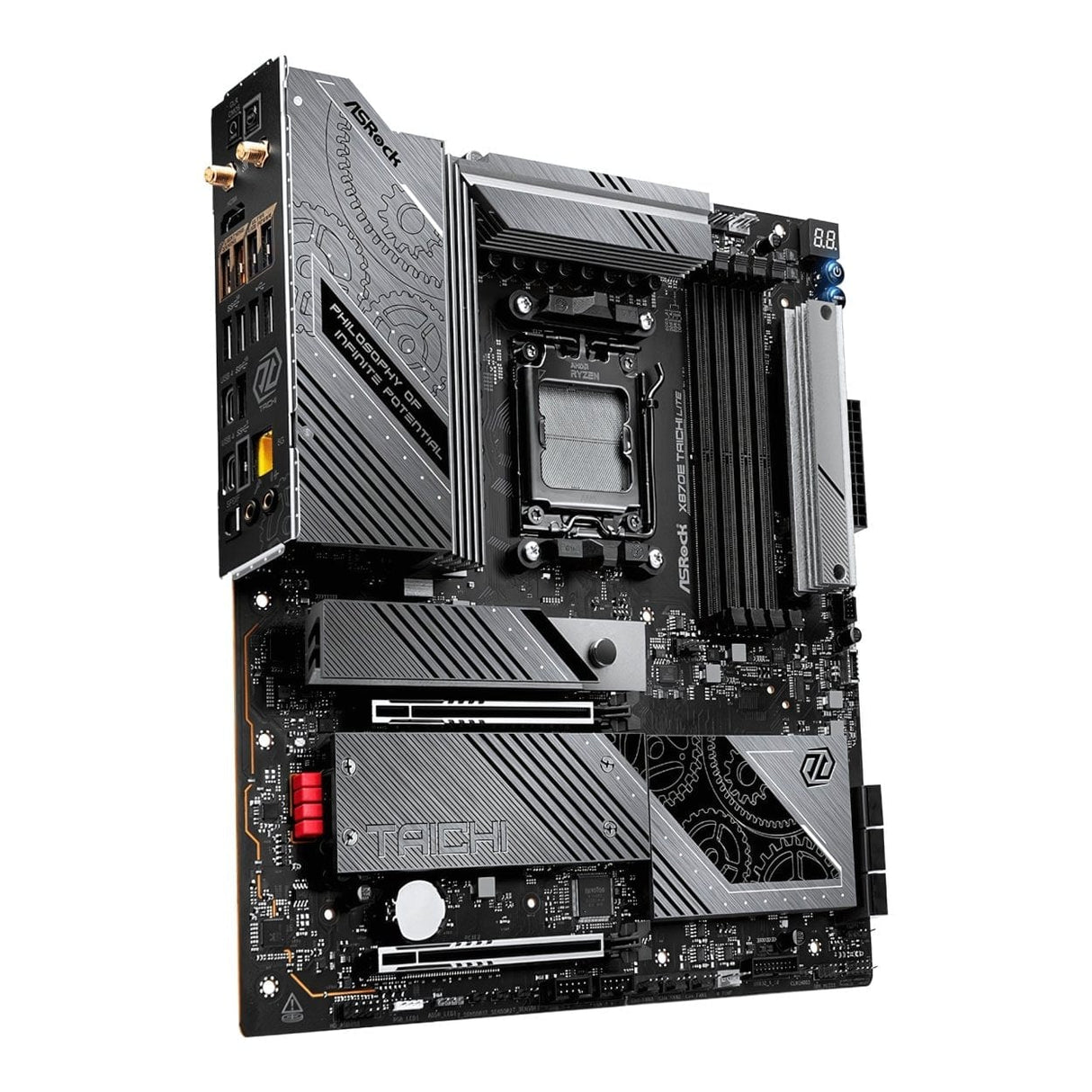

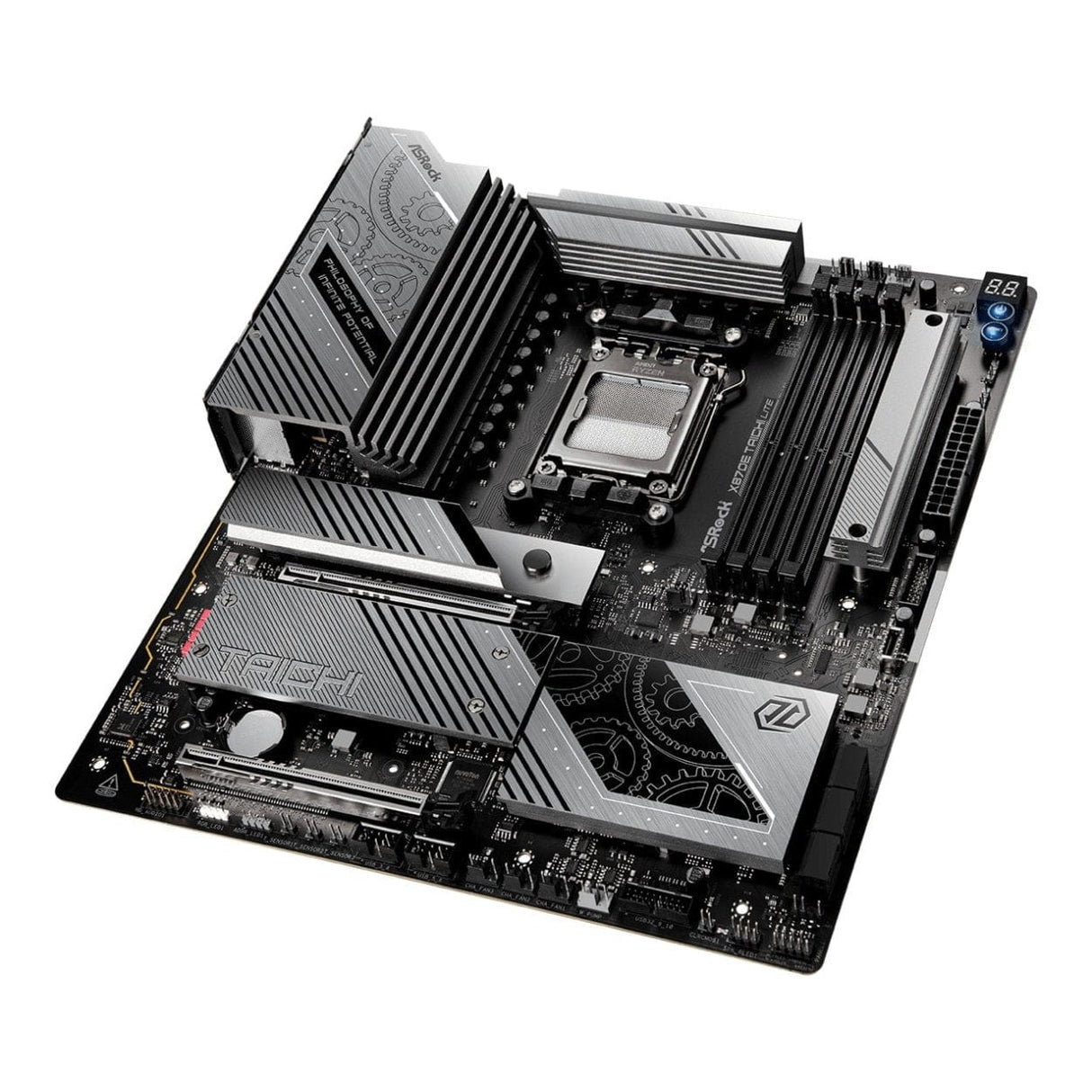

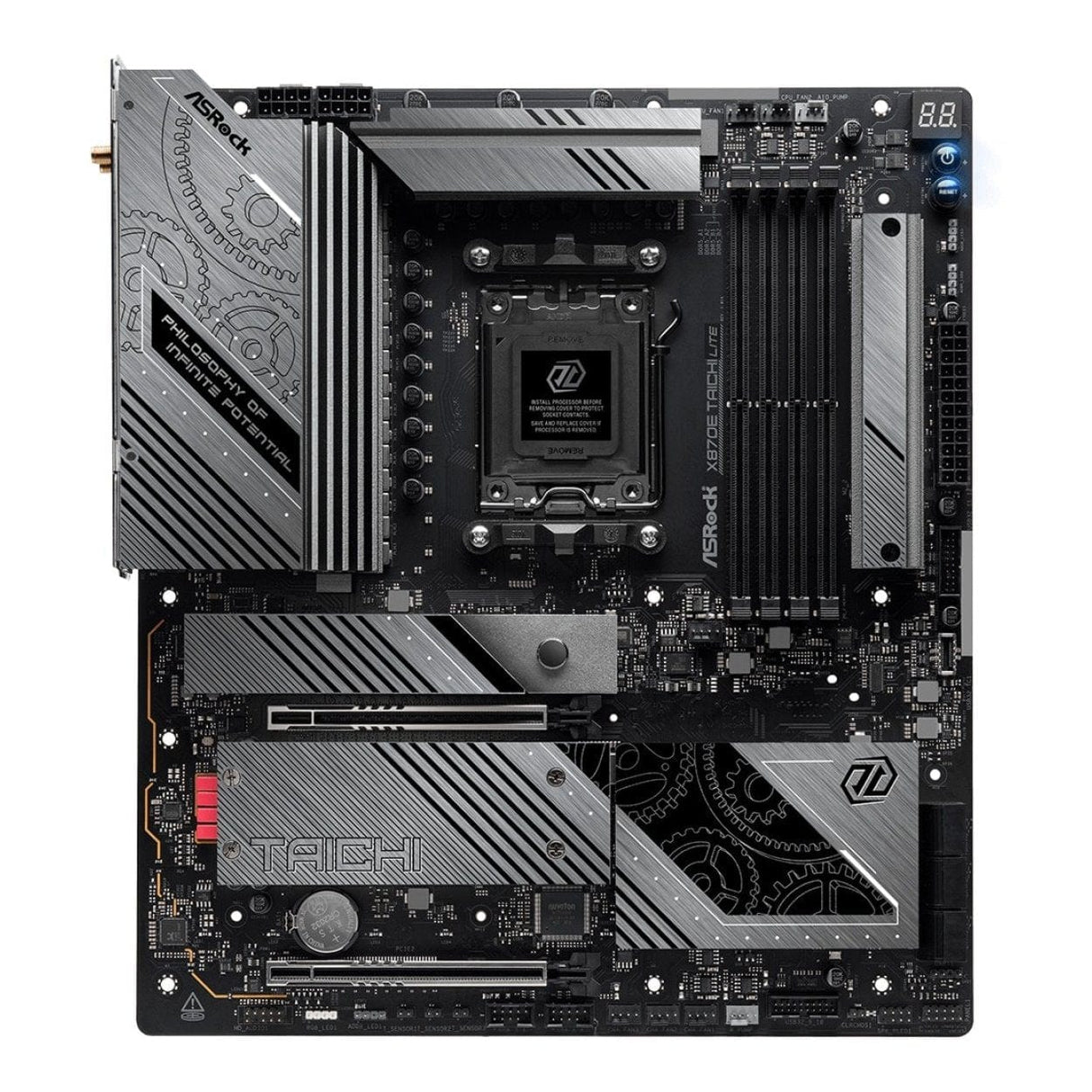

ASRock X870E Taichi Lite WiFi 7 AMD Socket AM5 EATX Motherboard

ASRock X870E Taichi Lite WiFi 7 AMD Socket AM5 EATX Motherboard

The Taichi Lite series is simply brilliant, offering top-tier performance in a streamlined, functionality-focused design.

Features:

• Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
• 24+2+1 Phase Power Design, 110A SPS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8200+ (OC)
• 2 PCIe 5.0 x16
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 3 Hyper M.2 (PCIe Gen4x4)
• 6 SATA3

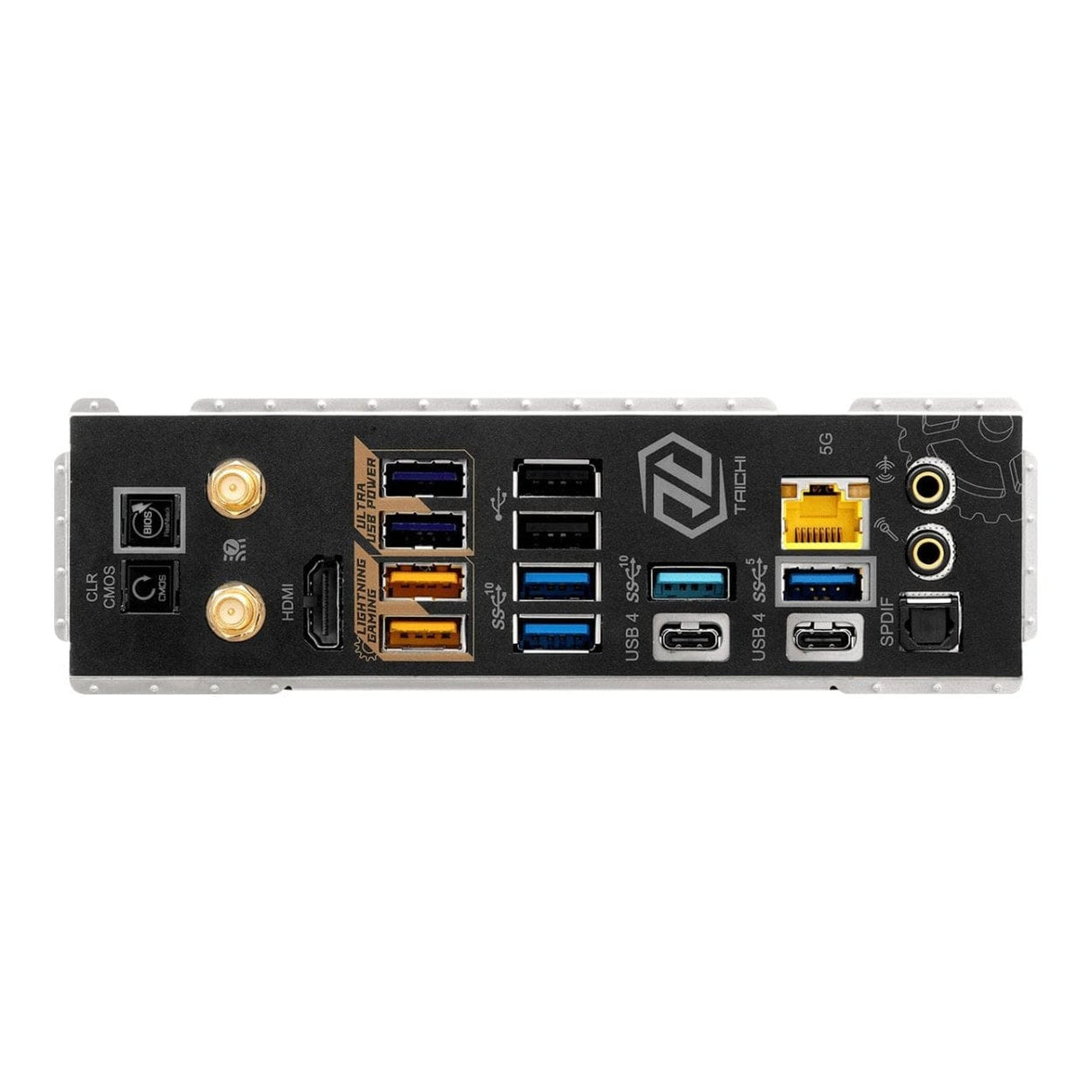

• 2 USB4 Type-C (Rear),
• 1 USB 3.2 Gen2x2 Type-C (Front),
• 5 USB 3.2 Gen2 Type-A (Rear),
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 5G LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

PHILOSOPHY OF INFINITE POTENTIAL

Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.

Optimized VRM Design

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

DIY Friendly Design

Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

Enlarged M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Technical Specifications:

Processor manufacturer: AMD

Processor socket: Socket AM5

Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1

Parallel processing technology support: CrossFire

Ethernet interface type: 2.5 Gigabit Ethernet

LAN controller: Dragon RTL8125BG

Top Wi-Fi standard: Wi-Fi 7 (802.11be)
