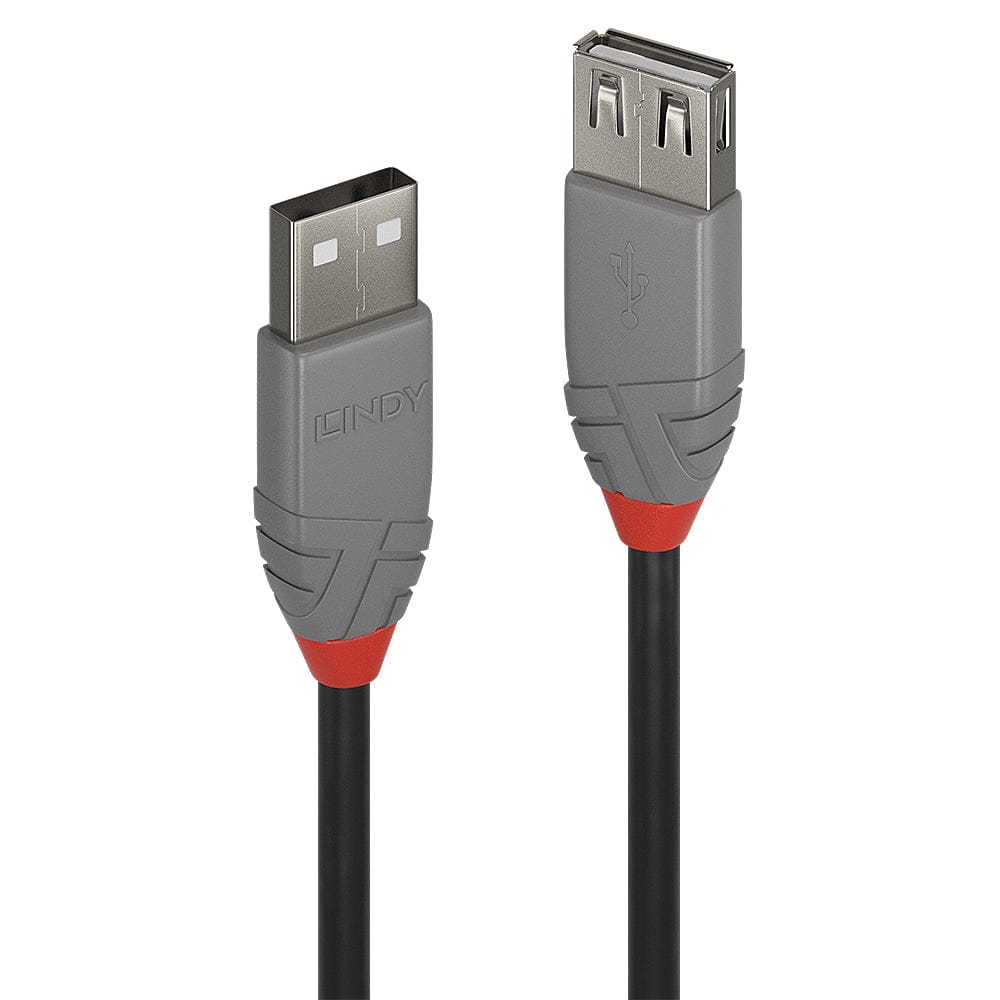

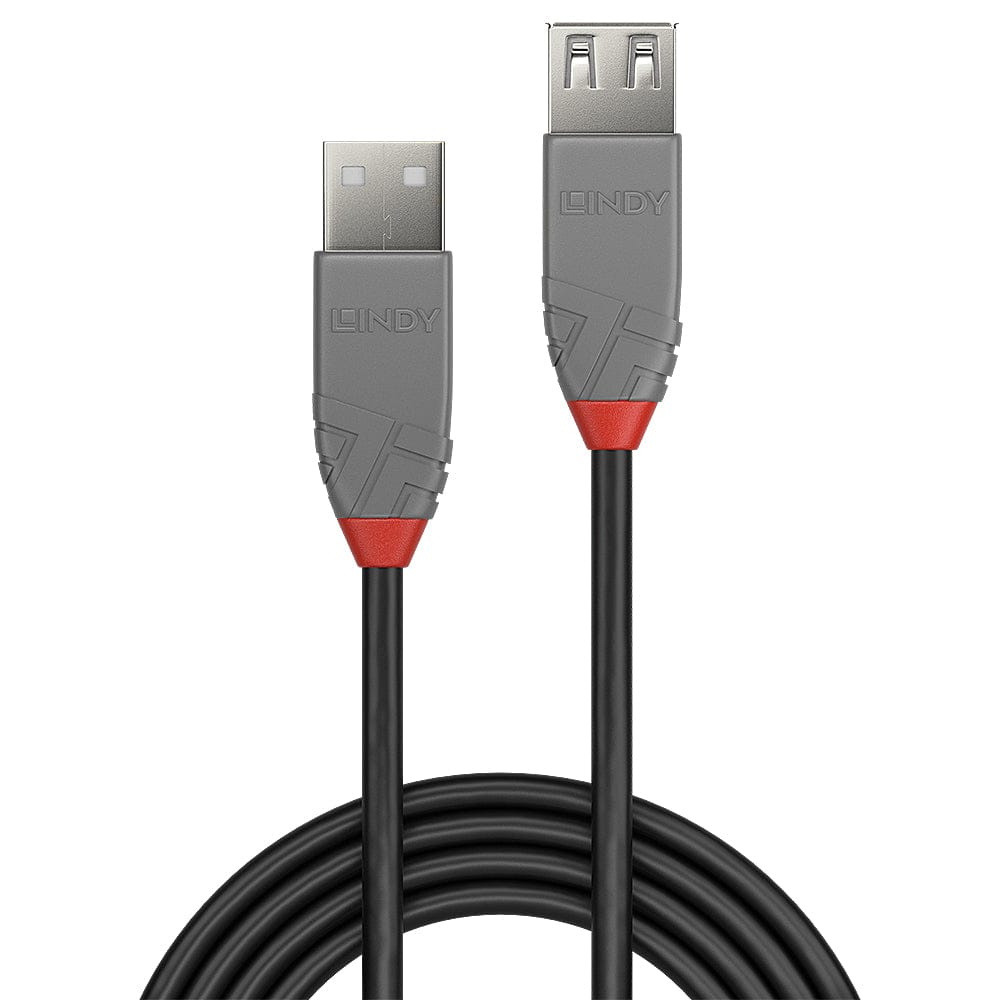

Lindy 1m USB 2.0 Type A Extension Cable Anthra Line 36702

Lindy 1m USB 2.0 Type A Extension Cable Anthra Line 36702

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A Extension cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A Extension cables are available in lengths from 0.2m to 5m.

• Professional choice USB 2.0 Type A Extension cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• USB 2.0, 480Mbps; 10 year warranty

Specifications:

Connector A: USB 2.0 Type A Male
Connector B: USB 2.0 Type A Female
Housing Material: PVC
Connector Plating: Nickel
Pin Construction: Copper
Pin Plating: 24K Gold
USB A Male Dimensions (WxDxH): 15.5 x 35 x 7.8 mm (0.61 x 1.38 x 0.31 in)
USB A Female Dimensions (WxDxH): 17 x 35 x 9.8 mm (0.67 x 1.38 x 0.39 in)

Length: 1 m (3.28 ft)
Standard: USB 2.0
Colour: Black
Cable Type: Round
Jacket Diameter: 4.4 mm (0.17 in)
Jacket Material: PVC
Conductor Material: Tinned copper
Conductor Gauge: 26/28 AWG
Shielding: Aluminium magnesium braid
Supported Bandwidth: 480 Mbps
Maximum Resolution: Not applicable
Nominal Attenuation: 5.8 dB/km
Minimum Bend Radius: 16 mm (0.63 in)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: 0°C to 60°C (32°F to 140°F)

Packaging Type: Polybag
Warranty: 10 years
Certifications: RoHS, REACH, UL
