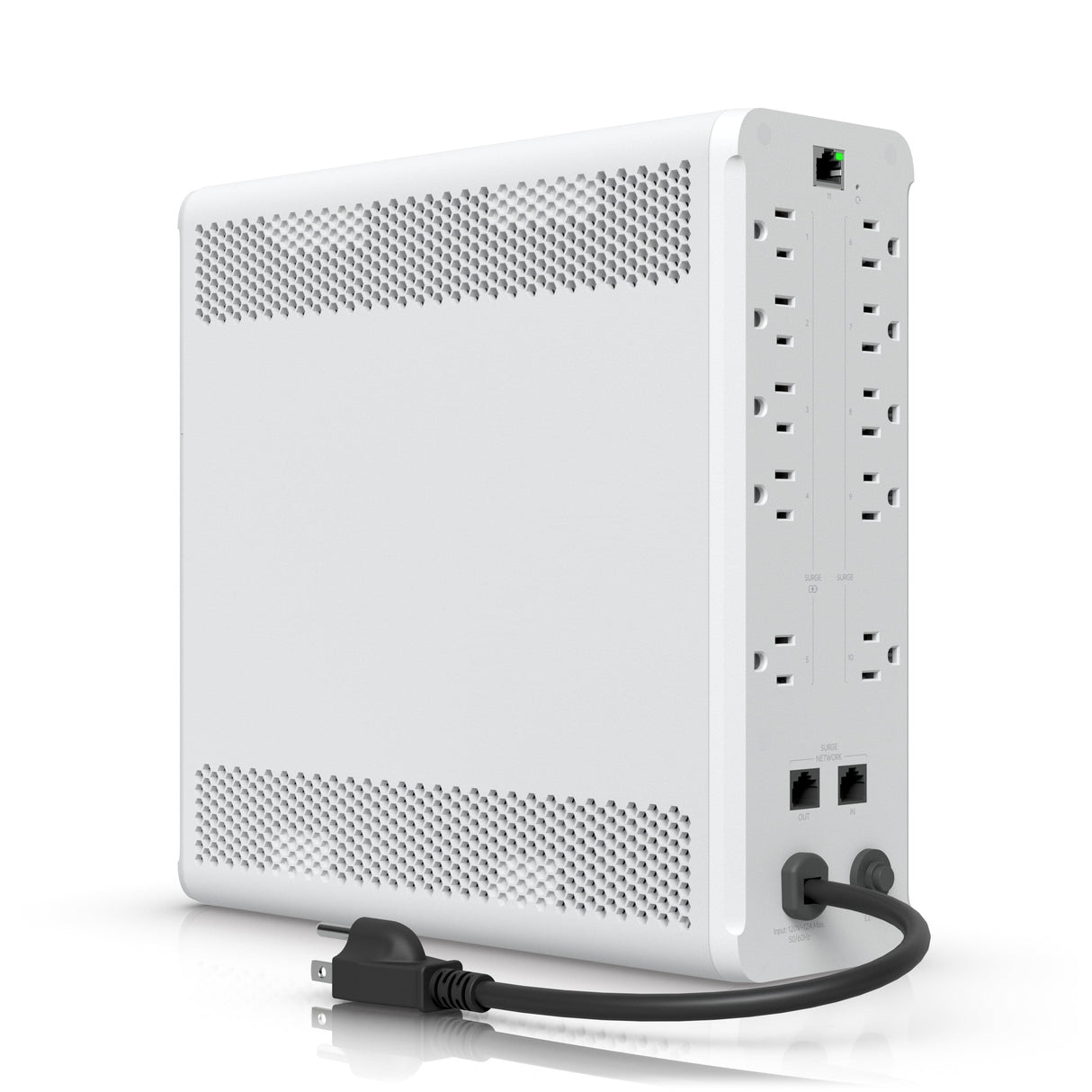

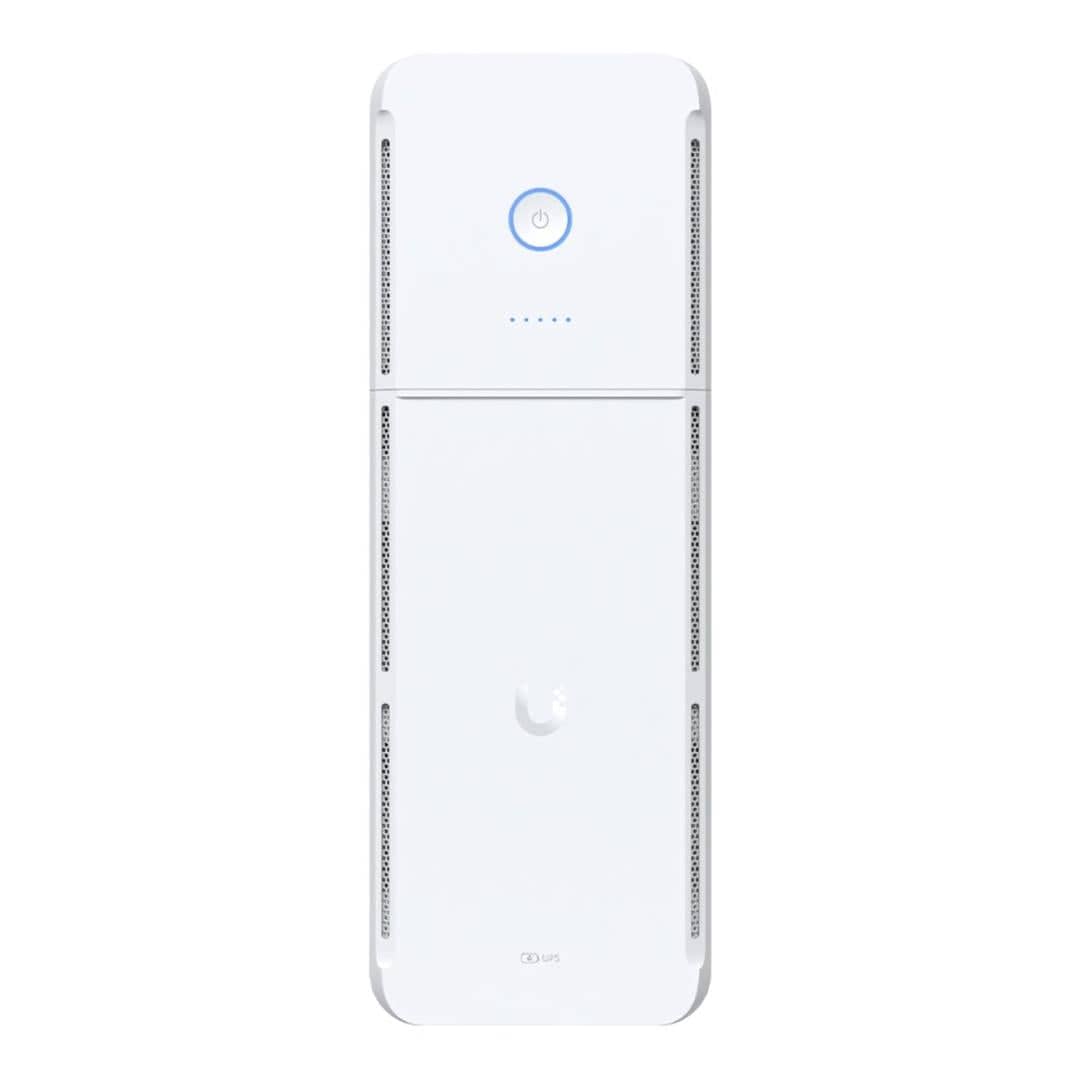

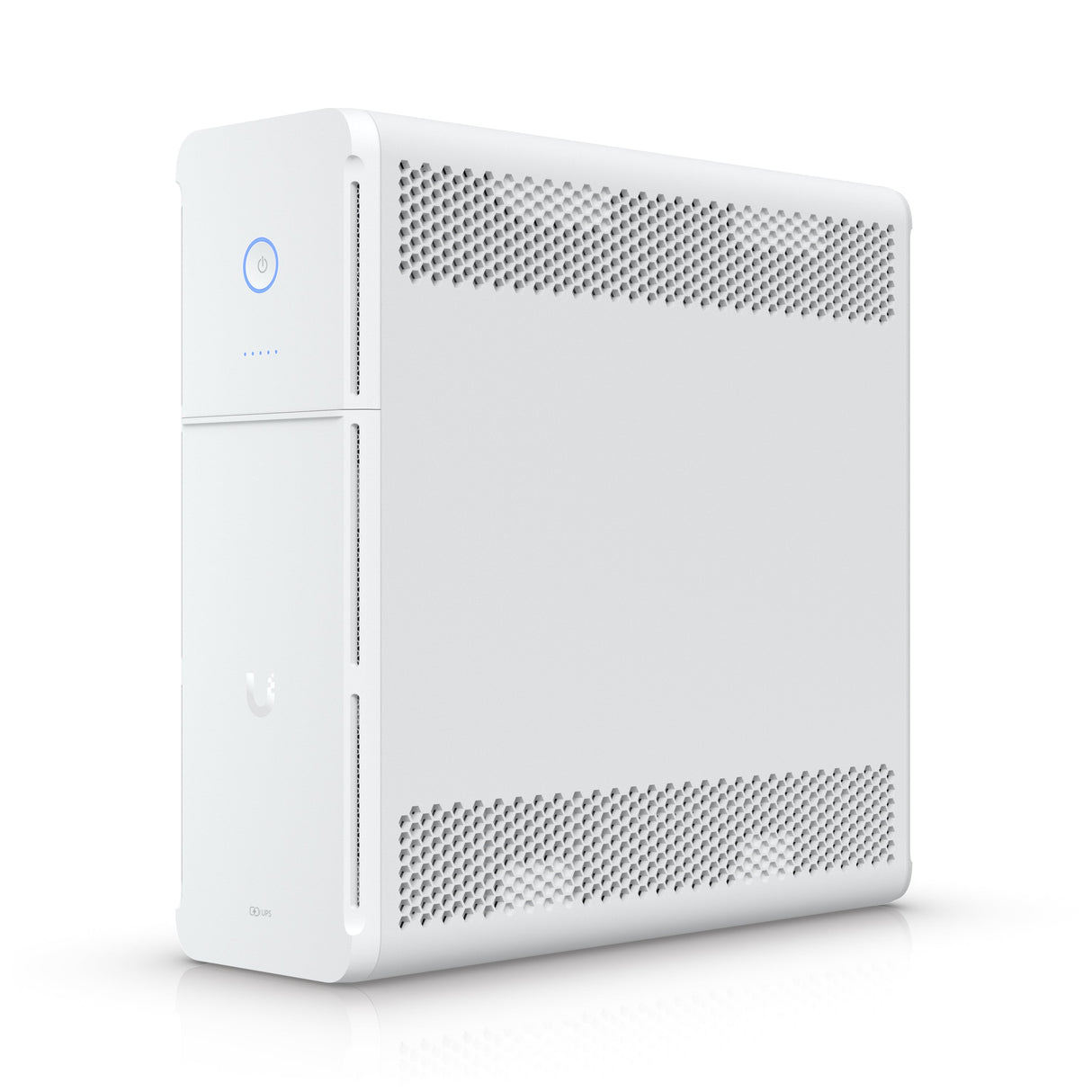

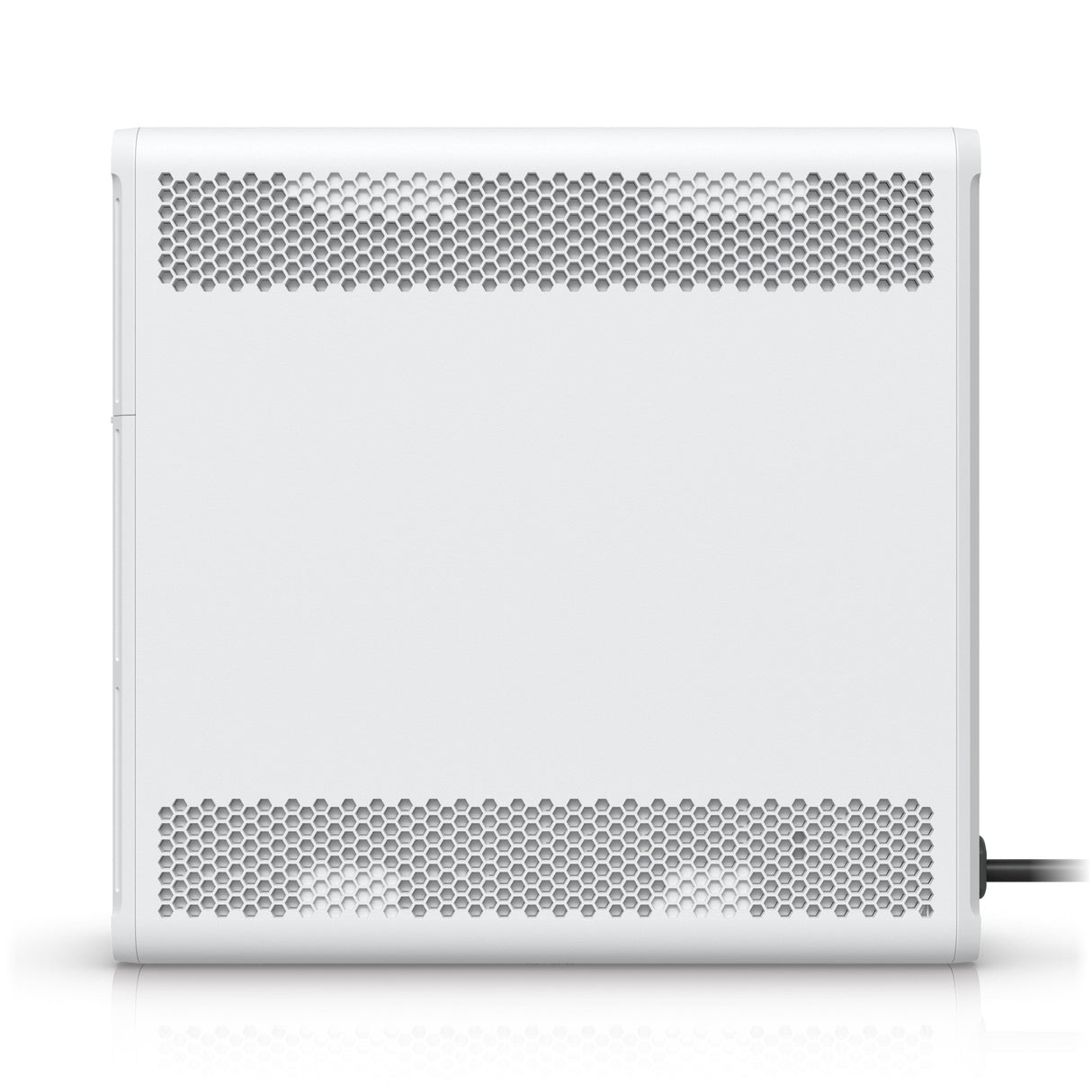

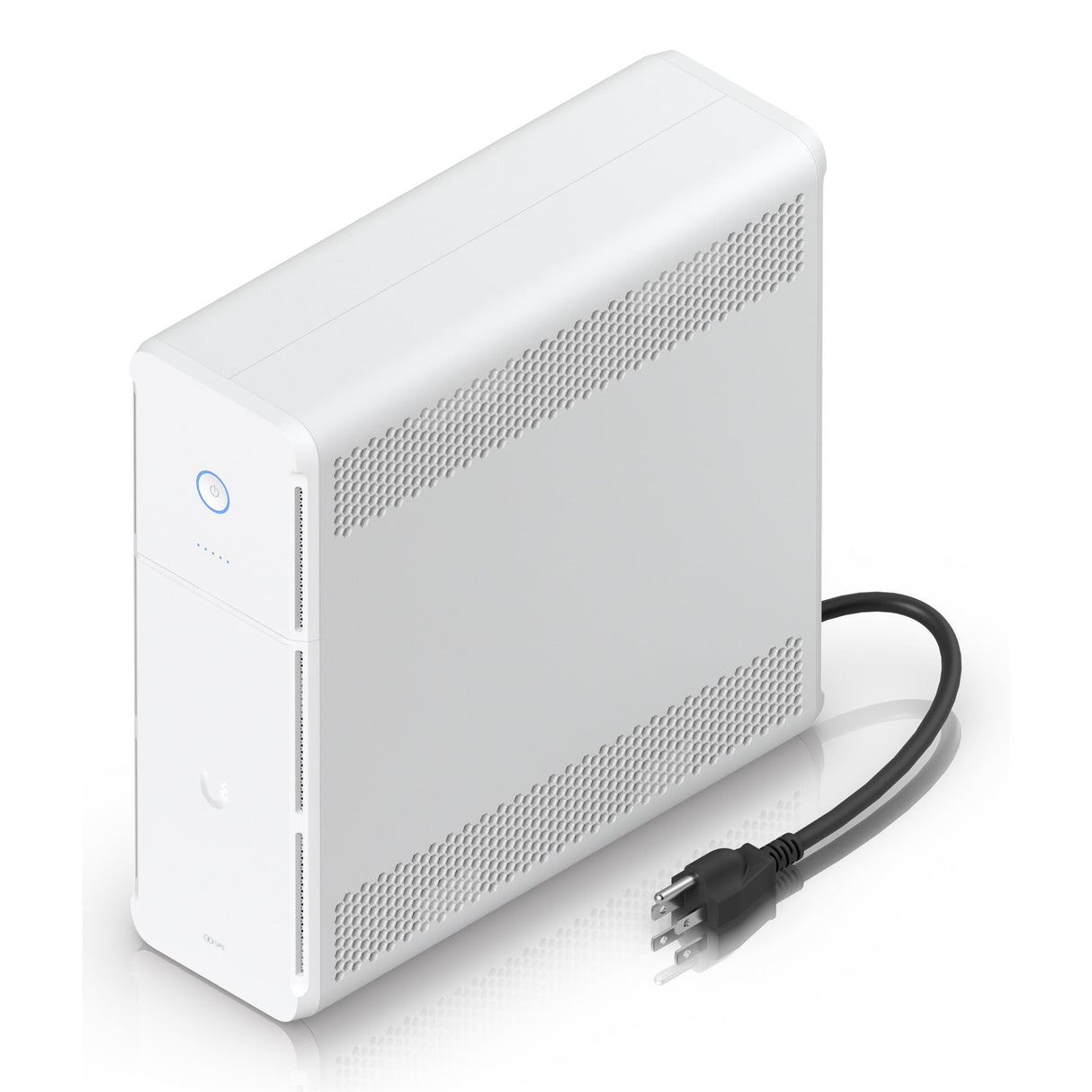

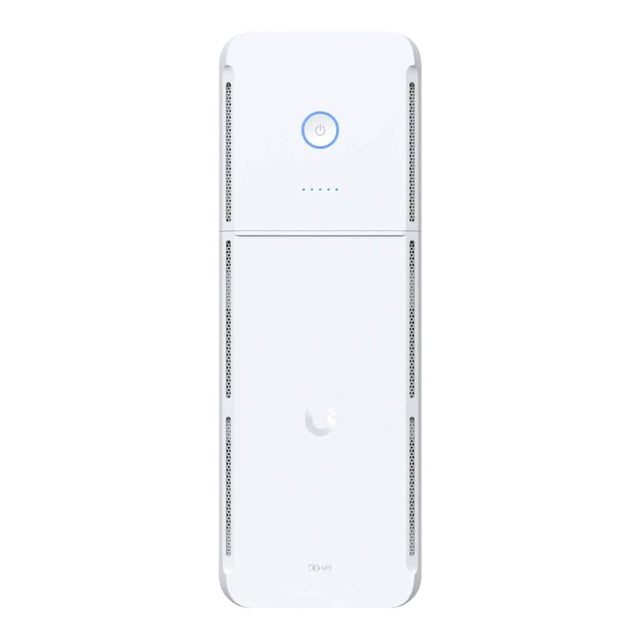

Ubiquiti 1kVA 600W 10 AC Outlet Line-Interactive Tower UPS

Ubiquiti 1kVA 600W 10 AC Outlet Line-Interactive Tower UPS

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

Technical Specifications:

Overview
Dimensions: 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
Weight: 8.17 kg (18 lb)
Enclosure Material: Polycarbonate and acrylonitrile butadiene styrene blend
Form Factor: Desktop
Weatherproofing: IP20

Hardware
Management
Ethernet: Yes
Networking Interface: (1) 100/10 MbE port for network connection, (2) GbE ports for surge in/out

Power
Input: (1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord

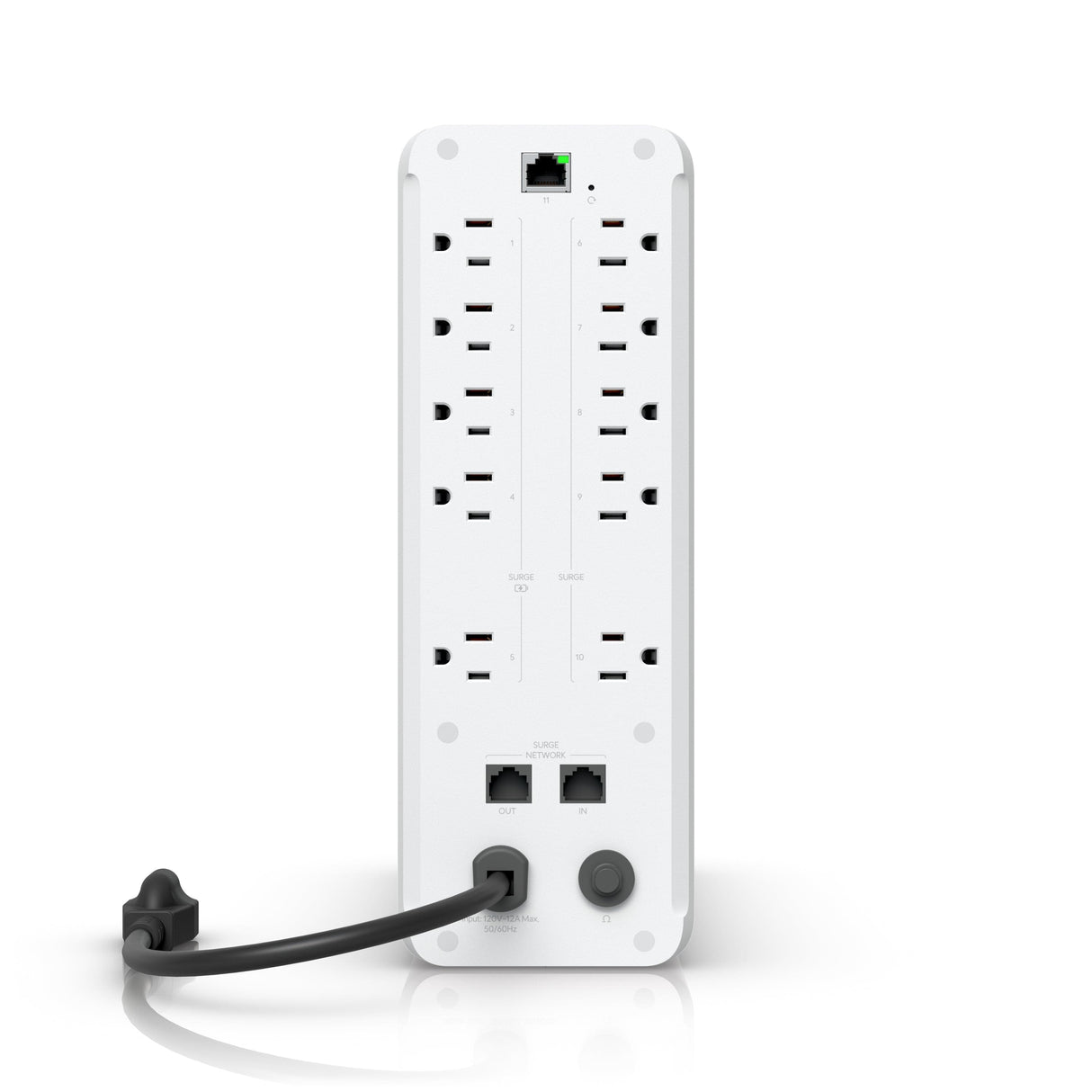

Output: (5) Battery backup/surge protection: NEMA 5‑15R, (5) Surge protection: NEMA 5‑15R
Capacity: 1,000VA/600W
Type: Line interactive
Input Voltage Range: 89—145V AC
Power Method: (1) TN system, 120V AC, 12A Max., 50/60 Hz
Nominal Input Voltage: 120V AC
Output Voltage: 120V AC
Frequency Range: AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 60 Hz ±1 Hz
AC Voltage Regulation: ±10% (Battery mode)
Transfer Time: 6 ms typical; 10 ms max. (Battery mode)
Wave Form: Simulated sine wave (Battery mode)

Battery
Battery Type: (1) Lead Acid 12V, 9Ah
Runtime: Full load: 2 min, Half load: 7 min
Battery Charging Time: 6-8 hours recovery to 90% capacity

Overload & Protection
Overload at On-Line Mode: 110% 5 min go to fault, 120% go to fault immediately
Overload at Battery Mode: 110% shutdown in 5 sec, 120% shutdown immediately
Short Circuit Protection at On-Line Mode: Breaker, 250V AC, 15A
Output Short-Circuit Current: Ipeak 334.8A, Irms 68.2A

Buttons & LEDs
Buttons: (1) Power, (1) Factory reset
LED Status:

• Off: device not turned on
• Flashing white: initializing / factory default
• Steady white: waiting for adoption
• Steady blue: device adoption and working
• Flashing blue: battery mode
• Alternating white/blue: firmware upgrading
• Rapid flashing blue: locate
• Steady red: warning
• Flashing red: low battery
• Battery Indicator:

All off: 0%

• (1) Steady blue: battery 1—19%
• (2) Steady blue: battery 20—39%
• (3) Steady blue: battery 40—59%
• (4) Steady blue: battery 60—79%
• (5) Steady blue: battery 80—100%

Operating Environment
Operating Altitude: 3,000 m (1.9 mi)
Pollution Degree: 2
Ambient Storage Temperature: -20 to 50° C (-4 to 122° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 0 to 95% noncondensing

Compliance & Certifications
NDAA Compliant: Yes
Certifications: FCC, IC, UL 1778, CSA C22.2 No. 107.3
