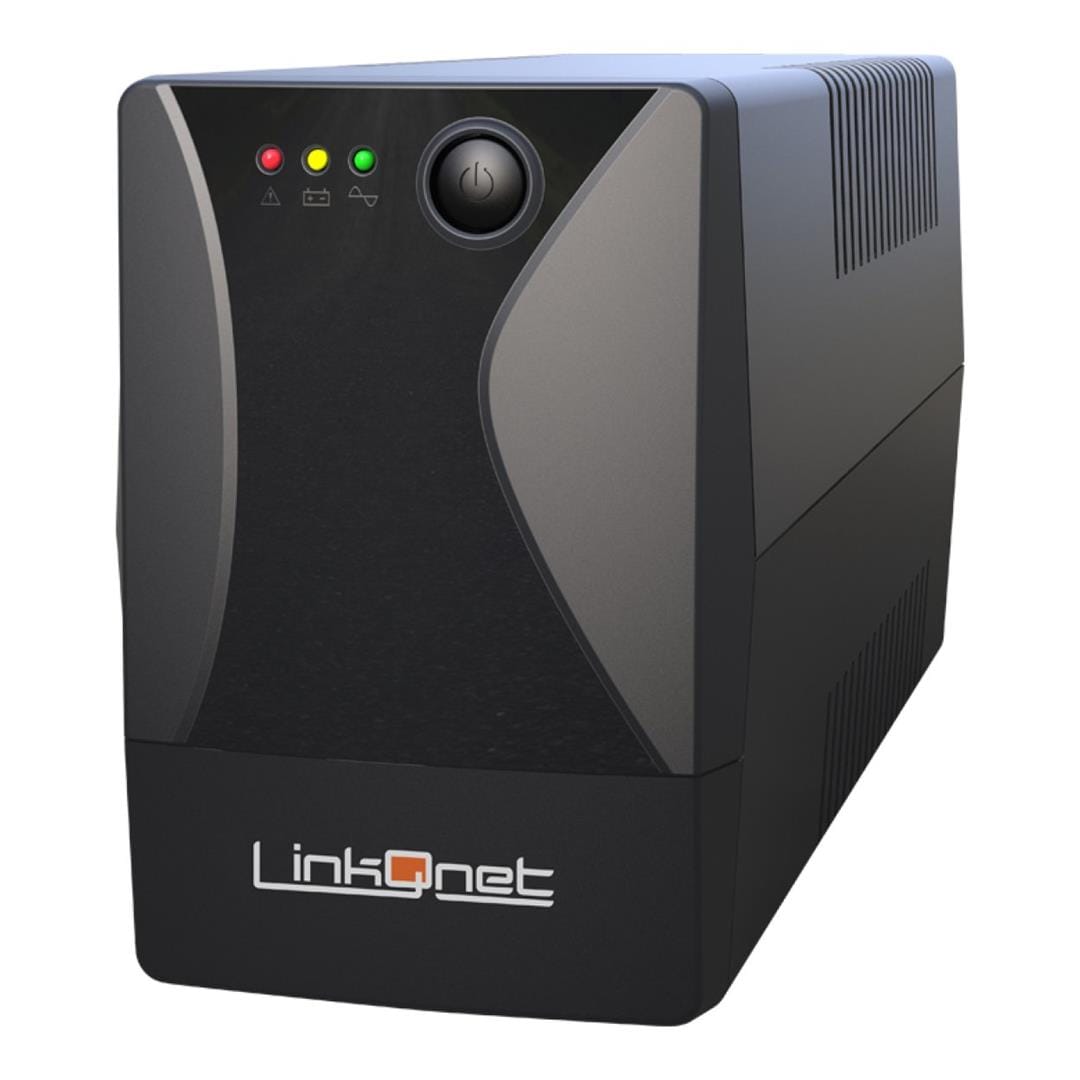

LinkQnet 800VA Line Interactive UPS 800VA-LED-LQ

LinkQnet 800VA Line Interactive UPS 800VA-LED-LQ

Features:

• Comprehensive power protections for surges and spikes
• Boost and buck AVR for voltage stabilisation
• Built-in self-diagnostic function
• Supports cold-start
• Supports off-mode charging
• Auto restart while AC is recovering

Technical Specifications:

General

Model Rating: 800 VA
Capacity: 480 W

Input

Input Voltage: 230 VAC
Voltage Range: 140–300 VAC
Input Frequency: >40 Hz (Auto-Sensing)

Output

AC Voltage Regulation (Battery Mode):

• 220 VAC
• 230 VAC
• 240 VAC ±10%

Frequency Range (Battery Mode):

• 50 Hz ±1 Hz
• 60 Hz ±1 Hz

Transfer Time: Typical 4–8 ms, 13 ms Maximum
Waveform (AC Mode): Simulated Sinewave

Battery

Battery Voltage: 12 V

Battery Configuration

• 1 × 9 Ah Battery

Maximum Charge Current: 1 A

Indicators

AC Mode Indicator: Green Light (No LCD Display)
Battery Mode Indicator: Orange Flash (No LCD Display)
Fault Indicator: Red Light (No LCD Display)

Protection

Protection Features

• Short-Circuit Protection
• Overload Protection
• Over-Charge Protection
• Over-Discharge Protection

Alarm

Battery Mode Alarm: Sounding Every 10 Seconds
Low Battery Alarm: Sounding Every Second
Overload Alarm: Sounding Every 0.5 Seconds
Fault Alarm: Continuously Sounding

Physical

Dimensions (D × W × H): 306 × 86 × 140 mm

Environmental

Operating Humidity: 0–90% RH @ 0–40 °C (Non-Condensing)
Noise Level: Less Than 40 dB
