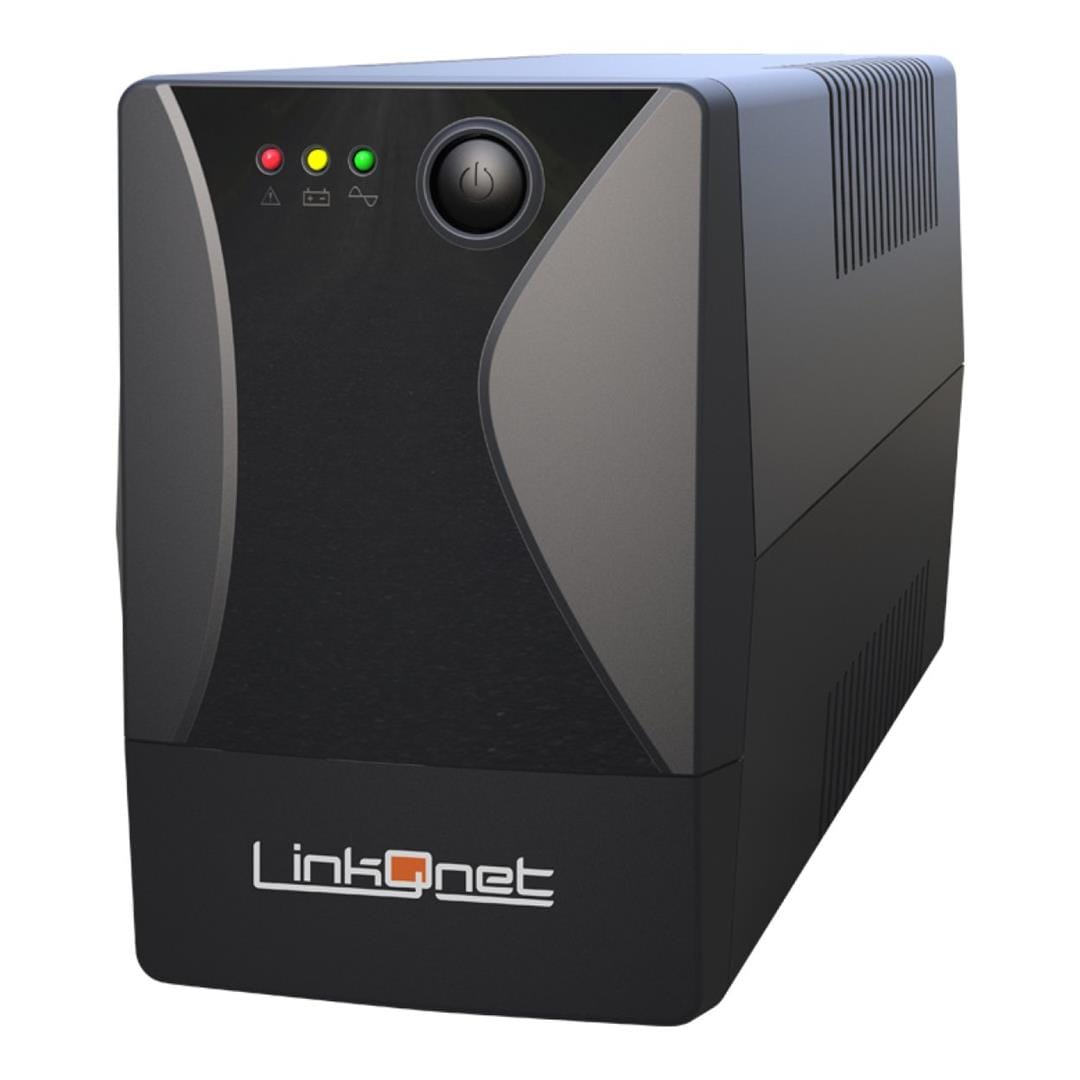

LinkQnet 1000VA Line Interactive UPS 1000VA-LED-LQ

LinkQnet 1000VA Line Interactive UPS 1000VA-LED-LQ

Features:

• Comprehensive power protections for surges and spikes
• Boost and buck AVR for voltage stabilisation
• Built-in self-diagnostic function
• Supports cold-start
• Supports off-mode charging
• Auto restart while AC is recovering

Technical Specifications:

General

Model Rating: 1000 VA
Capacity: 600 W

Input

Input Voltage: 230 VAC
Voltage Range: 140–300 VAC
Input Frequency: >40 Hz (Auto-Sensing)

Output

AC Voltage Regulation (Battery Mode): 220 VAC / 230 VAC / 240 VAC ±10%
Frequency Range (Battery Mode):

• 50 Hz ±1 Hz
• 60 Hz ±1 Hz

Transfer Time: Typical 4–8 ms, 13 ms Maximum
Waveform (AC Mode): Simulated Sinewave

Battery

Battery Voltage: 24 V

Battery Configuration

• 2 × 7 Ah Batteries

Maximum Charge Current: 2 A

Indicators

Display Type: LCD Display

Protection

Protection Features

• Short-Circuit Protection
• Overload Protection
• Over-Charge Protection
• Over-Discharge Protection

Alarm

Battery Mode Alarm: Sounding Every 10 Seconds
Low Battery Alarm: Sounding Every Second
Overload Alarm: Sounding Every 0.5 Seconds
Fault Alarm: Continuously Sounding

Physical

Dimensions (D × W × H): 345 × 123 × 189 mm

Environmental

Operating Humidity: 0–90% RH @ 0–40 °C (Non-Condensing)
Noise Level: Less Than 40 dB
