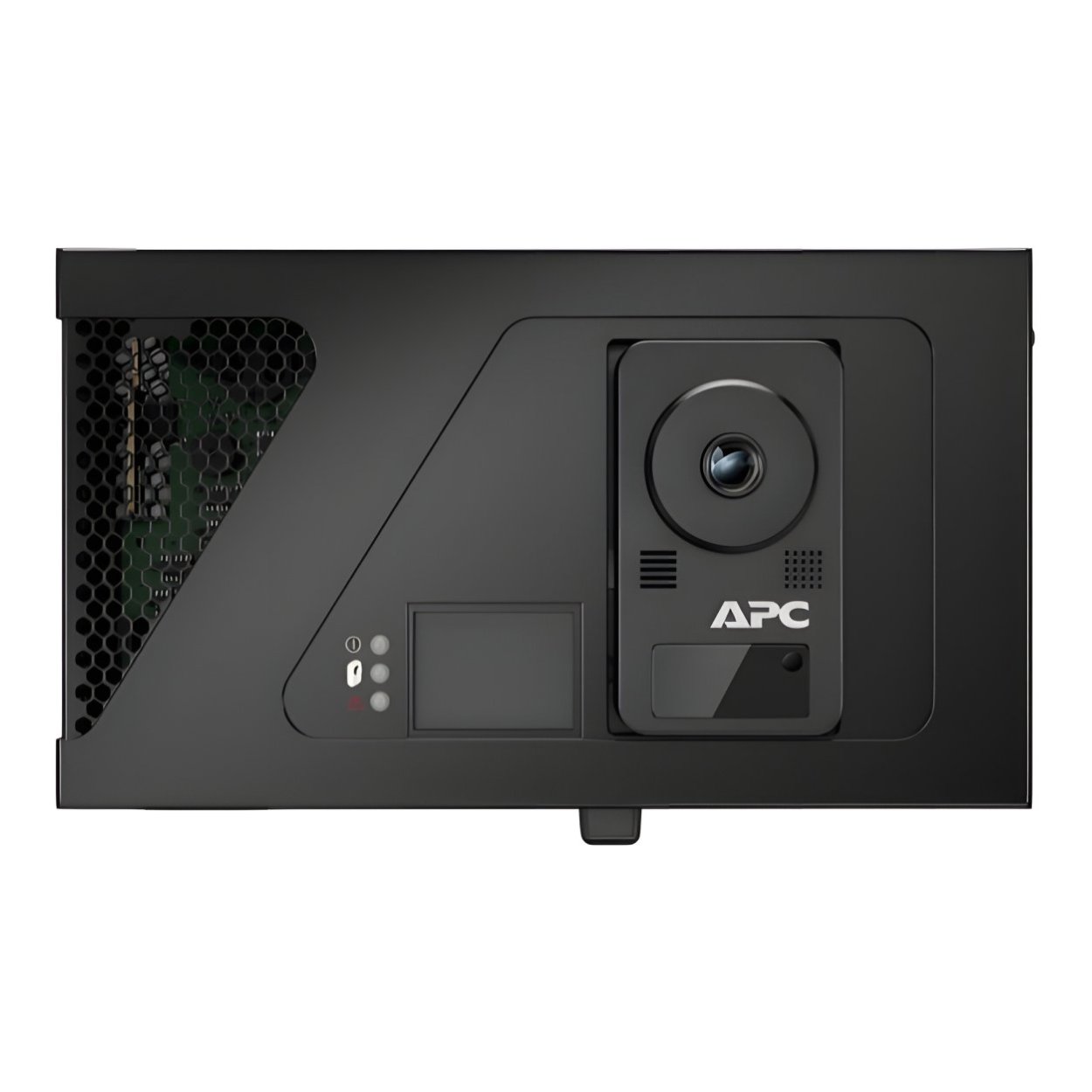

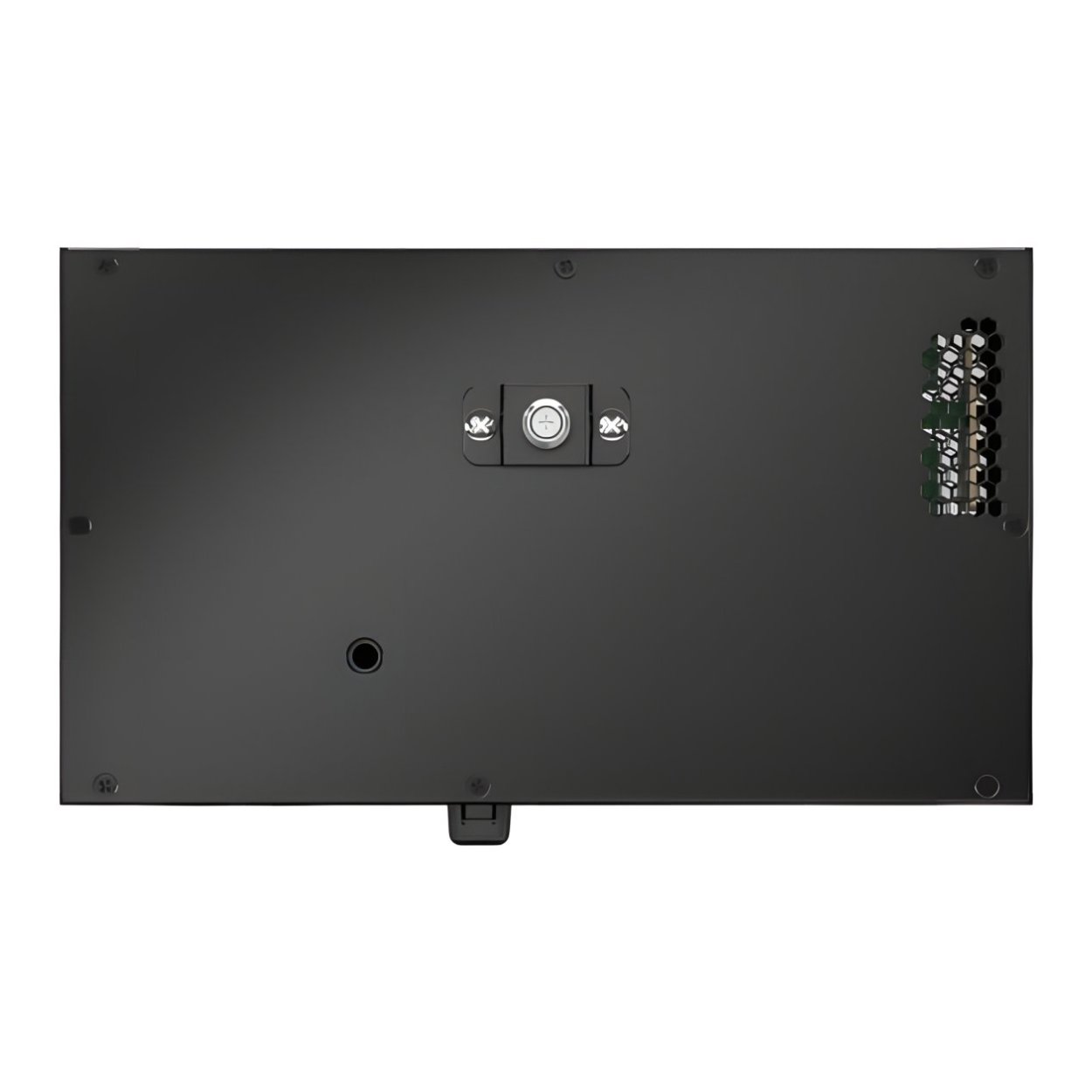

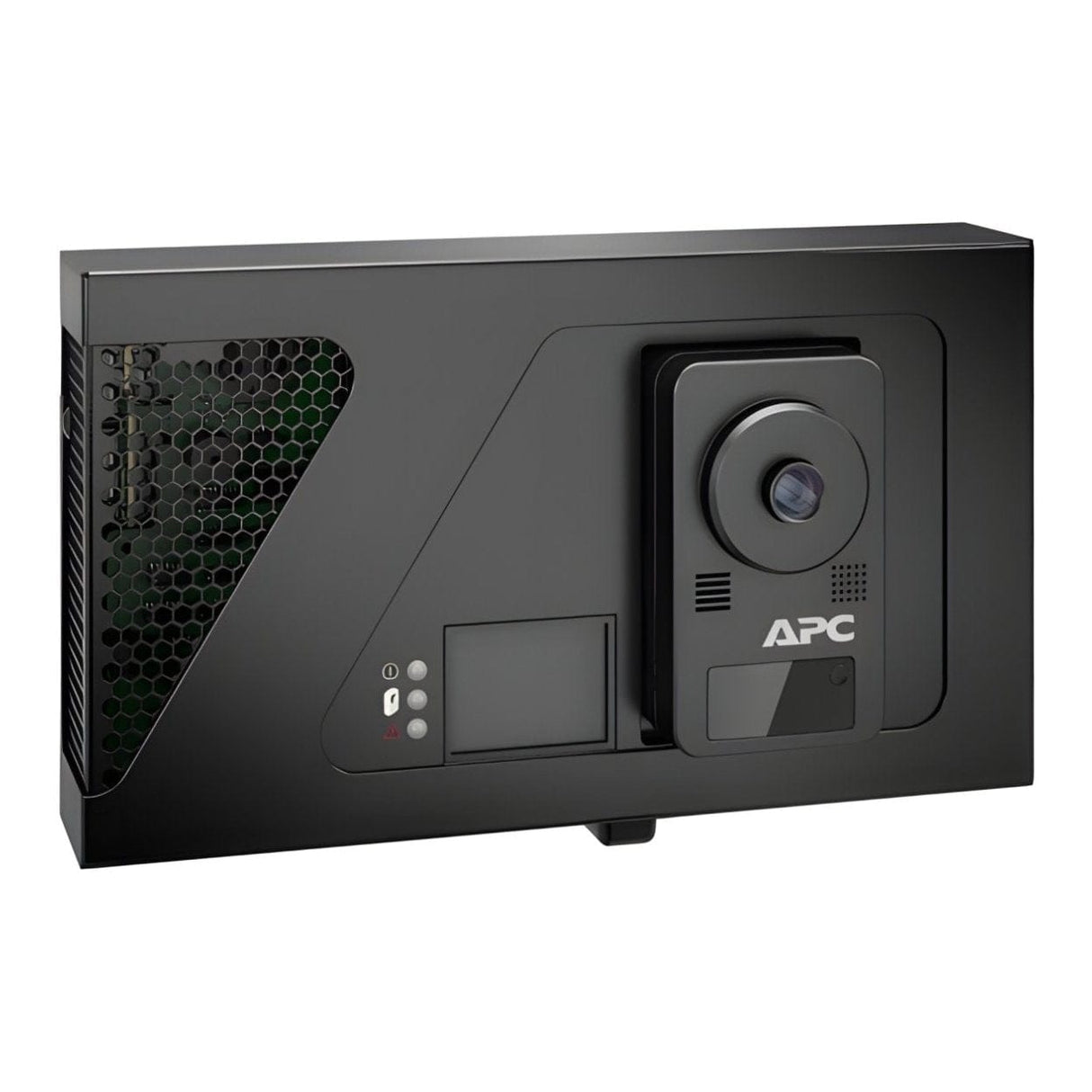

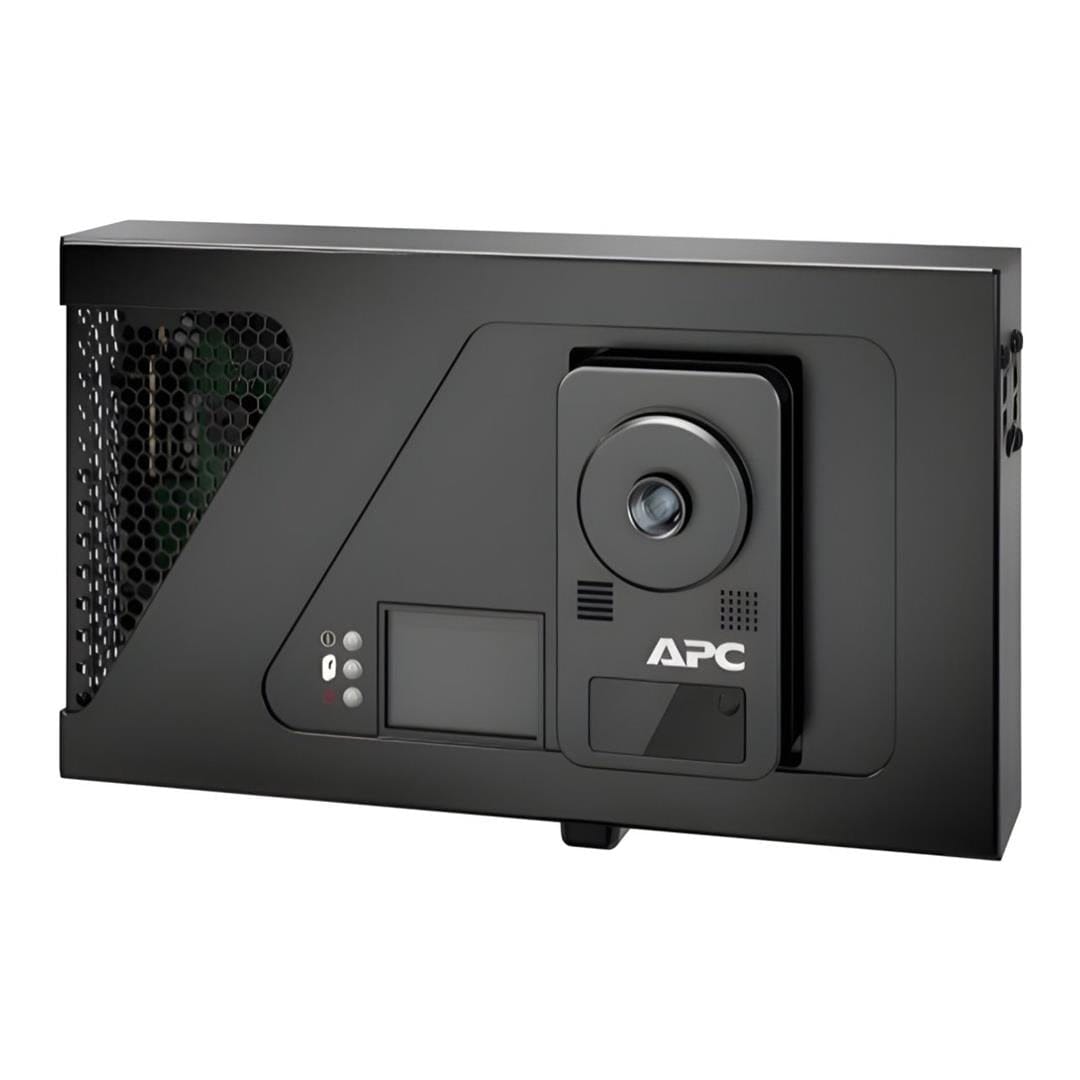

APC NetBotz Room Monitor 755 with PoE Injector NBWL0756

APC NetBotz Room Monitor 755 with PoE Injector NBWL0756

The NetBotz Rack Monitor 756 provides integrated surveillance, sensing, access control, and advanced alerting for IT environments of all sizes, from single-rack edge networks to large data centers. The NetBotz 756 offers an active monitoring solution designed to protect against environmental threats and unauthorized access risks that can cause downtime to IT infrastructure, in both Edge Compute and Data Center environments. With its integrated suite of sensors, access control pods, and the newly introduced HD Camera Pod 165, the NetBotz 756 safeguards environments with surveillance and flexible alerting based on user-definable thresholds. Compute is quickly moving closer to where it is used at the Edge, increasing the risks of water damage, high temperature & humidity, fire or other conditions bringing down business-critical applications. Intentional or malicious access events not only threaten compute availability, but also leave enterprises vulnerable to costly compliance violations. The NetBotz 750 provides integrated sensing, surveillance, and badged rack-access control to help mitigate these risks through a wide array of compatible sensors, camera clip capture and storage, and configurable alarming.

Features:

• Integrated surveillance, sensing, access control and alerts for wall mount applications
• Supports 4 HD cameras, 16 wired/ 47 wireless sensors and badged access for 2 rack doors
• Instant environmental alerts for overheating, fluids/leaks, humidity, and fire/smoke risks
• Seamless Integration with Data Center Expert, IT Expert and IT Advisor Software Solutions

1-Port POE Switch

Built-in true private network switch for use with NetBotz Camera Pod 165 (NBPD0165) or other downstream IP devices

Simple integration

Integrates with APC racks, NetBotz sensors, and Data Center Expert, facilitating deployment, configuration, and management.

Flexibility and adaptability

It can be the environmental monitoring solution or the rack access control solution, or both.

HD camera support

Compatible with New Model 165 Low Light HD Camera (NBPD0165)

Native support for wireless sensors

Management of up to 47 NetBotz wireless temperature and temperature / humidity sensors from a single NetBotz

PoE injector

Enables PoE devices for use with PoE-incompatible Ethernet switches.

Supervision

Motion detection and recording that enables association of a visual record with an access or environmental alert, accelerating the root cause analysis process.

Technical Specifications:

Main

Product or Component Type: Industrial Rack PC
Range of Product: NetBotz

General

Camera Frame Rate: Up to 30 fps
Universal Sensor Supported: 0–5 V

Supported Sensor Types

• Door Contact (Dry Contact)
• Fluid Spot Leak
• Humidity
• Smoke
• Temperature
• Vibration

Number of Universal Sensor Ports: 4

Physical

Colour: Black
Mounting Mode: Not Rack-Mountable

Environmental

Operating Temperature: 0–45 °C
Storage Temperature: -15–65 °C
Operating Altitude: 0–3000 m
Storage Altitude: 0–15,000 m

Communications and Management

Communication Network Type: 10/100/1000BASE-T

Packaging

Package Type: PCE
Units per Package: 1
Package Height: 19.72 cm
Package Width: 47.04 cm
Package Length: 72.35 cm
Package Weight: 4.446 kg

Warranty

Warranty Period: 24 Months
