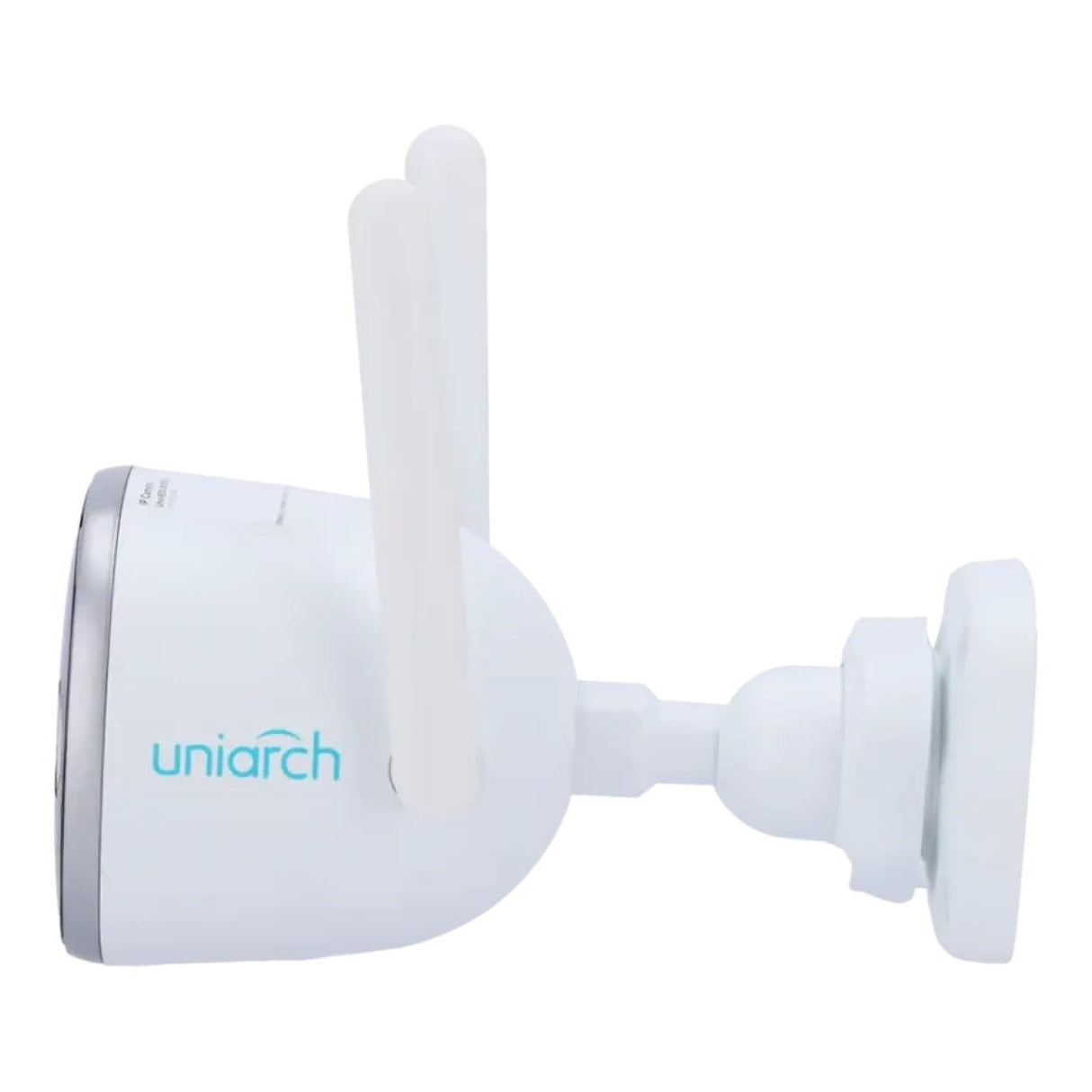

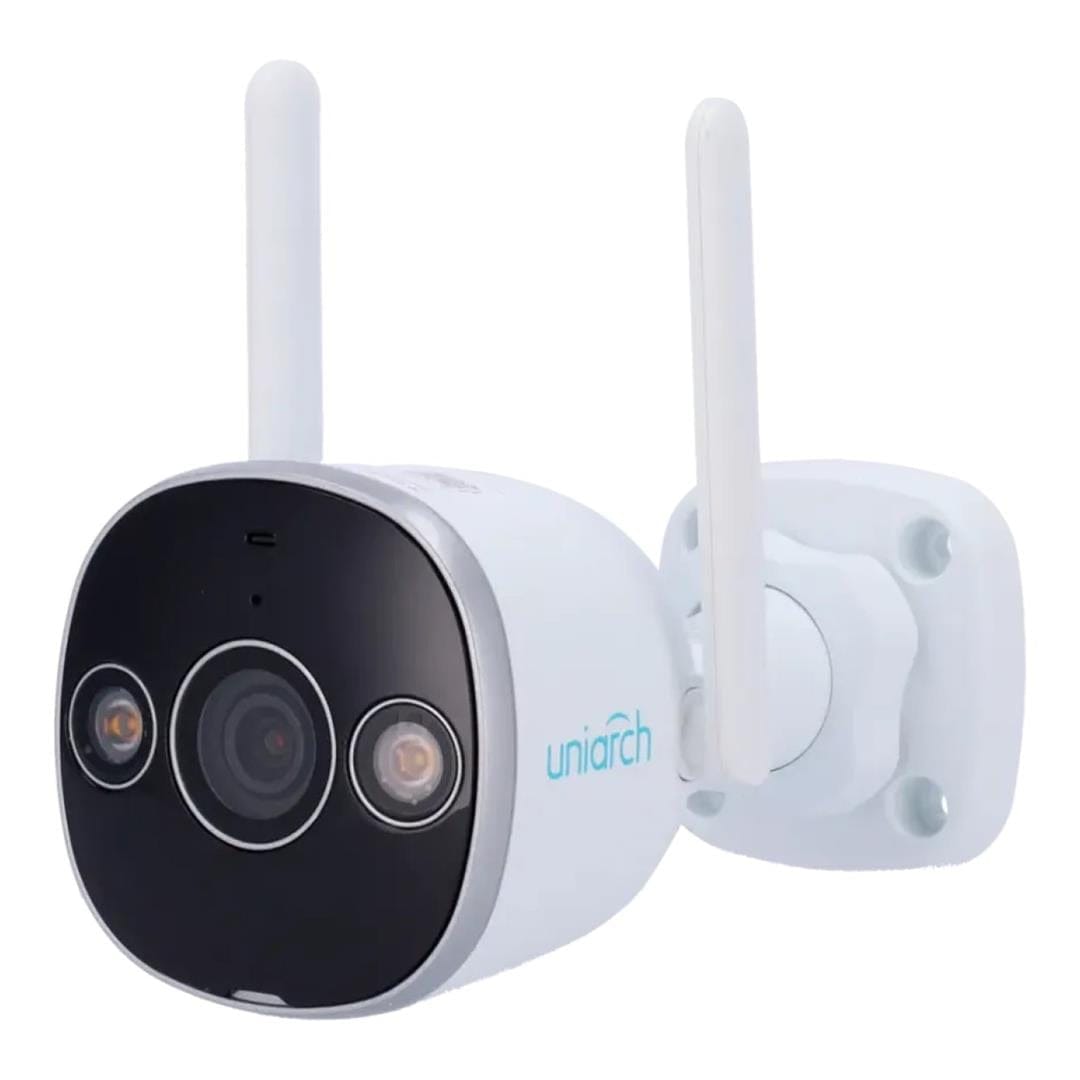

Uniview UNV Uniarch 3MP Dual Light Wi-Fi Camera Uho-B2D-M3F3D

Uniview UNV Uniarch 3MP Dual Light Wi-Fi Camera Uho-B2D-M3F3D

The Uniview Uniarch Uho-B2D-M3F3D is a 3MP outdoor Wi-Fi bullet camera designed for residential and light commercial surveillance. It delivers high-resolution video, flexible night-time visibility, and two-way audio communication—all in a compact, weatherproof housing. This model is ideal for users looking for simple installation, wireless connectivity, and reliable performance in changing light or weather conditions.

Features:

• 3MP (2304 × 1296) resolution with 1/3.0" CMOS sensor
• Smart IR night vision up to 20 metres and warm light colour mode up to 10 metres

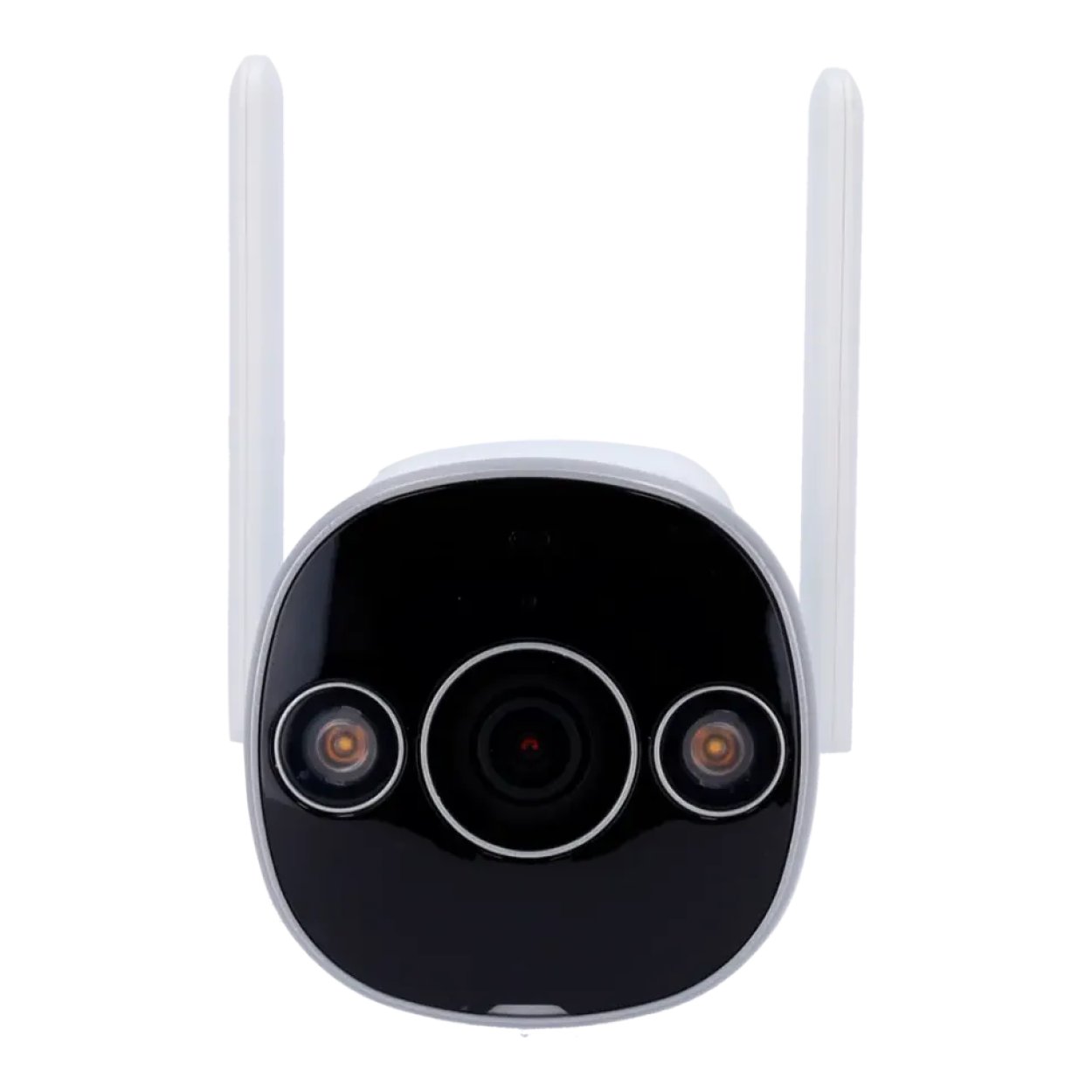

• Dual-light technology with auto-switching for day/night conditions
• Built-in microphone and speaker for two-way audio

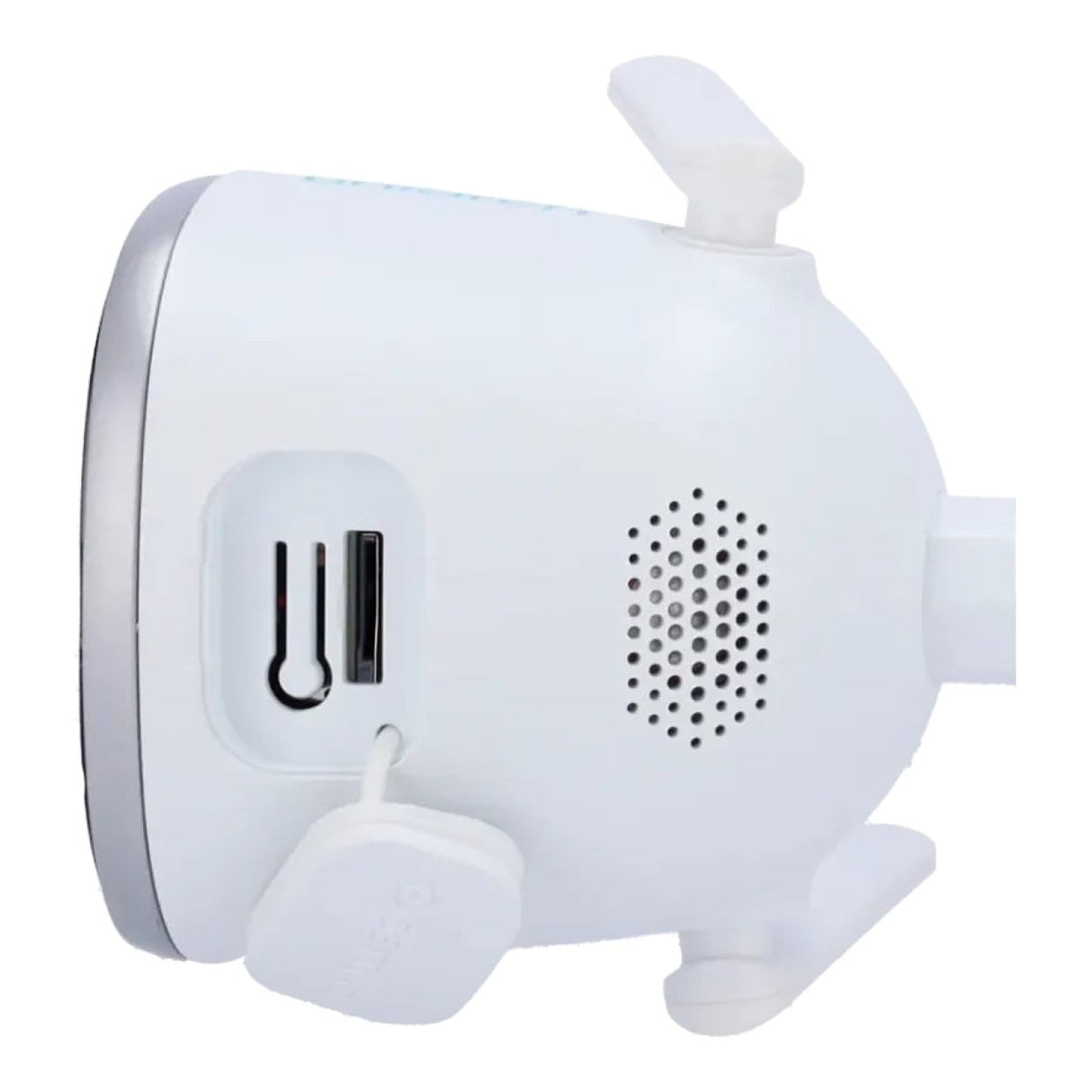

• Wi-Fi connectivity with support for Micro SD card storage (up to 128 GB)
• Ultra 265, H.265, H.264, and MJPEG compression formats
• IP67-rated weatherproof housing for outdoor durability

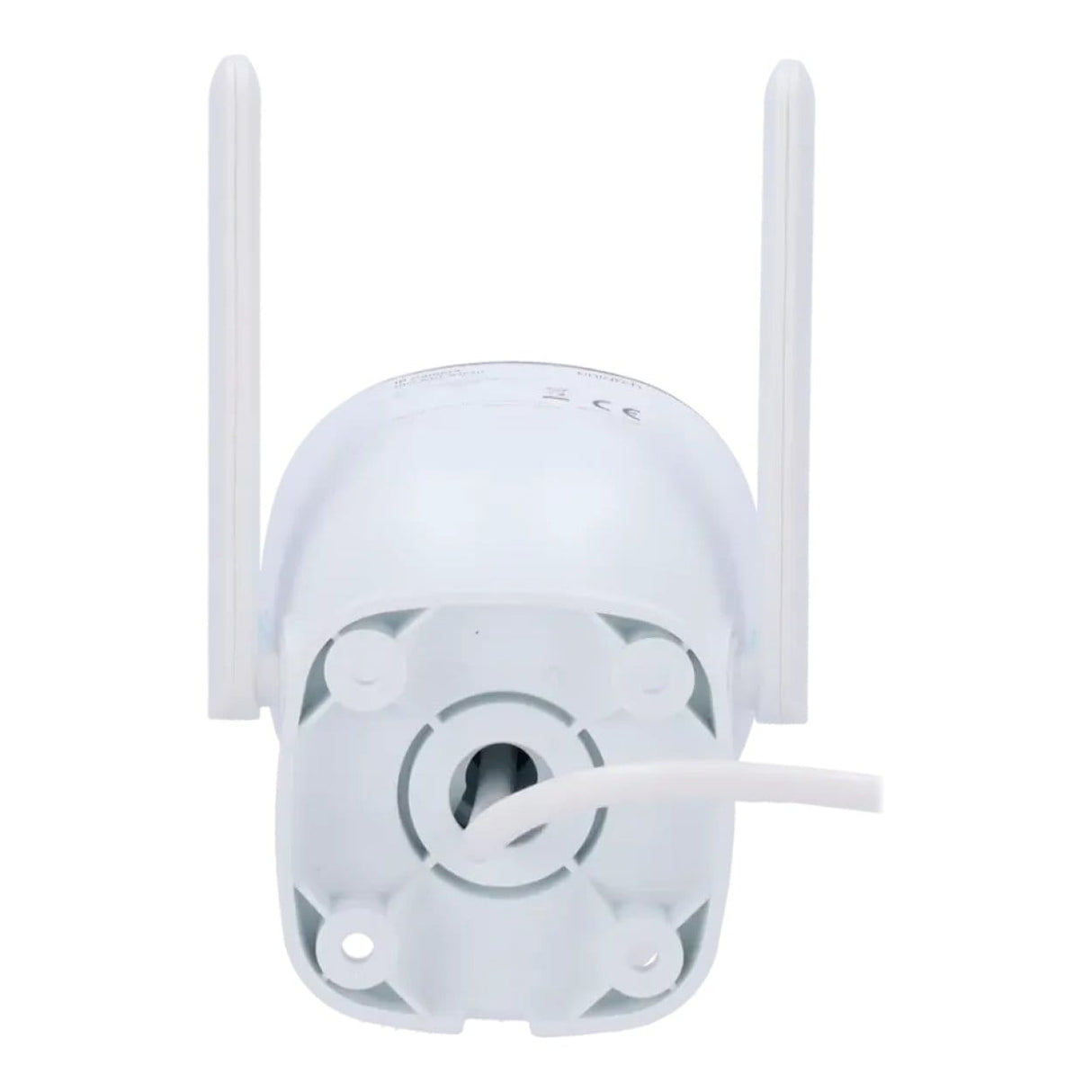

• 3-axis mount for flexible installation and precise aiming

Technical Specifications:

Overview
Brand: Uniarch
Image Sensor: 1/3” Progressive Scan CMOS
Maximum Resolution: 3 Megapixel (2880 x 1620)
Lens: 2.8 mm

Video Streams
Main Stream Rate:

• 3MP (2304 x 1296), Max 25 fps
• 1080P (1920 x 1080), Max 30 fps
• 720P (1280 x 720), Max 30 fps
• Extra Stream Rate:
• 640 x 360, Max 30 fps
• 2CIF (704 x 288), Max 30 fps
• CIF (352 x 288), Max 30 fps

Performance
Range Performance (meters): D: 46.7, O: 18.7, R: 9.3, I: 4.7
Compression: Ultra 265, H.265, H.264, MJPEG
Minimum Illumination: Colour: 0.003 lux (F2.1 AGC ON), 0 lux with IR on
Infrared Range: 20 m
White Light Range: 10 m
Image Improvements: DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion Detection, ROI, Privacy Mask
Day / Night: Mechanical ICR Filter
Internal Memory: MicroSD Card Slot, Max 128 GB

Detection & Alarms
Alarms: No
Detection Functions: Motion Detection, Ultra Motion Detection, Audio Detection, Tamper Alarm

Audio
Built-in Microphone and Speaker

Connectivity
Wi-Fi: IEEE802.11b/g/n
Wi-Fi Frequency Range: 2.4 GHz ~ 2.4835 GHz
Remote Access: Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)

Power & Environmental
Power: DC 12V / 5.7W
Operating Temperature: -30º C ~ 60º C
Degree of Protection: Weatherproof IP67

Physical
Dimensions: 148 (H) x 78 (W) x 78 (D) mm
Weight: 310 g
