Uniview Uniarch UNV 5MP Outdoor PTZ with Warm Light Camera Uho-P3C-M5F4

Uniview Uniarch UNV 5MP Outdoor PTZ with Warm Light Camera Uho-P3C-M5F4

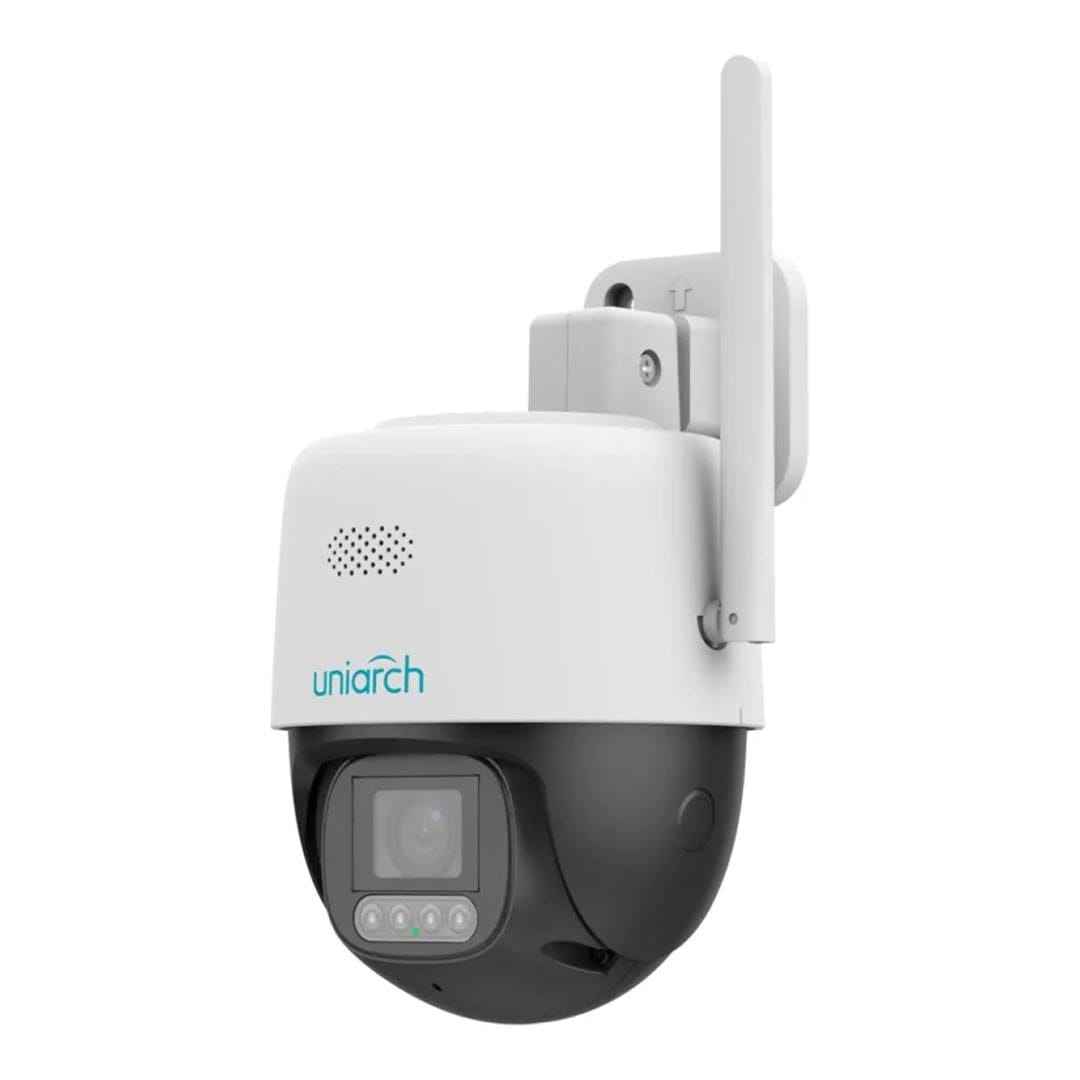

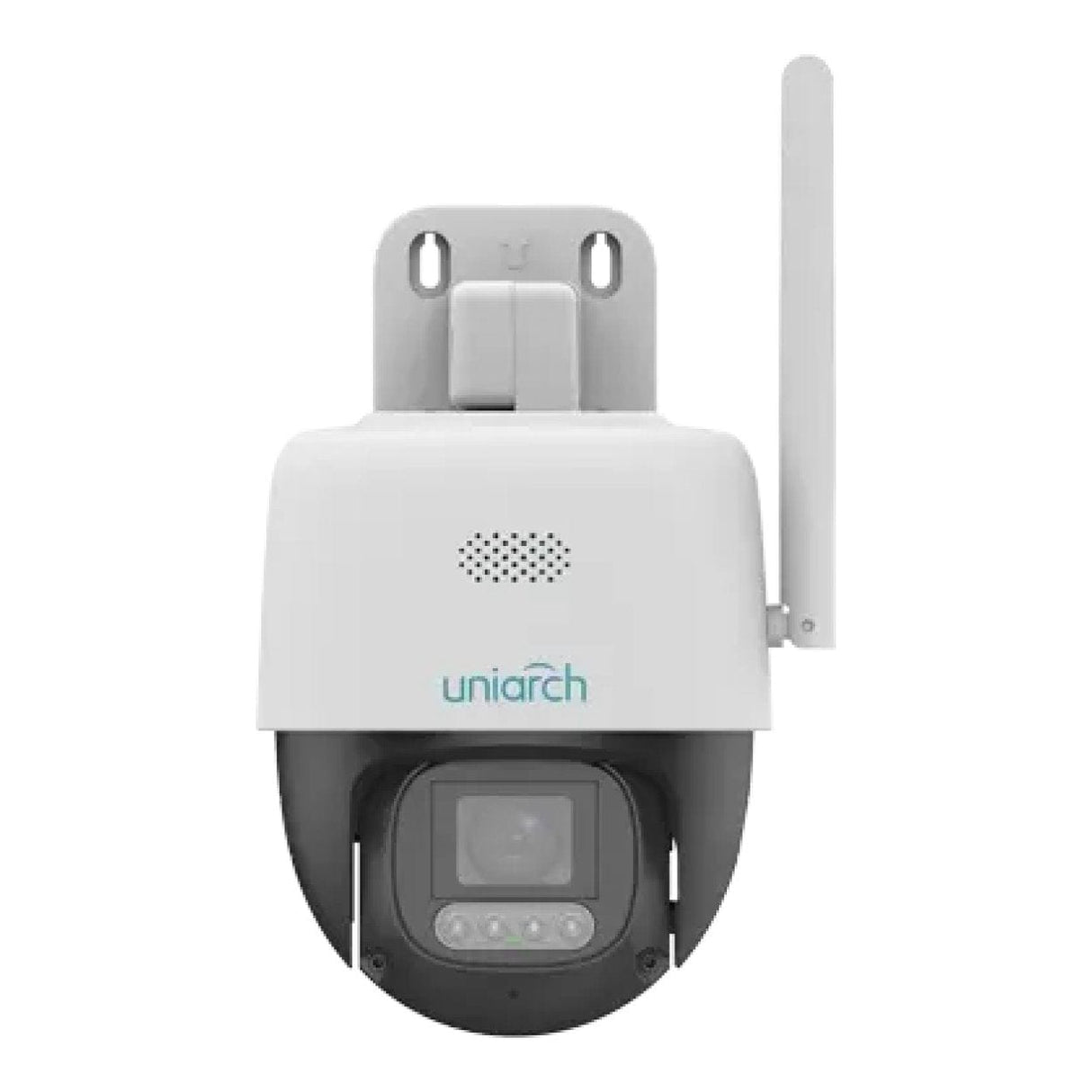

The Uniview Uniarch Uho-P3C-M5F4 is a 5MP PTZ IP camera designed for residential and commercial use. It delivers high-resolution video with remote pan and tilt control, allowing flexible monitoring of wide areas such as parking lots, courtyards, or building entrances. The 4.00mm fixed lens offers a broad field of view, while built-in infrared LEDs enable night vision up to 30 metres.

The camera includes a MicroSD card slot for local storage, supporting up to 512GB, and features Uniview’s Wise-ISP technology for enhanced image quality in variable lighting.

Features:

• 5MP resolution for detailed video capture
• 4.00mm fixed lens with a wide field of view
• Remote pan and tilt functionality
• IR night vision up to 30 metres
• MicroSD support up to 512GB
• Wise-ISP technology for image enhancement

Technical Specifications:

Sensor: 1/1.8" progressive scan CMOS, 5.0 megapixels. Minimum illumination is 0.0003 lux (F1.0, AGC ON). Shutter supports Auto/Manual, 1 s to 1/100,000 s. WDR: DWDR. Signal-to-noise ratio >52 dB.

Lens: Fixed 4 mm F1.0 lens with 4× digital zoom. Field of view: Horizontal 89.4°, Vertical 48.2°, Diagonal 94.7°. Iris type: Fixed.

DORI: For the 4 mm lens, detection distance is 62.1 m, observation 24.8 m, recognition 12.4 m, and identification 6.2 m.

Illuminator: Warm light up to 30 m with auto/manual control.

Video: Compression formats include Ultra 265, H.265, and H.264. Main stream supports 5MP (2880×1620) at 25 fps, 4MP (2560×1440) at 25 fps, 3MP (2304×1296) at 30 fps, 2MP (1920×1080) at 30 fps, and 720P (1280×720) at 30 fps. Sub-stream supports 640×360, 2CIF (704×288), CIF (352×288) at up to 30 fps. Video bit rate ranges from 128 Kbps to 6144 Kbps. ROI supports up to 8 areas. Dual streams supported. Up to 4 OSDs and privacy mask supported (NVR only).

Image Features: White balance modes include Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2. Digital noise reduction: 2D/3D DNR. Smart IR supported. Flip: Normal, Vertical, Horizontal, 180°. Defog: Digital Defog. HLC and BLC: N/A.

Events: Supports human body detection, motion detection, and audio detection. Auto tracking is supported. General functions include IP address filtering, access policy, ARP protection, RTSP/HTTP authentication, and user authentication.

Audio: Compression: G.711U/G.711A, bitrate 64 Kbps. Two-way audio supported with suppression. Sampling rate: 8 kHz.

Storage: Edge storage via Micro SD up to 512 GB, network storage with ANR support.

Network: 2.4G Wi-Fi (IEEE802.11b/g/n/ax) with built-in antenna. Protocols supported include IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP. API compatible for integration. Uniarch Client and Uniarch APP supported. Plug-in required live view via IE 10+, Chrome 45+, Firefox 52+, Edge 79+; plug-in free via Chrome 57+, Firefox 58+, Edge 16+.

Wi-Fi Specifications: Wireless standards IEEE802.11b/g/n/ax, frequency 2.4–2.4835 GHz, channel bandwidth 20/40 MHz. Modulation: 802.11b CCK, 802.11g/n OFDM, 802.11ax OFDMA. Security: 64/128-bit WEP, WPA-PSK/WPA2-PSK. Transmit power: 802.11b 17±1.5 dBm, 802.11g 16±1.5 dBm, 802.11n 16±1.5 dBm, 802.11ax 16±1.5 dBm. Receive sensitivity: 802.11b -76 dBm, 802.11g -65 dBm, 802.11n -61 dBm, 802.11ax -54 dBm. Transmission rates: 802.11b 11 Mbps, 802.11g 54 Mbps, 802.11n up to 150 Mbps, 802.11ax up to 270 Mbps.

Pan & Tilt: Pan range 0°–345°, speed 1°/s–40°/s, preset speed 40°/s. Tilt range 0°–90°, speed 1°/s–30°/s, preset speed 30°/s. 20 preset positions.

Interface: Built-in microphone and speaker. Wi-Fi supported. Network: 1× RJ45 10/100 Mbps Base-TX Ethernet.

Certifications: CE EMC, FCC, RF FCC ID, CE RED. Safety: CE LVD. Environment: CE-RoHS, WEEE. Protection: IP66 (IEC 60529).

General: Power DC 12V ±25%, max consumption 13.0 W, power interface Ø5.5 mm coaxial. Dimensions Ø118×118×199 mm. Weight 0.53 kg. Operating environment -30°C to 60°C, ≤95% RH. Surge protection 4KV. Reset button supported. LED indicator: 1 green.
